Termovizorius BOSCH GTC 12V-450-13

Trumpai apie prekę

Prekė: Termovizorius BOSCH GTC 12V-450-13. Kategorija: Detektoriai.

• Gamintojas: Bosch

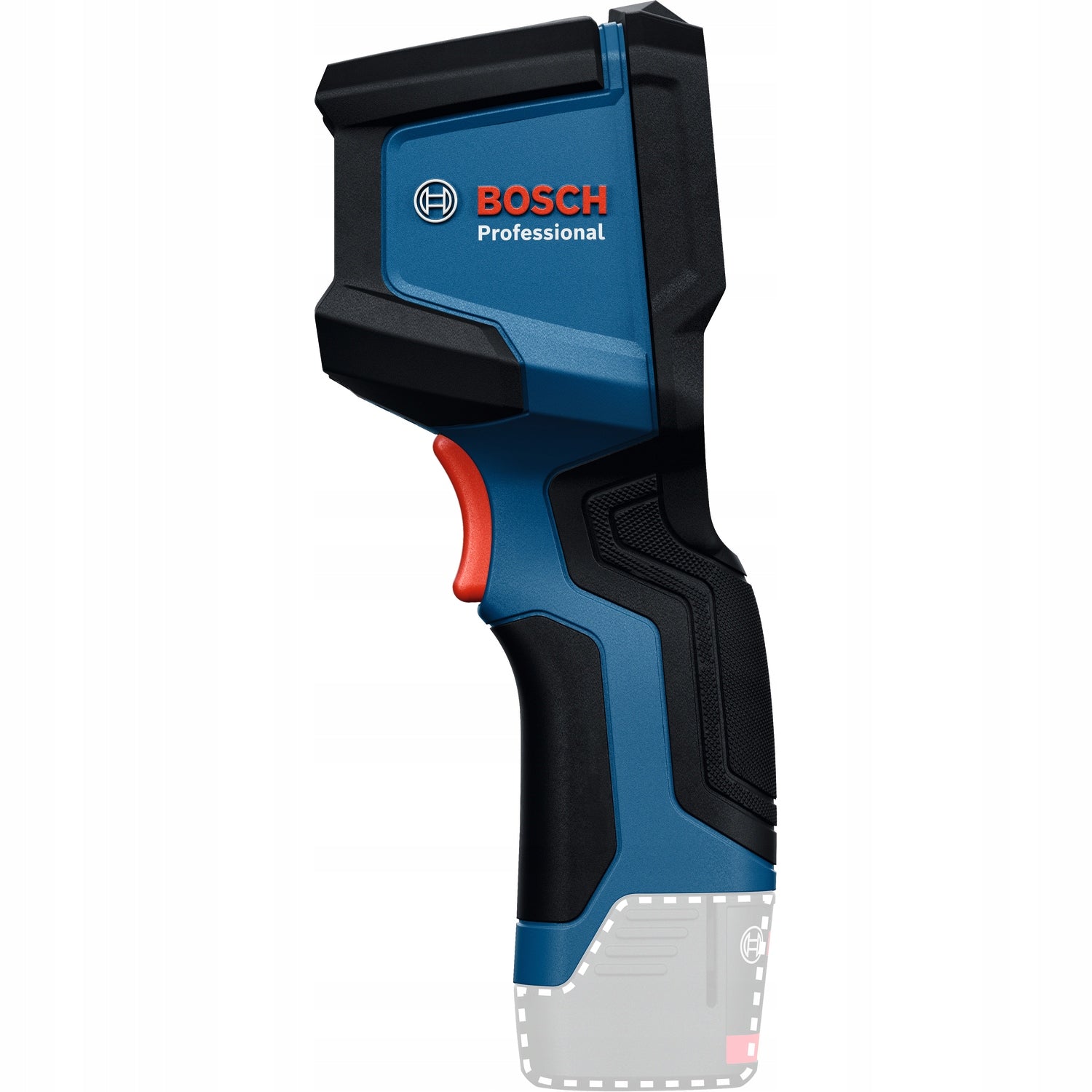

• Modelis: 0601083901

GTC 12V-450-13 PROFESSIONAL

Compact thermal imaging camera for quick and easy visualization of temperature differences

• Visualize temperature differences in a high-quality image with a single click
• Fast start-up, integrated laser, work lighting and camera for easy use
• Robust, compact design offering IP54 rating and impact resistance in the event of a fall from a height of up to 2 m

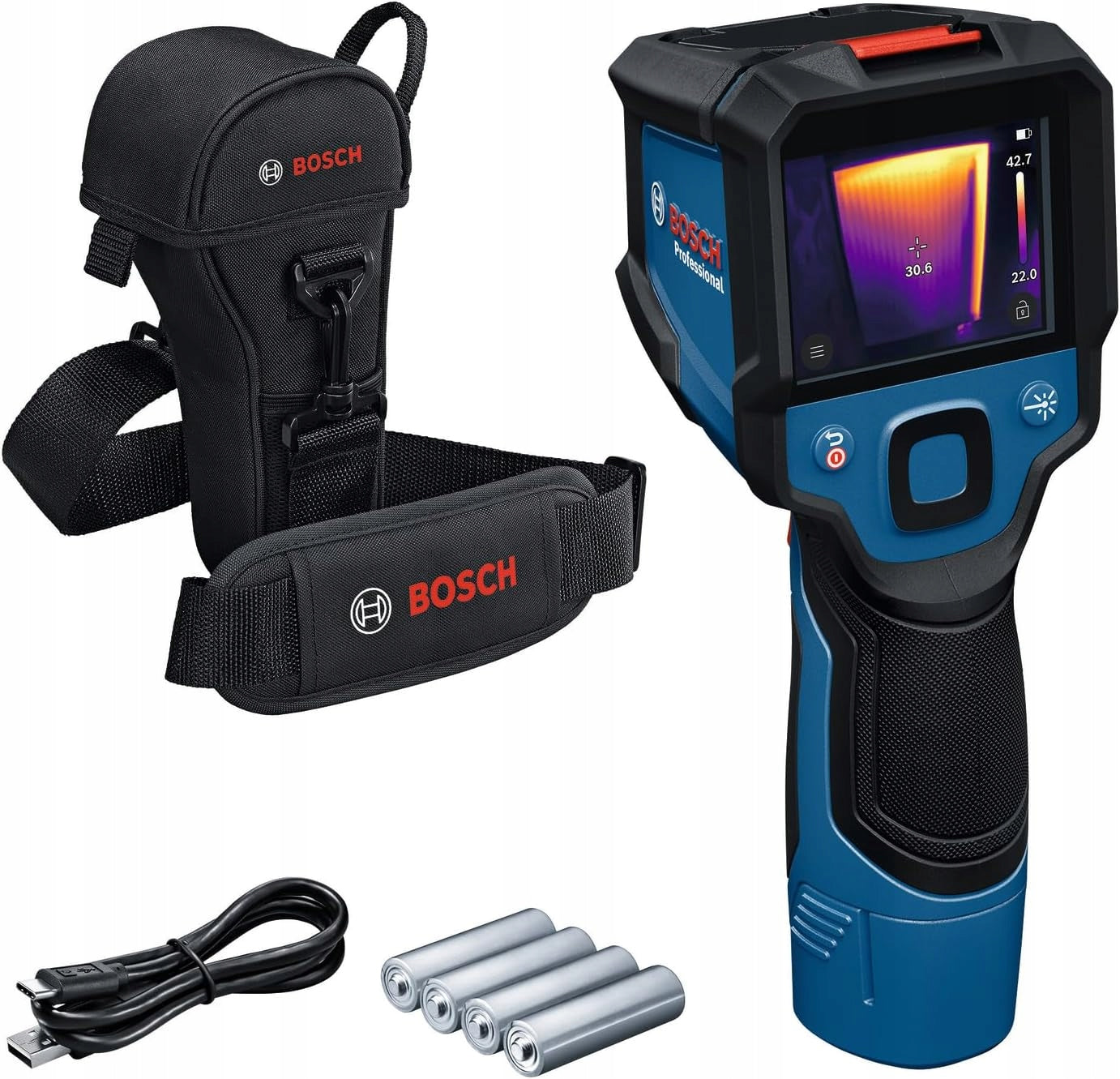

The set includes:

• Camera
• USB-C® 1 600 A01 L6H cable
• 1 tool bag
• Adapter for AA1 1 608 M00 C1B alkaline batteries
• 4 batteries 1,5 V LR6 (AA)

Additional information

• Battery Voltage: 12,0 V
• Measuring range: –20°C to +450°C
• IR measurement accuracy: ±2°C (middle point)ᵇ
• Applications: Thermal Image
• Data transmission: USB-C®
• Thermal sensitivity (NETD): < =50 mK
• Resolution: 0,1 °C
• Laser diode: Laser class 2, 645 – 660 nm

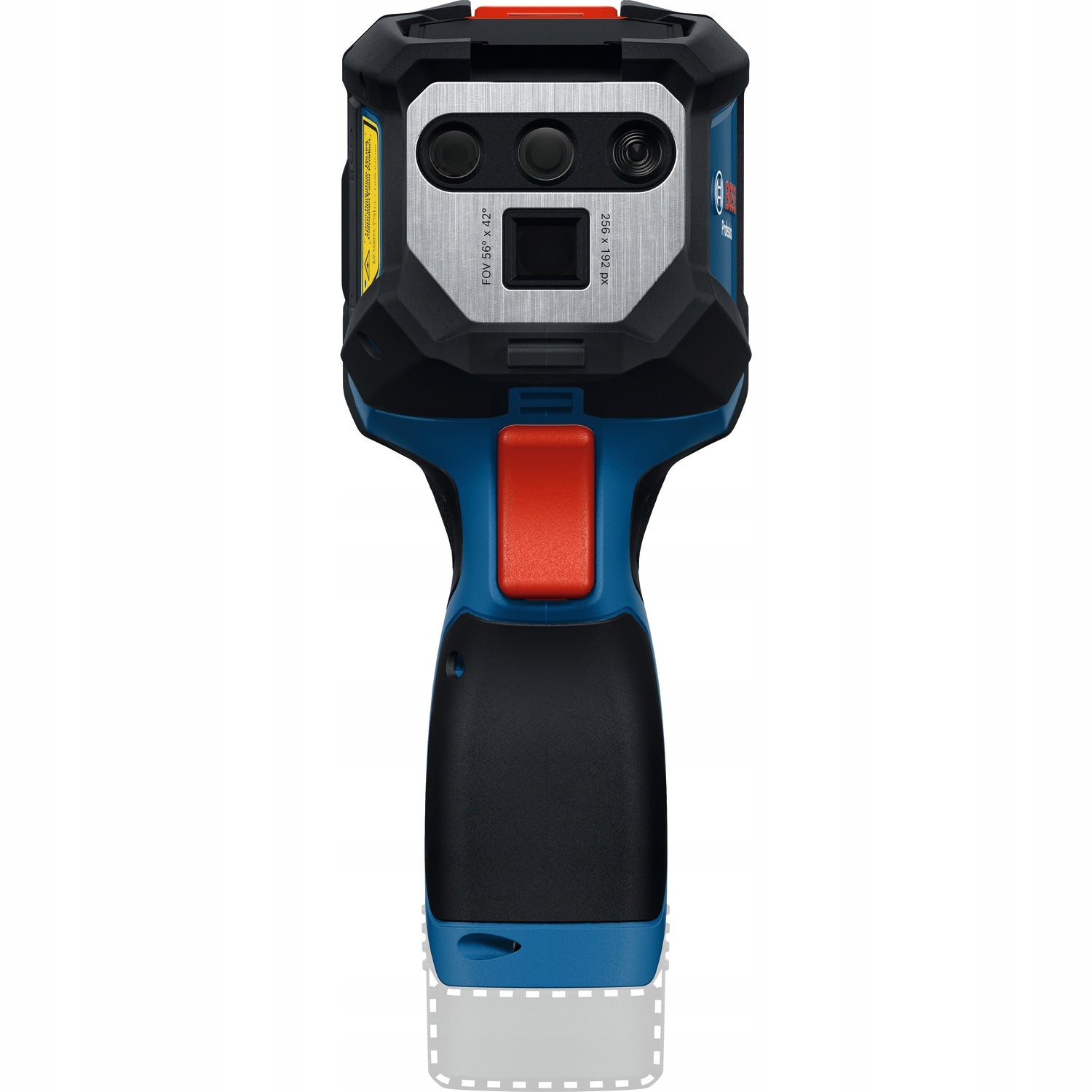

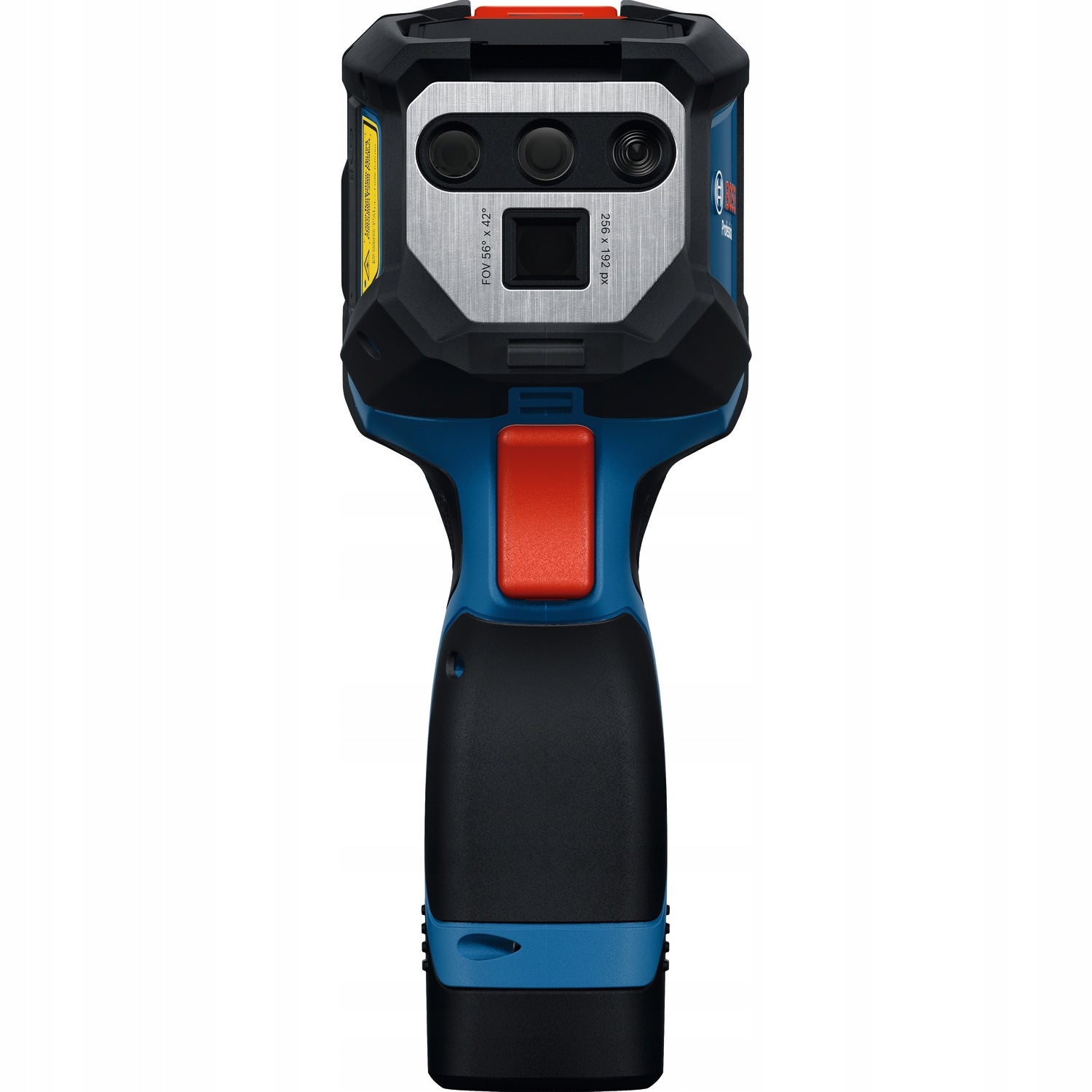

• IR sensor size: 256x192 px
• Number of measuring points: 49 152
• Field of view (FOV): 56x42 °
• Power supply and working time: 4 batteries 1,5 V LR6 (AA): working time 4 hours, 1 GBA 12 V battery: working time 8 hours
• Image memory (number of images): 500
• Memory Type: Internal Memory
• File format image: . jpg
• Fall protection: 2 m
• Dust and water protection: IP 54 (excluding lithium-ion battery and AA1 battery adapter)
• Weight: 0,35 kg

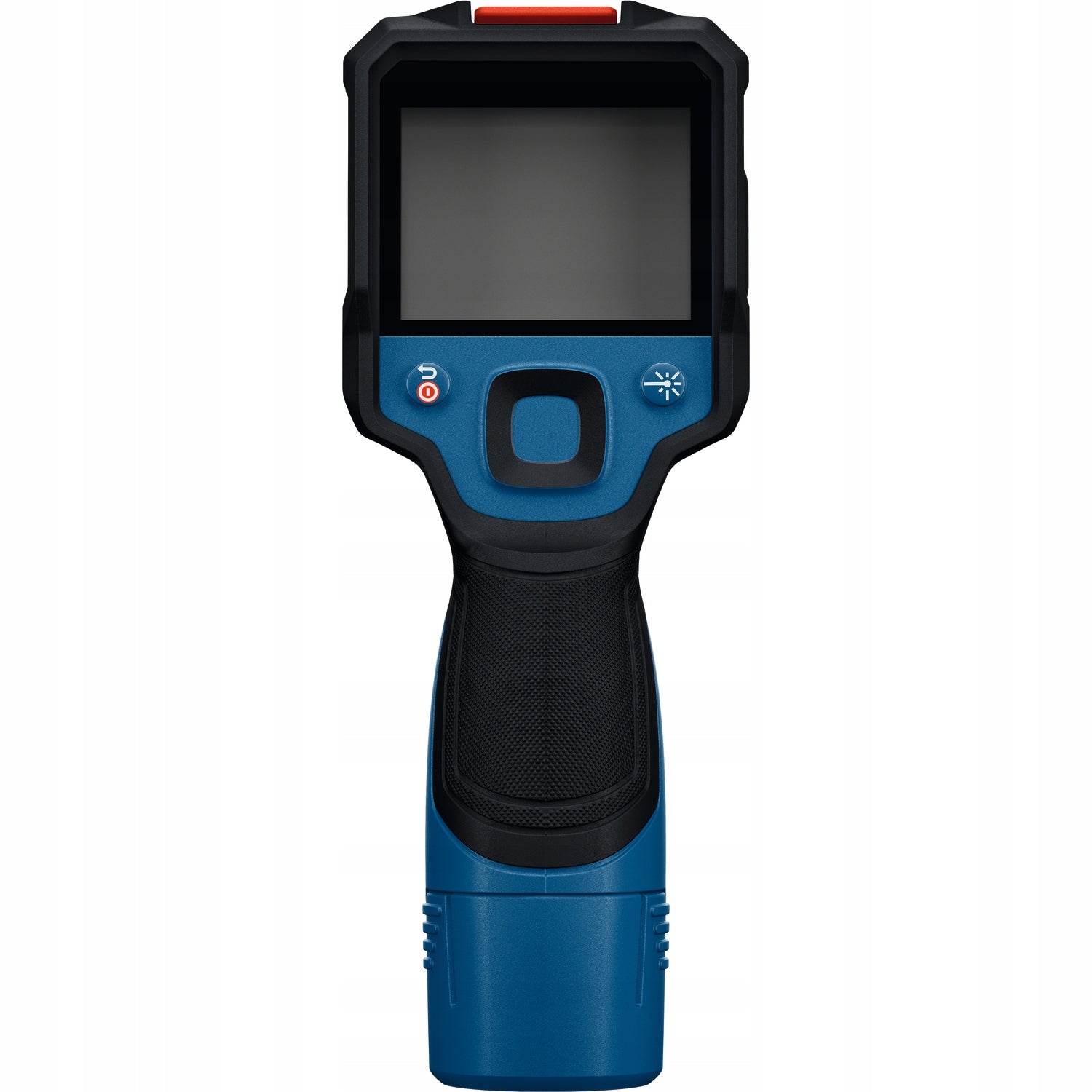

• Display Size: 2,8"
• Operating temperature: -10 – 50 °C
• Storage temperature: -20 – 50 °C
• Aiming distance, min.: 0,5 m
• Thermal Image Refresh Rate: 9 Hz

The most important features of the product

• The GTC 12V-450-13 Professional thermal imaging camera is the primary first choice tool for easy visualization of temperature differences.
• With a resolution of 256 x 192 px and a clear 2,8" display that allows you to fully concentrate on the thermal image, you can quickly analyze temperature differences in different environments.
• The compact design ensures that the tool fits easily in any tool bag, making it perfect for professionals.
• The IP54 rating, resistance to damage when falling from a height of 2 m and IR sensor cover make the camera well suited for harsh construction site conditions.

Equipment and application

• Designed for fast and efficient temperature analysis, the thermal imaging camera can be started in just 3 seconds.
• A wide field of view helps locate heating pipes, check heating and air conditioning systems, and identify problems with electrical components – especially indoors.
• With a user-friendly interface, working lighting for working in dark environments, a laser for marking the measuring point, and a camera for transparency and image-in-picture function, this thermal imaging camera is ideal for tasks related to the HVAC, industry, automotive, and renovation industries.

Additional information

• The GTC 12V-450-13 Professional offers flexibility with two power sources – the user can switch between 12V lithium-ion batteries and AA alkaline batteries to minimize downtime.
• The USB interface enables smooth capture and transfer of up to 500 images, which helps ensure high productivity.
• The thermal imaging camera is also compatible with accessories, e.g. With an AA1 battery adapter, it's ready to tackle any task.
