Termovizorius HIKMICRO Lynx 3.0 LE15

Trumpai apie prekę

Prekė: Termovizorius HIKMICRO Lynx 3.0 LE15. Kategorija: Detektoriai.

• Gamintojas: no brand
• Modelis: Hikmicro Lynx LE15

HIKMICRO Lynx 3.0 LE15 – an economical thermal imaging camera for hunters and nature lovers

The HIKMICRO Lynx 3.0 LE15 is a compact thermal imager designed for users who value simplicity, reliability and efficiency in the field. The new generation of the LE series continues the philosophy of lightness and mobility, offering features known from more expensive models but in a more accessible form. Compared to the LH series, LE line devices are designed as a practical and cost-effective solution for hunters, foresters and nature observers who need quick orientation in the dark, without having to invest in devices for professionals.

HIKMICRO Lynx 3.0 thermal imager – thermal imaging camera equipped with HSIS, Image Pro 3.0 and Zoom Pro

The Lynx 3.0 LE15 uses an improved high-sensitivity microbolometric sensor to guarantee clear images and smooth refresh rates – even in limited light. It is an ideal choice for those who are looking for a compact thermal imaging monocular with great value for money, providing a stable image, intuitive operation and modern technologies known from the higher HIKMICRO series.

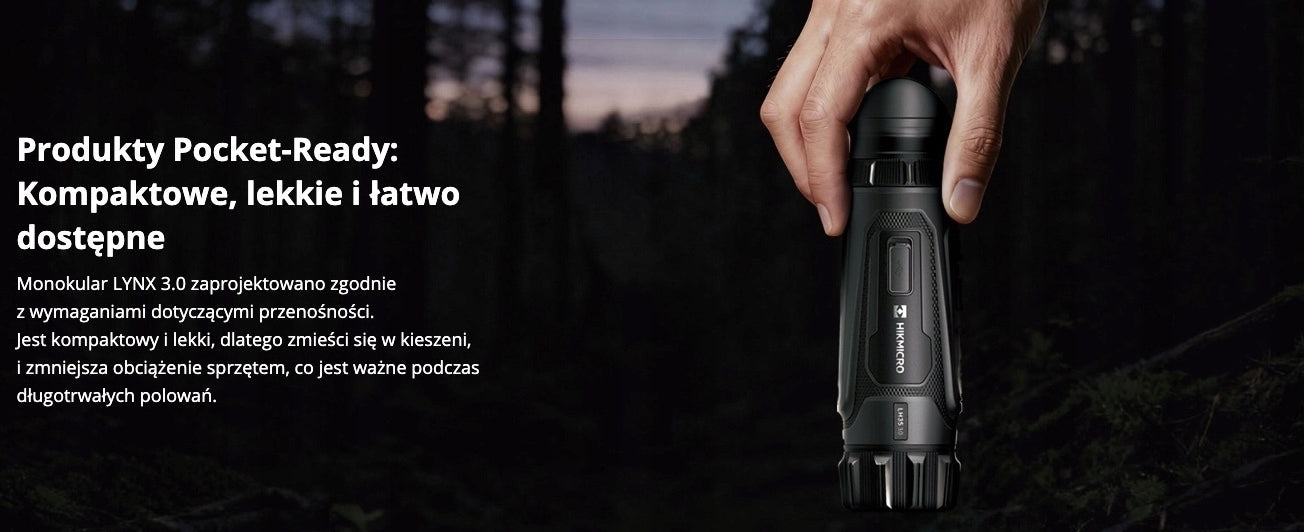

Thanks to the light and compact design they easily fit in the pocket of the hunting jacket and trousers, so they can constantly accompany us during nature observation, hunting or search and rescue operations. The camera's polymer body is resistant to mechanical damage and vibration and meets the protection standard IP67, so the device can be used regardless of the weather.

HIKMICRO Lynx 3.0 thermal imaging camera features:

• The detection range is up to 750 meters.
• High-quality sensor 256 × 192 with a sensitivity below 20 mK allows to obtain an image with precise thermal differentiation.
• The 0,39" AMOLED display with a resolution of 1024 × 768 guarantees a clear picture of the target.
• Optical and digital approximation allows for precise identification of the target.
• Ability to save images and record video on integrated memory.
• Thanks to the large buttons, the device can be operated even with thick gloves.
• Six color palettes allow for imaging according to the user's preferences.
• Tight and durable housing (IP67 rating).
• The power system uses a rechargeable and replaceable 18650 battery.
• Thanks to the USB-C port, the device can be conveniently powered using an external source, e.g. power bank

HIKMICRO Lynx 3.0 LE15 thermal imaging camera – sensitivity and precision

The extremely effective sensor VOx 12 μm with NETD 20 mK ensures perfect target recognition against the ground and guarantees a clear, detailed image even in absolute darkness. The LE15 uses a display with a resolution of 1024 × 768 to provide a clear and detailed picture of the target.

Energy saving mode and digital magnification

An element that significantly extends the camera’s operating time is the energy saving mode, which automatically turns off the display after a certain period of time. The screen is reactivated immediately after clicking any button on the control panel.

The 2,2× optical zoom is supported by 8 × digital zoom (17,6 × total magnification), which also allows the user to see small objects over a long distance.

HIKMICRO Lynx LE15 thermal imaging camera – rangefinder and four display modes

The Lynx series cameras have a built-in static rangefinder, which allows you to easily and quickly pre-measure the distance to the observed target.

Each of the Lynx series cameras has 64 GB of internal memory, where you can save and store photos and videos of hunting or observation.

Lynx cameras offer 6 popular display modes. The color palettes used allow you to image the scene according to our preferences. The user can choose between:

• White hot – warm in light color. The higher the temperature, the brighter the tone.
• Black hot – warm in dark color. The higher the temperature, the darker the tone.
• Red hot – a picture like in “white hot” with red highlighting of the warmest elements
• Fusion – from high temperature to low temperature, the colors go from white, yellow, red, pink to purple.
• Red Monochrome – red monochrome palette allows for long-term observation without eye strain.
• Green Monochrome – green monochrome palette allows for long-term observation without eye strain.

Efficient HIKMICRO Lynx thermal imaging camera

Thanks to the use of technology with low energy consumption and efficient battery type 18650, the camera can work continuously up to several hours. The extended operating time makes the camera perfect for all-night hunting or hours of observation. The camera can also be connected to an external “power bank” to prolong its uninterrupted operation. The USB-C socket is used for charging and data transmission.

Technologies in the HIKMICRO Lynx 3.0 thermal imaging camera:

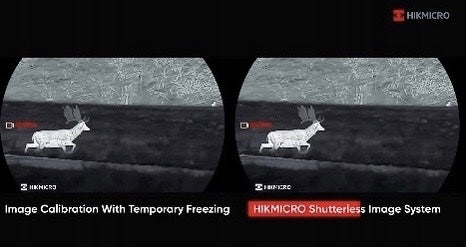

• HSIS (HIKMICRO Shutterless Image System) is a thermal imaging technology that eliminates the need for a shutter to calibrate an image, which prevents interruptions in observation and loss of image quality. This system works on the basis of continuous, dynamic analysis and optimization of the background image, which allows for smooth and uninterrupted operation of the device, without the need to take periodic breaks for calibration.
• Image Pro 3.0 is the latest software update for HIKMICRO thermal imaging devices, which significantly improves image quality through better sharpness, contrast and contours, and also adds automatic target highlighting. This enables better recognition of game in various conditions, which is especially useful during hunting and observation.
• Zoom Pro is a digital magnification technology that improves image quality. Combined with other features such as the advanced Image Pro algorithm, it is designed to provide a sharp and detailed image, even at high close-ups.

Technical specification – Hikmicro Lynx LE15 3.0

• Model: Lynx LE15 3.0

• Series: Lynx 3.0

• Detector: VOx uncooled, 12 µm

• Detector resolution: 256 × 192 px

• Sensitivities (NETD): < 20 mK (@25 °C, F1.0)

• Refresh rate: 50 Hz

• Lens: 15 mm / F1.0

• Field of view (FOV): 11.7° × 8.8° (≈ 20.5 m × 15.4 m @ 100 m)

• Optical magnification: 2.2× – 17.6× (8× digital zoom)

• Detection range: up to ≈ 750 m

• Display: 0.39″ AMOLED, 1024 × 768 px

• Color palettes: White Hot, Black Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

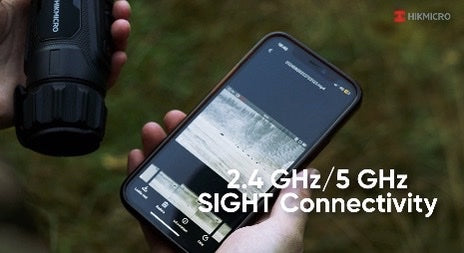

• Connectivity: Wi-Fi (2.4 GHz / 5 GHz), USB-C, HIKMICRO Sight app

• Power Supply: Replacement Lithium-Ion 18650 Battery

• Working time: to approx. 6 hours of continuous operation (approx. 5.5 h at –20 °C)

• Resistance: IP67 – waterproof and dustproof; resistant to shocks and off-road conditions

• Operating temperature range: –30 °C to +45 °C

• Dimensions: 156.3 × 53.6 × 49.5 mm

• Weight: ≈ 296.5 g

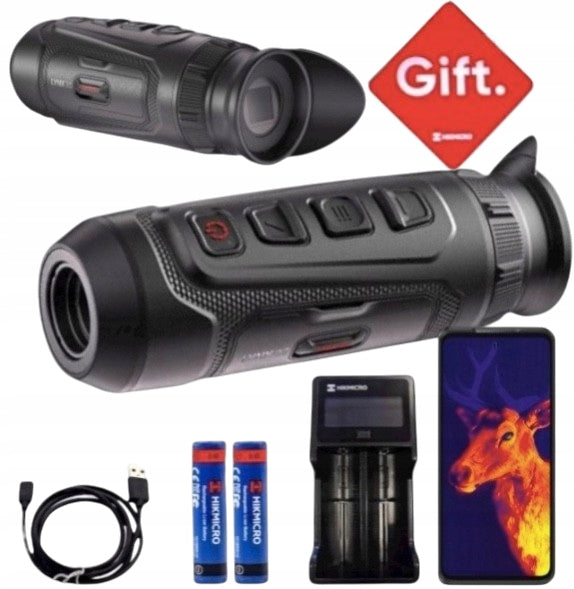

The set includes

• HIKMICRO Lynx 3.0 LH19 thermal imager
• 2 × battery 18650
• USB-C cable and AC charger
• Microfiber cloth
• User manual EU
