Termovizorius Mileseey TR256A, 256x192, 550 °C, IP65, 5000 mAh, LCD, 20 Hz

Trumpai apie prekę

Prekė: Termovizorius Mileseey TR256A, 256x192, 550 °C, IP65, 5000 mAh, LCD, 20 Hz. Kategorija: Detektoriai.

• Gamintojas: Mileseey
• Modelis: TR256A

The Mileseey TR256A thermal imaging camera is designed for users who demand maximum accuracy and reliability in all conditions. Equipped with a high-resolution sensor of 256× 192 pixels, it offers a clear thermal image and a wide field of view of 56 × 42°, allowing you to quickly identify problems in installations and devices. The wide temperature measurement range from -20°C to 550°C makes it suitable for both everyday applications and demanding industrial environments. Functions such as temperature alarm, hot and cold point detection or 6 color palettes increase data readability and comfort of work. The whole is enclosed in a durable housing with IP65 protection class, ready to work in difficult conditions.

⚙ Specification:

• Manufacturer: Mileseey
• Model: TR256A
• Thermal resolution: 256 × 192 (49 152 pixels)
• Screen resolution: 640 × 480
• Temperature range: from -20°C to 550°C
• Field of view: 56° × 42°
• Accuracy: ± 3°C
• Refresh rate: < 20 Hz
• Thermal sensitivity: ≤ 50 mK
• Pixel size: 12 μm
• Measurable distance range: from 0,3 m to 3 m
• Color palettes: 6 color palettes
• Battery: Lithium battery with a capacity of 5000 mAh
• Memory: External 8GB MicroSD card
• IP rating: IP65
• Weight: 540 g
• Dimensions: 238 × 95 × 85 mm

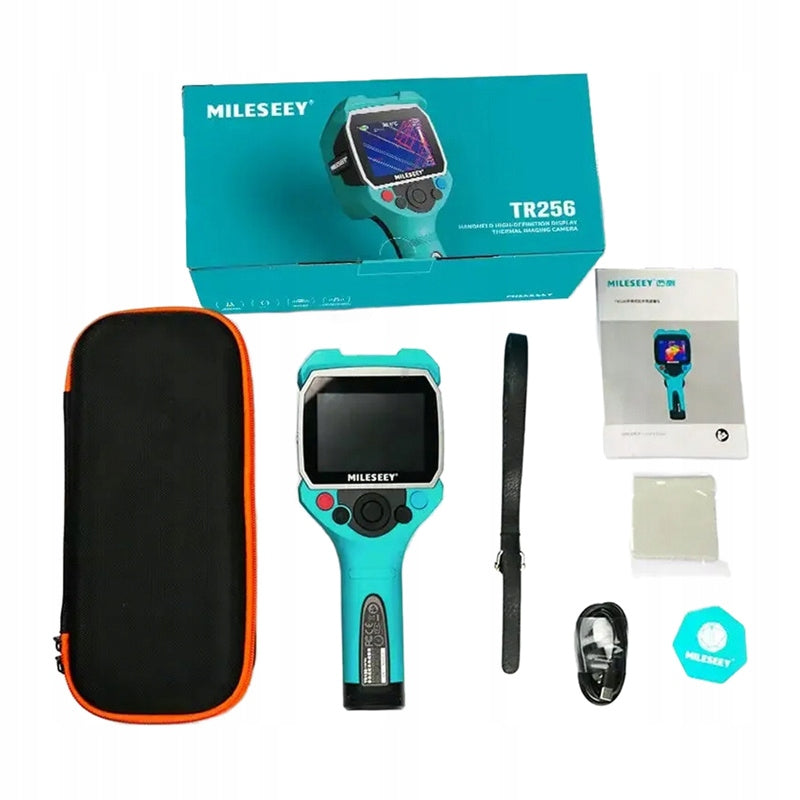

🔘 Included:

• Thermal imaging camera
• Storage case
• Pendant
• Charging cable
• User manual

✅Advantages:

✔ High thermal resolution 256 × 192 px – 49 152 measuring points allow you to quickly detect overheating elements, leaks and other faults

✔ Wide measuring range from -20°C to 550°C – the camera will work well for inspections of installations, heating, cooling and industrial equipment

✔ Automatic detection of critical points – tracking the warmest and coldest places and temperature alarm facilitate quick diagnosis

✔ Durable IP65 housing – resistance to dust and moisture allows you to work confidently even in more difficult terrain conditions

🔘 High resolution - more details, faster diagnosis 🔘

The heart of the device is an advanced thermal sensor with a resolution of 256 × 192 pixels (49 152 measuring points), which provides an extremely detailed image. Thanks to this, the camera allows you to accurately locate the sources of problems (from overheating components to leaks in insulation). Clear thermal images translate into faster service decision-making and more effective corrective actions.

🔘 Wide temperature range 🔘

The Mileseey TR256A supports an impressive temperature measurement range of -20°C to 550°C, making it an extremely versatile tool. It will work both when inspecting installations at low temperatures, as well as when diagnosing devices operating in high heat. Such a wide range allows for precise temperature monitoring in almost any situation - from routine inspections to advanced technical applications.

🔘 Intelligent detection of critical points 🔘

The device automatically tracks the warmest and coldest points in the analyzed area, allowing you to detect irregularities instantly. The function of blocking the minimum and maximum temperatures and the ability to set your own alarm thresholds allow you to adjust the operation of the camera to specific operating conditions. It is a solution that significantly increases the effectiveness of diagnostics and minimizes the risk of overlooking key temperature changes.

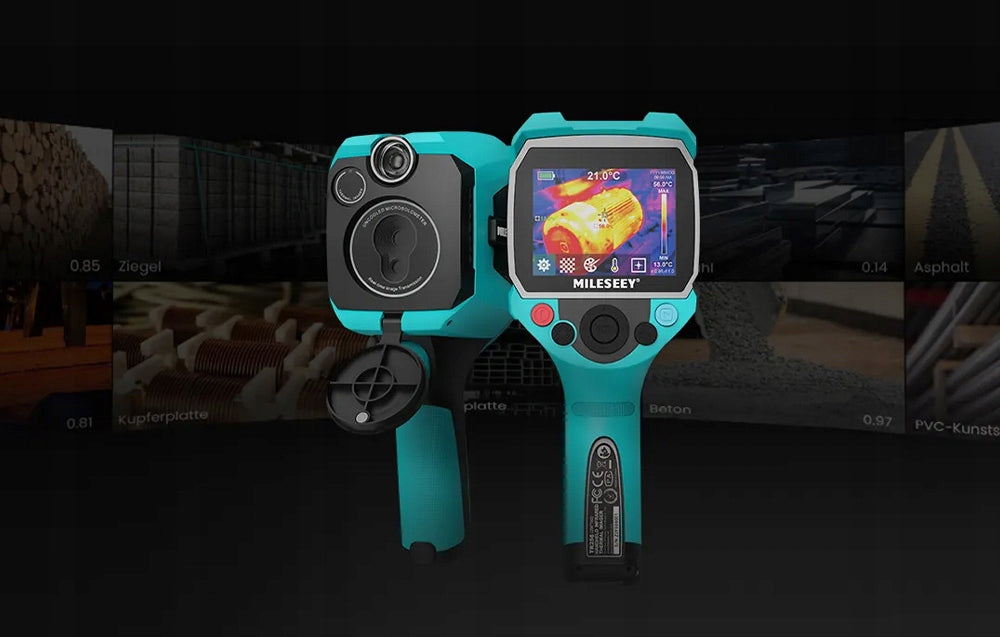

🔘 Precise analysis thanks to emissivity regulation 🔘

Mileseey TR256A allows you to adjust the emissivity, which allows you to accurately adjust the measurement parameters to different surfaces. Thanks to this, the camera provides more reliable results regardless of the type of material - from metal to plastics. This is particularly important when working in diverse environments, where the thermal properties of objects can vary significantly.

🔘 6 colour palettes 🔘

Six high-quality color palettes are available: Rainbow, White Hot, Iron, Arctic, Lava and Medical. Each of them allows a different presentation of the temperature distribution, which facilitates the analysis of data depending on the conditions and specifics of the task. The ability to choose the right visualization mode translates into better interpretation of the results and greater convenience of work.

🔘 See more in one frame 🔘

With a wide field of view of 56 × 42°, the camera covers a larger area without having to change position. This is particularly useful when inspecting large areas, such as walls, installations, and industrial systems. A greater range of observations means faster work and greater efficiency in the field. In addition, the housing meeting the IP65 standard guarantees resistance to dust, moisture and other external factors. Thanks to this, the Mileseey TR256A retains full functionality even in demanding work environments.

🔘 Versatile use 🔘

The camera is ideal for inspections of buildings, allowing the detection of deficiencies in insulation, air leaks or damage caused by moisture. It also performs well in the diagnostics of HVAC systems and during the inspection of electrical and mechanical installations. It is a tool that significantly improves the work of specialists and allows you to react faster to potential failures.
