Termovizorius UTi720E 256x192 su WiFi

Trumpai apie prekę

Prekė: Termovizorius UTi720E 256x192 su WiFi. Kategorija: Detektoriai.

• Gamintojas: UNI-T
• Modelis: lechpol

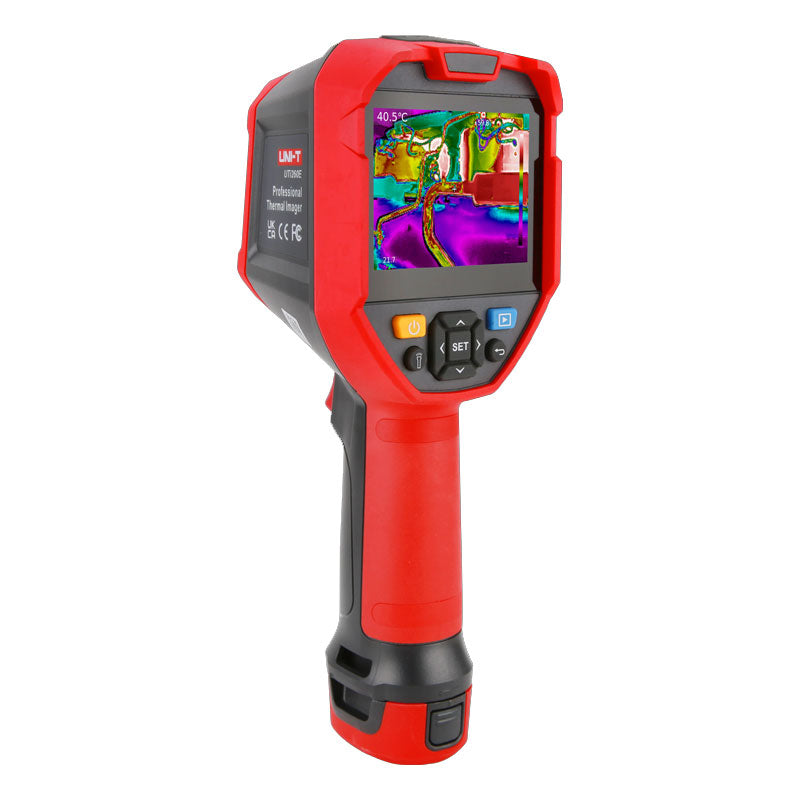

UTi720E is an advanced thermal imaging camera with Wi-Fi support. Its large 3,5-inch IPS screen can clearly display 2MP visual camera image with 256 x192 thermal imaging resolution or mixed image of both. The detachable 5200mAh UTi720E battery is also convenient for easy and fast battery replacement, allowing uninterrupted operation for a long time.

UTi720E is an economical thermal imaging camera with great capabilities

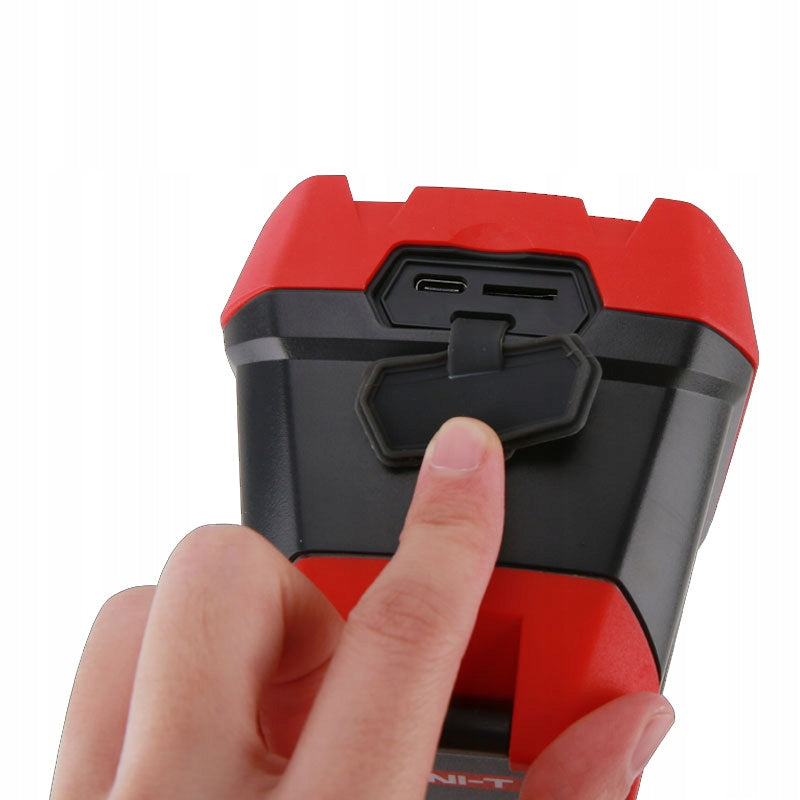

The UTi720E thermal imaging camera is a thermal imaging camera designed to measure surface temperature from -20°C to 550°C. The ability to save images to a micro SD card and transfer them to a computer for further processing using the provided software using the output data on the USB-C connector. The ability to select units °C or °F. Setting the emissivity according to the measured objects. Display on IPS 3,5" display. Replaceable Li-ion 3,6 V battery with a capacity of 5200mAh, which is charged in the device via USB-C connector.

Technical data:

• UTi720E thermal imaging camera manufactured by Unit
• equipped with IPS

  ▶ color screen diagonal 3,5 inch

  ▶ screen resolution: 640x480 pixels

• infrared resolution: 256x192
• Temperature measurement range: -20℃ to 550℃
• automatic alarm for high/low temperature
• automatic hot spot/cold spot tracking
• screen analyzer: 5 points/1 line/3 rectangles/3 circles
• Image capture
• digital camera resolution: 2MP
• Digital zoom: 2x, 4x
• image modes: thermal, visual image, fusion, PIP
• color palettes: 7 (white hot, black hot, red hot, Ironbow, HC Rainbow, Rainbow, Lava)
• isotherm (automatic/coefficient/below/above/section/manually)

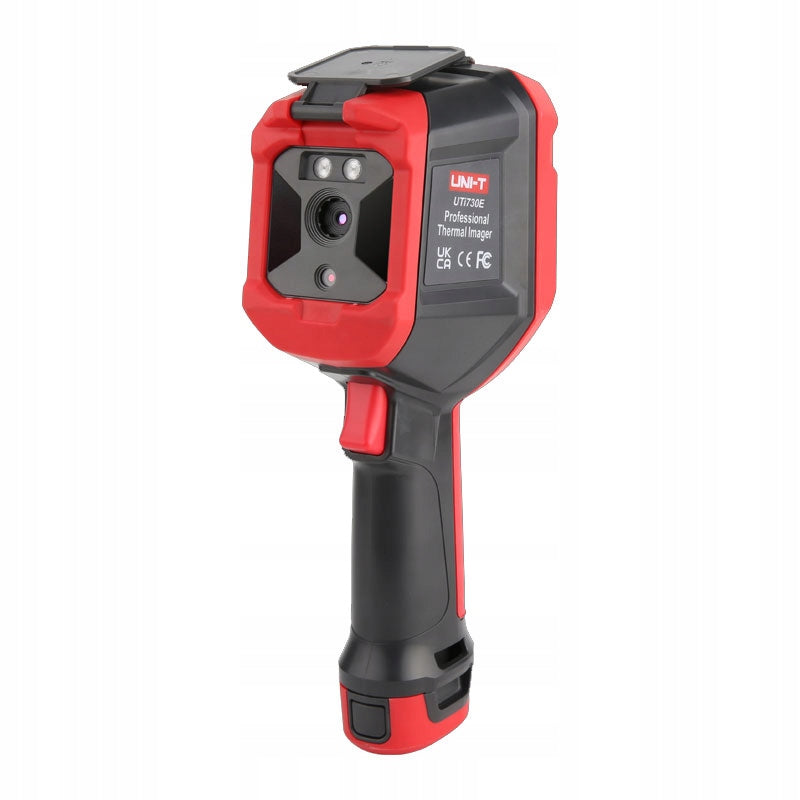

• LED flash type
• Wi-Fi connection via mobile app
• QR Code – photo management
• computer software: real-time image analysis and projection
• 5200 mAh replaceable battery (rechargeable type C)

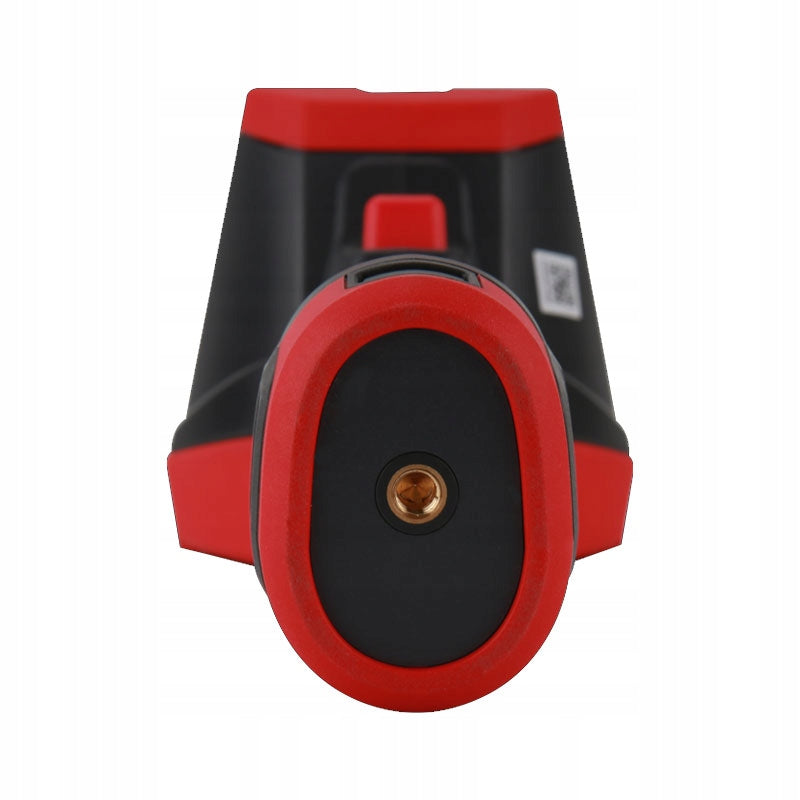

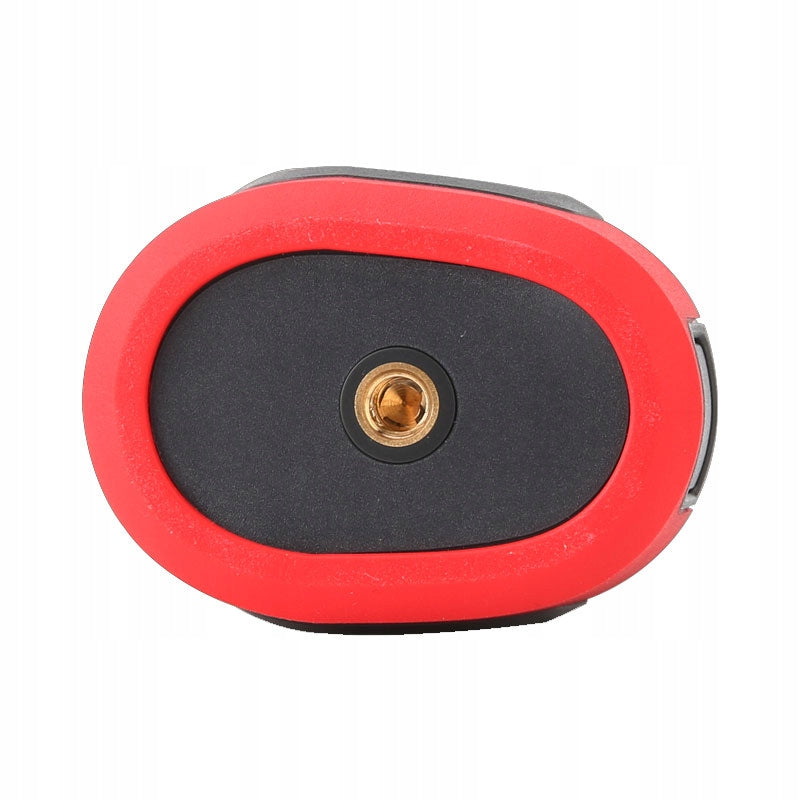

• 1/4” tripod mounting hole.
• IP54
• resistance to falling from 2 meters

Applications - examples of applications of thermal imaging camera UTi720E

The practical applications of the offered UTi720E thermal imaging camera are very wide: PCBA circuit board inspection during service and electronics production, motor control, car maintenance, solar panel inspection, electrical distribution cabinet inspection, electrical equipment inspection, mechanical equipment inspection, heating equipment inspection, building and HVAC inspection, etc.

• Inspection of the power tower - power poles - transmitters - masts

Due to the complex working environment, long working time and other factors, the devices and power circuits will have thermal defects. Non-contact thermal imaging cameras are the optimal choice for detecting them. With temperature measurements, image analysis, intelligent diagnostics and other technologies, operators can detect hazards and faults from a safe distance in time to reduce accidents and ensure the normal operation of the power grid.

• Pipeline inspection - plumbing

The phenomenon of aging, corrosion, clogging, seepage, etc. It will appear when the pipeline is used for a long time, so it should be checked regularly. The thermal distribution of each part can be directly shown using thermal imaging cameras. With the help of thermal imaging cameras, faults can be quickly located. Take targeted action at the right time to reduce maintenance costs.

• Inspection of solar panels - photovoltaics

Thermal imaging cameras are used to detect the heat distribution of solar panel components to find and locate the source of the problem, reduce troubleshooting time and improve maintenance efficiency.

• HVAC inspection - air conditioner outlet control

As the operating time of the air conditioner increases, problems may arise, such as slow cooling, difficult heat dissipation and poor internal wiring contact. These defects are difficult to see with human eyes. Users can use thermal imaging cameras to quickly detect problems and take effective action.

Smartphone app - WiFi communication

The phone application allows you to connect the camera to your smartphone or tablet using a dedicated UNI-T Thermal Link application

The application allows you to:

- preview of photos from thermal imaging, visible image and fragment of image from thermal imaging in visible image

- Adding description, notes

- generate a report with photos and description

- sending a PDF report to the e-mail via the mail application

- Drawing with marking areas and elements

- drawing the area with additional measuring points and MIN and MAX values marked

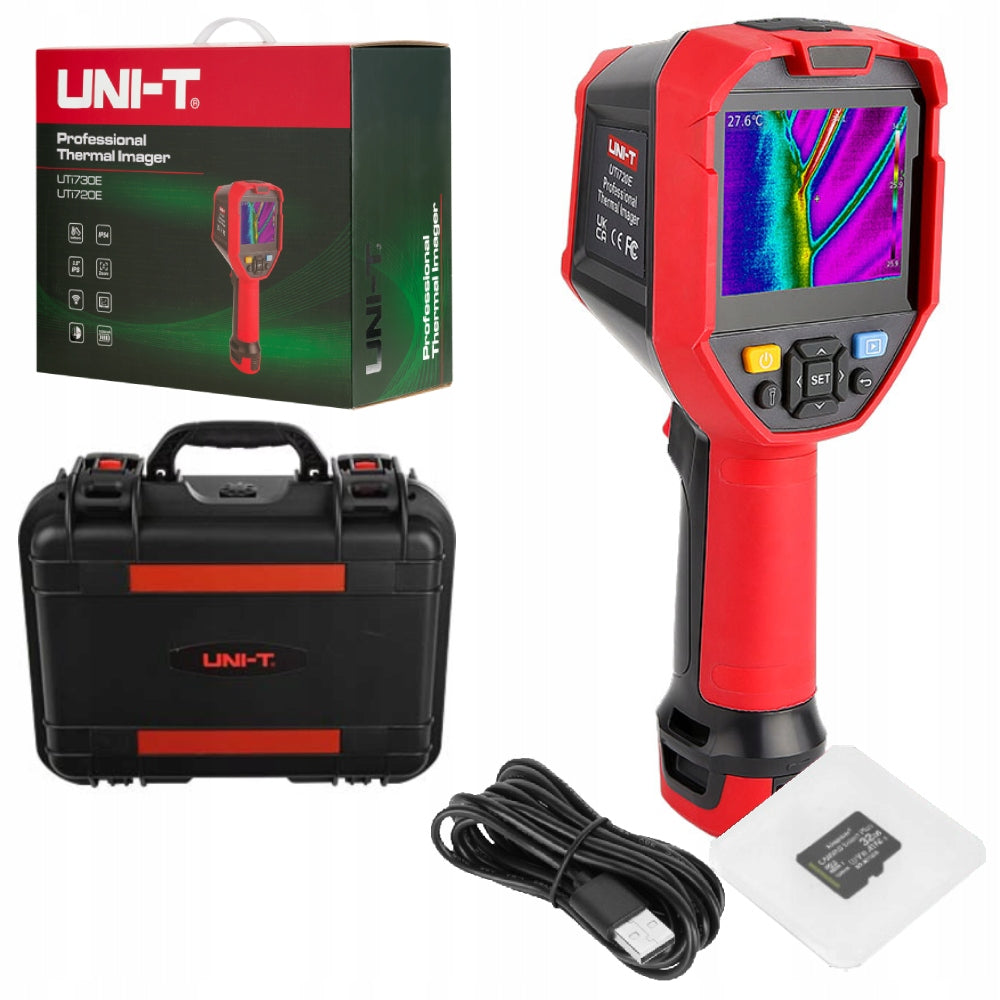

The set includes:

• UTi-720E Unit thermal imaging camera
• USB cable
• 16GB SD memory card
• original cardboard with colorful graphics
