TIG suvirinimo aparatas ESAB Rogue ET 201iP PRO, 200A, HF, DC, impulsinis

Trumpai apie prekę

Prekė: TIG suvirinimo aparatas ESAB Rogue ET 201iP PRO, 200A, HF, DC, impulsinis. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: ESAB
• Modelis: Rogue ET 201iP PRO

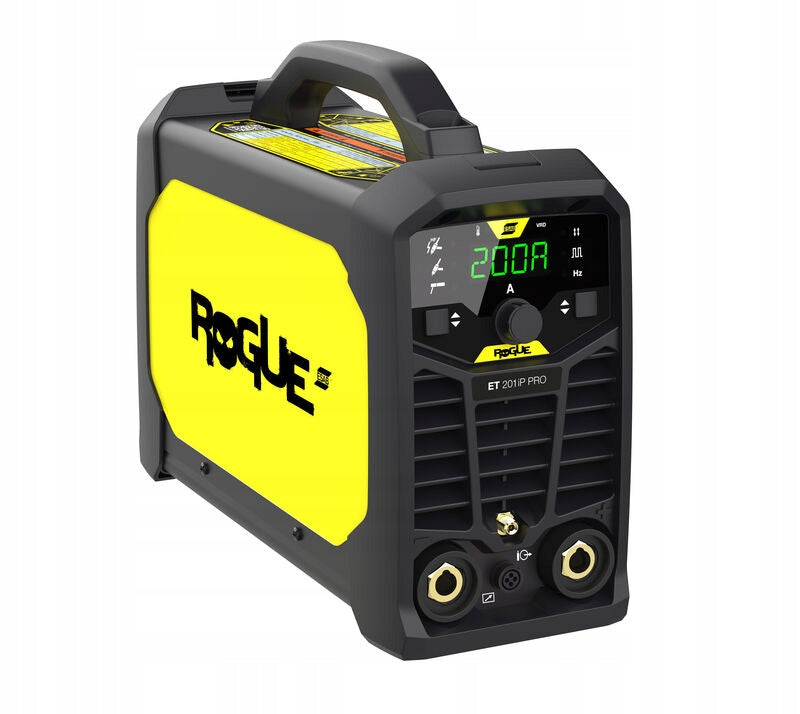

Rogue ET 201iP Pro is a powerful TIG welding machine with high frequency arc ignition.

This easy-to-use device is equipped with a robust and durable housing with IP23S protection. Weighing only 9,6 kg, the lightweight design features an ergonomic handle, carrying strap and long extension cords for maximum mobility.

Rogue ET offers exceptional arc properties in both TIG and MMA (electrode) mode. If you want more control over the welding process, the device allows you to easily adjust TIG parameters such as: gas preflow, inrush current, rise time, descent time, final current and gas final flow. All these parameters can be programmed in 2- or 4-bar mode, which gives you even more control over the arc.

In addition, the Rogue ET 201iP Pro offers a pulse function with adjustable background current and frequencies up to 500 Hz, which allows better control of the amount of heat input. In MMA mode, Hot Start and Arc Force functions can be adapted to individual preferences and applications.

The new Pulse SMAW feature increases the efficiency of the device and improves control over the heat input, which minimizes deformation of thin materials, facilitates welding in difficult positions without undercuts and reduces splashes. Thanks to this, many welding defects can be effectively avoided.

• High frequency TIG – prevents contamination of the weld and improves its quality.
• Pulse SMAW function – better heat control, less deformation and reduced spatter.

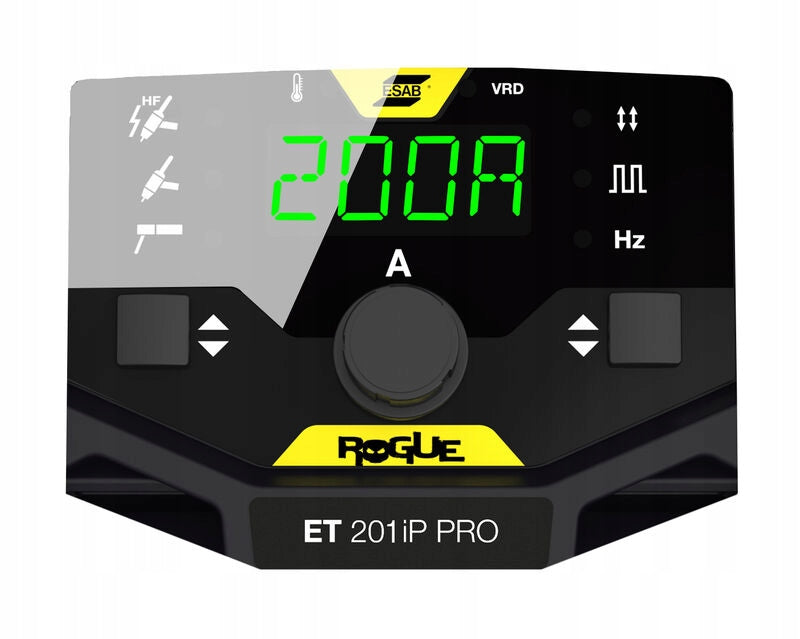

• Intuitive operation – a wide range of arc parameter adjustment for greater welding control; the ability to work with generator sets.
• Robust IP23S housing – for workshop and field work.
• Advanced TIG parameters adjustment and pulse function up to 500 Hz.
• Power factor correction (PFC) – stable arc resistant to voltage fluctuations, even when working with extension cords up to 100 m.
• Compatible with current control pedal (sold separately).

Application:

• food industry (food and beverage)
• repair and maintenance
• general construction
• agricultural equipment
• industrial and general production

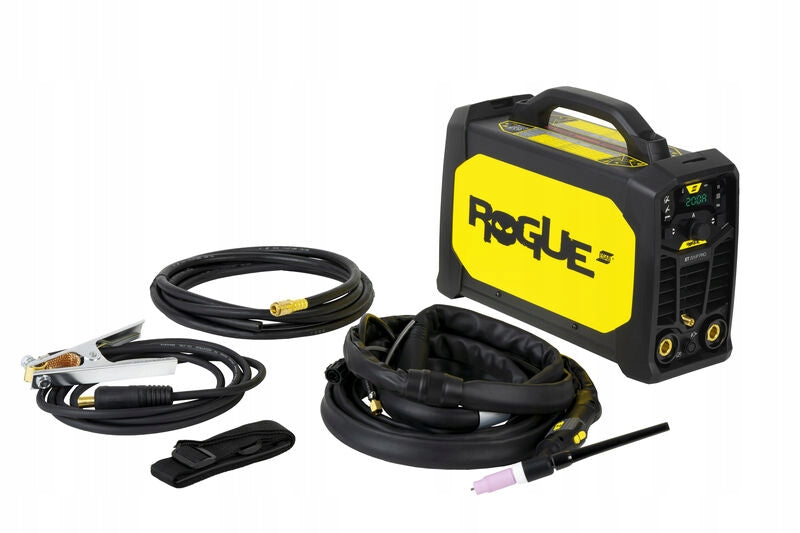

Equipment:

• TIG welding torch SR-26 4 m
• mass cable 3 m with clamp

• Power supply: 120V/230V
• Rated power: 7 kVA
• Energy saving mode: 50W
• Idle voltage: 78 V DC
• Welding current/ Efficiency: 200A/25%; 129A/60%; 100A/100%
• Current control range: 10-200A
• Network security: 16A
• Working temperature: -10 to +40 °C
• Dimensions: 403 x 153 x 264 mm
• Weight: 9,6 kg
