TIG suvirinimo aparatas Ideal Expert 222 PULS HF Synergy SPOT, 200A, AC/DC, 2T/4T, SMART

Trumpai apie prekę

Prekė: TIG suvirinimo aparatas Ideal Expert 222 PULS HF Synergy SPOT, 200A, AC/DC, 2T/4T, SMART. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Expert TIG 222 AC/DC Pulse LCD

Welding methods: TIG AC/DC, TIG DC, MMA | Important functions: Full Synergy, Pulse, 2T/4T, TIG MIX | Welding current: to 200A

⏩IDEAL EXPERT TIG 222 AC/DC - TAKE WELDING TO THE NEXT LEVEL WITH THE "EXPERT" SERIES

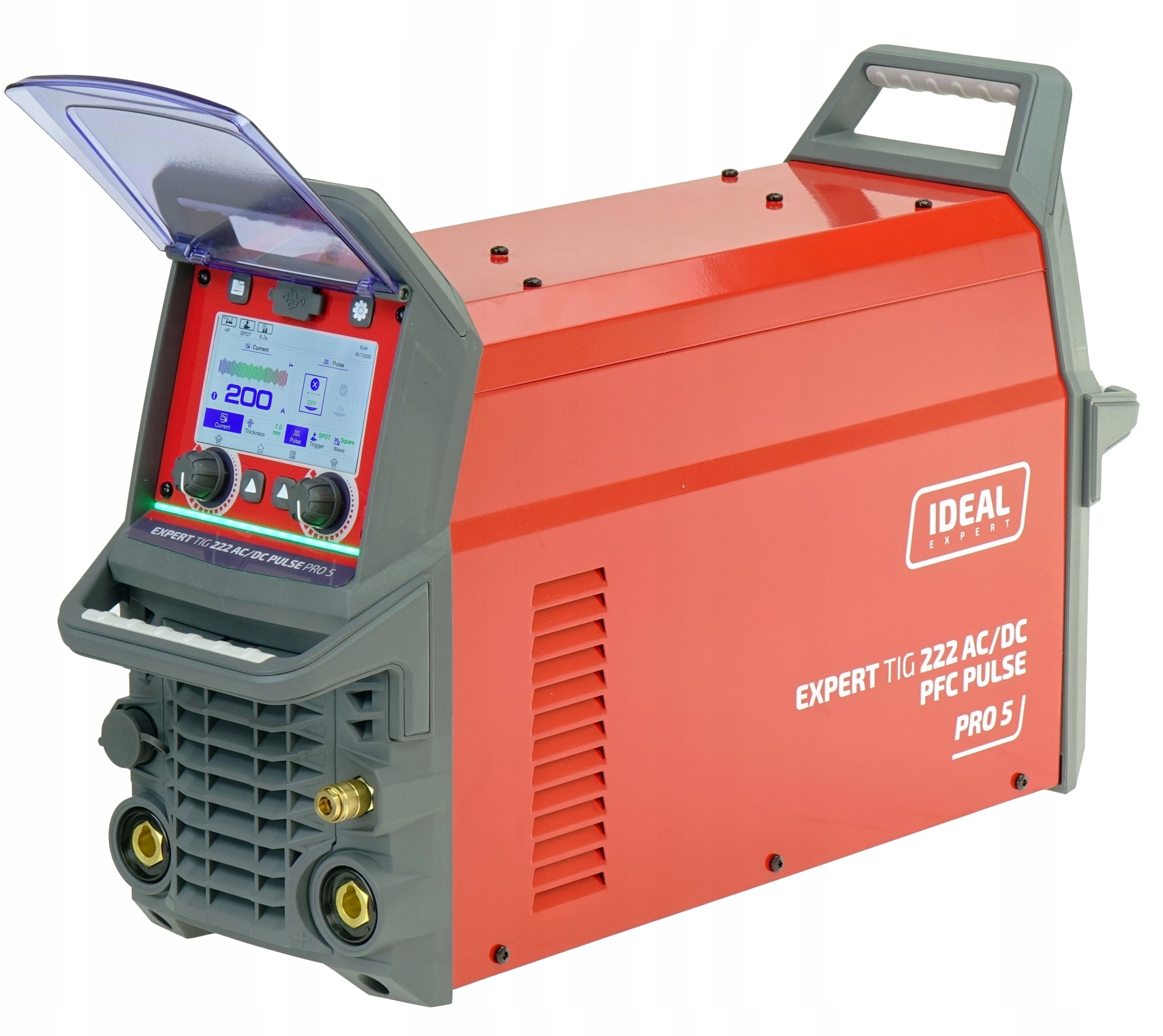

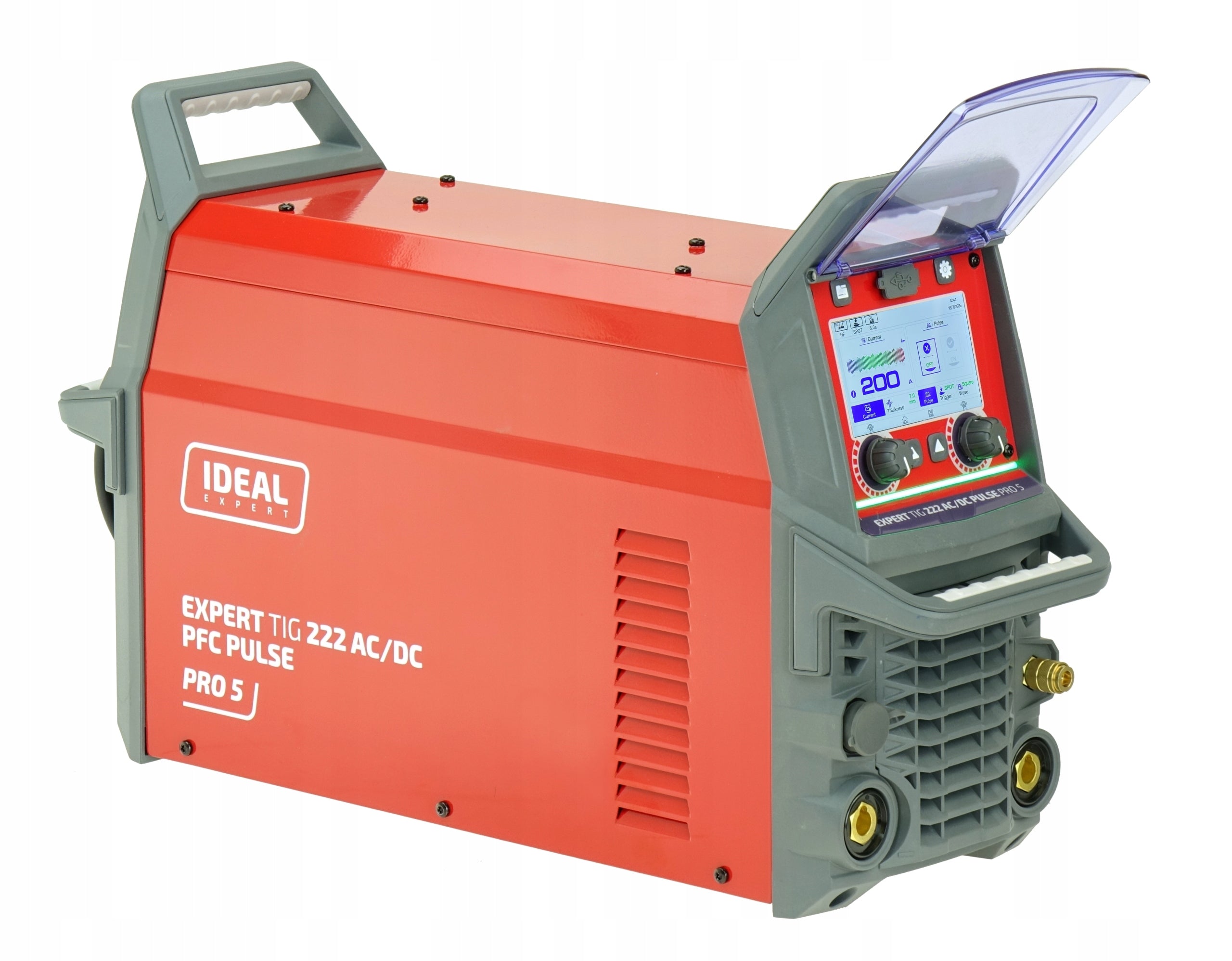

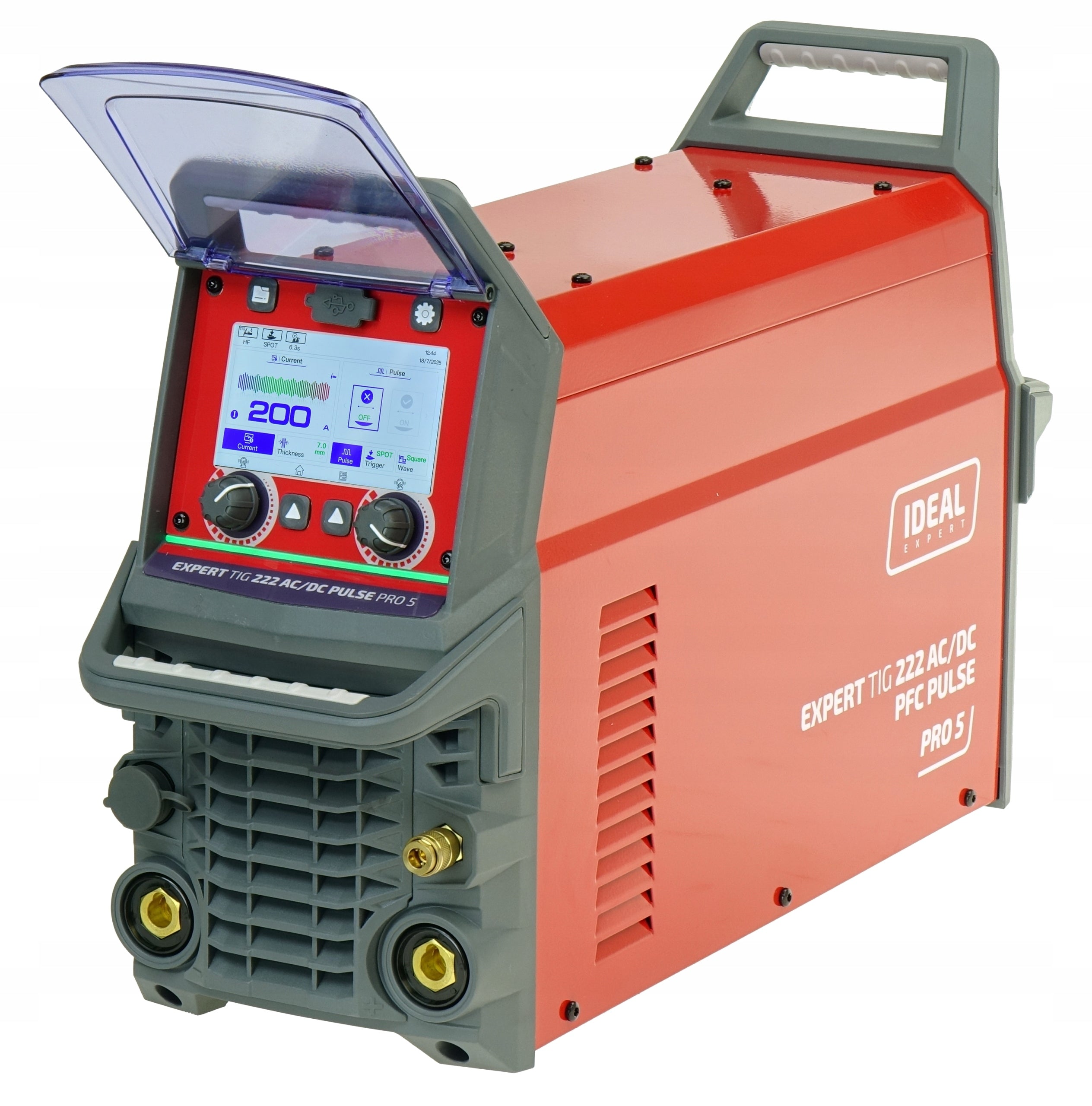

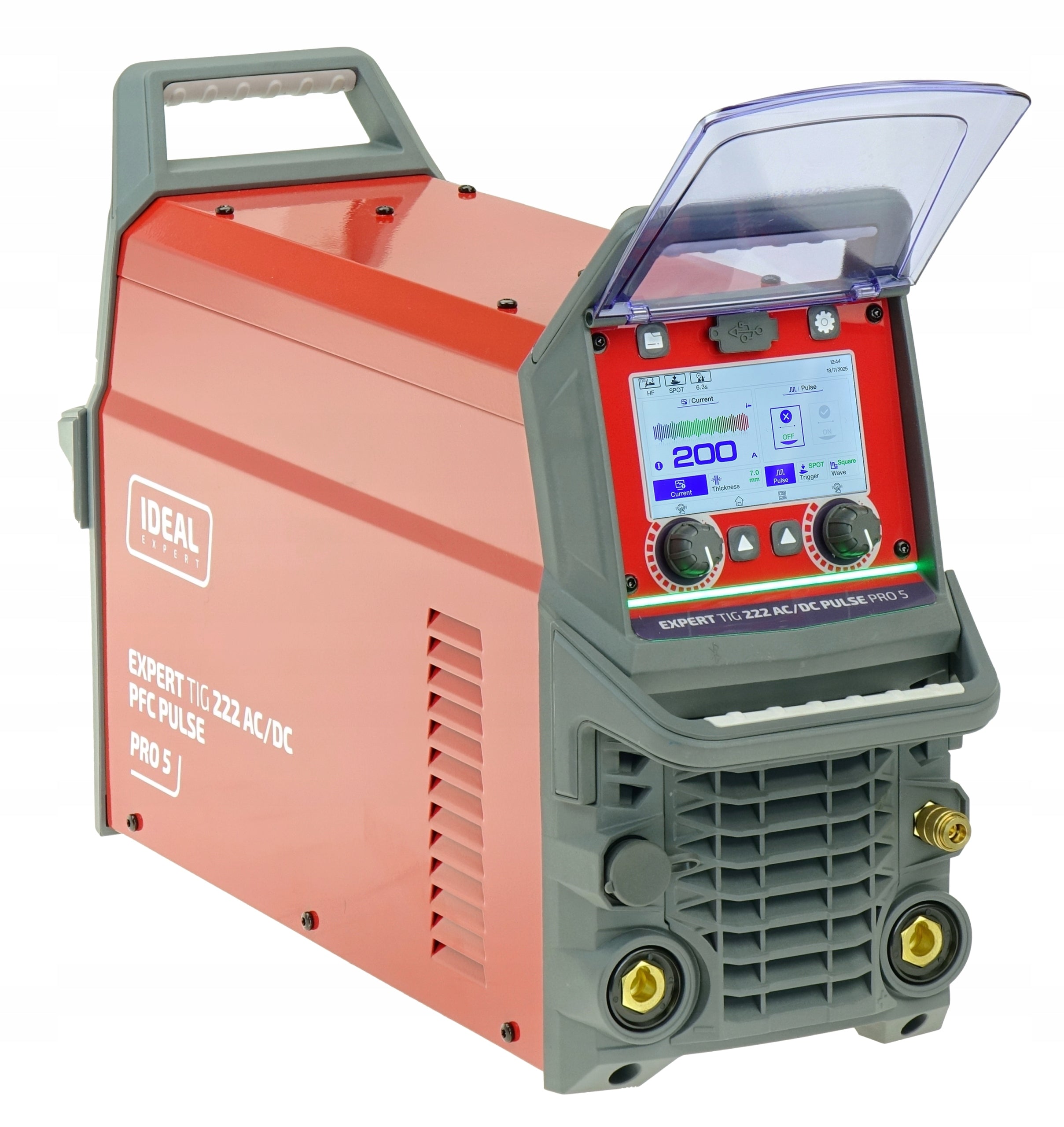

EXPERT TIG222 AC/DC PULSE Pro5 LCD is a power source, made in IGBT technology, designed for welding using the TIG and TIG PULS method with alternating current (AC), constant current (DC), and the MMA method with a direct current (DC) electrode. The small size and weight make the device perfect for both workshop work and field work.

⏩Characteristics of current waveform

In the case of AC current, the current characteristics for the current waveform are selected. There are 3 basics available:

• Square (AC rectangular) – provides high melting of the welded material and good arc control
• Sin (AC sine wave) – standard curve, quieter operation and “softer” arc
• Triangular (AC triangular) – less heat is emitted, at the same current values, recommended for thinner materials

The device has welding modes: TIG DC, TIG DC PULS, TIG AC, TIG AC PULS, TIG POINT, MULTITACK, TIG MIX, TIG RPT, MMA AC, MMA DC, MMA PULS.

Both with HF touchless and LIFT touchless ignition, we have the option of selecting the button function in the TIG handle between operation in 2-bar mode, 4-bar (button lock for long welds) and two-level RPT mode (switching between two degrees of current). In addition, only for TIG HF there is also the possibility of spot welding (SPOT).

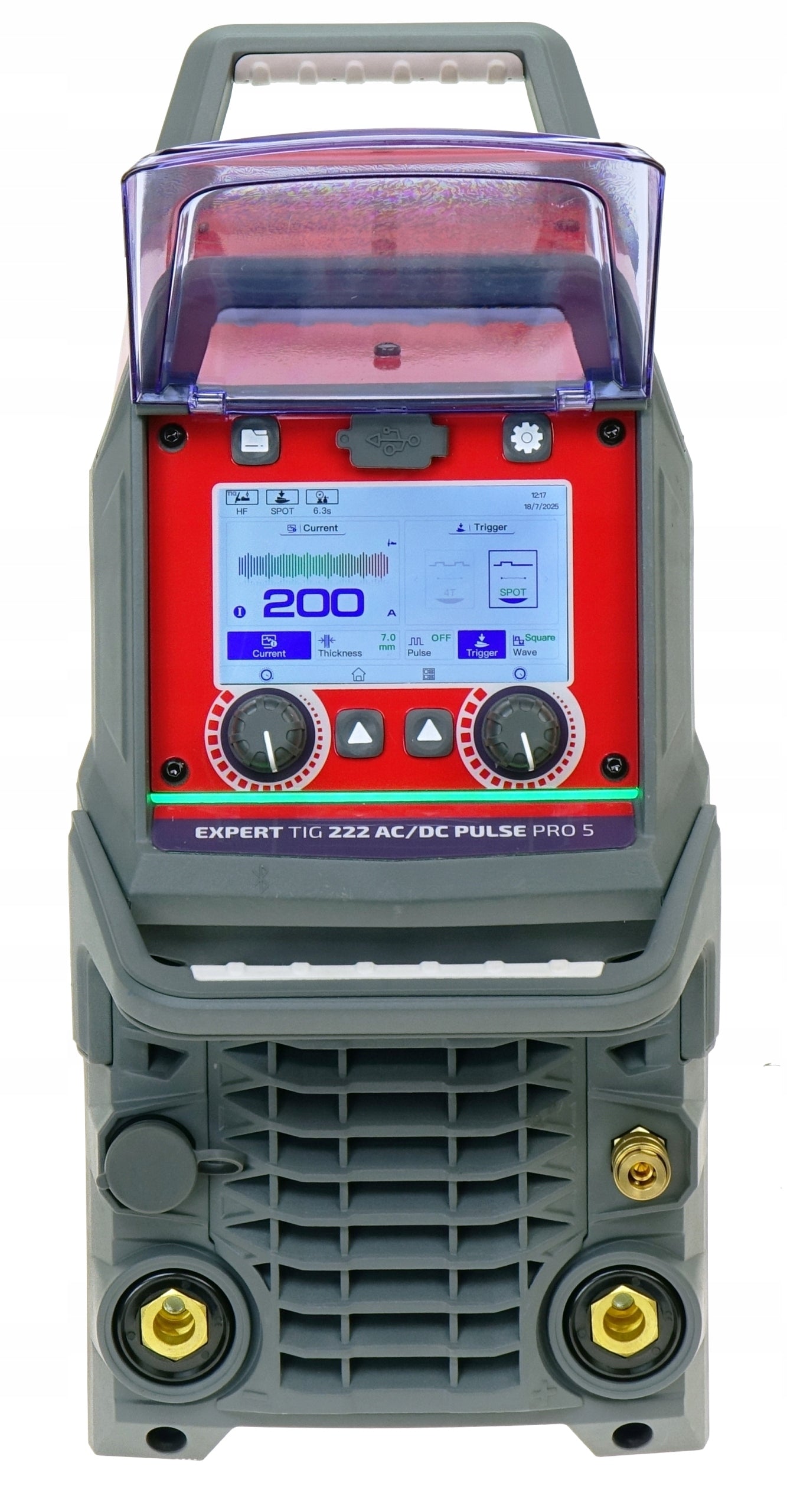

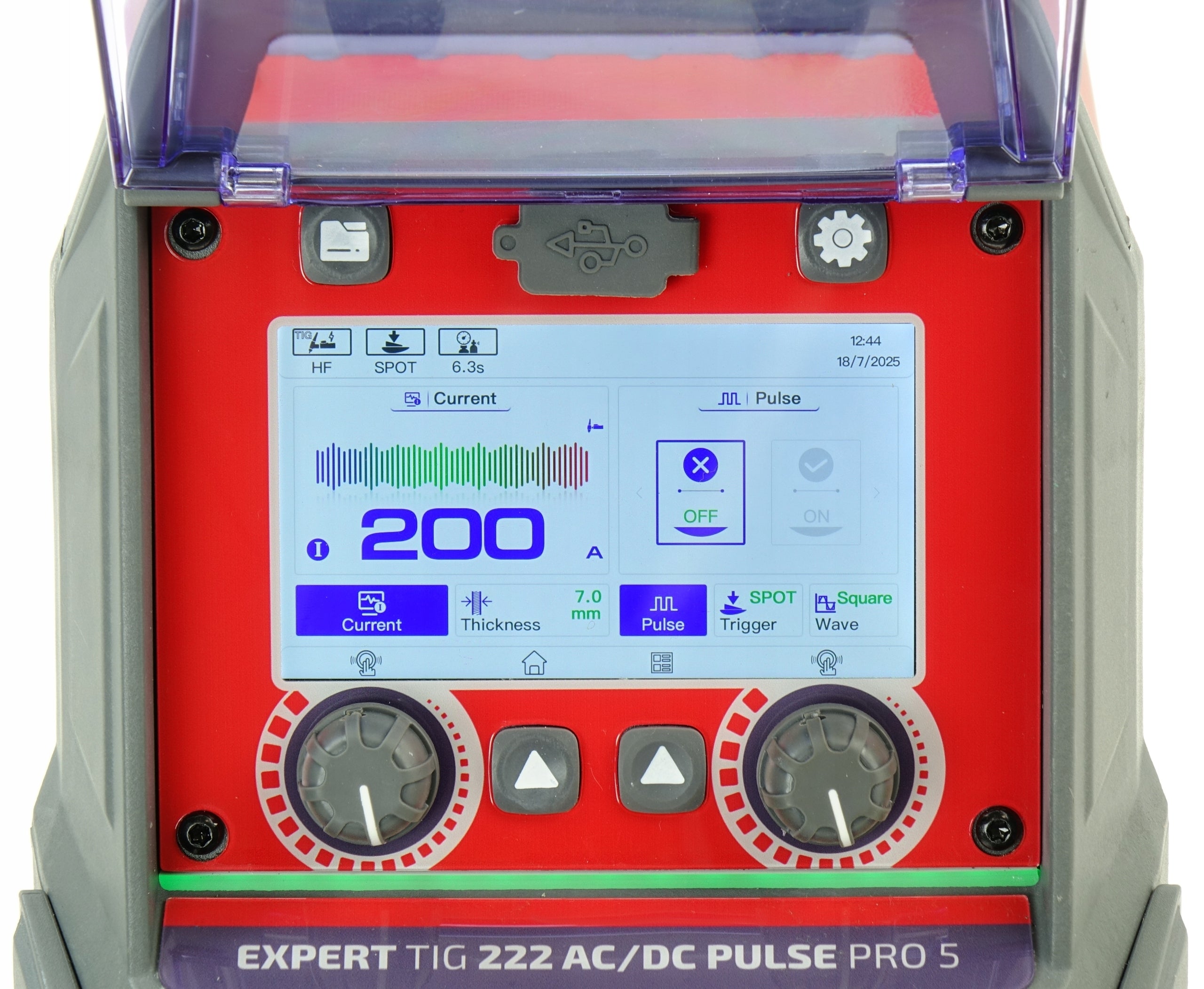

Clear and easy to use digital control panel, allows accurate adjustment of the device, ensures stable parameters and high welding quality. The source also has extended usage settings such as screen brightness level, date setting, and semi-passive mode (SMART) fan operation.

⏩ADVANTAGES EXPERT TIG 222 AC DC

✅ welding current at 60%: TIG 200A,

✅modern electronics inside - great welding parameters,

✅function of writing and reading parameters,

✅2T, 4T, TIG PULSE,

✅cold welding function,

✅ spot welding function,

✅ "TIG MIX" function,

✅ "Dynamic arc" function,

✅ function "Cap shaping",

✅full synergy in each method,

✅possibility of combining two waveforms,

✅digit control panel,

✅ frequency control in AC,

✅regulation of polarity balance in AC,

✅regulation of gas outflow time before and after welding,

✅regulation of welding current rise and fall time,

✅regulation of initial and final current,

✅ MMA welding,

✅ MMA welding improvement functions: Hot Start, Arc Force, Anti Stick,

✅ TIG welding torch with a length of 4m.

⏩SMART TIG - automatic selection of parameters

The source has full synergy in each method, extended by a special TIG method mode (SMART TIG). It allows you to choose the initial welding parameters under which the source will set the output parameters.

Choose the type of material being welded, the type of weld and the thickness, and the rest of the necessary settings will suggest the device.

⏩MULTITACK function

A kind of intermittent welding. A function that enables the so-called. "cold welding"; with adjustable weld frequency in a separate range.

⏩CAP SHAPING function

The function allows you to obtain a perfectly rounded TIG electrode tip.

⏩MIX AC/DC function: Mixed AC and DC current

Hybrid function, combining the interaction time of AC and DC alternating current, expressed as the percentage ratio of AC to DC.

⏩DYNAMIC ARC function

A function that allows you to "tune" the welding arc, to ensure a constant width of the weld.

⏩Characteristics of current waveform

In the case of AC current, the current characteristics for the current waveform are selected. There are 3 basics available:

• Square (AC rectangular) – provides high melting of the welded material and good arc control
• Sin (AC sine wave) – standard curve, quieter operation and “softer” arc
• Triangular (AC triangular) – less heat is emitted, at the same current values, recommended for thinner materials

Additionally, the source has extended characteristics of the so-called. hybrid (multiwave):

• Squ-Sin (rectangular-sinusoidal)
• Squ-Tri (rectangular-triangular)
• Sin-Squ (sinusoidal-rectangular)
• Sin-Tri (sinusoidal-triangular)
• Tri-Squ (triangular-rectangular)
• Tri-Sin (triangular-sinusoidal)

⏩Save and load your settings

The modern JOB memory system allows you to save all individual welding settings – current, voltage, wire feed speed, inductance or operating mode. Thanks to this, you can create your own library of programs tailored to different materials and sheet thickness, and then recall them with one click.

In addition, the device is equipped with a USB port that allows you to export saved settings to an external media (e.g. pendrive), their import to another machine, as well as software update.

⏩Handle with remote control

Professional liquid-cooled welding torch, dedicated to selected models of devices from the EXPERT PRO series. Allows remote regulation of welding current. Length of 4 meters.

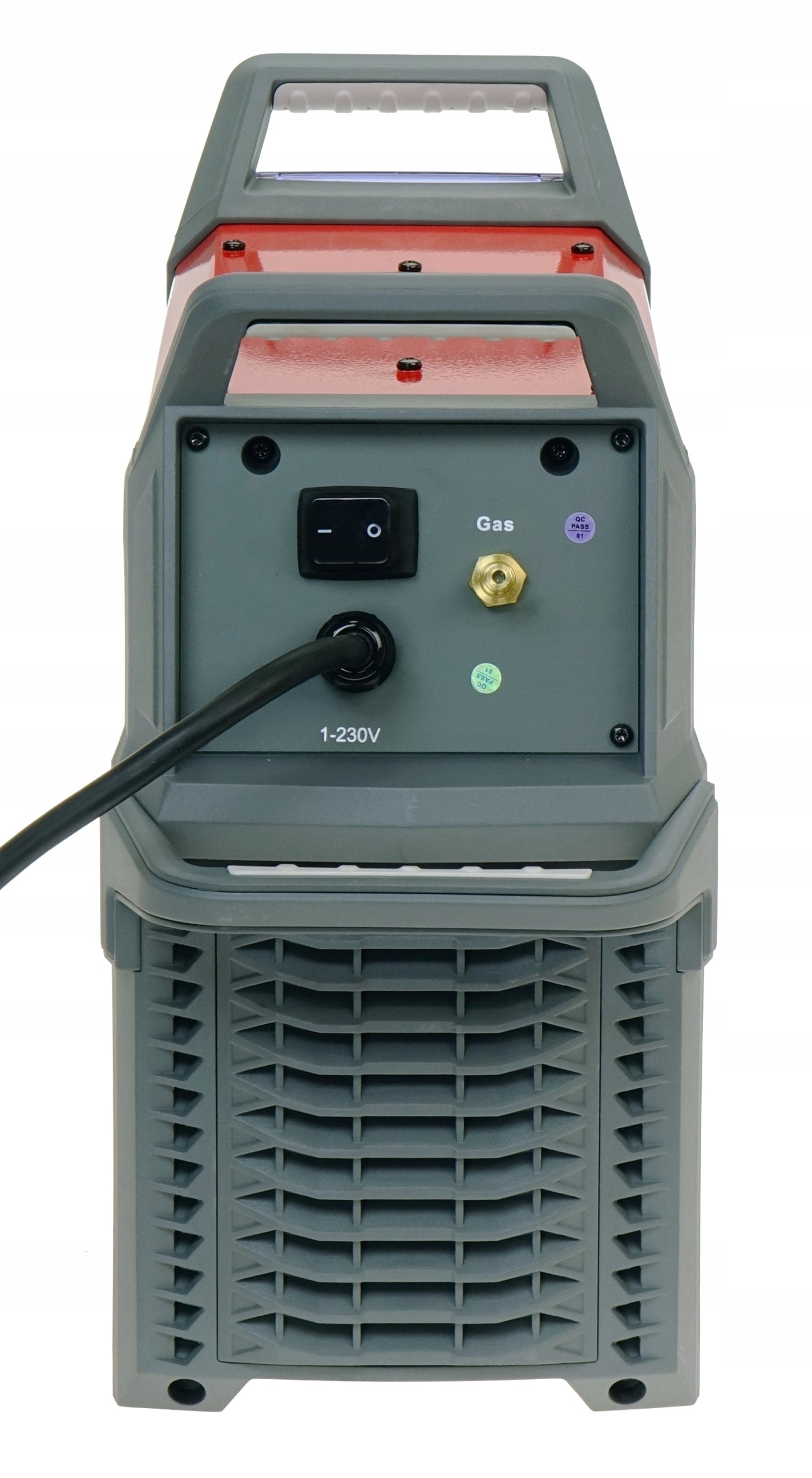

• Power Supply: 230V
• Frequency: 50-60Hz
• Number of phases: 1ph
• Maximum current consumption: 7,5kW
• Degree of protection: IP23S
• Network Security: C25
• Weight/Weight of set: 17/23kg
• Overall dimensions: 680x205x395mm

Welding parameters:

• Rated voltage in unloaded condition: 88V
• Rated welding current: 200A
• Working cycle: 60%
• Gas outflow: 0 – 20s
• Gas flow: 0 – 20s
• Current build-up: 0 - 20s
• Current drop: 0 – 20s
• Welding Current at 60%: 200A
• Welding Current at 100%: 155A
• Base Current: 5 - 200A
• Pulse Frequency: 0,5 - 999Hz
• AC Frequency: 50 - 250Hz
• AC Balance: (-5) - 5
• Pulse Length: 5 - 95%
• Welding electrode diameter: 1,6 - 4,0mm

Additional Features:

• Function of HF
• 2T/4T function
• Pulse TIG
• Spot welding
• Cold welding
• TIG MIX function
• Cap Shaping Function
• Multiwave function
• Smart TIG function (Synergy)
• Hot Start
• Anti-Stick
• Arc Force

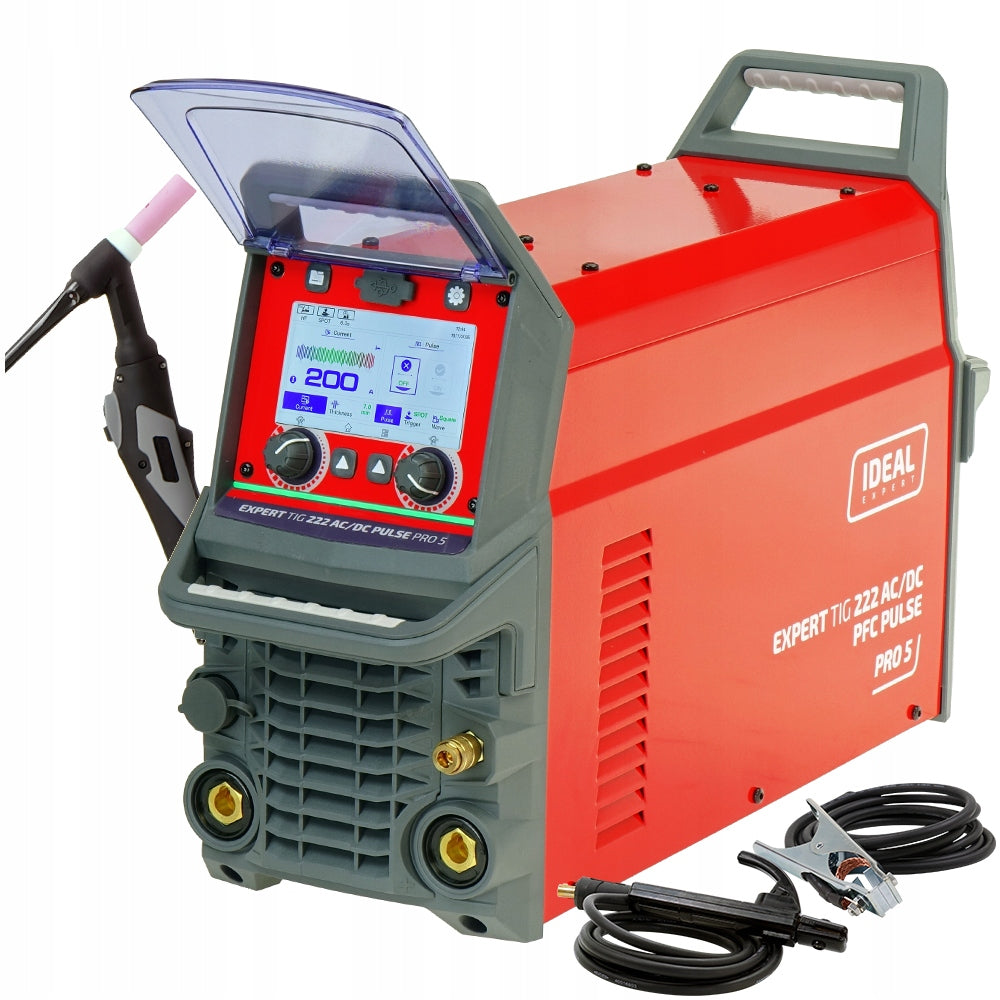

• Ideal Expert TIG 222 AC/DC Pulse Pro5
• Welding torch TIG SR-26 4m
• MMA electrode holder
• Mass cable
• Hose with quick coupler
• User manual

Specifications
