Aprašymas
Trumpai apie prekę

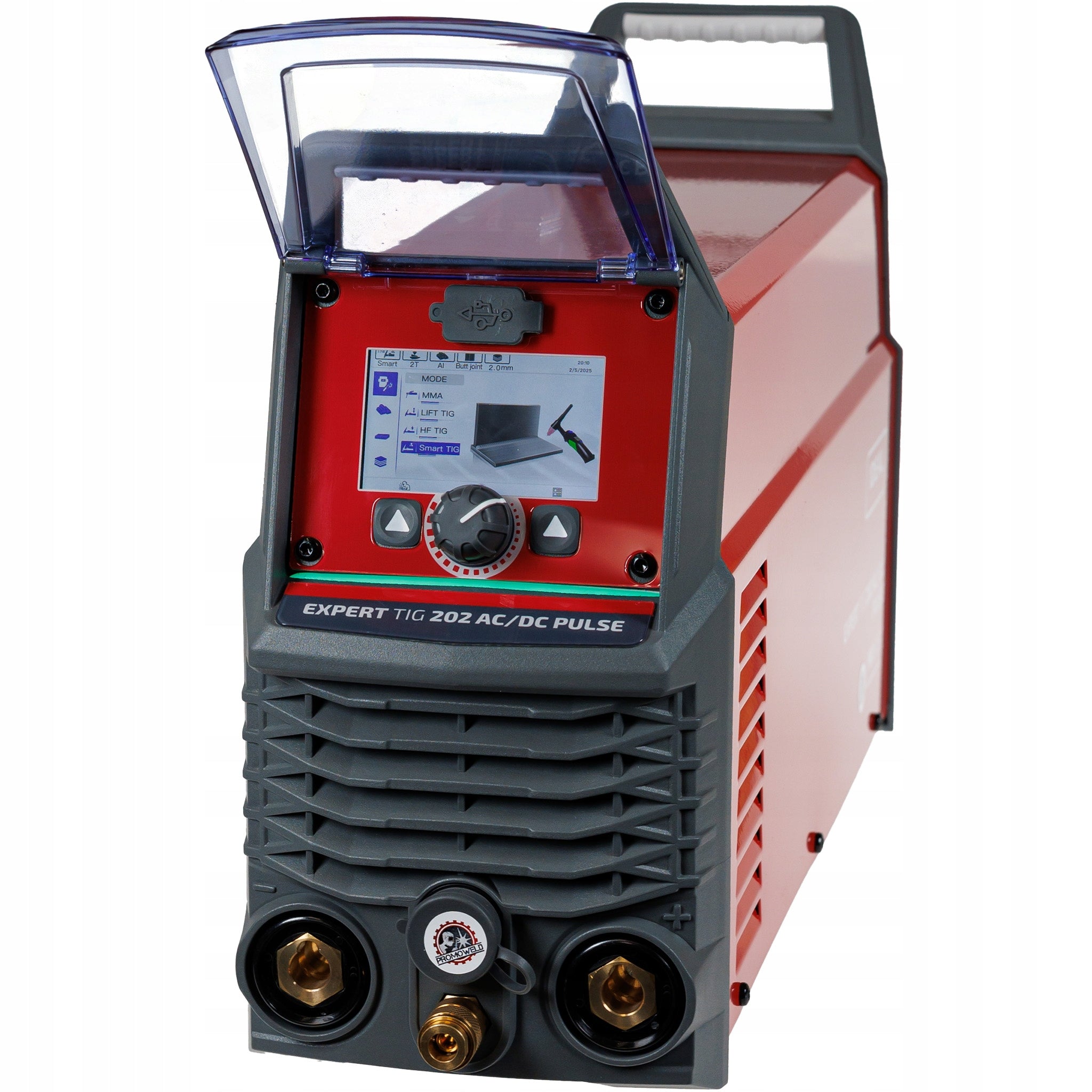

Prekė: TIG suvirinimo aparatas Ideal EXPERT TIG 202 AC/DC PRO su pulso funkcija ir nuotoliniu valdymu. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: EXTIG202AC-k
- Welding method: TIG; MMA
- Voltage: 230V
- Security: 25A
- Welding current: 10-200 A
- Synergy: Yes + manual
- Cycle: 60%
- Weight: 10 kg
EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD is a portable power source, made in IGBT technology, designed for TIG and TIG PULS welding and MMA method with direct current (DC) and alternating current (AC) electrode.
The small size and weight make the device perfect for both workshop work and field work.
The device has three welding modes: TIG DC, TIG AC, TIG DC PULS, TIG AC PULS, MMA, MMA PULS.
TIG DC and TIG DC PULS function is used for welding stainless steel, carbon and low alloy steels, copper and titanium. Welding is carried out in an inert gas shield.
TIG AC and TIG AC PULS function: allows welding of aluminum and its alloys and brass.
By adjusting TIG PULS pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.
Arching occurs in non-contact (HF) or touch (LIFT) mode. The LIFT function is used during welding in environments with a high risk of electromagnetic interference affecting the environment.
With both HF and LIFT touchless ignition, we have the option to choose the button function in the TIG handle between 2-bar, 4-bar (button lock for long welds) and two-level RPT mode (switching between two current stages). In addition, only for TIG HF there is also the possibility of spot welding (SPOT).
Clear and easy to use digital control panel, allows accurate adjustment of the device, ensures stable parameters and high welding quality. The source also has extended usage settings such as screen brightness level, date setting, and semi-passive mode fan operation (SMART).
The source also has full synergy in each method, extended by a special TIG method mode (SMART TIG). It allows you to choose the initial welding parameters under which the source will set the output parameters.
- initial outflow of shielding gas
- Initial current
- current build-up time
- welding current
- base current
- current drop time
- final current
- final shielding gas outflow
- Pulse length
- Pulse frequency
- length of intermittent welding
- regulation HOT START
- regulation of ARC FORCE
- TIG AC – rectangular voltage waveform
- TIG AC – sine wave voltage waveform
- TIG AC – triangular voltage waveform
ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake
HOT START: hot start adjustment - facilitates the ignition of the electrode by providing more welding current with each arc.
ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc
- Power supply network protection C25A MMA / C20A TIG
- Rated supply voltage 230V, 50-60Hz, 1ph
- Balance AC(-5) - 5
- Power build-up time 0 - 20 s
- Current drop time 0 - 20 s
- Frequency AC50 - 250 Hz
- Pulse frequency 0,5 - 999Hz
- Pulse length 5 - 95%
- Gas after 0 - 20 s
- Gas before 0 - 20 s
- Power 7,6 kW
- Idle voltage 67 V
- Base current in pulse 10 - 200 A
- Final current 10 - 200 A
- Maximum current 200 A - 60%
- Power at work 100%100 A
- Power at work 60% 200 A
- Starting current 10 - 200 A
- Diameter of welding electrode 1,6 - 4,0mm
- Welding current adjustment range 10 - 200 A
- Protection rating IP21S
- Weight of the device / set 9 / 14 kg
- Overall dimensions L x W x H 505x160x305 mm
- Package dimensions L x W x H 565x220x360 mm

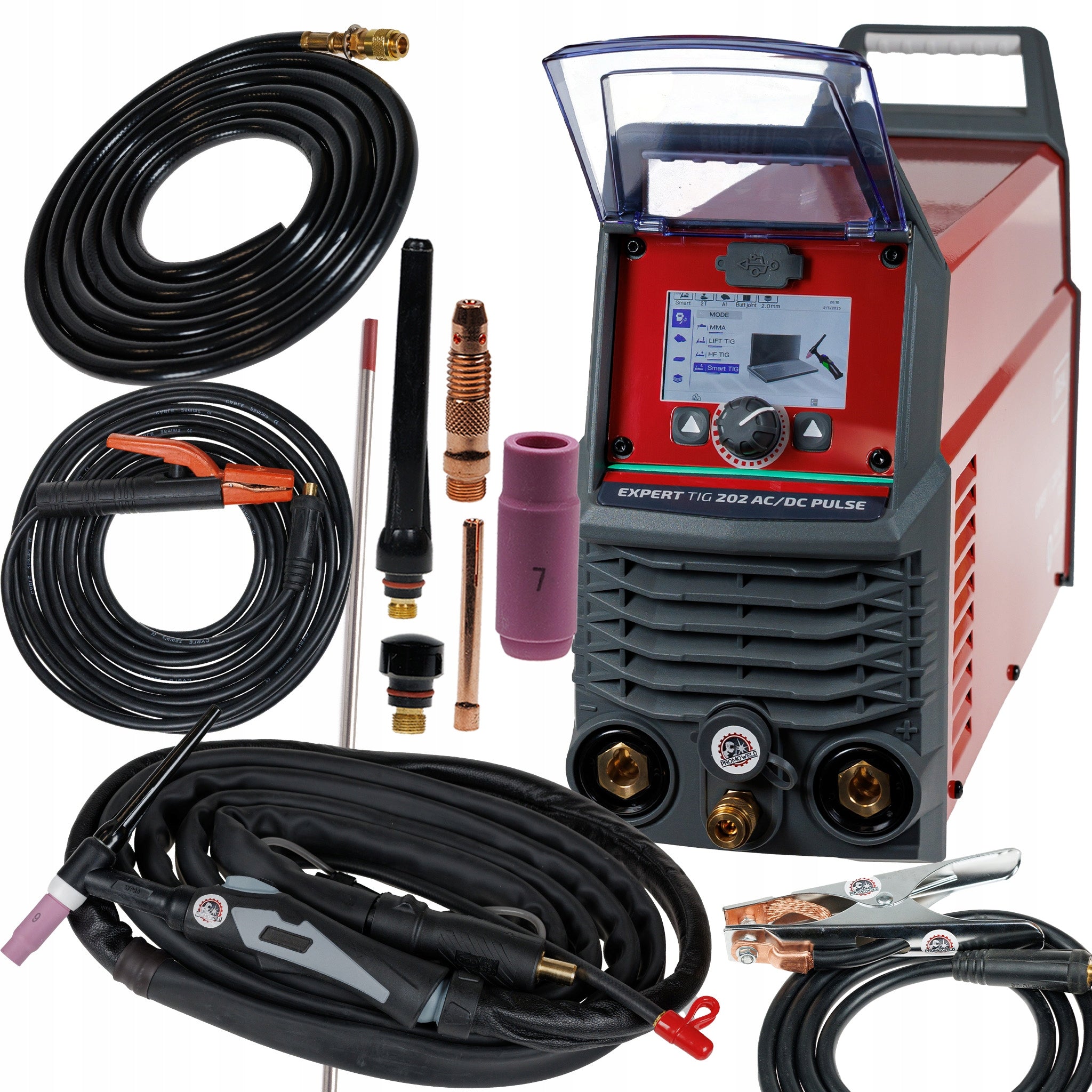

- Welding device IDEAL EXPERT TIG 202
- MMA 3m Working Cable
- Gas hose and quick coupler
- User manual
- Mass cable 3m
- TIG 26 handle with remote adjustment of 4 meters
- Tungsten electrode 2.4 mm - 1 pc
- Cork small + long
- Terminal bushing + current connector
- Gas nozzle
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 9 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 20 kg |
| Parametry | Manufacturer code | EXTIG202AC |
| Parametry | Packaging status | original |
| Parametry | Model | EXTIG202AC-k |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
