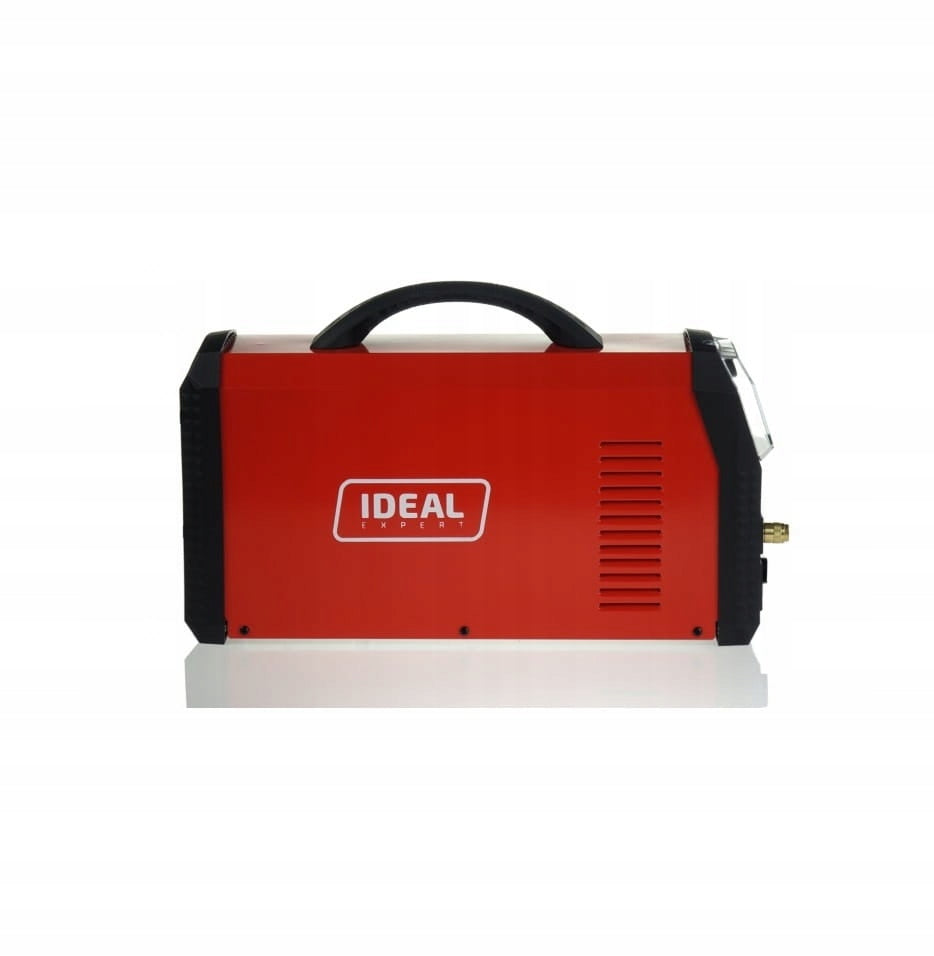

TIG suvirinimo inverteris IDEAL EXPERT TIG 220 AC/DC PULSE

Trumpai apie prekę

Prekė: TIG suvirinimo inverteris IDEAL EXPERT TIG 220 AC/DC PULSE. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT TIG 220 AC/DC PULSE

5903991100177

Technical data:

• Power supply network protection C25A MMA / C20A TIG
• Rated supply voltage 230V, 50-60Hz, 1ph
• Power 5 kW
• Idle voltage 86 V (TIG) / 57 V (MMA)
• Welding current 5 - 200 A
• Maximum current 200 A - 60%
• Current at work 100% 120 A
• Current at work 60% 200 A
• Starting current 5 - 200 A
• Welding electrode diameter 1,6 - 4,0
• Degree of protection IP 23
• Current build-up time (s) 0 - 10
• Current drop time (s) 0 - 10
• Pulse frequency Hz 0,5 - 999
• Pulse length (%) 5 - 95
• Gas after (s) 0 - 10
• Gas before (s) 0,1 - 2
• Weight of the device / set 13 / 16 kg
• Overall dimensions L x W x H 620x270x390 mm

Features of TIG welding machine:

• EXPERT TIG 220 AC/DC PULSE PFC is a portable power source, made in IGBT technology, designed for TIG and TIG PULS welding with alternating current (AC), direct current (DC), and MMA method with a direct current (DC) electrode.
• The small size and weight make the device perfect for both workshop work and field work.
• TIG DC and TIG DC PULS function is used for welding stainless steel, carbon and low alloy steels, copper and titanium.
• TIG AC and TIG AC PULS function: allows welding of aluminum and its alloys and brass.

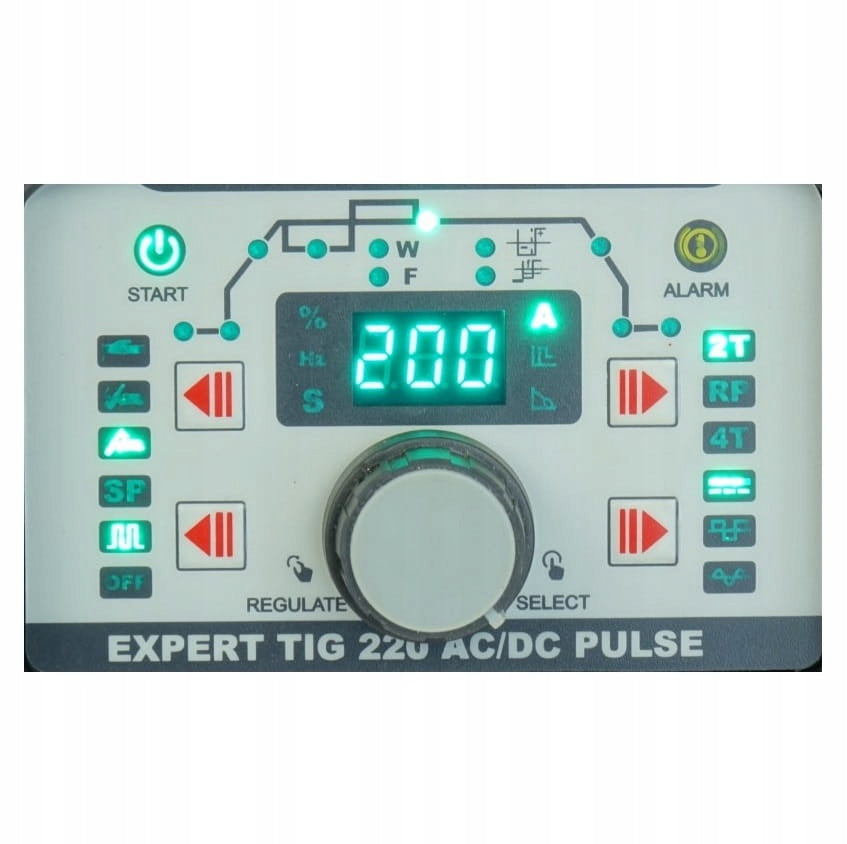

• Clear and easy to use digital control panel allows accurate adjustment of the device, ensures stable parameters and high welding quality.
• PFC (Power Factor Correction) – increased power factor, 30% less power consumption from the mains.
• The device has 9 places of recording user welding programs.

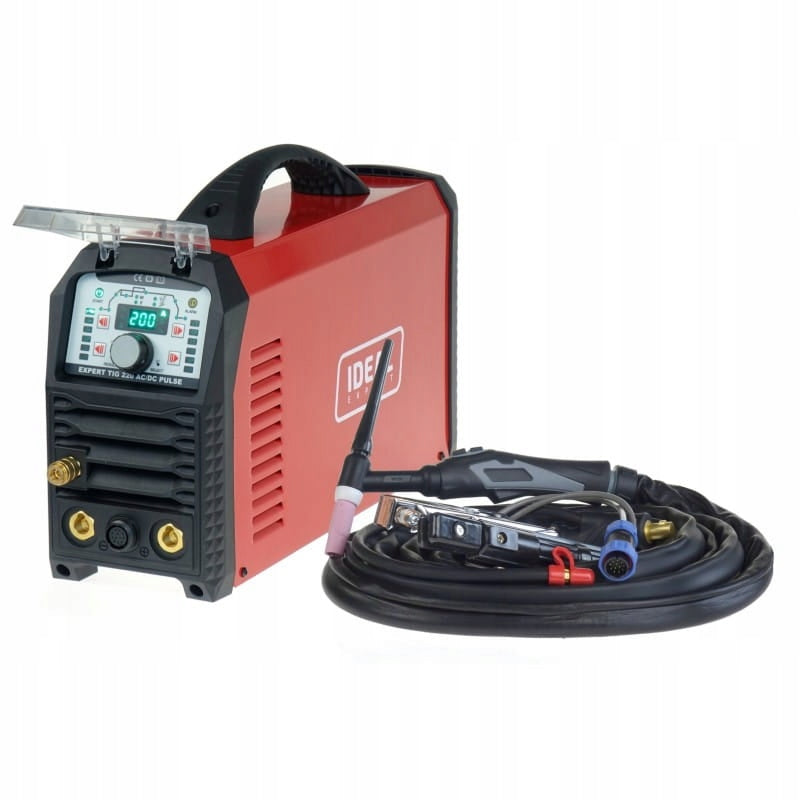

Scope of delivery:

1. IDEAL EXPERT TIG 220 AC/DC PULSE PFC - Inverter welder
2. TIG 26 welding torch with remote adjustment 4 meters long
3. MMA electrode cable with a length of 3m
4. Mass cable with a length of 3m

TIG welding machine capabilities:

• MMA - rutile electrode, for all non-alloy, low-alloy and high-alloy steels (steel, cast iron and non-ferrous metals).
• TIG DC - arc welding process with a non-melting electrode in an inert gas shield
• TIG AC - AC welding. Allows welding of aluminum and its alloys and brass
• Tig Pulse - Welding with pulsation significantly reduces the overheating zone of the material while giving a very good blending. The pulse current gives blending, and the base current makes it easy to control the amount of heat input. The welder has more control over the welding process. the weld is narrower and prettier, no chipping, better melting at lower parameters (average) current.
• TIG HF - contactless electric arc initiation system, used in TIG welding machines and plasma cutters. The glow of the electric arc does not require physical contact of the electrode with the welded material.
• LIFT - function is used during welding in an environment with a high risk of electromagnetic interference affecting the environment.
• REMOTE CONTROL - The welder is adapted both for connecting pedals with a cable or wireless and remote controls.

Transistor technology - IGBT.

Relatively newer, lighter and smaller overall technology than MOSFET, which translates into greater mobility of such a device. In addition, the device works better on weaker electrical installations and in high-voltage welding. Much smaller (approx. 30% ) power consumption.

Welding programs:

• 2T/4T - at 2T, the current is fed after pressing the welding button, and at 4T, the current is fed after the first press of the button without interruption until the moment of pressing again which stops welding. Convenient welding function for longer welded
• initial outflow of shielding gas
• initial current
• time of electricity build-up
• welding current
• base current
• time of current drop
• final current
• final outflow of shielding gas
• pulse length pulse frequency
• balas AC
• AC frequency
• HOT START value
• ARC FORCE value
• From the control panel we have the possibility to choose the waveform of the AC voltage curve : TIG AC – rectangular voltage waveform TIG AC – sinusoidal voltage waveform
• MEMORY SETTINGS - 9 memory channels to save your own programs
