TIG suvirinimo inverteris MAGNUM 238-X, 200A, ACDC, 60% darbo ciklas

Trumpai apie prekę

Prekė: TIG suvirinimo inverteris MAGNUM 238-X, 200A, ACDC, 60% darbo ciklas. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: THF 238 AC/DC PRO

WELDER set MAGNUM

TIG WELDING MACHINE

⭐⭐⭐⭐⭐

✅Specification:

• Type: TIG HF inverter welding machine (contactless arc ignition), MMA
• Power supply: 230 V AC, 50 Hz
• Power consumption: 7 kW (7 kVA)
• Max. welding current: 200 A (TIG AC/DC and MMA)
• Working cycle: 60% at 200 A
• Idle voltage: 70 V
• Regulations: Gas rise/fall and outflow times – 0 to 10 s
• Degree of protection: IP23
• Weight: about 10 kg

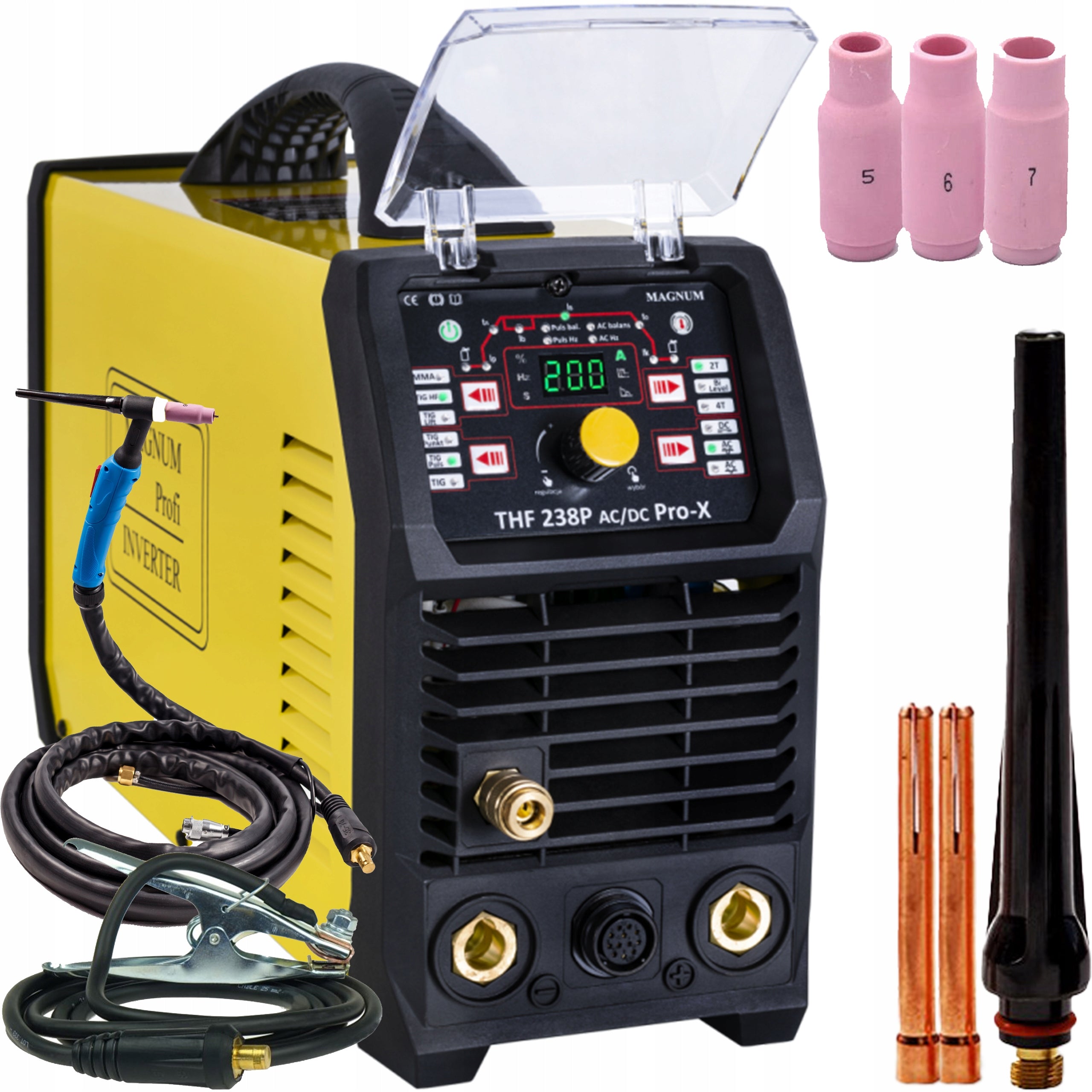

• Accessories included: TIG SR 26 handle (4 m), mass handle, ceramic nozzles (5, 6, 7), clamping sleeves (2,4 and 3,2 mm), long stopper

Professional inverter welding machine THF 238 PRO-X AC/DC – power and precision in your hands!

Looking for a reliable and efficient welding machine that can handle any challenge? THF 238 PRO-X AC/DC by MAGNUM is a device created for professionals and demanding users!

Lightweight, modern and extremely functional inverter welding machine allows TIG HF welding (contactless arc ignition) with AC and DC current, making it perfect for working with aluminum, stainless steel, titanium and many other metals.

Why choose THF 238 PRO-X AC/DC?

✅ Multitasking – TIG AC/DC and MMA welding

✅ Performance and reliability – duty cycle 60% at 200 A

✅ Precision at the highest level – the ability to adjust all key welding parameters

✅ Ergonomic and intuitive control panel – easy-to-read display and convenient knob for setting parameters

✅ IGBT technology – minimal interference, lower energy consumption, quick response to parameter changes

✅ Compact and lightweight design – only 10 kg

✅ Reliability in all conditions – ideal for workshops, industrial plants, repair services

Full control of welding parameters

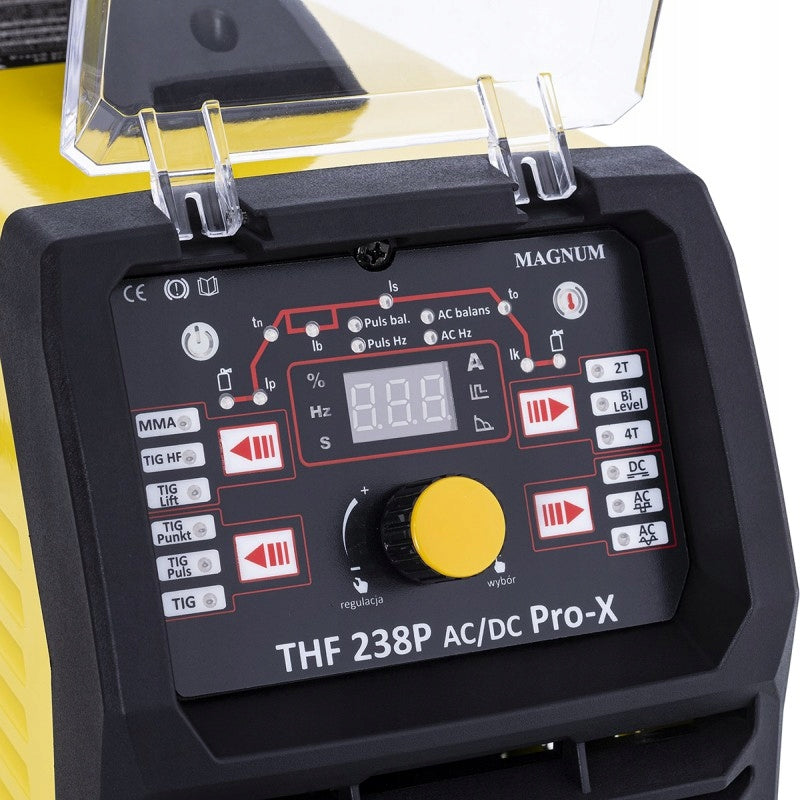

Thanks to the digital control panel, you have full influence on the welding process:

✅ Waveform adjustment – sine wave, rectangular

✅ AC Balance and AC Current Frequency – Better Control of Aluminum Welding

✅ TIG pulse – settings of peak current, base current, pulse frequency

✅ Working mode 2T/4T – comfortable welding operation

✅ Bi-LEVEL – fast switching between two current values

✅ Gas flow before and after welding – cleaner weld

✅ Assistance functions MMA – Hot Start (easier electrode glow) and Arc Force (arch stabilization)

• Power supply: AC 230 [V], 50/ [Hz],
• Security required: 25 [A] / C
• Power consumption: 7 [kW]
• Efficiency: 60 [%]
• Uo idle voltage: 70 [V]
• TIG AC welding current: 10 - 200 [A]
• TIG DC welding current: 10 - 200 [A]
• MMA welding current: 10 - 200 [A]
• Adjustment - current rise/fall time: 0 - 10 [s]
• Adjustment - gas outflow time after welding: 0 - 10 [s]
• Housing protection class: IP23
• Weight: 10 [kg]

Specifications
