Tinklinis nešiojamas inhaliatorius vaikams ir suaugusiems

Trumpai apie prekę

Prekė: Tinklinis nešiojamas inhaliatorius vaikams ir suaugusiems. Kategorija: Inhaliatoriai.

• Gamintojas: VITAMMY
• Modelis: Mesh 1
• Spalva: white

✓Certified medical device.

✓Built-in 3,7V lithium battery.

✓Two speeds of nebulisation.

✓Designed for both children and adults.

✓Portable, lightweight, efficient.

✓Very easy to use and quiet.

✓High technical parameters and quality of workmanship – m.in. The liquid residue of the drug is only ≤0,3 ml.

✓ Guaranteed availability of replaceable heads with medicine container and membrane.

✓A renowned, polish brand.

✓User support on a dedicated support hotline.

VITAMMY quality.

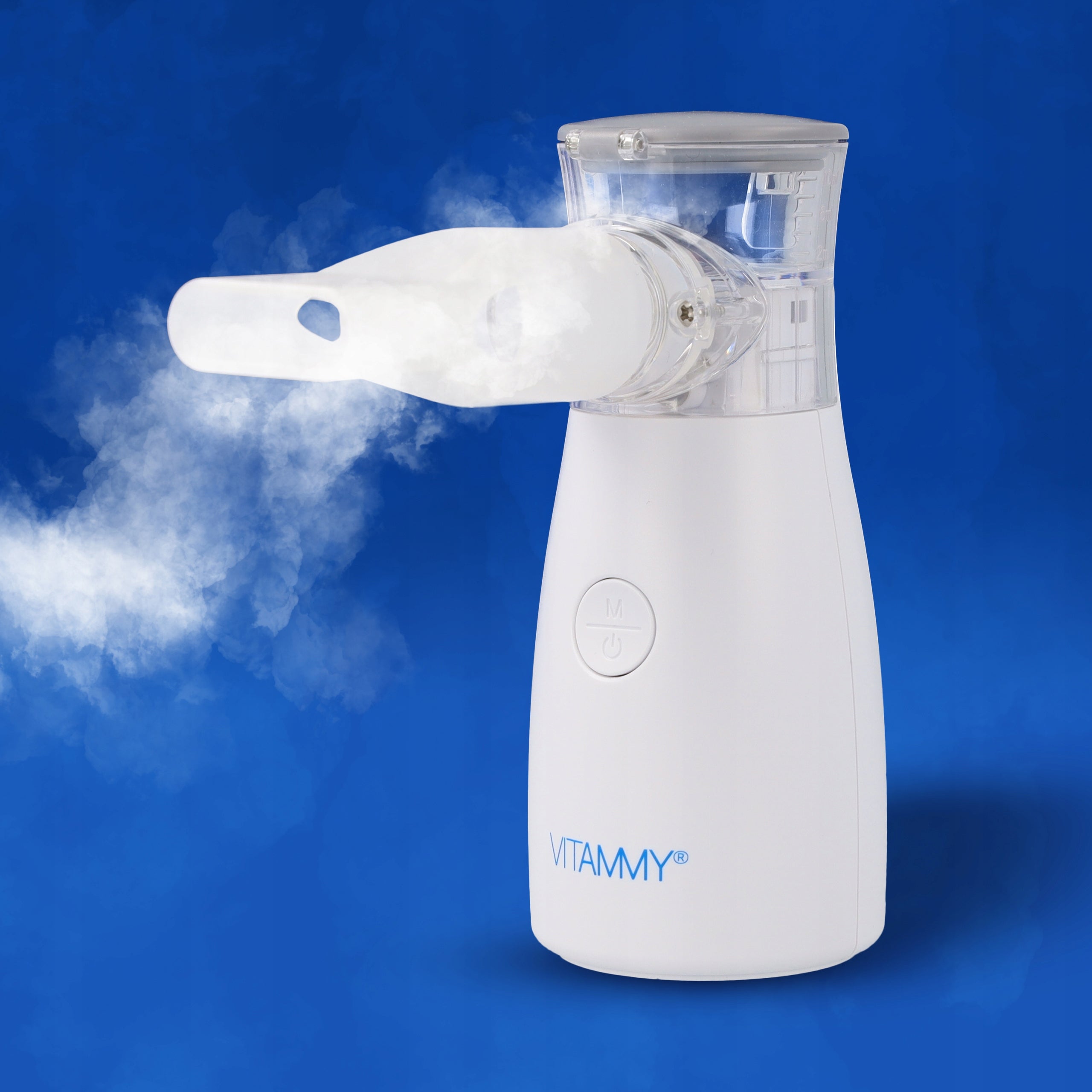

The mesh nebulizer provides support during the treatment of respiratory diseases. Its design allows you to spray the drug solution onto tiny particles, so that the drug penetrates directly into the patient's respiratory tract with each breath.

VITAMMY Mesh 1 is suitable for both children and adults. It is used to treat diseases of the upper and lower respiratory tract as directed by your doctor (e.g. acute upper respiratory tract inflammation, acute and chronic tracheitis, bronchitis, swelling and sore throat, etc. ). Thanks to its technical parameters and quality of workmanship, it will provide painless treatment support by inhaling a solution of the drug sprayed onto microscopic particles.

VITAMMY Mesh 1 has a built-in rechargeable battery, it is quiet, lightweight and portable so you can use it both at home and on the go. The VITAMMY Mesh 1 nebuliser is suitable for use in healthcare settings.

PARTICLE SIZE AND TREATMENT EFFICIENCY

Nebuliser inhalers spray the drug as an aerosol consisting of microscopic particles. It is their size that determines the effectiveness and efficiency of treatment, because it directly affects in which part of the patient's respiratory tract inhaled molecules are deposited and the absorption of the applied drug takes place.

Particles of the following sizes are assumed to be:

• Above 8 μm they settle in the upper respiratory tract, i.e. in the nostrils, throat and larynx;

• Above 5 μm to 8 μm are deposited in the trachea and large bronchi;

• Above 3 μm to 5 μm are deposited in bronchioles and bronchioles;

• From 0,5 μm to 3 μm they settle in the alveoli.

It should be remembered that the actual impact of particle size on their deposition in the airways depends on many factors, such as e.g. air flow rate, humidity, temperature and physico-chemical properties of the drug itself.

LIMITATIONS OF RETICULAR (MEMBRANE) NEBULIZERS

No mesh (membrane) nebulizer, due to the technical limitations of the design itself and the principles of operation of this type of devices, is able to produce particles so small that they reach the alveoli. Piston (pneumatic) nebulizers should be used for this type of application.

How does the VITAMMY Mesh 1 nebulizer work?

The VITAMMY Mesh 1 mesh nebuliser consists of a drug reservoir and a spray mesh. The mesh is connected with a vibration film and a round piezoelectric element converting mechanical energy into ultrasonic vibrations. The wave of vibrations produced presses on the liquid in the drug reservoir to atomise it through the micro-spray hole on the spray grid. The aerosol mist produced is then transferred from the spray mesh to the mouthpiece or mask.

VITAMMY nebulizers are officially registered as medical devices with the Office for Registration of Medicinal Products, Medical Devices and Biocidal Products.

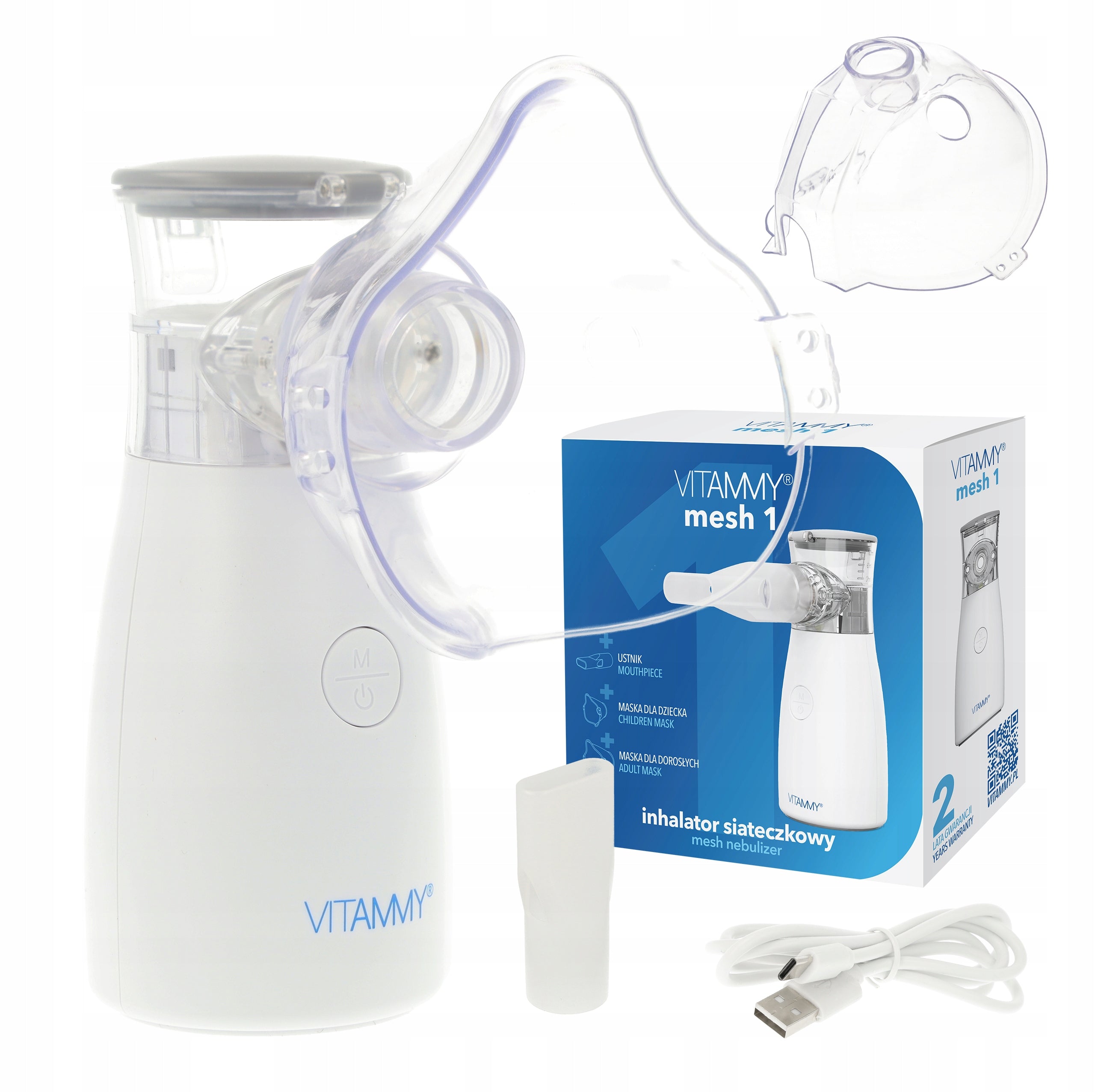

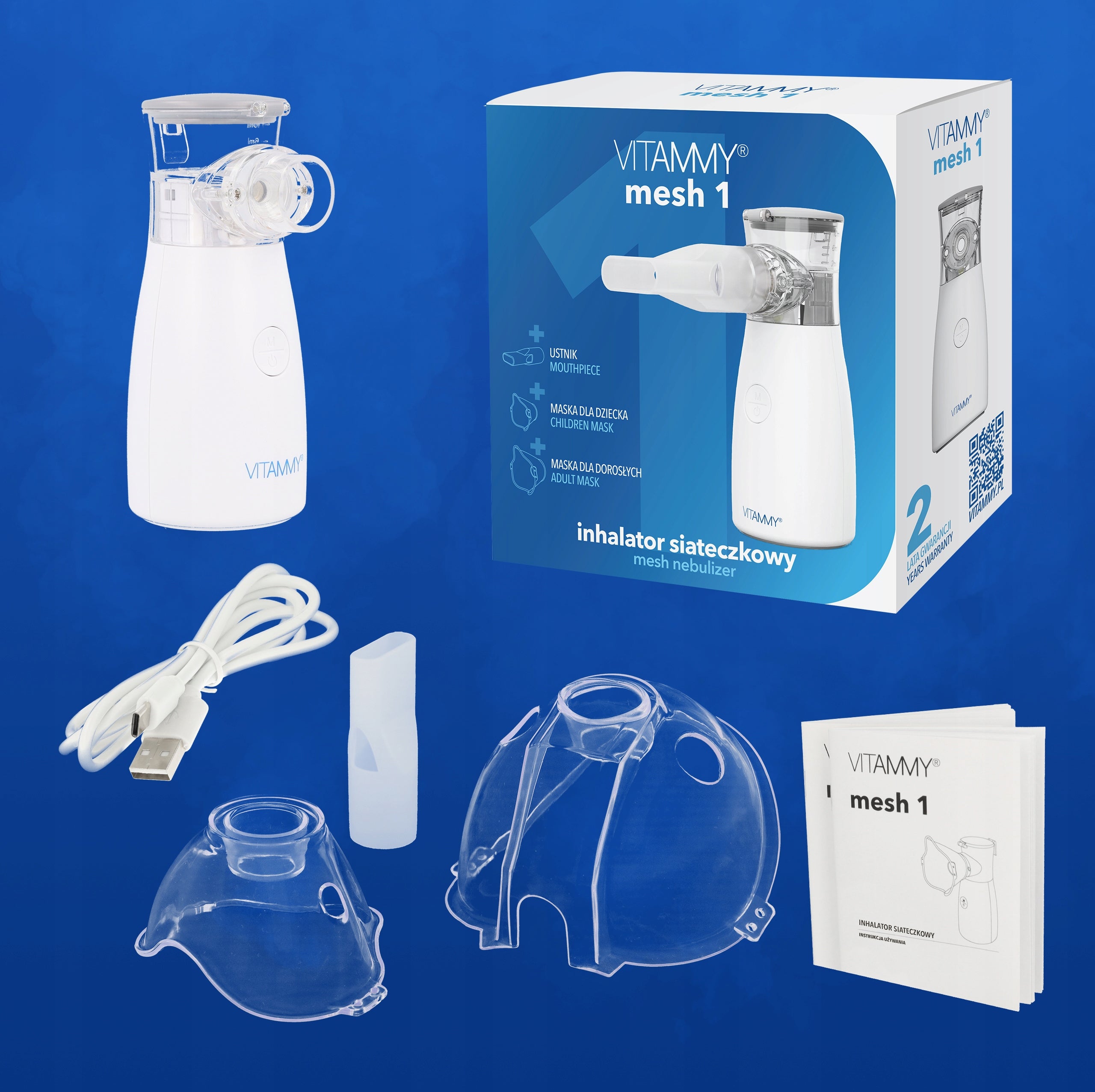

COMPOSITION OF THE SET

1. Nebulizer body with built-in lithium battery.

2. Medicine container.

3. Mouthpiece.

4. Mask for children.

5. Mask for adults.

6. USB-C cable (for connecting to a 5V charger, e.g. from the telephone).

7. User manual in Polish.

8. User manual in English.

9. Original box.

FULL TECHNICAL SPECIFICATION OF THE DEVICE

▪Nebulisation rate:

–Speed I ≥0,25 ml/min.

–Speed II ≥0,15 ml/min.

▪Minimum amount of medicine: 2 ml.

▪Maximum amount of the drug: 10 ml.

▪Residual value (residue from inhalation): ≤0,3 ml.

▪Particle size: 1 μm < MMAD < 4 μm.

▪Small molecule fraction (< 5 μm): 60%.

▪Vibration frequency: ~110 kHz.

▪Volume level: ≤50 dB.

▪Net weight: ~0,1 kg.

▪Dimensions: ~136 mm x 107 mm x 90 mm.

▪Water resistance class: IP22.

▪ Power supply: USB-C power supply (input: AC 100-240 V, 50~60 Hz, output: DC 5 V, 1 A) or built-in 3,7 V lithium battery.

With VITAMMY Mesh 1 you will perform nebulisation:

1. Safe and hygienic

VITAMMY Mesh 1 is a certified medical device submitted to the Office for Registration of Medicinal Products, Medical Devices and Biocidal Products. It features a detachable, replaceable medicine container, so you can quickly clean it after each use and replace it with a new one if needed. What’s more, you can be sure that you will be able to buy a new head when it comes time to replace it, so that the operating parameters of your device do not deteriorate.

2. Conveniently and without restrictions

The VITAMMY Mesh 1 nebulizer is perfect for both home and travel. Thanks to its small size, light weight and volume, it can be used practically anywhere and by anyone. You will use it comfortably and safely, e.g. on a train or a car. It is perfect for both children and adults.

3. Reliable, cost-effective and environmentally friendly

VITAMMY Mesh 1 is made of high quality materials. It comes with a built-in lithium battery that you can charge with any USB-C 5V charger (such as a phone) or by connecting to a powerbank or USB connector in your computer or car. You never have to look for batteries again when you don’t have them on hand.

4. Flexible and practical

In VITAMMY Mesh 1 you can adjust the speed of the nebulisation procedure. The device operates at two speeds, thanks to which you decide how long the inhalation process will take and how large the size of particles will be generated by the device (in the case of a lower speed of action, the membrane produces an aerosol with smaller particles). The built-in LED will inform you about the current status and mode of operation of the device.

5. Effectively and efficiently

The mist produced by the device consists of tiny particles, so that the drug used can reach deep into the respiratory system, where it will be fully absorbed. What’s more, the liquid residue of the drug is only ≤0,3 ml, which means that a very small amount of the drug will not settle on the mask or other parts of the device, and most will go into the patient’s respiratory system.

CORRECT NEBULISATION WITH VITAMMY MESH 1 IN 6 SIMPLE STEPS:

1. Place the medicine in a container, close the lid and mount the medicine container to the body of the device.

2. Attach a mask of the right size or mouthpiece to the device.

3. Turn on the nebulizer – select speed I or II.

4. Apply the device to your face and start inhaling.

5. Disconnect the medicine cup and clean it according to the instruction manual. When the medicine runs out, your VITAMMY Mesh 1 should turn itself off.

YOU ALWAYS KNOW WHAT MODE YOUR DEVICE IS IN

VITAMMY Mesh 1 is equipped with a multi-colored diode indicating the operating status of the device:

•Green indicator pulses quickly ---> the device is on, speed I is selected.

•Green indicator slowly pulsates ---> the device is on, speed II is selected.

•Blue indicator is on ---> charging (the control goes out automatically when the device is fully charged).

•Orange indicator is on ---> the battery is discharged.

•Orange indicator flashes 10 times and the device will turn off ---> no medication.

HOW TO USE THE NEBULIZER CORRECTLY?

VITAMMY Mesh 1 can be used together with nebuliser medicines. Before use, read both the instruction manual of the device itself and the package leaflet that comes with the inhalation preparation and follow the rules contained therein.

The VITAMMY Mesh 1 nebuliser must not use substances that can permanently damage the nebuliser mesh – e.g. Pentamidine drugs and oil medicines, as well as those containing lipids or suspended particles, are not suitable.

Always clean and disinfect and dry the medicine container and nebuliser membrane after use.

Use 75% ethyl alcohol to disinfect the device. After disinfection, thoroughly rinse the elements with boiled or distilled water.

ATTENTION

The durability of the medicine container along with the built-in membrane in all mesh nebulizers is limited! You need to be aware that it should be replaced about every six months (when used 3 times a day, each time 20 minutes). Actual durability also depends on the type of medication used.

CERTIFICATES OF OUR COMPANY

CERTIFICATES OF OUR PRODUCT

The CE 0123 designation symbolises the conformity of the product with the European Union Directive 93/42/EEC.

MEDICAL DEVICE INFORMATION This is a medical device. Use it according to instructions or label. Instructions for use in Polish: YES. Label and in Polish YES. Notification to the Office for Registration of Medicinal Products, Medical Devices and Biocidal Products: YES.

Manufacturer: Contec Medical Systems Co., Ltd. Authorized Representative: Shanghai International Holding Corp. GmbH (Europe). CE certified product: YES. Advertisers: Novamed.pl S.A.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	VITAMMY
Parametry	Medical device	yes
Parametry	Medical device type	medical device or in-vitro diagnostic medical device
Parametry	Manufacturer of a medical device	Contec Medical Systems Co., Ltd.
Parametry	Kind	membrane
Parametry	Color	white
Parametry	Power supply	USB
Parametry	Manufacturer code	TOW020942
Parametry	EAN (GTIN)	5901793649580
Parametry	Model	Mesh 1
Parametry	Packaging status	original
