Tinklo grotuvas Dune HD Pro 8K Plus, 8K, HDR10+, Dolby Vision, 8GB/64GB

Trumpai apie prekę

Prekė: Tinklo grotuvas Dune HD Pro 8K Plus, 8K, HDR10+, Dolby Vision, 8GB/64GB. Kategorija: Įrenginiai.

• Gamintojas: Dune HD
• Modelis: Pro 8K Plus

• New series of state-of-the-art 8K media players from Dune HD
• Hi-End S928X media processor with 8K, AV1, VS10
• Full 8K video support
• AV1 Video Codec
• 8 GB of memory
• 64 GB of flash memory
• Dolby Vision and HDR10+
• Ethernet 1Gb and Wifi 6

Dune HD Pro 8K Plus

8K Dolby Vision and HDR10+ Multimedia Player

with Android, 8+64 GB Memory, 1Gbit Ethernet, WiFi 6.

The new flagship line of Dune HD 8K models (next generation after RTD1619DR models).

High-end video, 8K, AV1

Dolby Vision VS10, HD audio, ISO 4K DV P7 FEL, AFR.

Support for Android apps and streaming services (Netflix, HBO Max, Disney+, etc.) is not a core function, and the manufacturer does not guarantee compatibility.

Key Features:

New Line of Cutting-Edge 8K Multimedia Players from Dune HD

• This new 8K flagship line is based on the latest top-of-the-line S928X multimedia processor, features full 8K support, boasts incredible performance, and has many other advantages. At the same time, the line retains the most important features of the RTD1619DR models: top-quality picture, Dolby Vision VS10 technology, full support for all HD audio formats, advanced support for Dolby Vision file playback, and support for full menus in ISO images and disc structures.

Replacement for the Popular Real Vision 4K Models

• This model replaces the discontinued Real Vision 4K and Real Vision 4K Plus models. It has almost all the features of the Real Vision 4K models, except for support for the outdated BD3D technology. In addition, this model also has extra features compared to the Real Vision 4K models: AV1 codec, more flexible video scaling capabilities, decoding of any HD audio formats to multi-channel PCM, support for 20 TB+ hard drives, larger 64 GB storage, larger 8 GB RAM, CPU and GPU with better performance, newer Android 11 system, and other improvements.

Hi-End S928X Multimedia Processor with 8K, AV1, VS10

• The multimedia player uses a Hi-End version of the latest S928X multimedia processor with the Dolby Vision VS10 engine. This is Amlogic's most powerful and advanced multimedia processor. It delivers exceptional picture quality, supports true 8Kp60 decoding and true 8Kp60 output, includes the new AV1 video codec, and generally provides the highest performance.

Full 8K Video Support

• 8K is the next-generation video format that offers 4 times more pixels than 4K. The 8K format provides the most immersive visual experience and delivers a truly smooth and clear picture. The multimedia player supports both 8Kp60 HDR video decoding and 8Kp60 HDR video output. The multimedia player can downscale 8K content to any resolution and upscale any content to 8K resolution. YouTube 8K HDR is supported.

AV1 Video Codec

• The multimedia player supports the new AV1 video codec, which helps to achieve up to 50% improvement in video quality without increasing the video bitrate (or requires up to 50% less bitrate for the same video quality). This new video codec is already used by YouTube and will become increasingly important for compatibility with various video services and content sources.

Best-in-Class Performance

• The multimedia player has a very powerful processor and graphics card. The processor includes four 2.0 GHz ARM A55 cores, a "big" 1.9 GHz ARM A76 core (with very high performance), and an additional core for the system's needs. The resulting CPU performance is up to 2x higher than in RTD1619DR. The graphics card has been upgraded to Mali G57. Combined with super-fast LPDDR4X and super-fast eMMC, this provides incredibly high overall system performance. The total Antutu score exceeds 300,000 points, which is significantly more than in previous generation multimedia players.

8 GB of RAM

• This huge amount of RAM ensures the best performance even in the most intensive use cases. The 64-bit Linux kernel allows efficient use of 8 GB of RAM for caching system and application code and data. Applications launch, run, and switch faster. More memory can be used for graphics caching, which further improves UI performance.

64 GB of Flash Memory

• A gigantic storage space for the heaviest applications, for system needs (such as storing movie posters), and for internal storage that can be used for any purpose. For example, you can store media files in internal memory and even share them on the local network via the built-in SMB file server.

Dolby Vision and HDR10+

• The multimedia player supports not only HDR technology but also the latest and most advanced Dolby Vision and HDR10+ technologies. In conventional HDR technology, the brightness range is set at the beginning of the movie and does not change during the movie, so completely dark and completely bright scenes may have insufficient detail. In the latest Dolby Vision and HDR10+ technologies, the brightness range can vary between individual frames, ensuring maximum image detail even in scenes containing only dark or only bright elements.

Dolby Vision VS10 Video Processor

• The advanced Dolby Vision VS10 video processing engine ensures maximum picture quality when playing any type of content (SDR, HDR, Dolby Vision) with any type of output video signal (SDR, HDR, Dolby Vision). In particular, it improves the quality of conversion between Dolby Vision, HDR, and SDR. This benefits even when using the multimedia player with TVs that do not support Dolby Vision, including plasma TVs, and especially when using projectors.

Dolby Vision Profile 7 FEL

• The multimedia player supports direct playback of dual-track and dual-layer Dolby Vision files with profile 7 FEL. This is the most advanced Dolby Vision format. The multimedia player plays video in this format using both tracks/layers. Important Dolby Vision information from the second track/layer (Dolby Vision RPU metadata) is transmitted to the TV along with the video data from the first track/layer. The transmitted video data uses 10-bit color depth – the maximum color depth supported by OLED panels in OLED TVs, i.e., it fully utilizes the capabilities of OLED TVs. Combined with full use of Dolby Vision metadata, this results in excellent Dolby Vision picture on the TV screen.

Widest Support for Dolby Vision File Formats

• Dolby Vision is supported for all popular file formats (MKV, MP4, TS, M2TS, ISO, movie folder structure). All popular Dolby Vision profiles are supported (P5, P7 MEL and FEL, P8). The multimedia player supports the largest number of variations of Dolby Vision file formats of any other multimedia player.

Dolby Vision ISO/Folder Structure Playback

• The multimedia player supports direct playback of movie ISO/folder structures in Dolby Vision format (MEL and FEL). Extended Dolby Vision information is used and transmitted to the TV to improve picture quality. This is made possible by the unique video playback and output engine created by Dune HD.

Full Support for HD Audio

• The multimedia player can output all HD audio formats (up to Dolby TrueHD and DTS X) to HDMI in bitstream mode. In addition, the multimedia player can decode all HD audio formats to multi-channel PCM (up to 7.1 channels).

Audio Playback with Native Sampling Rate

• The multimedia player can play high-quality music files and output audio to HDMI and S/PDIF, preserving the native audio sampling rate. Sampling rates from 44.1 to 192 kHz are supported.

The Entire Case Functions as a Heatsink for Super-Efficient and Quiet Cooling

• The S928X is a very powerful processor. It needs very efficient cooling to achieve maximum performance. The multimedia player uses the best approach to passive cooling, which uses the entire metal case as a huge heatsink. Heat is transferred very efficiently from the processor directly to the metal case through a special thermally conductive element.

Android 11

• For Android applications, the multimedia player uses a modern version of Android 11. This increases system performance and provides better compatibility with the latest Android applications.

Other Key Advantages Compared to Competitors

Best-in-Class Playback of Movies in ISO/Folder Structure Format

• Dune HD multimedia players provide best-in-class support for playing movies in ISO/folder structure format, including full support for disc menus, 4K, DV, HDR10+, HDR10, and HD audio. ISO/folder movie structures can be played from any source – local drive (USB, SATA) or network drive (SMB, NFS). A special engine helps ensure smooth playback of the entire movie without audio/video interruptions, even when playing movies with a complex structure.

Automatic Frame Rate/Resolution Switching

• The multimedia player can automatically switch the output frame rate and resolution to match the content being played. This helps ensure absolutely smooth video playback and utilize the best way to upscale video (upscaling by the multimedia player or the TV).

Flicker-Free Frame Rate/Resolution Switching

• Dune HD multimedia players use their own advanced flicker-free solution for automatic frame rate and resolution switching, which switches the video mode before the file starts playing (and not after). Most other multimedia players switch the video mode after the file starts playing, which causes unpleasant flickering.

Multi-Channel DSD and Other Advanced Music Formats

• You can play music in various advanced formats, including multi-channel FLAC, WavPack, APE, ALAC, and even multi-channel Super Audio CD (SACD). SACD music files, encoded using the advanced DSD audio codec, are supported in all popular formats (ISO, DFF, DSF), both in stereo and multi-channel files, including files using DST compression. Multi-channel DSD files can be output to HDMI as multi-channel PCM. Stereo DSD files can be output to HDMI and S/PDIF as stereo PCM.

Widevine L1 for Premium Video Services

• Support for DRM Widevine Level 1 (the most advanced DRM level) enables watching top-quality online video services with HD and Ultra HD quality. Multimedia players without Widevine Level 1 support can only play low-quality video (in standard resolution) in many such services.

Optimized Operating System

• Since the multimedia player is not certified by Google Android TV, the multimedia player's operating system is optimized to eliminate unnecessary overhead and restrictions. In particular, the multimedia player does not create unnecessary Android folders on connected hard drives, system performance is not reduced by Android file indexing on connected hard drives, etc.

Dune HD Android Playback Accelerator Technology

• This unique technology intelligently manages the resources of the Android operating system to minimize the impact of the Android operating system on the media playback engine and ensure smooth, high-quality video and audio playback.

Dune HD Linux-Based Operating System

• The multimedia player runs on a unique hybrid operating system that consists of the Dune HD Linux-based operating system (to ensure stable operation and smooth media playback) and the Android operating system (to support Android applications), which work simultaneously.

Dune HD Ecosystem

Dune HD User Interface

• The famous Dune HD user interface, developed and refined for over 12 years, specially optimized for use on TV screens and controlled with a standard remote control, tuned for the best possible usability, makes using the multimedia player easy and convenient.

Dune HD Movie Library - Your Cinephile Encyclopedia

• The "My Collection" feature organizes the user's movie assets into a nicely looking catalog. An extensive encyclopedia provides information about hundreds of thousands of movies with detailed descriptions, posters, links between movies and people, trailers, direct links to online video services, etc. An advanced file browser automatically recognizes movies.

Dune HD Mobile App

• The unique Dune HD mobile app (Dune Control) for iOS and Android mobile devices provides full access to all functions of the Dune HD multimedia player in a very convenient and efficient way. It fully replaces the standard IR remote control, allows browsing and selecting media content directly on your mobile device (the menu displayed on the mobile device mirrors the menu displayed on the TV screen), and includes a Now Playing section for convenient media playback control.

Smart Home

• The multimedia player provides a powerful IP Control interface and has many options for integration with Smart Home and home automation systems such as Control4 and Crestron.

Documented History of Software Updates Over a Very Long Period

• Dune HD is known for its reputation for listening to user feedback and providing software updates for many years. For example, for some older models, software updates with additional features have been provided for over 10 years. This is made possible by the unique "single code base" approach, which means that the firmware for all Dune HD models is based on the same software (constantly developed and improved according to user feedback).

Other Key Features

1 Gb Ethernet

• Provides fast data transfer and smooth high-bitrate video playback when using a wired connection to your home network.

Wi-Fi 6

• This latest Wi-Fi standard provides better wireless network performance and greater wireless network range when using a wireless connection to your home network.

Built-in Bluetooth 5.2

• The built-in Bluetooth interface allows you to easily connect various remote controls, wireless keyboards, mice, joysticks, audio speakers, headphones, headsets, and other devices. The new Bluetooth 5.2 version improves performance and compatibility.

Bluetooth Remote with Microphone, IR Learning, and AirMouse.

• The AirMouse function allows you to conveniently control Android applications that are not optimized for control with a conventional remote control.

Infrared (IR) Control

• The multimedia player has a built-in IR receiver and can also be controlled using IR commands. This means you can use any programmable or learnable third-party remote control to control the multimedia player or integrate the multimedia player with a smart home via IR. For example, you can integrate the multimedia player with a smart speaker using an IR emitter controlled by the smart speaker.

Front Panel Display

• When playing a file, the display shows the current playback position. It can also show the current time. The display mode can be customized in the menu.

Color: Black

Media Processor: Amlogic S928X-K/J with Dolby Vision VS10 engine

Operating memory: 8 GB

Flash memory: 64 GB

Ethernet: 10/100/1000 Mbit/s

Wi-Fi: 802.11b/g/n/ac/ax (Wi-Fi 6), Dual Band 2.4+5 GHz, 2T2R

Bluetooth: Bluetooth 5.2

USB ports: 1x USB 3.0 host + 1x USB 2.0 host

USB Slave Port: None

Slot micro SD: Yes

HDMI output: HDMI 2.1a to 8Kp60 HDR/4Kp60 Dolby Vision, experimental support 120Hz (up to 4Kp120)

Analog audio output: Minijack 3,5 mm (stereo sound)

S/PDIF output: Optical S/PDIF

Front panel display: Multi-segment LED display H:MM:SS / HH:MM

Infrared receiver: Built-in infrared receiver, supports IR Dune HD codes and IR Google codes

Antennas: 2x external non-detachable Wi-Fi + BT antennas (antennas are not detachable because they are needed for Bluetooth remote control)

Pilot: Bluetooth remote control with microphone (voice search), AirMouse, with IR code learning mode

Housing: Metal

Cooling: passive (whole housing as a super-efficient heat sink)

Dimensions (W. x H x D. ): 160 mm x 26 mm x 115 mm

Power Input: 12 V DC IN (2 A)

Power Supply: External, DC 12V (2A), AC 100-240V

VIDEO:

8K video decoding: Yes, up to 8Kp60 HDR; 8K content can be scaled to 4K, 1080p or lower output resolution

8K video output: Yes, up to 8Kp60 HDR; any content can be scaled to 8K output resolution

Video decoding: AV1, profile VP9 2, H.265 (HEVC), H.264 (AVC), VC1, MPEG4, MPEG2, MPEG1

HDR Formats: Dolby Vision, HDR10+, HDR10, HLG

Dolby Vision VS10 Engine: Yes

Dolby Vision playback: Profiles 5, 7 (MEL and FEL), 8; various containers (ISO, folder structure, MKV, MP4, M2TS); DTDL (double-track double-layer), STDL (single-track double-layer), STSL (single-track single-layer). Dual-track/two-layer video (profile 7 MEL, profile 7 FEL) is played back using data from both tracks/layers: video data from the first path/layer (with 10-bit color depth – maximum color depth supported by OLED panels in OLED TVs), extended Dolby Vision information (RPU metadata) from the second path/layer

Dolby Vision Output: LLDV (Low Latency Dolby Vision / Player-led Dolby Vision), STD DV (Standard Dolby Vision / TV-led Dolby Vision)

Manual preferences for LLDV or STD DV: Yes

HDR mode switching (SDR/HDR/DV): manual and automatic (according to the content being played)

Frame rate: all standard frequencies including 23,976, 24,0, 25,0, 29,97, 30,0, 59,94, 60,0; experimental support for 120 Hz output

Switching frame rate and resolution: manual and automatic (depending on the content being played)

Up and down video scaling: Yes

3D video support: Next to each other, Up and Down (TV requires manual switching to 3D mode)

Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, ISO, video folder structures

BD Playback: Lite (direct video playback without menu), full menu

DVD-Video playback: Lite (direct video playback without menu), full menu

AUDIO:

Bit Stream Forwarding: Transfers bitstream of all Dolby/DTS formats (to Dolby TrueHD Atmos and DTS X).

Dolby/DTS format decoding: Multi-channel decoding (up to 7.1 channels) of all Dolby/DTS formats (up to Dolby TrueHD Atmos and DTS X)

Audio decoding: MPEG-1/2 layer I/II/III, AAC, LPCM, FLAC, multichannel FLAC, Vorbis, WavPack, APE (Monkey’s Audio), ALAC (Apple lossless), SACD DSD (stereo and multichannel), multichannel PCM (up to 7.1), all Dolby/DTS formats (up to Dolby TrueHD Atmos and DTS X)

Audio file formats: MP3, MPA, M4A, AAC, WAV, FLAC, Ogg/Vorbis, WavPack, APE (Monkey’s Audio), ALAC (Apple lossless), SACD ISO (stereo and multichannel), SACD DSF (stereo and multichannel), SACD DFF (stereo and multichannel), AC3, DTS, DTS-WA

PCM audio output: up to 7.1 channels, original sampling rate (44,1 to 192 kHz)

OPERATING SYSTEM AND APPLICATIONS:

Operating system: Linux based Dune HD OS + Android 11

Operating System Kernel: 64-bit

Android Apps: 32-bit

Support for hard drives larger than 16 TB: Yes

Supported file systems: FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write), exFAT (read-write), HFS/HFS+ (Mac OS Standard/Extended) (read-only), BTRFS (read-write)

DRM Widevine: Widevine L1

Google Android TV Certificate: No

Netflix Certificate: No

Compatibility with Android apps and VOD services:

It varies depending on the application and services, no compatibility guarantee (no official Android TV certification, no official certification of individual streaming services); the basic function of this media player is to play Hi-End media from your hard drive or NAS, support for Android applications and streaming services is an additional, secondary functionality without guaranteed compatibility.

Features that require an internet connection:

Some features require an internet connection to verify the Dune HD license.

1. An internet connection is required to play video files in the most advanced Dolby Vision format (DV Profile 7); without the Internet, such files can still be played, but in HDR format (as in most third-party media players).

2. An internet connection is required to play BD images with a full menu; without the Internet, such files can still be played, but with a Lite menu (as with most third-party media players). In the future, the set of functions requiring an Internet connection may change.

OTHER FUNCTIONS:

Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (ISO, TS, MKV)

Online subtitles: automatic download of subtitles from the Internet

Graphic file formats: JPEG, PNG, BMP

Photo Viewer Features: Slide Show, Transition Effects, Image Rotation, Zooming, Playlist Viewing, Repeat, Random Playback

Playlist file formats: M3U, PLS, CUE

SMB client: browsing SMB servers/shares, manually connecting to SMB, direct access (read-write) and file playback (SMB v1/2/3)

NFS client: browse NFS servers/shares, manually connect to NFS, get direct access (read-write), and play files

SMB Server: Share connected storage devices (USB hard drive) and internal flash memory on your local network via SMB (SMB v1/2/3)

Mobile apps for iOS and Android: control your media player with the powerful Dune Control mobile app

IP Control: Use the built-in IP Control interface to integrate your media player with smart home and home automation systems (such as Control4 and Crestron)

Blu-ray and DVD Menu

• The media player supports playback of full Blu-ray images in maximum quality (including BDMV, BD ISO, BD4K DV/HDR, BD-Java, smooth branching, darkened playlists) and ISO DVD images. When playing Blu-Ray and DVD images, both a simplified “Lite” menu and a full Blu-Ray and DVD menu with a choice of scenes and additional materials are available.

2 external antennas

• 2 external Wi-Fi (2T2R) and Bluetooth antennas provide excellent Wi-Fi and Bluetooth performance

Display on the front panel

• Shows the current playback position when playing files. It can also show the current time. Display mode can be configured in the menu.

Infrared control

• The media player has a built-in infrared receiver and can also be controlled using IR commands. This means you can use programmable or learnable third-party remote controls to control your media player or integrate your media player into your smart home via infrared. For example, you can integrate a media player into a smart speaker (for example, Yandex Station) by connecting an infrared emitter to a smart speaker.

Built-in file server

• The media player has a built-in SMB file server. The contents of the storage devices connected to the player and the internal memory of the player are available on the PC and other devices on the local network via the SMB protocol.

Parental control

• The media player has a built-in parental control function. 00:00 to 22:00)

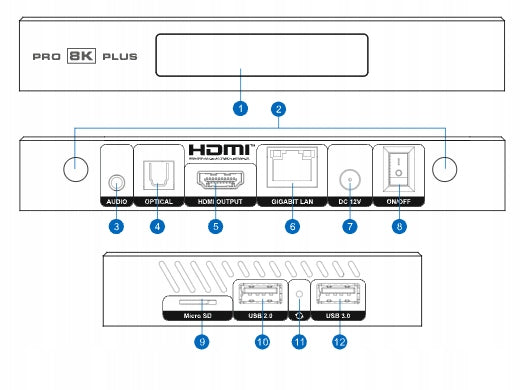

1. LED Indicator
2. Wi-Fi + Bluetooth antennas
3. Analog stereo audio output 3,5 mm
4. S/PDIF optical audio output
5. HDMI 2.1a output (up to 8K60, experimental 4K120 support)
6. Ethernet port 1000 Mbit/s
7. 12V Power Connector
8. Power Switch
9. Micro SD card slot
10. USB 2.0 port
11. RESET button
12. USB 3.0 port

Content of the package:

1× Multimedia player

1× Bluetooth remote control

1× DC 12V/2A power supply

1× HDMI 8K Ultra High Speed Cable

1× Short Guide (EN/DE/FR/SP/IT/RU)

User manual for the remote control

• programmable buttons require battery backup;
• After removing the battery, however, the remote does not forget the Bluetooth connection;
• The pairing mode in the remote control is activated by pressing “V+” and “Enter” for 3 seconds
• programming mode in the remote control:

  press "TV UP" and "TV DOWN" (the ones in blue) for 3 seconds - red constant light should light up,

  press one of these four programmable buttons (the light should start flashing),

  press the button on another remote control,from which we want to capture the signal at a distance of about 1 cm from the IR diode of our remote control (after “catching” the signal, the light should stop flashing)

  Repeat 2) and 3) in the case of other buttons.

• Factory reset of the remote control (if necessary): press “ENTER” and “TOP MENU” for 3 seconds (it will also remove saved programmable buttons).

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Dune HD
Parametry	Model	Pro 8K Plus
Parametry	HDMI connector	yes
Parametry	EAN (GTIN)	4897031343765
Parametry	Manufacturer code	188B001W01-DN401
Parametry	Packaging status	original
Parametry	Customs tariff code	85219000
Parametry	Audio formats	Audio CD,MP3,WMA
Parametry	Image formats	DivX,SVCD
Parametry	Additional features	subtitle support,Polish text
Parametry	Certificates of conformity	CE,WEEE
