Tinklo grotuvas Zidoo UHD8000 8K HDR su DAC ir Dolby Vision

Trumpai apie prekę

Prekė: Tinklo grotuvas Zidoo UHD8000 8K HDR su DAC ir Dolby Vision. Kategorija: Įrenginiai.

• Gamintojas: Zidoo
• Modelis: UHD8000

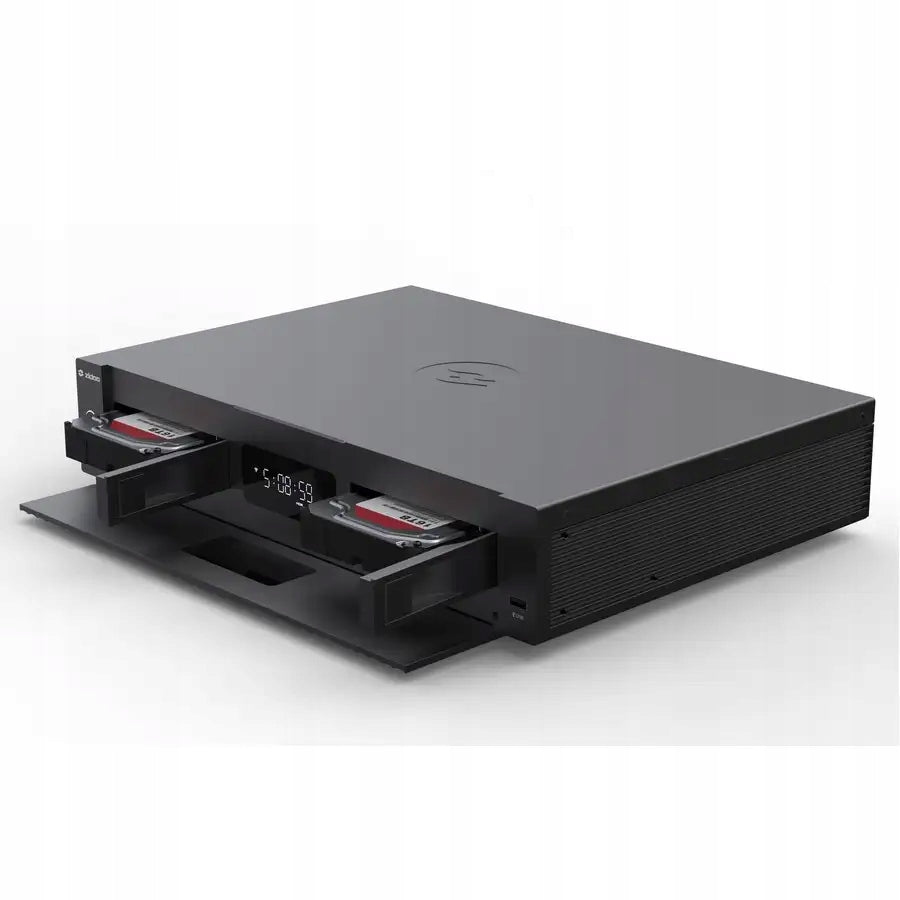

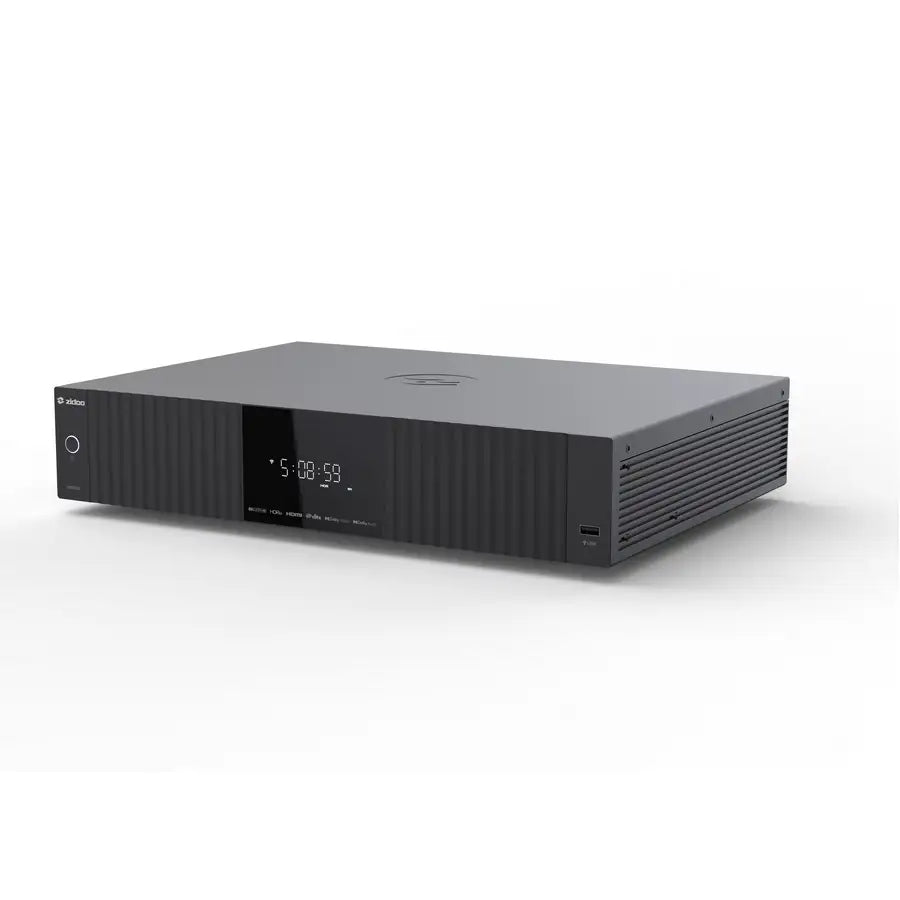

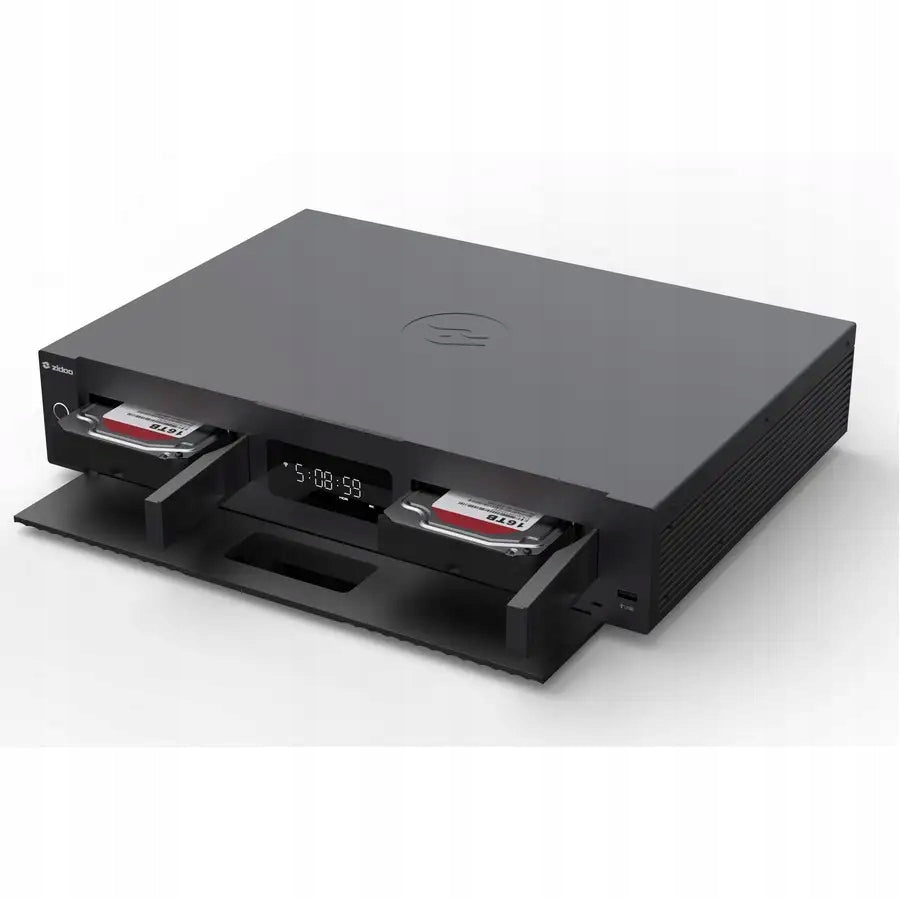

Zidoo UHD8000 8K HDR Dolby Vision Network Player with DAC

Zidoo UHD8000 is an uncompromising, multifunctional multimedia player and high-end network streamer that combines reference 8K image quality with the highest quality audiophile sound. Designed for the most demanding home theater and Hi-Fi enthusiasts, it is the perfect home entertainment center. With a powerful next-generation processor, dual power supply, and a digital-to-analog converter from the top ESS series, this device pushes the boundaries of what can be achieved in home audio and video reproduction.

Key Features of the Product:

• Extreme performance thanks to 64-bit architecture: The heart of the device is a modern, five-core Amlogic S928X-K processor (Cortex-A76 + Cortex-A55) supported by a powerful 8GB DDR4 RAM and 64GB of internal eMMC memory. 64-bit memory bandwidth guarantees unparalleled smoothness of Android 11.
• 8K resolution and advanced HDR: HDMI 2.1a output provides support for 8K@60Hz (point-to-point connection). The device supports the most advanced HDR formats, including HDR10, HLG, HDR10+, and Dolby Vision. Processing 12-bit color depth with BT.2020’s wide color palette guarantees stunningly realistic and dynamic images.
• Built-in VS10 image processor: Customizable VS10 image quality engine drastically improves video quality by intelligently mapping different color modes. The player precisely processes static HDR10 metadata (MaxFall, MaxCll) and dynamic HDR10+ metadata, resulting in even deeper blacks and bright, details in the overexposed zones.
• Audiophile DAC ESS9069Q and XMOS: For the audio section, a chip supporting decoding lossless DSD512 and PCM 768KHz/32-bit formats was used. The sound output is made using fully balanced XLR and analog RCA connectors, guaranteeing flawless fidelity and powerful dynamics (SNR >123dB).
• Separate power supply for Audio and Video: UHD8000 has a unique dual power supply system. The large, toroidal linear power supply only supports sensitive audio circuits to minimize interference, while the high-end switching power supply delivers power to digital and video circuits.
• Two HDMI outputs (Audio and Video Separation): The device allows you to transfer the highest image quality (e.g. 8K/4K) directly to the TV with simultaneous transmission of uncompressed HD audio (Dolby Atmos, DTS:X) dedicated HDMI connector to the older generation receiver.
• USB DAC input: The player can act as a top-of-the-line external audio decoder (sound card) for Windows (10/11), Mac OS and Android devices.
• Powerful file space: The enclosure is equipped with two hidden, patented HDD (NSS) 3.5-inch hard drive bays. Each bay supports drives up to 16TB (a total of 32TB for your files).
• Ideal for music lovers: Full support for SACD ISO, DSF, DFF, WAV, FLAC formats with "gapless" playback (without interruptions) and CUE. Integrated streaming protocols such as TIDAL Connect and DLNA, combined with the new music player (Zidoo Music Player 8.0) make it an ideal source for stereo systems.
• Excellent movie collection support: The new "Poster Wall 4.0" app automatically downloads covers, descriptions and trailers, brilliantly categorizing your movie library.
• Exclusive build quality: Standard audio case format (430mm width), front made of brushed aluminum alloy, large hidden VFD LED panel, matte top cover and anti-vibration feet make the UHD8000 look great in any Hi-Fi system.

Full Technical Specification

System and Components:

• Model: Zidoo UHD8000
• Operating system: Android 11 (highly optimized for smooth operation)
• Processor (CPU): Amlogic S928X-K ARM Cortex-A76 + Cortex-A55 (Five-core, 64-bit)
• GPU: ARM Mali-G57 MC2
• RAM: 8GB DDR4
• Storage (ROM): 64GB eMMC

Image and Video:

• Video output: HDMI 2.1a (up to 8K@60p support, 12-bit color depth, BT.2020)
• HDR formats: Dolby Vision, HDR10+, HDR10, HLG
• Video decoding: 8K@60p: AV1, VP9, H.265, AVS3, AVS2
• Frame matching: Automatic resolution and frame switching (m m.in. 23.976 fps) guaranteeing cinematic smoothness without cropping (works for local playback and streaming).
• Support BD/UHD menu: Full support for Blu-ray menu playback and smooth disc playback with comprehensive MPLS structure.
• Subtitles: Support for advanced graphic subtitles, the ability to adjust the brightness of subtitles, download online. Zidoo supports forced double subtitles (Blu-ray and MKV).

Sound, DAC and Audio Connectors:

• Digital-to-analog converter: Selected ESS9069Q + XMOS chip
• Decoding parameters: Support for DSD512 and PCM 768kHz @ 32-bit
• Analog audio outputs: * 1x Pair XLR (fully balanced L/P output, level: 4.2Vrms)
• Analog parameters: Frequency range: 20Hz - 20KHz (+/-0.15dB); SNR: >123dBrA; THD+N: < 0.00015%; Crosstalk: 135dBrA.
• Digital audio outputs: Separate HDMI (Audio Only), Optical (TOSLINK), Coaxial, USB Audio
• USB DAC input: Hi-Res audio playback directly from computers and mobile devices
• Multichannel decoding: Support for Dolby Atmos and DTS:X formats (signal forwarding - Passthrough)
• 1x Pair RCA (unbalanced L/P output, level: 2.1Vrms)

Connections, Connectivity and Network:

• Wi-Fi: Dual-band Wi-Fi 6 (2.4G + 5G), 802.11 a/b/g/n/ac/ax 2T2R MIMO with 3 high gain antennas
• Ethernet: 1x RJ-45 Gigabit Ethernet port (10/100/1000 Mbps)
• Bluetooth: BT module in standard 5.2
• USB ports: 2x USB 3.0 (back), 1x USB 2.0 (front), 1x USB Type-B input for DAC
• SATA bays: 2x built-in 3.5" pocket (SATA 3.0, support for drives up to 16TB piece; drives not included)
• Other interfaces: RS-232, infrared receiver (IR IN 3.5mm), Trigger Out (3.5mm) for integration in Smart Home systems

Network and Smart Home Management:

• File transfer protocols: Support for NFS, SMB v1/v2/v3, UPnP, WebDAV and built-in SMB server.
• Device control: Remote control included, Zidoo Controller APP (full control from smartphone and tablet screen for iOS/Android with support for horizontal mode).
• Integration with smart home systems: Control4, RS232, TCP/IP control (Wake-on-LAN support), HDMI CEC.

Design and Power Supply:

• Housing: High quality aluminum alloy with brushed metal front panel.
• Display: Large LED screen on the front panel.
• Power supply: Dual (linear transformer + pulse); AC 110~120V / 220~240V, 50/60Hz
• Device dimensions (Width x Depth. x H. ): 430 mm x 312 mm x 80 mm
• Weight: approx. 5.9 kg (without accessories)

Contents of the set: Zidoo UHD8000 player, advanced remote control, power cable, SATA cable, high-quality HDMI cable, 3x high-gain Wi-Fi/BT antenna, user manual.
