Tinklo POE vaizdo įrašymo įrenginys, 4 kanalai, iki 8Mpx, ONVIF, DVS, stebėjimo kameroms

Trumpai apie prekę

Prekė: Tinklo POE vaizdo įrašymo įrenginys, 4 kanalai, iki 8Mpx, ONVIF, DVS, stebėjimo kameroms. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: DVS
• Modelis: DVS-NVR0401-U8-POE

Professional network recorder for monitoring systems

The subject of the offer is a professional IP recorder DVS-NVR0401-U8-POE from the renowned brand DVS. High functionality is provided by full support for the ONVIF protocol, thanks to which almost any IP camera available on the Polish market can be connected to the device. Powerful, multi-threaded processor of the new generation makes the recorder provides the highest resolution preview 4K Ultra HD 3840×2160p

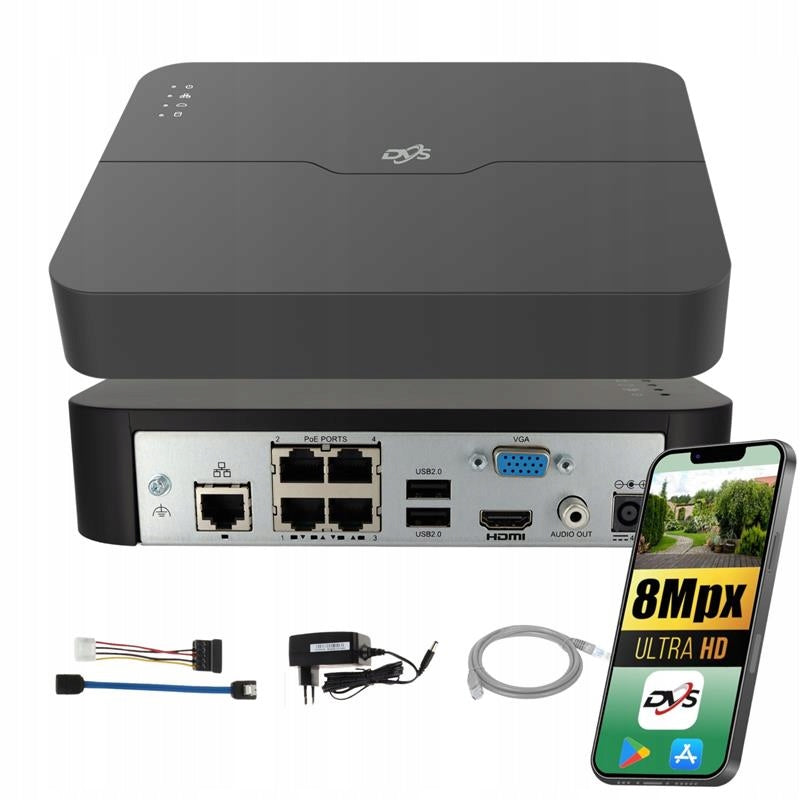

The set includes all the necessary components needed for installation, commissioning, and configuration:

• IP recorder DVS-NVR0401-U8-POE
• set of accessories
• complete documentation (instruction in electronic form is at the end of the offer description
• access to a dedicated Polish-language application

Most important features:

• Support up to 4 network cameras in the highest camera resolution: 4K UltraHD 3840x2160p.

• Local preview via monitor or remote preview using a dedicated mobile application for Android, iOS (DVS-View ) and Windows desktop computers (DVS VMS)

• The advanced motion detection function will detect a moving object and I will immediately send a PUSH notification to your smartphone.

• The most modern H.265 image encoding allows you to save almost three times more data compared to H.264 encoding.

• Integrated switch PoE for powering up to 4 cameras at the same time.

Intuitive menu in Polish makes the use of the DVR function easy and convenient. The recorder has the ability to install up to 1 SATA drive (up to 6TB), has extensive options for searching for recorded video and intelligent image analysis. Video files from the hard drive can be copied to USB portable memory and played on any computer. Thanks to support for the H.265 compression format, recordings take up less space on the hard disk, which significantly extends their storage time.

Intuitive operation and automatic search for cameras from different manufacturers means that installation and configuration does not require specialized knowledge and can be done by almost any user. High flexibility and support for older image coding systems means that the recorder can be the basis for the expansion of the current installation or the creation of a completely new system from scratch.

Very high image quality

The DVS-NVR0401-U8-POE recorder is characterized by very high quality of recording and playback of the recorded image. The device supports IP cameras operating at resolutions up to 8Mpx 4K UltraHD 3840x2160p. High image quality means that the device is recommended to users expecting from the monitoring system very high image detail, as well as functionality that goes beyond standard network recorder solutions.

Access to monitoring wherever you are

All you need to do is connect the computer monitor to the recorder to (after entering the user's password) get instant access to live image and archival recordings. You can also have remote access, from anywhere in the world, using a dedicated, Polish-language application DVS-View, prepared for Android and iOS devices. Browse events, save recordings, receive alert notifications or motion detection – all at your fingertips.

The advanced motion detection function sends PUSH notifications, so that nothing escapes your attention.

Modern DVS IP PoE monitoring kits not only capture images, but also offer advanced analytical features that increase the effectiveness of surveillance. Built-in image analysis systems allow you to detect irregularities in real time, thanks to which it is possible to quickly respond to potential threats and eliminate false alarms.

Motion detection – Cameras equipped with analytics systems can detect movement in the monitored area and then automatically activate an alarm or recording, minimizing the number of unnecessary notifications.

Detection zones – Possibility to designate virtual detection zones whose violation by an object, e.g. a person or vehicle triggers an alarm or notification.

Human detection - thanks to the algorithm of analytics and detection of human characters, false motion detection notifications are eliminated.

Vehicle detection - thanks to the analytics and vehicle detection algorithm, false motion detection notifications are eliminated.

Thanks to the integration of advanced analytics in DVS IP sets for monitoring, users gain a tool that not only monitors, but also automatically responds to detected irregularities, improving the security and efficiency of supervision.

- Schedule of recordings

Easily and quickly set when the recorder is to record images from cameras. E.g. continuously, or when it detects movement. You can indicate specific days and times when the image will be recorded, set holidays and holidays to further narrow the recording time and make your monitoring system fully personalized.

- Motion detection

With one click of the mouse, set advanced motion analysis and receive a PUSH notification on your smartphone about a zone violation Select on the screen where the motion detection option is to be active and set its sensitivity.

- Loop recording

Thanks to this function, the recorder will automatically replace the oldest recordings with new ones, without having to remove the disk, rip recordings or format. This makes it an almost maintenance-free device.

- Privacy Zones

Rest assured of the requirements set by the GDPR, including the option to set the privacy zone. Create areas yourself that will be excluded from previewing and recording events.

- Image sabotage

If the recorder detects an attempt to sabotage your monitoring system (e.g. camera overcoating, wire cutting, power loss) - you will be automatically notified about it via the mobile application.

Built-in switch PoE thanks to which we can receive the signal from the cameras with one cable, while providing them with power directly from the switch PoE built into the recorder. Forget about complicated installations for your monitoring, use the popular UTP 5e network cable with earned tips Rj-45, and enjoy a simple and neat installation.

DVS-NVR0401-U8-POE specification

• Maximum supported resolution: 4K Ultra HD 3840x2160p (8Mpx)
• Maximum number of cameras supported: 4
• Integrated PoE switch: yes, 4 ports 10/100Mbps (for connecting IP cameras)
• Bitrate: 80Mbps
• Number of disks supported: 1
• Image compression: H.265
• Audio compression: PCM/G711A/G711U/G726/AAC
• Outputs: HDMI (x1), VGA (x1), audio in (x1), audio out (x1), USB (x2), VLAN (x1)
• Network connector: RJ 45 10M/100M
• Supported audio channels: max 4 (e.g. with IP cameras with built-in microphone)
• Mobile application: DVS-View
• Maximum number of remote users: 64
• Supported protocols: Onvif, RTSP, HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P
• Power supply: DC48V/53V, 2A/1.8A
• Dimensions: 205mm x 205mm x 46mm
• Operating temperature: from -10°C to +45°C
• Weight: 840g
• Housing type: metal

1. LAN CONNECTOR - Internet connection
2. LAN PoE CONNECTORS - camera connection
3. USB - connecting a mouse or pendrive
4. HDMI - monitor / display connection
5. VGA - monitor/display connection
6. AUDIO - speaker connection
7. POWER SUPPLY - power supply connection

Specifications
