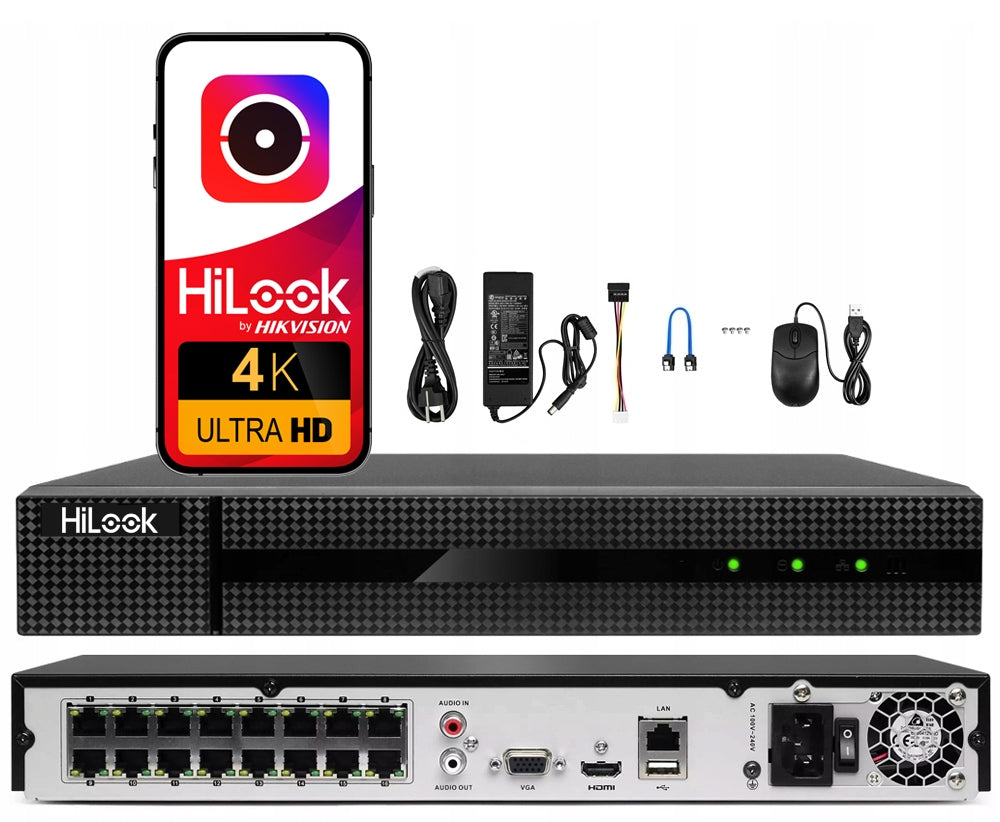

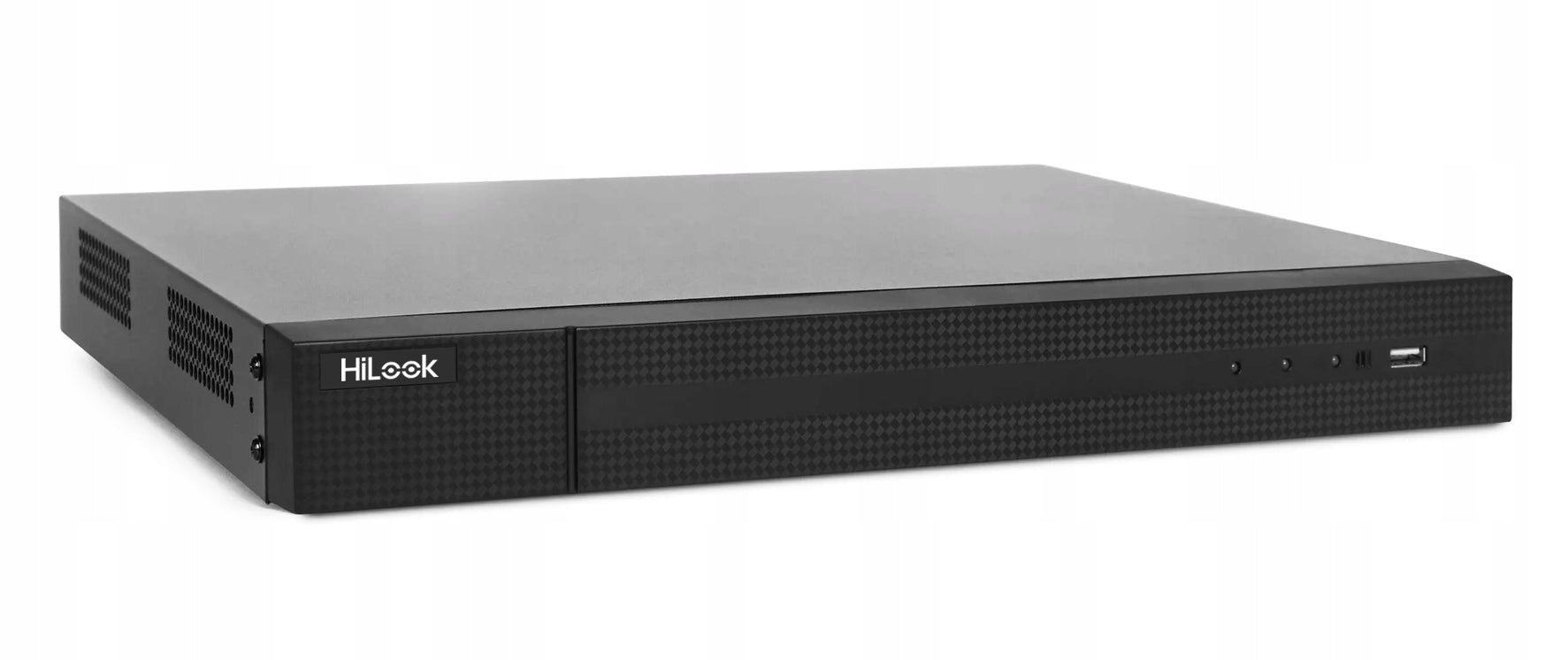

Tinklo vaizdo įrašymo įrenginys Hikvision HiLook NVR-216MH-C/16P, 16 kanalų, 8MPx, PoE

Trumpai apie prekę

Prekė: Tinklo vaizdo įrašymo įrenginys Hikvision HiLook NVR-216MH-C/16P, 16 kanalų, 8MPx, PoE. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-216MH-C/16P HiLook by Hikvision

16-channel / 16x PoE / up to 8Mpx / 1 HDD slot / Motion detection 2.0

The most important features of the recorder:

• support for up to 16 IP cameras, with max. up to 8Mpx
• built-in image analysis MD 2.0 on 4 channels - filtering alarms "man/vehicle"
• configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
• has the ability to install 2 HDD drives up to 8TB
• enables connection and power supply via PoE 16 cameras
• is equipped with H.265 data compression technology, saving disk space

Technical parameters:

• Number of channels: 16
• Recording resolution: up to 8 Mpx (2.5K)
• Bitrate in/out: 160/80 Mbps

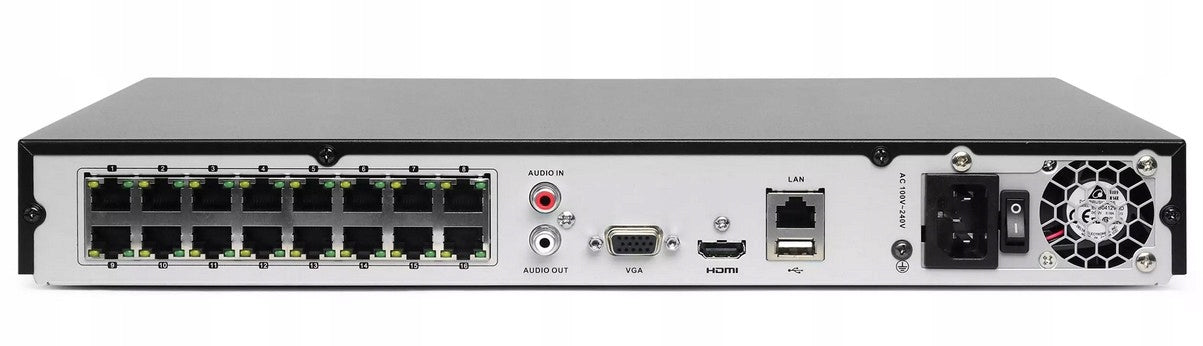

• Video Outputs: 1x HDMI, 1x VGA
• Audio channels: 1x RCA/1xRCA
• USB ports: 2x USB 2.0
• Number of PoE ports: 16
• Capacity budget:150W
• Supported standard: IEEE 802.3 af/at
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Network interface: 1x RJ45 10/100/1000 Mb/s Ethernet
• Remote operation: application Hik-Connect / HiLook App, iVMS-4200, WEB Interface
• Hard disk space: 2x HDD (up to 6TB)
• Power supply: 100-240 VAC
• Power consumption: < 120W
• Dimensions: 385 × 315 × 52 mm
• Weight: 3 kg

Includes power supply and mouse.

HiLook /Hikvision monitoring systems can be controlled, configured and operated using the intuitive HikConnect/ HiLook App mobile application for smartphones and tablets and the iVMS-4200 program for PC computers. Thanks to this, the user has constant control and supervision over the monitored space from any place on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating scenarios and motion detection rules
• control of rotating cameras
• receiving notifications about events within the system

The application uses the P2P cloud to operate, so the system does not need to have forwarded ports on the router.

The NVR-216MH-C/16P HiLook by Hikvision supports Motion Detection 2.0 on all 4 channels, which allows for much more precise detection of events compared to classic motion detection.

This technology uses image analysis algorithms to classify objects, thanks to which the system can distinguish between people and vehicles and filter out many false alarms caused, e.g. by the movement of leaves, changes in lighting or precipitation.

If an event is detected, the recorder can automatically start recording, send a notification to the mobile application or mark the recording in the archive, which significantly facilitates the subsequent search for events.

The HiLook recorder is equipped with PoE (Power over Ethernet) ports that allow direct power to IP cameras using the same network cable that is responsible for image and data transmission. In practice, this means that it is enough to bring one Ethernet cable to each camera, without the need for additional power supplies or conducting a separate electrical installation.

This solution significantly simplifies the installation of the monitoring system, reduces installation time and reduces the number of elements that may fail.

Modern video compression H.265 / H.265+ in the HiLook recorder used in the repost allows you to significantly reduce the amount of data recorded by the monitoring system without compromising image quality. Compared to the older H.264 standard, H.265 technology provides significantly higher compression performance, so recordings take up less space on your hard drive.

In turn, H.265+, the development of this technology used in Hikvision and HiLook devices, further optimizes image recording through intelligent scene analysis and dynamic bitrate management. In practice, this means up to up to 75% less disk space consumption, longer archiving time of recordings and less network load when remotely viewing cameras.

Technical specification – HiLook NVR-216MH-C/16P recorder

System

• Device type: Network video recorder NVR
• Maximum number of IP cameras supported: 16 channels
• Maximum recording resolution: up to 8 MP
• Video compression: H.265+, H.265, H.264+, H.264

Image analysis

• Motion Detection 2.0 – detection of people and vehicles
• Intelligent analysis available on 4 channels

Video inputs/outputs

• IP camera input: 16 channels
• HDMI output: 1× HDMI (up to 4K – 3840 × 2160)
• VGA output: 1× VGA (up to 1920 × 1080)
• Simultaneous playback of recordings: up to 16 channels

Network

• Network interface: 1 × RJ-45 10/100/1000 Mbps
• Maximum inbound bandwidth: 160 Mb/s
• Maximum outbound bandwidth: 80 Mbps

Network protocols

• TCP/IP
• DHCP
• DNS / DDNS
• NTP
• SMTP
• NFS
• SADP
• UPnP
• HTTPS
• Hik-Connect

POE

• Number of PoE ports: 16 × PoE
• PoE standard: IEEE 802.3af / 802.3at
• Maximum PoE power: up to 150 W

Audio

• Audio Output: 1 × RCA
• Two-way audio: 1 × RCA

Data warehouse

• Number of hard drives: 2 × SATA
• Purpose: continuous recording of camera recordings

Power supply and housing

• Power supply: 100 – 240 V AC
• Power consumption (without disks and PoE): ≤ 15 W
• Housing: 1U
• Dimensions: 385 × 315 × 52 mm
• Operating temperature: −10°C ~ +55°C
