Tinklo vaizdo įrašymo įrenginys Hikvision HiLook NVR-4CH-5MP, 4 kanalų, 4K

Trumpai apie prekę

Prekė: Tinklo vaizdo įrašymo įrenginys Hikvision HiLook NVR-4CH-5MP, 4 kanalų, 4K. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: Rejestrator 4 Kanały IP 8Mpx Do 6TB Aplikacja

✅ Android/iOS mobile app

Main features of NVR-4CH-5MP HiLook by Hikvision

✅ Up to 4 IP camera inputs

✅ Video formats H.265+/H.265/H.264+/H.264

✅ Decodeable up to 1 channel @8 MP/3 channels @4 MP/6 channels @1080p

✅ Inbound bandwidth up to 40 Mbps

✅ H.265+ compression effectively reduces storage space by up to 75%

✅ 1 SATA interface for connecting a hard drive (capacity up to 8 TB per hard drive, no drive included)

✅ Intelligent search/smart playback for improved playback efficiency

✅ Motion detection 2.0 on 1 channel

✅ Support for multiple VCA events (Video Content Analytics)

✅ Customizable special smart camera features such as VCA detection (movement, line crossing, intrusion, etc. )

✅ 1 Ethernet interface self-adjusting 10/100 Mbps

✅ HiLookVision for easy network management

Remote access from your phone and desktop computer

Hikvision systems enable configuration, control and preview using the Hik-Connect and iVMS-4200 applications, which will provide you with permanent access to monitoring from anywhere on earth with Internet access. The above programs allow you to:

✅ Access the video preview and play back the saved footage

✅ Save fragments of the film to the memory of your smartphone

✅ Configure the time frame for motion detection

✅ Receive notifications from motion detection or other events

✅ Share your devices on other smartphones with a mobile app, e.g. family members or employees

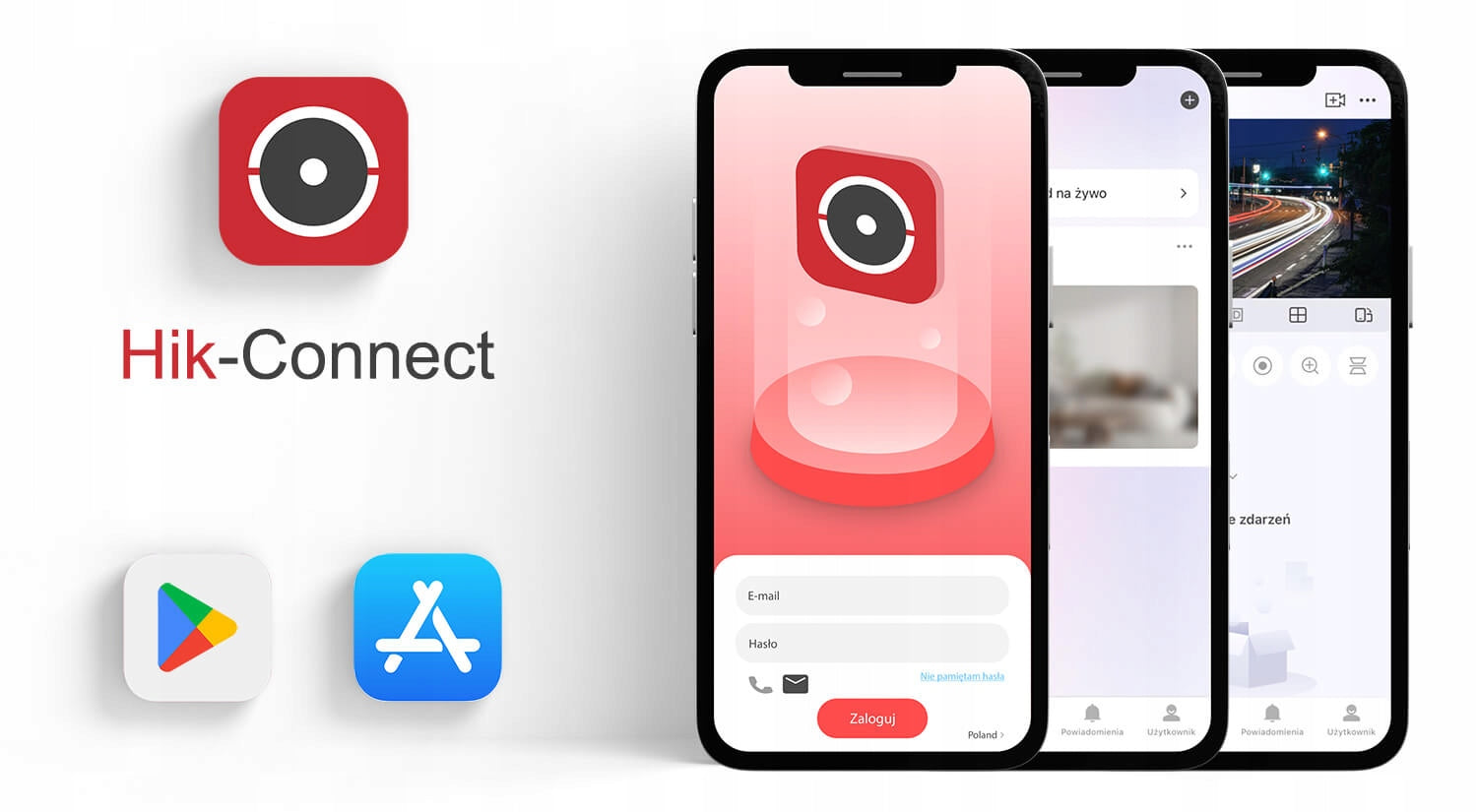

Hik-Connect - Free app for iOS and Android smartphones

iVMS-4200 - Free desktop app

P2P function

In NVR-4CH-5MP/4P recorders, it is a technology that enables direct communication between the camera and the end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows for a direct connection between the camera and the user's device. This means that video data can be transmitted directly without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is its ease of setup. The user often only needs to scan the QR code or enter the camera ID to make a call.
• Remote Access: The user can access the camera image from anywhere in the world, provided that both the camera and the end device have access to the Internet.

Efficient storage

H.265+ encoding, also known as High Efficiency Video Coding (HEVC+), is an advanced video compression technology used in modern DVRs such as NVR-4CH-5MP/4P. It is an extension of the H.265/HEVC standard, providing even higher compression efficiency than its predecessors. The main features of H.265+ encoding in surveillance recorders are:

• Higher Compression Efficiency: H.265+ enables you to significantly reduce the size of your video files while maintaining the same image quality. Thanks to this, it is possible to save storage space and increase the storage time of recordings.
• Energy saving: More efficient compression reduces CPU load, resulting in lower power consumption in monitoring devices.

Product Contents:

In addition to the NVR-4CH-5MP recorder, there are also useful instructions and mounting accessories to speed up the entire process of mounting the recorder.

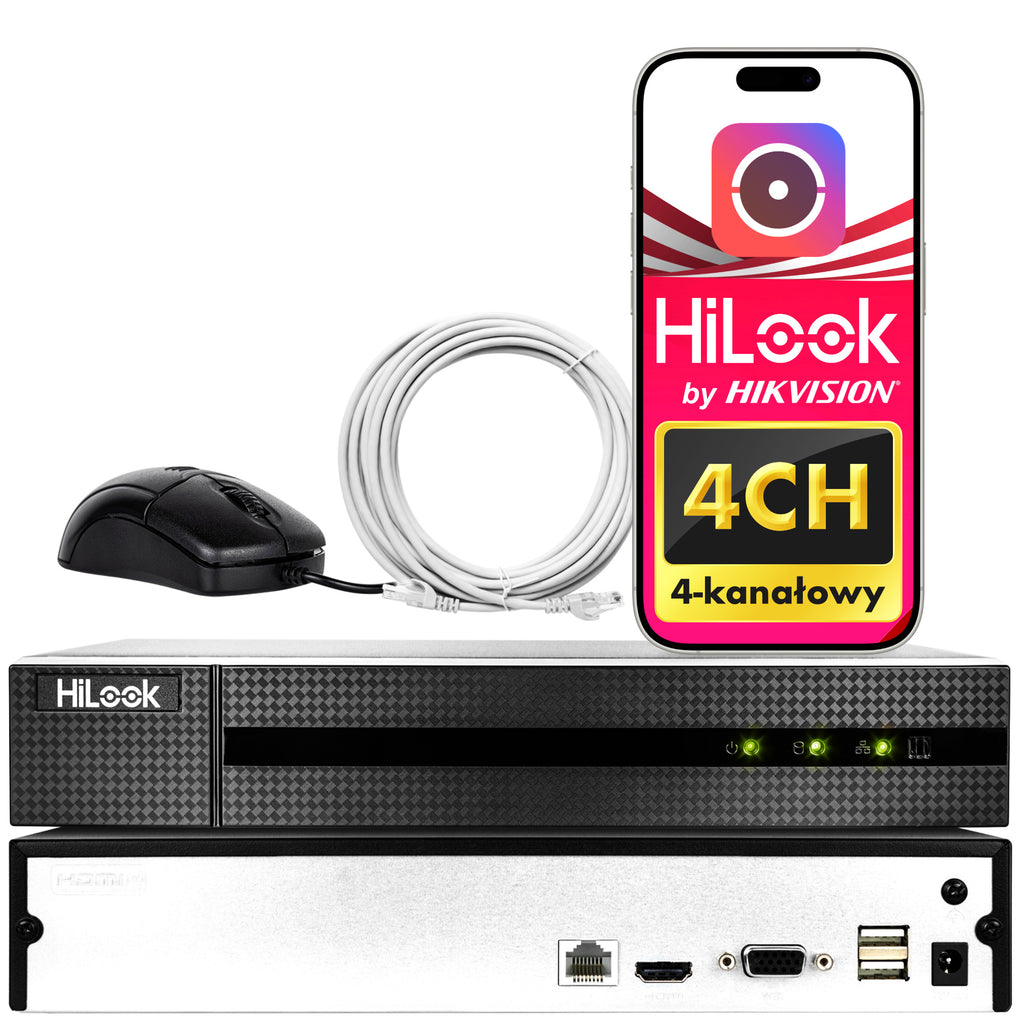

The box includes:

• 1x Recorder - NVR-4CH-5MP HiLook by Hikvision
• Documentation - User manual, warranty card, regulations
• 1x Power Supply
• 1x Mouse
• Hard Drive Mounting Screws

HiLook Hikvision products are devices that focus on ease of use, literally everyone can cope with their assembly and configuration thanks to the instructions included.

• Motion Detection 2.0:
• People/Vehicle Analysis: 1-channel
• Video and Audio:
• IP Video Input: 4-channels
• Input throughput: 40 Mbps
• Outgoing bandwidth: 80 Mbps
• HDMI output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz , 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA output: 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: Simultaneous HDMI/VGA Output
• Sound Output: 1-channel, RCA (Linear, 1 KΩ)
• Bidirectional sound: 1-channel, RCA (2.0 Vp-p, 1kΩ)
• Decoding format: H.265+/H.265/H.264+/H.264
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 4-channels
• Decoding capacity: 1-channel@8 MP (30 fps)/3-channel@4 MP (30 fps)/6-channel@1080p (30 fps)
• Stream Type: Video, Video & Audio
• Sound Compression: G.711ulaw/G.711alaw/G.722/G.726
• Remote connection: 32
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 RJ-45 10 /100 Mbps self-adapting Ethernet interface
• POE: -
• Additional interface: -
• SATA interface: 1 SATA interface
• Capacity: Up to 8 TB of capacity per drive
• USB interface: 2 × USB 2.0
• Input/Output Alarm: N/A

Specifications
