Aprašymas
Trumpai apie prekę

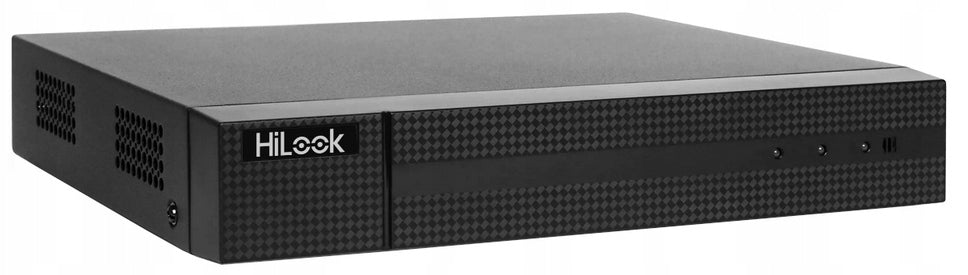

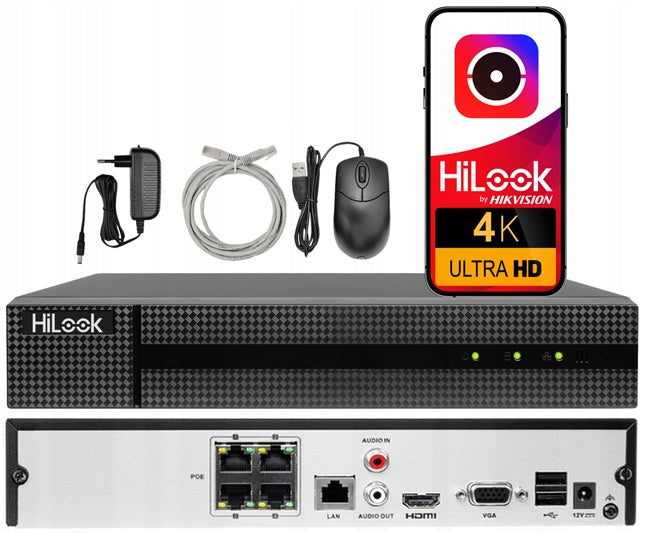

Prekė: Tinklo vaizdo įrašymo įrenginys HiLook NVR-104MH-C/4P, 4 PoE kanalai, iki 8 Mpx. Kategorija: Garso įrašymo įrenginiai.
- Gamintojas: HiLook
- Modelis: NVR-104MH-C/4P HiLook by Hikvision
Support cameras up to 8Mpx / 1x HDD slot / online preview - app / Switch 4x PoE
The most important features of the recorder:
- support for up to 4 IP cameras, with a resolution of max. up to 8Mpx
- built-in image analysis MD2.0 on 1 channel - filtering alarms "man/vehicle"
- configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
- has the ability to install 1 HDD drive to a capacity of up to 6TB
- enables connection and power supply via PoE 4 cameras
- is equipped with H.265 data compression technology, saving disk space
- Number of channels: 4 IP channels with PoE power supply
- Resolution supported: up to 8Mpx (4K 3840×2160)
- Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/4-ch@1080p (30 fps)
- Motion detection: Yes, supported
- Intelligent image analysis: on 1 channel, human/vehicle traffic filtering (MD2.0)
- Video outputs: 1xHDMI, 1xVGA
- Video compression: H265+,H265,H264+,H.264
- USB connectors: 2x USB 2.0
- Max. number of disks: 1
- Max. Disk capacity: 6TB
- Mobile application: HiLook App
- PoE power budget: < 50W
- Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
- Ethernet speed: RJ45 10M/100M
- Power Supply: 48VDC

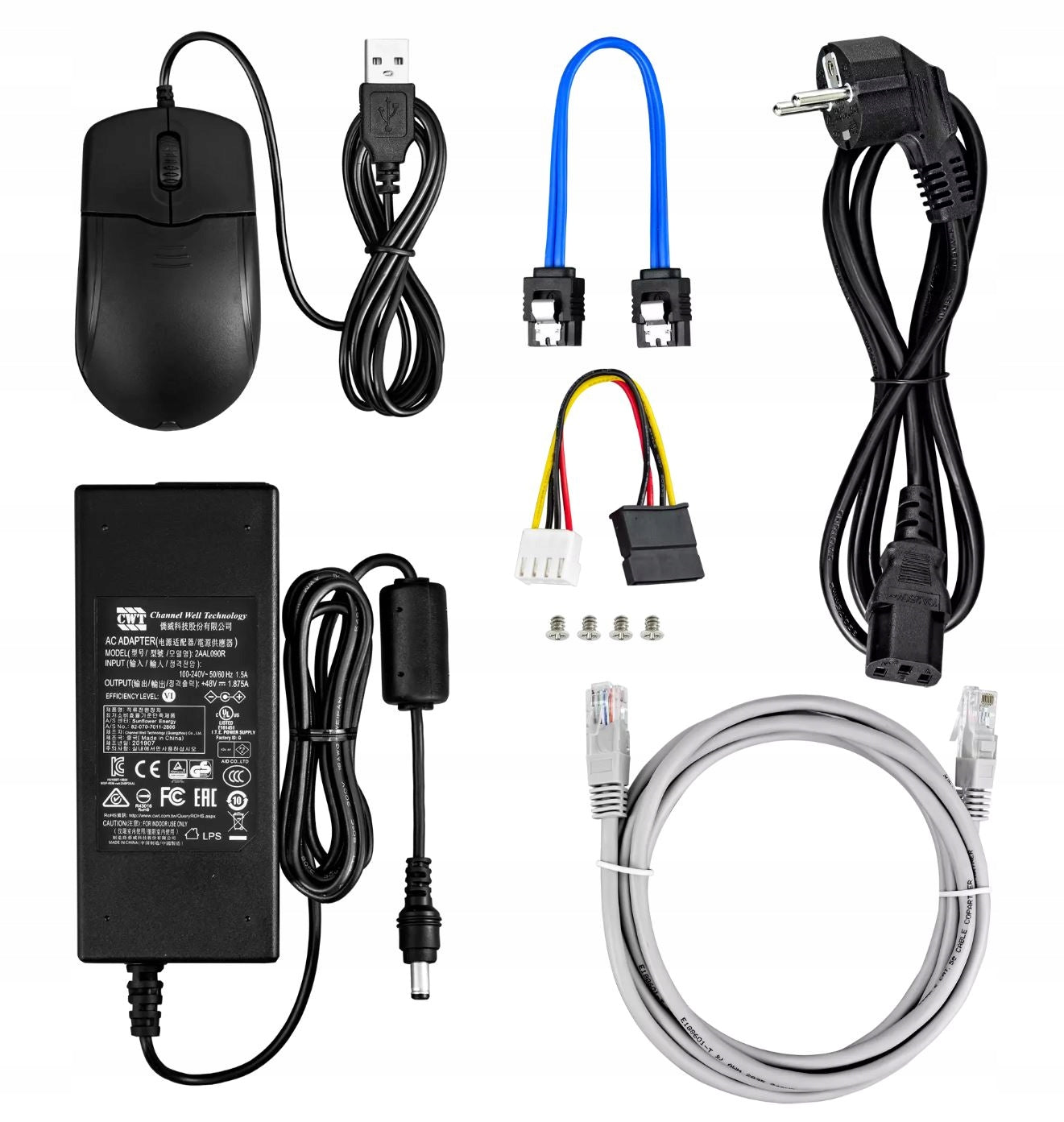

Includes power supply and mouse.
HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:
- live image preview
- remote playback of recordings
- creating motion detection scenarios and rules
- control of rotary cameras
- receiving notifications about events within the system
The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.
The NVR-4CH-5MP/4P HiLook recorder supports motion detection from network cameras. This feature allows you to receive instant notifications (in the app or software) when changes are detected in the camera's view. It also allows you to search recordings for detected motion within the monitored area.
The presented HiLook PoE recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.
Video/Audio
- IP Video Input: 4
- Video Compression: H.265+/ H.265/ H.264+/ H.264/ MPEG4
- Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Bitrate In/Out: 40/80 Mbps
- Stream Types: Audio & Video
- Audio Input/Output: 1/1
Display
- Display Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- VGA Output: 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- HDMI Output: 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
- Simultaneous HDMI/VGA Output: Yes
- Audio Out: 1x RCA (Line, 1 KΩ)
- Synchronous Playback: 4 channels
- VCA Analysis: Supported
Network
- Network Interface: 1x RJ45 10M/100M self-adaptive Ethernet
- Supported Camera Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPTM, HTTP, HTTPS
- Remote Viewing: Hik-Connect app, HiLookVision
- Remote Configuration: iVMS-4200, iVMS-4200 lite, Web Browser
Smart Video Analytics
- Motion Detection 2.0: On 1 channel
PoE
- PoE Port Count: x4
- Power Budget: 50W
- PoE Standard: IEEE 802.3 af/at
General
- Number of Supported HDDs: 1x SATA HDD
- Max. HDD Capacity: Up to 8TB
- USB Ports: 2x USB 2.0
- Power Supply: 48 VDC, 1.35 A
- Power Consumption (without HDD): ≤10W without PoE
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity: 10% to 90%
- Dimensions: 265 × 225 × 48 mm (10.4 x 8.9 x 1.9 inches)
- Weight: ≤ 1kg (2.2 lbs)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | NVR-104MH-C/4P(D) |
| Parametry | Brand | HiLook |
| Parametry | Model | NVR-104MH-C/4P HiLook by Hikvision |
| Parametry | Product weight | 1.12 kg |
| Parametry | Number of supported cameras | 4 |
| Parametry | Maximum recording resolution | 8 Mpx |
| Parametry | Installed disk capacity | 0 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 6 TB |
| Parametry | Technology | IP |
| Parametry | Video compression | H.265+ |
| Parametry | Number of USB ports | 2 |
| Parametry | Network interface | RJ-45 10/100 |
| Parametry | EAN (GTIN) | 5906667311716 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
| Parametry | Video outputs | HDMI,VGA |
| Parametry | Other ports | Switch 4x PoE,SATA III do HDD,1x wyjście RCA,Detekcja ruchu MD2.0 |
| Parametry | Functions | phone app,motion detection,advanced search,PoE power supply,digital zoom |
