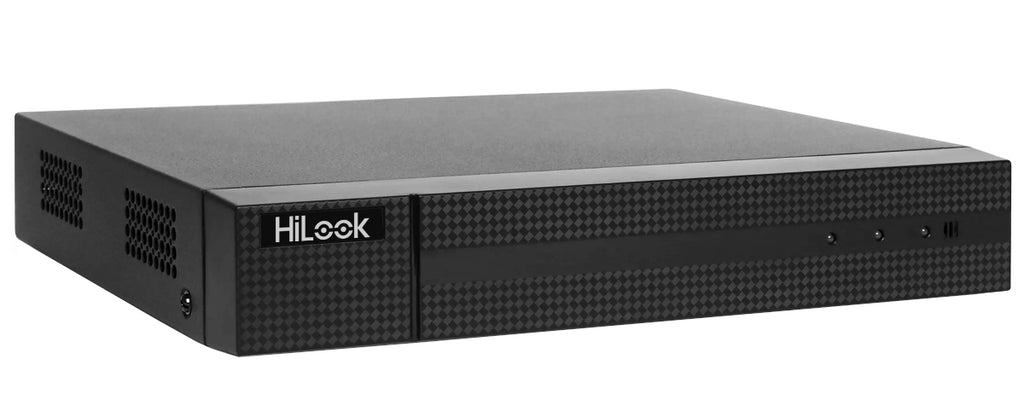

Tinklo vaizdo įrašymo įrenginys HILOOK NVR-108MH-C, 8 kanalai, iki 8MPx, HIKVISION

Trumpai apie prekę

Prekė: Tinklo vaizdo įrašymo įrenginys HILOOK NVR-108MH-C, 8 kanalai, iki 8MPx, HIKVISION. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-108MH-C

8-channel / HDMI&VGA / up to 8Mpx / motion detection 2.0 / HikConnect application

The most important features of the recorder:

✅ allows synchronous playback of images from 8 cameras with a maximum resolution of 8MPx

✅ Supports HiLook / Hikvision cameras, as well as others, optimized with ONVIF protocol

✅ configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application

✅ has the ability to install 1 disk HDD to capacity up to 8TB

✅ is equipped with H.265+ data compression technology, allowing you to save disk space

Technical parameters:

• Number of channels: 8
• Recording resolution: up to 8 Mpx (4K Ultra HD)
• Bitrate in/out: 80/80 Mbps
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Video outputs: 1x HDMI, 1x VGA
• Audio Inputs/Outputs: 1x RCA/1xRCA
• USB ports: 2x USB 2.0
• Network interface: 1x Ethernet 10M/100M Self-adaptive
• Live view: HIK-Connect / HiLook App, iVMS-4200, Web Interface
• Storage for hard drives: 1x HDD (up to 8TB)
• Power Supply: 12 VDC (Power Supply Included)
• Power consumption: 18 W (without 10W disk)
• Dimensions: 315 x 240 x 48 mm
• Weight: 1 kg

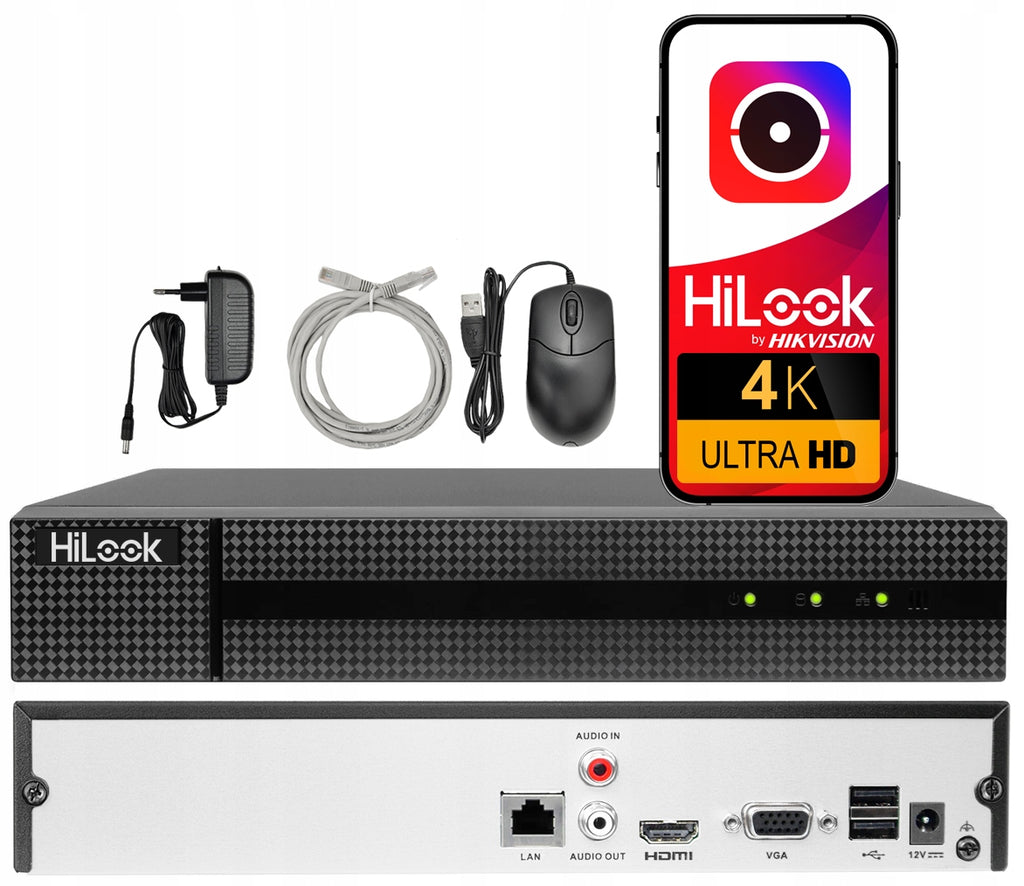

Includes power supply and mouse.

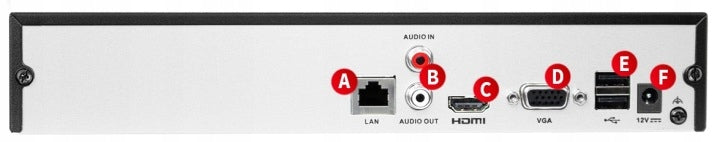

Connectors in the recorder

• A - LAN connector for connection to PoE switch
• B - audio connectors for connecting microphone / speaker
• C / D - HDMI and VGA outputs for connecting the monitor
• E - 2x USB port for connecting the mouse and ripping recordings (e.g. on a pendrive
• F - power socket for connecting the power supply

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

This recorder supports motion detection from network cameras. This feature allows you to receive instant notifications (in the app or software) when changes are detected in the camera's view. It also allows you to search recordings for detected motion within the monitored area.

The advantage of the recorder is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Detection mode 2.0 is available for 4 channels of the recorder.

The recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• IP Video Input: 8 channels
• Resolution: Up to 8MP
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 80 Mbps
• HDMI Output: 1 channel, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
• VGA Output: 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video Compression:  H.265/H.265+/H.264/H.264+/MPEG4
• Live View / Playback Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Simultaneous Playback: 8 channels
• Decoding: 1-ch @ 8 MP / 4-ch @ 1080p
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS
• SATA Interface: 1
• Capacity: Up to 8 TB
• Network Interface: RJ-45 10/100/1000 Mbps Ethernet
• USB Ports: 2 × USB 2.0
• Power Supply: 12 VDC
• Operating Temperature: -10 oC to +55 oC
• Dimensions: 315 × 240 × 48 mm

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to consciously choose equipment from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection, and reliability.

Specifications
