Tinklo vaizdo įrašymo įrenginys HiLook NVR-4CH-H/4P, 4 PoE, 6Mpx

Trumpai apie prekę

Prekė: Tinklo vaizdo įrašymo įrenginys HiLook NVR-4CH-H/4P, 4 PoE, 6Mpx. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Hikvision
• Modelis: HWN-2104H-4P

4-channel / 4x PoE / up to 6Mpx / 1 HDD slot / P2P cloud

The most important features of the recorder:

• support for up to 4 IP cameras, with a resolution of max. up to 6Mpx
• configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
• has the ability to install 1 HDD drive to a capacity of up to 6TB
• enables connection and power supply via PoE 4 cameras
• is equipped with H.265 data compression technology, saving disk space

Technical parameters:

• Number of channels: 4 channels P with PoE power supply
• Resolution supported: up to 6Mpx (4K 3840×2160)
• Decoding: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Motion detection: Yes, supported
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile app: HiLook App
• Built-in PoE switch: Yes, 4-port
• PoE power budget: < 36W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

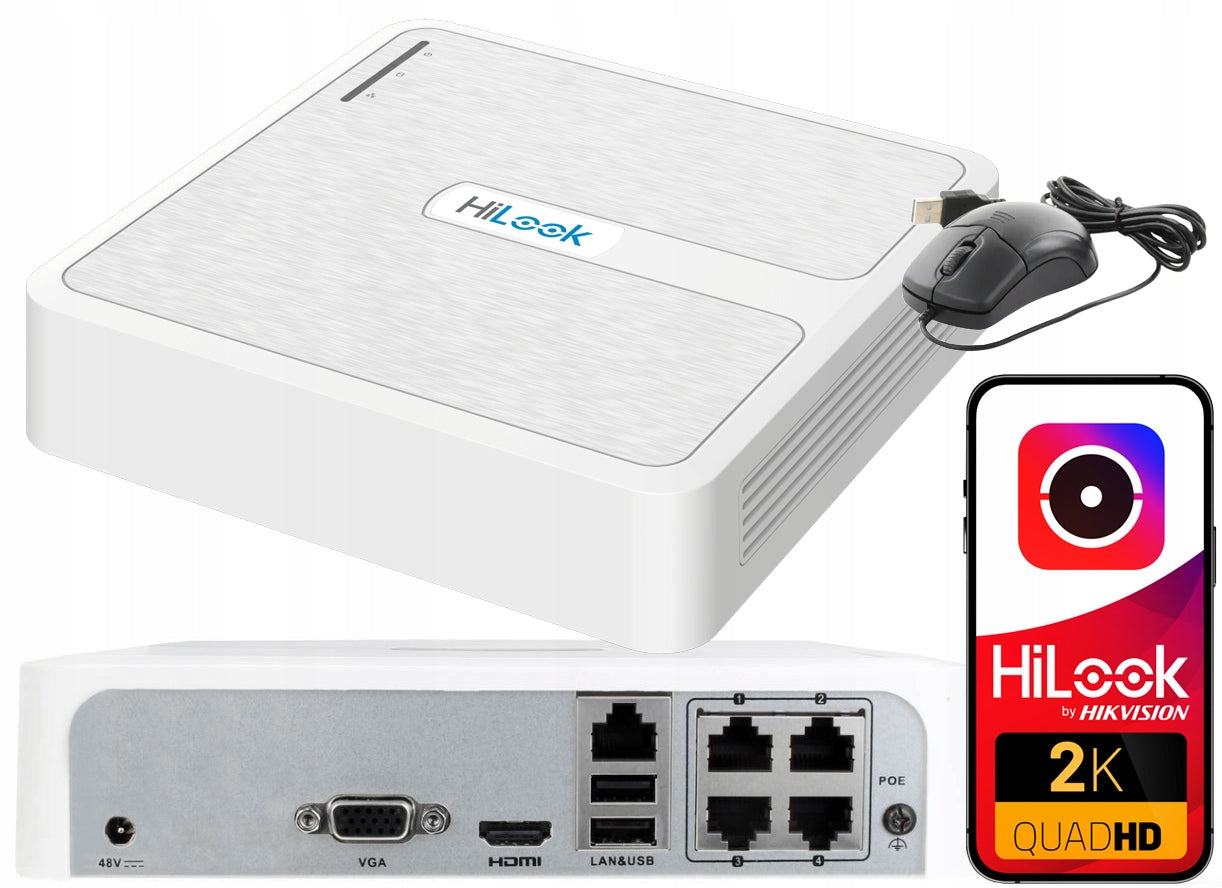

Includes power supply and mouse.

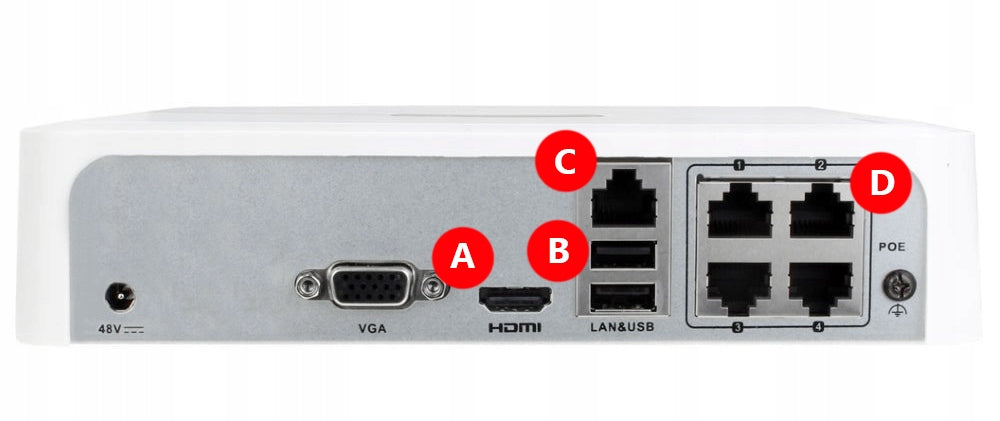

Scheme of DVR ports:

• A - HDMI/VGA output for connecting to monitor/TV
• B - USB ports for connecting a mouse and pendrive (for ripping recordings)
• C - LAN Ethernet port for internet connection
• D - PoE ports for connecting and powering cameras

HiLook monitoring systems can be controlled, configured and operated using the intuitive HiLook App mobile application for smartphones and tablets and the iVMS-4200 program for PC computers. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.

The recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• IP video input: 4-channels
• Resolution: to 6MPx
• Bitrate in/out: 40 / 60 Mbps
• HDMI/VGA output: 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Recording resolution: 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video compression: H.265/H.265+/H.264/H.264+/MPEG4
• Simultaneous playback: 4-channels
• Image decoding: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Motion detection: supported
• SATA interface: 1
• Capacity: up to 6 TB
• Network interface: RJ-45 10/100Mbps Ethernet
• Number of PoE ports: 4
• Power budget: < 36W
• USB connectors: 2 × USB 2.0
• Power Supply: 48 VDC
• Working temperature: -10 ºC to +55 ºC
• Dimensions: 200 × 200 × 48 mm
• Weight: ~1 kg
