Aprašymas
Trumpai apie prekę
Prekė: Tinklo vaizdo įrašymo įrenginys NVR, 9 kanalai, 8MP, 4K IP. Kategorija: Garso įrašymo įrenginiai.
- Gamintojas: Zintronic
- Modelis: IR9S18MP

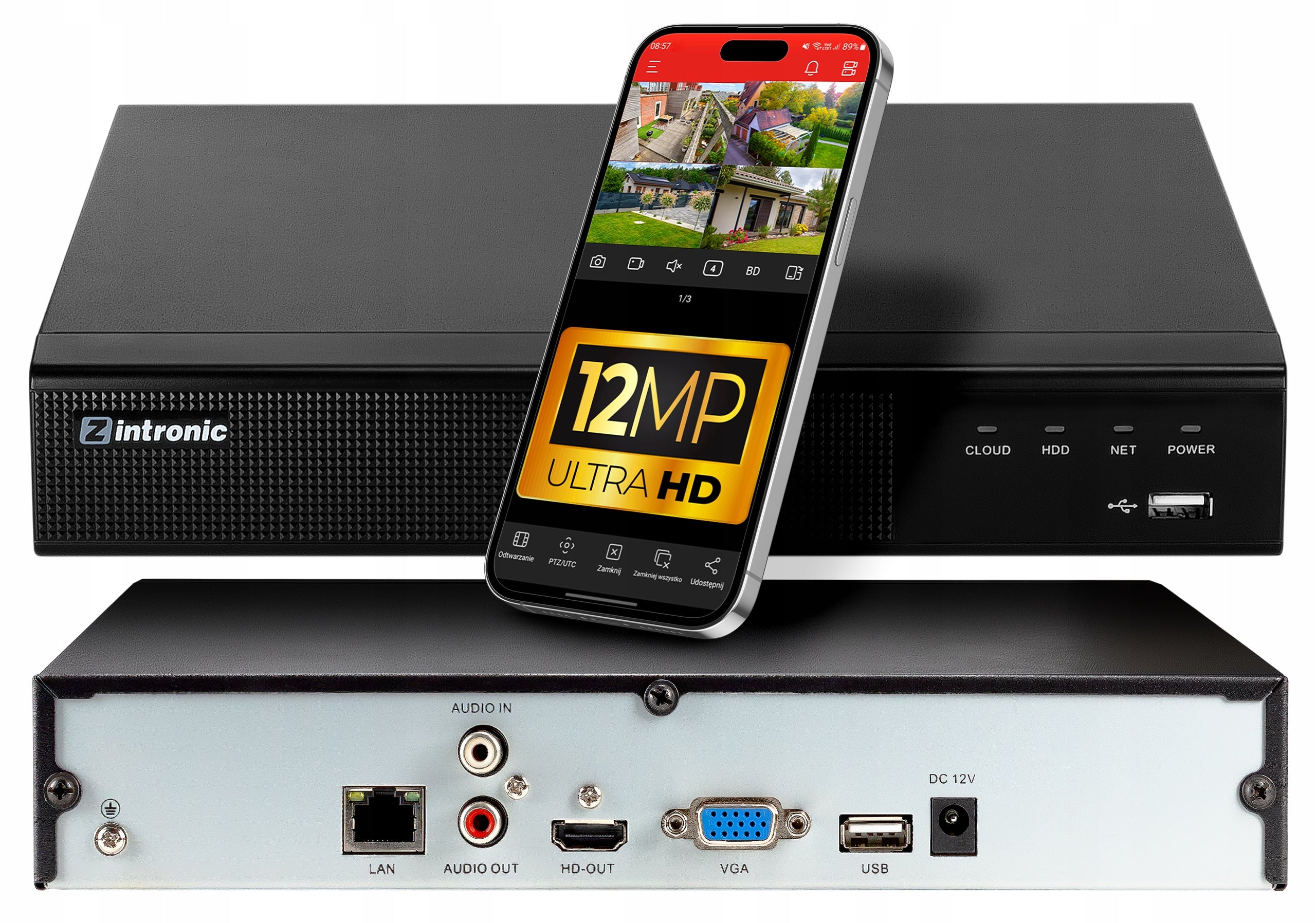

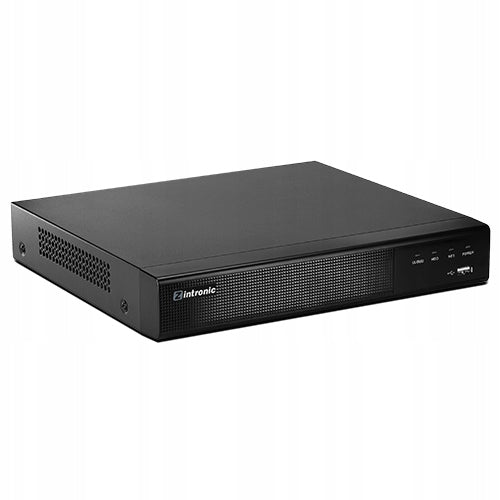

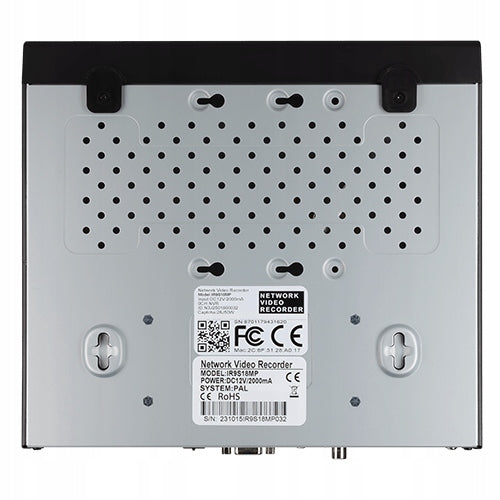

Network recorder NVR IP 9 channel. We are on Polish territory the exclusive distributor of the Zintronic brand specializing in the sale of the highest quality cameras, IP camera recorders and monitoring kits. We offer only reliable security systems that have been developed using advanced technological solutions.
The subject of the auction is the basic model of the IP network recorder, without PoE ports, which allows you to reduce its price and offer the product at an attractive price.
We can add up to 9 cameras to the DVR:
- After the cable - using an external switch
- WiFi - after the network adding cameras connected to the router
MAIN FEATURES OF THE RECORDER:
- Max number of cameras supported: 9
- Max resolution: 8MP/4K (3840×2160)
- Powerful processor: ARM Cortex A7 Processor
- Bandwidth for cameras: 80MB
- Compression: H265/H264/H265+/H264+
- Managing the DVR from the browser: Chrome, Edge, Firefox
- Preview on the phone: YES
- Notifications on: Smartphone, E-mail
- Motion detection: YES
- No need for permanent IP - support p2p
- Recording modes: fixed/temporal/motion detection
- Compact size: 219x217x40mm
- Polish manual
With the registrar you receive full technical support.
⚠ LIVE VIEW FROM ANYWHERE
TV - Computer - Smartphone/Tablet
Keep an eye on and access to your cameras wherever you are!
Our equipment is dedicated to free software in Polish which allows you to log in and operate the cameras in the most convenient way for you:
- Traditionally on TV/Monitor via DVR
- On your computer through a browser on your local network, IVMS 320 or the Bitvision website.
- Phone/Tablet - Bitvision app
Modern in Polish interface!
The recorder has a new refreshed in Polish interface that allows you to easily and pleasantly navigate through the menu and recording or preview options.
Compatibility with network cameras
The Mini NVR gives you the ability to configure network cameras in multiple modes. The ONVIF protocol is the basis. Unfortunately, differences in software from different manufacturers mean that we often have to add cameras to the DVR via RTSP protocol. We are in constant contact with the manufacturer and provide him with all comments from customers related to the compatibility of individual elements of monitoring sets. All Zxtech, MZX, Apti devices are tested and checked for protocol compliance. We also test products from brands such as Hikvision, Dahua, BCS, APTI and other manufacturers.
Internet Explorer (8-11), Chrome (below Ver44), Firefox (below Ver.53),
You can manage the DVR from Internet Explorer or other browsers containing this "engine". In popular Firefox or Chrome browsers, simply install the IE TAB add-on. The software of the recorder is available in many languages: Polish, English, Russian and many other languages.
Recorder Functions:
- Local and remote preview - image preview can be tracked locally on the monitor / TV at the recorder or on a computer or smartphone using free software in Polish from anywhere on earth.
- Motion detection - can be set to detect motion in the observed area. Motion detection is based on an algorithm that analyzes changes in the image seen by the camera, and its sensitivity can be set from 1 to 10. In the options you can choose exactly what detection area we are interested in.
- Sending notifications to email/apps- When motion is detected, the registrar will send us a notification along with a photo to email or push notification to the application on the phone.
- Recording on disk - recording either continuous, temporal or triggered by an event such as movement, alarm, vandalism (the length of the recording depends on the capacity of the disk we install and whether we set the recording called by the event or continuous).
- Automatic overwriting of recordings- if the disk fills up, the system will automatically overwrite recordings on the oldest files.
- Privacy mask- if we have a neighbor who does not want to be 'observed' and our camera covers it, we can set a privacy mask that will cover the neighbor's property allowing us to observe the area that interests us.
BitVision mobile application
A dedicated application in Polish is available for the recorder - is an intuitive tool that allows to constantly view the monitored room and view recorded events on the disk. Using this application, the user can also easily take photos and record videos, which will automatically be saved on a smartphone with the application installed
The main functions of the application are:
- Live preview from anywhere via the app,
- Receiving notifications in real time,
- Possibility of recording photos and videos directly on your smartphone,
- Browse recorded events saved to disk in the application
- Digital magnification of any area of the displayed image by x8.
With these features, BitVision becomes a comprehensive security system management and monitoring tool, providing the user with easy access and control from anywhere.
View of the DVR software in the web browser
The recorder can be operated:
- On Computer by Browser
- On your computer by IVMS320
- Directly on TV/monitor
You can also access the DVR and your camera mobile by:
- Smartphone/Tablet
SUPPORTED RESOLUTIONS:
- max. 8MP 4k(3840×2160) Support up to 8 cameras up to 25fps
- 5 MP - Supports up to 9 cameras up to 25fps
- 4 MP - Supports up to 9 cameras up to 25fps
- 3 MP - Supports up to 9 cameras up to 25fps
- 1080p - Supports up to 9 cameras up to 25fps
- 1.3 MP - Supports up to 9 cameras up to 25 fps
- 720p - Supports up to 9 cameras up to 25fps
__________________________________
1 Slot for hard drive
- 1 SATA (MAX up to 8TB) - The recorder can accommodate 1 hard drive (3.5" SATA) with a capacity of up to 8TB
Technical Specifications
SKU: IR9S18MP
- PLUG & PLAY SUPPORT: YES
- NUMBER OF CAMERAS SUPPORTED: 9
- SUPPORTED RESOLUTION: 8MP/4K (3840×2160) 5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080), 960P(1280x960),720P(1280×720),D1 (720×576/720×480)
- RECORDING RESOLUTION: 8MP/4K@8×25fps 5MP@9×25fps,4MP@9x25fps,3MP@9×25fps,1080P@9×25fps, 960P@9×25fps,720P@9×25fps
- HARD DRIVE SLOTS: 1 x SATA, maximum drive capacity 8TB
- CAMERA BANDWIDTH: 80 MB
- USB PORTS: 2x USB 2.0
- NETWORK INTERFACE: RJ45 (10/100Mbps)
- VIDEO SYSTEM: PAL/NTSC
- PROCESSOR: ARM Cortex A7 Processor
- OPERATING SYSTEM: LINUX
- COMPRESSION: H265/H264/H265+/H264+
- AUDIO COMPRESSION: G711u, G711a, ADPCM_DVI4
- LIVE DISPLAY RESOLUTION VIA HDMI: 3840 × 2160/30Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- LIVE DISPLAY RESOLUTION VIA VGA: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- SCREEN SPLIT: 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
- NETWORK FUNCTIONS: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
- MOTION DETECTION: ONVIF - Yes, RTSP - No
- BROWSERS: Windows: IE9-11, Edge, Google Chrome/Firefox with IETAB plugin,
- BACKUP: Via USB and network backup
- Accessories: Mouse, Power Adapter, Quick Start Guide
- PROTOCOL: Onvif 2.4
- Supported Operating Systems: Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
- POWER CONSUMPTION: Below 30W
- POWER SUPPLY: 12 V DC / 2 A
- DIMENSIONS: 260*215*43(mm)
- WEIGHT: 1kg
____________________________
⚠️ DON'T OVERPAY ⚠️
The use of branded components ensures that our equipment successfully competes with other well-known brands.
FULL CONTROL - 24/7 supervision
With Apti/Zintronic DVRs, you'll be able to sleep soundly. With a monitoring kit tailored to your needs, you can enjoy complete control 24 hours a day. The use of ARM Cortex A7 Processor and LINUX operating system allowed to achieve high performance at low cost. 25 fps for each channel at a resolution of 3840×2160 with H.265 compression are the values most sought after by customers.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | IR9S18MP |
| Parametry | Brand | Zintronic |
| Parametry | Model | IR9S18MP |
| Parametry | Number of supported cameras | 9 |
| Parametry | Maximum recording resolution | 12 Mpx |
| Parametry | Installed disk capacity | 0 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 10 TB |
| Parametry | Technology | IP |
| Parametry | Video compression | H.265 |
| Parametry | EAN (GTIN) | 5903900678261 |
| Parametry | Certificates of conformity | CE |
| Parametry | Functions | phone app,motion detection,digital zoom |
