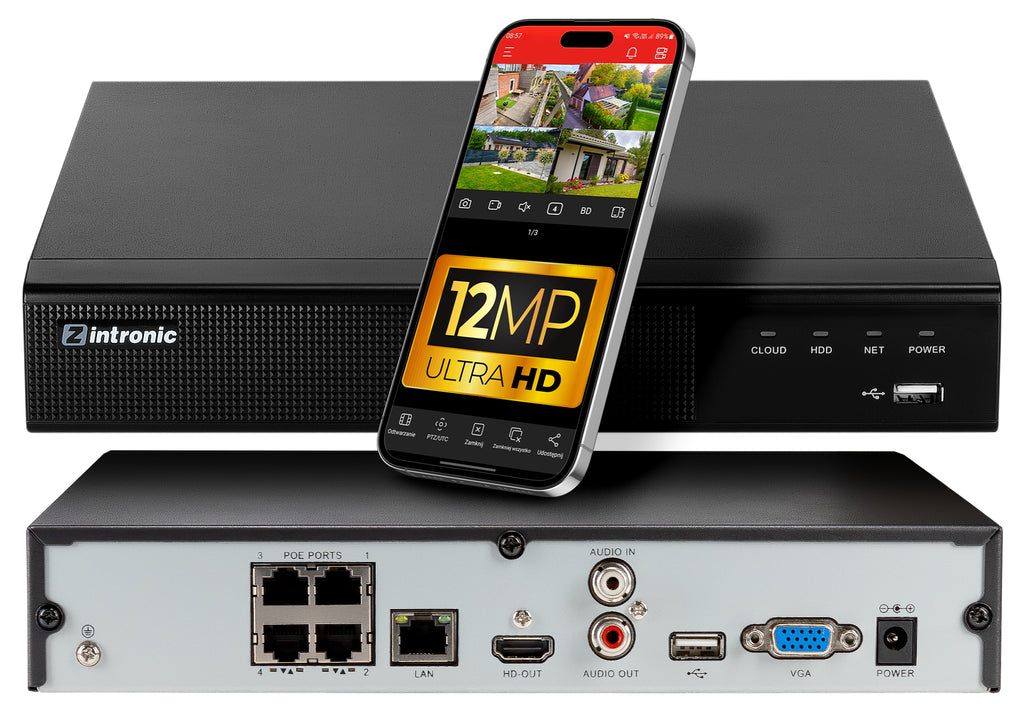

Tinklo vaizdo įrašymo įrenginys NVR, 9 kanalų, 4x PoE, 12MP, Ultra 4K

Trumpai apie prekę

Prekė: Tinklo vaizdo įrašymo įrenginys NVR, 9 kanalų, 4x PoE, 12MP, Ultra 4K. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Zintronic
• Modelis: IR9P4S18MP

This NVR is a stronger, more efficient version of the classic IP recorder, designed for people who want better image quality, greater smoothness of operation and a reserve of power for the future – without complicated operation.

✅ It will work great both in a single-family house, as well as in a company, shop or on the property. Operation is simple and intuitive, and configuration does not require specialized knowledge.

The recorder enables simultaneous support of up to 9 IP cameras with a resolution of up to 12 Mpx, guaranteeing exceptional image detail. The HDMI 4K output allows you to directly connect your monitor or TV and comfortably view the entire system live.

Thanks to the support of the ONVIF standard, the recorder is compatible with IP cameras from many manufacturers, which gives full freedom in the selection of equipment and expansion of the installation.

✅The built-in 4 PoE ports allow simultaneous power supply and data transmission of cameras with one network cable, without the need for an additional PoE switch.

👉 You can connect up to 9 IP cameras to the DVR in the following configuration:

• 🔌4 via PoE – directly to the built-in PoE ports
• up to 5 additional cameras – via an external network switch
• 📶Wireless (Wi-Fi) – cameras connected to the router on the same network

🎯 The most important advantages:

• Supported resolutions: 12MP | 8MP | 5MP | 3MP | 1080p | 960H | 720p
• 9 channels / 9 cameras simultaneously
• 4xPoE
• HDMI 4K output connect your monitor/TV and watch on the big screen in full 4k resolution
• Compatible with most IP cameras (ONVIF) works with cameras of different brands
• Remote view pwith phone/PC
• Support hard drive up to 10 TB (1× SATA)
• Plug & Play simple installation and intuitive menu
• Linux stable 24/7 operation

🔴 LIVE VIEW FROM ANYWHERE

Have a constant view of your cameras, no matter where you are – at home, at work or away.

The recorder is accompanied by free software in Polish, which allows quick login and convenient monitoring operation on various devices.

📺TV | Computer 💻| Smartphone 📱| Tablet:

• TV / Monitor – directly through the DVR
• Computer – via a browser on a local network, iVMS-320 or Bitvision
• Phone / Tablet – intuitive application Bitvision

This recorder is the heart of your entire surveillance system. It supports simultaneous viewing of up to 9 cameras, ensuring smooth operation thanks to its powerful processor.

⚪🔴Modern in Polish

The recorder is equipped with a new, refreshed in Polish interface, which is clear and user-friendly.

The clear menu makes handling, configuration, live view and playback of recordings fast and intuitive, even for people without prior monitoring experience. Thanks to this, the use of the system is convenient and pleasant on a daily basis.

🔗 Compatibility with IP cameras – ONVIF

The recorder works with IP cameras of many manufacturers. With support for the ONVIF standard, you can connect most cameras on the market without closing yourself to a single brand.

In addition, all Zintronic cameras are tested by us for full compatibility, and the recorder also works with popular brands such as Hikvision, Dahua, BCS or APTI.

🌐 Access via web browser

• Preview images and recordings directly from your browser
• No additional programs – just a standard browser
• Quick access from any computer on the network

A convenient solution that allows easy to manage monitoring and check the image from the cameras whenever you need it.

Recorder Functions:

👀 Local and remote view

You can watch the image from the cameras on a monitor or TV connected to the recorder, as well as remotely on a computer or smartphone – from anywhere, thanks to the free in Polish.

🚶 Motion detection with notifications

The recorder detects movement in the observed area and can send a notification at the time of the event. Detection sensitivity and exact detection area can be easily set according to your needs.

🔔 Email and push notifications

When motion is detected, you will receive a notification on your phone or email, optionally along with a photo from the event.

💾 Recordings on disk

Ability to record continuous, time or only when an event is detected (movement, alarm). You can adjust the recording mode to your needs and disk capacity.

🔁 Automatic overwriting of recordings

When the disk fills up, the system itself deletes the oldest recordings, thanks to which monitoring works without interruptions.

🔒 Privacy Mask

Possibility of covering selected fragments of the image, e.g. adjacent property or public road – you record only what interests you.

📱 BitVision mobile application – monitoring always at hand

The free BitVision in Polish is available to the recorder, which allows you to easily watch the image from the cameras and view the recorded recordings – no matter where you are.

The application is intuitive and convenient to use, so people without monitoring experience can easily cope with it. It allows not only live view, but also save photos and videos directly on your smartphone, so you always have the most important recordings at hand.

Main functions of the application:

1. 📡 Live view from cameras from anywhere
2. 🔔 Real-time notifications about events
3. 💾 Browse recordings stored on the recorder disk
4. 🌍 Remote access to recordings from anywhere
5. 📷 Save photos and videos directly on your phone
6. 🔍 Digital image magnification (up to x8)
7. ⚙ Access to settings – full operation and configuration of cameras in the application

With the BitVision app, you get full control of your monitoring system – conveniently, safely and whenever you need it.

The application works in both Android and iOS environments.

SUPPORTED RESOLUTIONS:

• max.12MP/4K (4000×3000) - support up to 6 cameras up to 25fps
• 8 Mpx - Supports up to 9 cameras up to 25fps
• 5 Mpx - Supports up to 9 cameras up to 25fps
• 4 Mpx - Supports up to 9 cameras up to 25fps
• 3 Mpx - Supports up to 9 cameras up to 25fps
• 1080p - Supports up to 9 cameras up to 25fps
• 1.3 Mpx - Supports up to 9 cameras up to 25fps
• 720p - Supports up to 9 cameras up to 25fps

________________________________

4 Ports of PoE

The recorder has built-in 4 ports to power the PoE cameras directly from the recorder. Other cameras can be connected either using a PoE switch or WiFi camera via a router.

________________________________

1 Slot for hard drive

• 1 SATA (MAX up to 10TB) - The recorder can accommodate 1 hard drive (2.5"/3.5" SATA) with a capacity of up to 10TB

🏅Certified quality and safety

Our DVR meets European quality and safety standards, including CE and RoHS.

This is a guarantee that the device is safe in everyday use, compliant with applicable regulations and environmentally friendly.

🧾 Technical Specifications

Model / SKU: IR9P4S18MP

Type: NVR IP Network Video Recorder

📷 Camera and Image Support

• Number of Supported Cameras: Up to 9 IP cameras
• Supported Camera Resolutions:

  12MP (4000 × 3000), 8MP / 4K (3840 × 2160), 5MP (2592 × 1944), 4MP (2688 × 1520 / 2560 × 1440), 3MP (2048 × 1536), Full HD 1080P (1920 × 1080), 960P (1280 × 960), 720P (1280 × 720), D1 (720 × 576 / 720 × 480)

• Recording Resolution:

  12MP @ 6 × 25fps, 8MP / 4K @ 9 × 25fps, 5MP @ 9 × 25fps, 4MP @ 9 × 25fps, 3MP @ 9 × 25fps, 1080P @ 9 × 25fps, 960P @ 9 × 25fps, 720P @ 9 × 25fps

• Screen Division:

  9CH×D1 / 8CH×D1 / 4CH×D1 / 1CH×1080P / 1CH×3MP / 1CH×4MP / 1CH×5MP / 1CH×4K

💾 Disks and Recording Storage

• Number of Disks: 1 × SATA
• Maximum Disk Capacity: Up to 10 TB
• Backup: USB and network backup
• Bandwidth for Cameras: 80 MB

🌐 Network and Compatibility

• Protocol: ONVIF
• Camera Connection Modes: ONVIF
• Network Interface: RJ45 (10/100 Mbps)
• Number of PoE Ports: 4 × 100 Mbps
• Plug & Play Support: YES
• Protocols: TCP/IP, HTTP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P

🚨 Motion Detection

• ONVIF: YES
• RTSP: NO

🔌 Outputs and Connectors

• HDMI Output: YES
• HDMI Output Resolution (LIVE):

  3840 × 2160 / 30Hz, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

• VGA Output (LIVE):

  1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

• USB Ports: 2 × USB 2.0
• Video System: PAL / NTSC

⚙️ System and Performance

• Processor: ARM Cortex A7
• Operating System: Linux
• Video Compression: H.265 / H.264 / H.265+ / H.264+
• Audio Compression: G.711u, G.711a, ADPCM_DVI4
• Video System: PAL / NTSC

🔌 Connectors and Support

• USB Inputs: 2 × USB 2.0
• Supported Systems: Windows 7 / 8 / 10 / 11
• Browsers: IE 9–11, Edge, Chrome, Firefox

🔋 Power and Physical Parameters

• Power Supply: DC 48V / 2.5A
• Alternative Power Supply: 52V DC / 1.25A
• Power Consumption: Less than 65W
• Dimensions: 260 × 230 × 43 mm
• Weight: Approx. 2 kg

📦 Kit Includes

• NVR Recorder
• Power Adapter
• Mouse
• Quick Start Guide

🛠 Full technical support included in the price

Together with the recorder, you get full technical support at every stage of use. We help in the configuration, connection of cameras and operation of the system – before and after purchase. Thanks to this, you can be sure that the monitoring will work properly and without unnecessary problems.

🔒 Why Zintronic?

By choosing Zintronic equipment, you focus on proven and safe solutions.

• 👨 🔧 Professional technical department – real support, not a helpline “from the machine”
• 🧪 Equipment tested before launch
• 📜 Compliance with CE and RoHS standards – safety of use and compliance with European standards
• 🔄 Compatibility with multiple cameras and systems

Our devices meet the required quality and safety standards, so you can be sure that you are using legal, certified and proven equipment.

🎥 Instructional video / unboxing:

Check the presentation of the recorder and the quick assembly process step by step.

https://www.youtube.com/watch?v=Ww_l1d7xZp0

Tailored to different needs – from simple and economical solutions, to advanced monitoring systems for professional applications.

💡 Basic Series – reliable monitoring basics

The Basic series was created for people who are looking for a simple, effective and affordable solution. Ideally suited for home, small business or shop.

The recorders support cameras with a resolution of up to 8 MPx, providing a clear and detailed image. The ability to connect a drive up to 8 TB guarantees sufficient space for recordings for everyday use.

It is an excellent choice if you care about stable work and good image quality, without unnecessary, advanced functions.

Available models:

Models without PoE:

• IR9S18MPL – 9 channels

🔌 PoE models:

• IR9P4S18MPL – 9 channels + 4× PoE
• IR9P8S18MPL – 9 channels + 8× PoE

🏢 Advanced Series – professional monitoring at your fingertips

The Advanced series is a solution for more demanding users and professional installations. Equipped with efficient processors, it ensures fast and stable image processing even with a large number of cameras.

Support for cameras with a resolution of up to 12 MPx allows you to get the highest quality recordings – ideal for companies, warehouse, industrial objects or larger monitoring systems.

The ability to connect drives up to 10 TB makes it an ideal solution for long-term storage of recordings.

Available models:

Models without PoE:

• IR9S18MP – 9 channels
• IR16S18MP – 16 channels
• IR32S412MP – 32 channels
• IR64S812MP – 64 channels

🔌 PoE models:

• IR9P4S18MP – 9 channels + 4× PoE
• IR16P8S18MP – 16 channels + 8× PoE
• IR32P16S212MP – 32 channels + 16× PoE

✅ How to choose?

• 🏠 Home / small business → Economy Series
• 🏢 Company / warehouse / professional installation → Advanced Series

Choose a recorder tailored to your needs and enjoy security and reliability at every level
