Transformatorių plėtimo modulis ZAMEL MRP-200A, 200A, skirtas MEW-01

Trumpai apie prekę

Prekė: Transformatorių plėtimo modulis ZAMEL MRP-200A, 200A, skirtas MEW-01. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: MRP-200A

The transformer expansion module enables the expansion of the measurement capabilities of the MEW-01 electricity consumption monitor. Thanks to the MRP-200A it is possible to monitor the electrical network with a current of up to 200 A . The module works with SC-24 200 A current transformers included in the set.

Index: ZML-24197

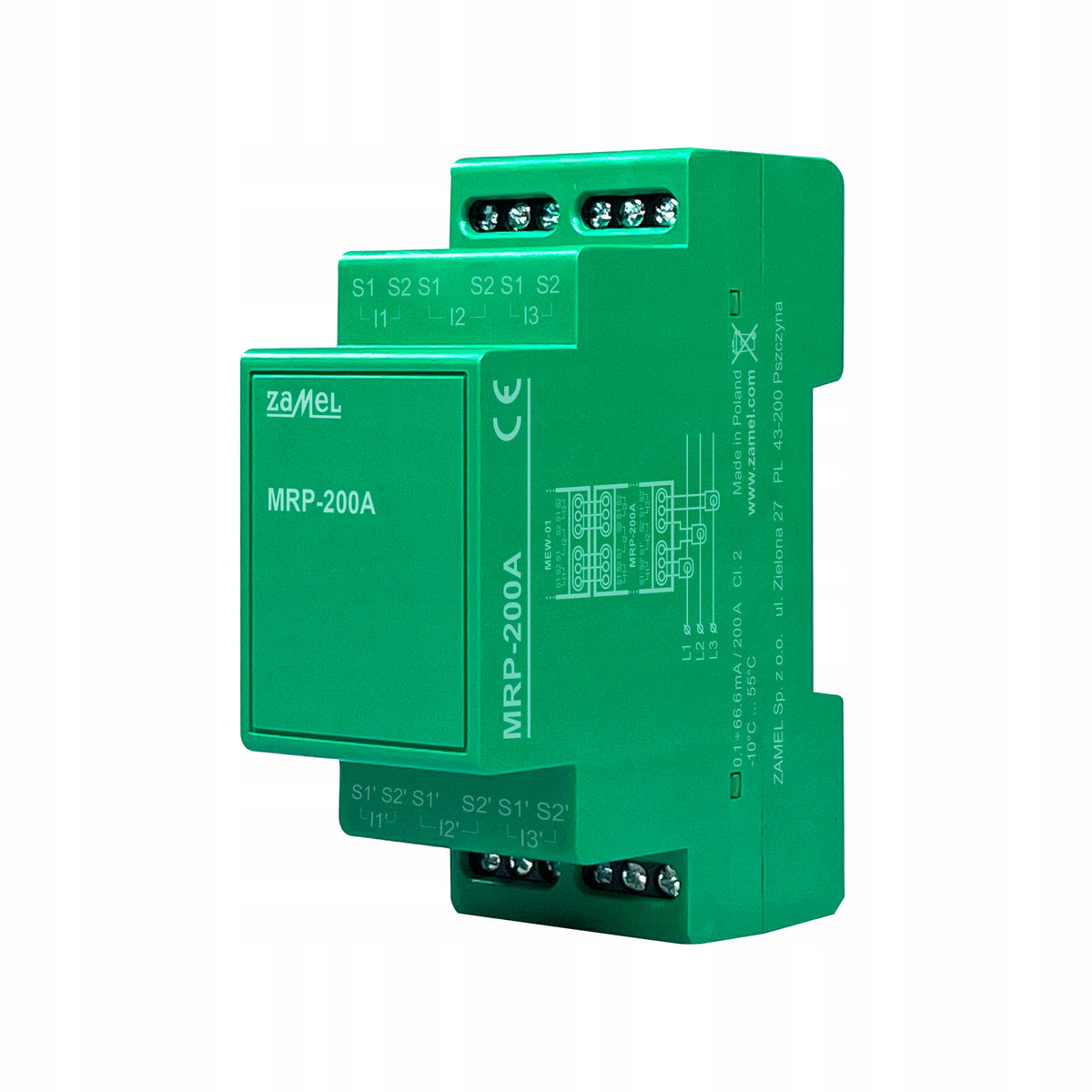

Product Description: Current Transformer Expansion Module for MEW-01 - 3x SC-24 200A Transformers - Zamel MRP-200A

The Zamel MRP-200A module is an advanced solution designed to expand the functionality of the MEW-01 MRP, MEW-01, or MEW-01 Lite energy consumption monitors. With the MRP-200A, you can monitor electrical networks with current intensity up to 200 A. The device comes with three SC-24 current transformers, ensuring precise measurements. The module is designed for mounting on a DIN rail. The device is compatible with MEW-01 MRP, MEW-01, and MEW-01 Lite from software version 2.8.56. For older versions, a software update is required.

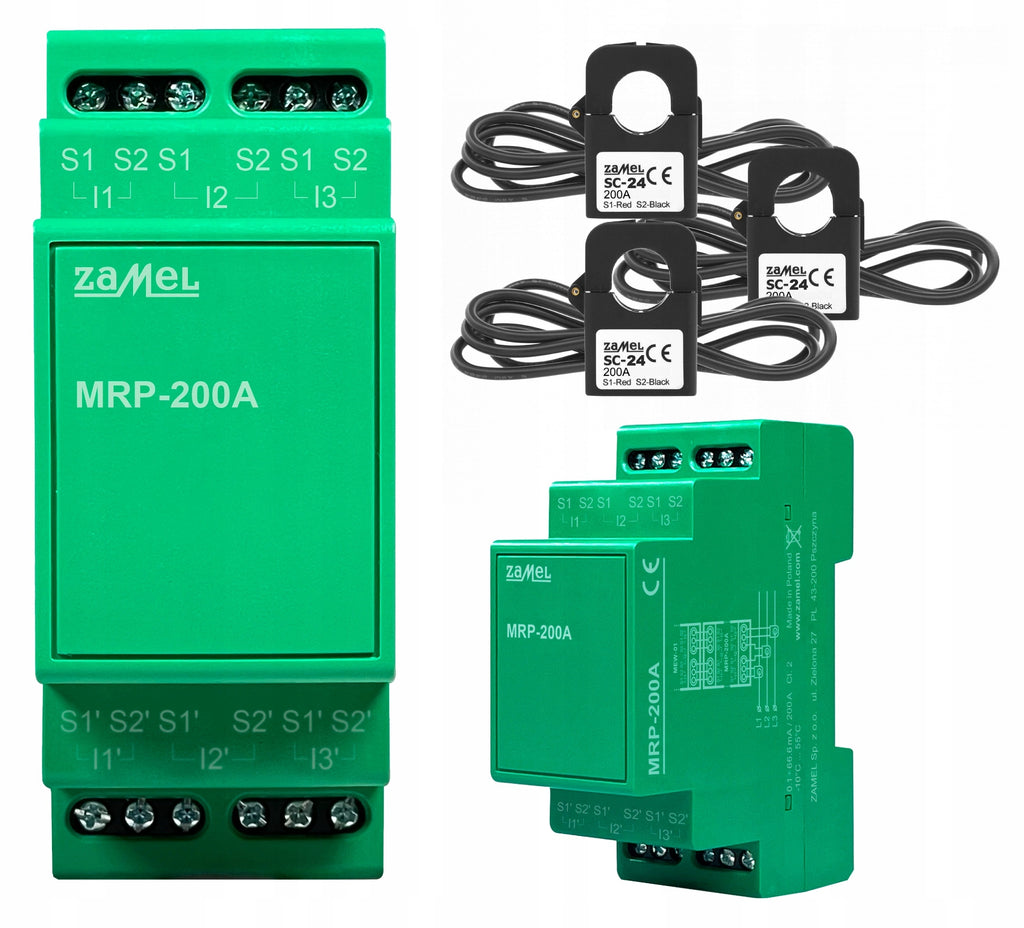

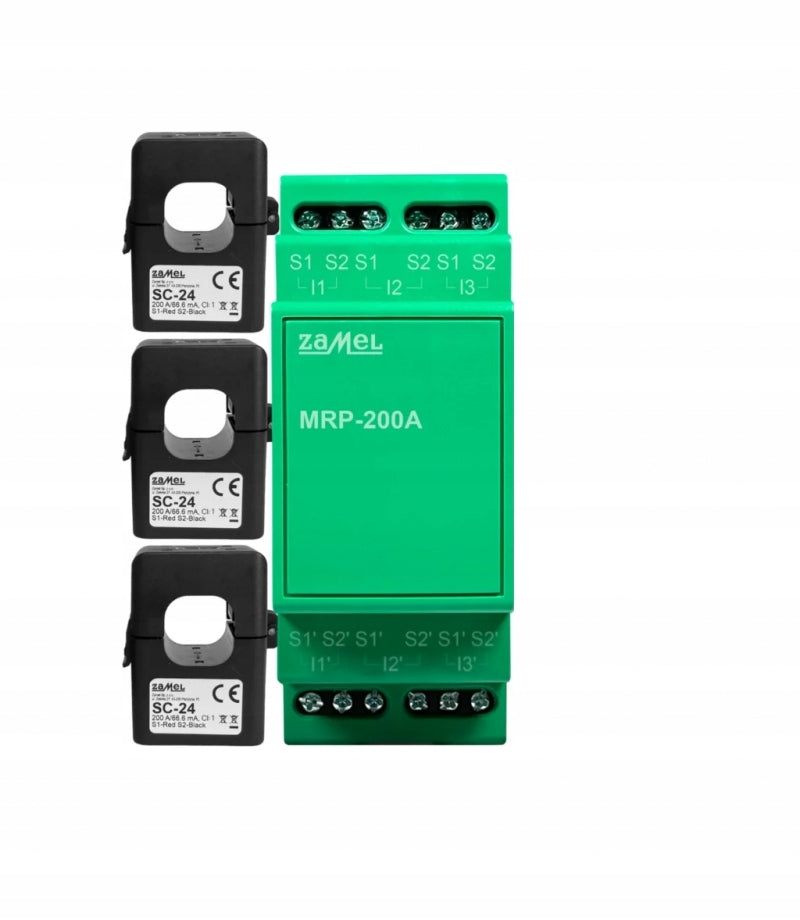

Current Transformer Expansion Module for MEW-01 - 3x SC-24 200A Transformers - Zamel MRP-200A.

SC-24 200A Transformer.

Main Features

• Works with MEW-01 MRP, MEW-01, and MEW-01 Lite from software version 2.8.56.
• Supports current transformers up to 200 A
• Compatible with the SUPLA system
• DIN rail mounting
• Maximum diameter of the measured conductor is 24 mm

Module Installation

To install the MRP-200A module, you will need: access to the distribution board, a screwdriver or pliers, a wire with a maximum diameter of 2.5 mm2 for connecting the power supply, and recommended SEP 1 kV qualifications.

1. Disconnect the power supply circuit using a fuse, circuit breaker, or isolator.
2. Verify the absence of voltage on the power supply wires using an appropriate instrument.
3. Mount the device in the distribution board on a TH35 DIN rail.
4. Connect the wires to the terminals according to the diagram.
5. Connect the current transformers, paying attention to the correct connection of the red (S1) and black (S2) wires and the correct direction of current flow with the arrow on the transformer.
6. Turn on the power supply circuit.

Wiring diagram of the module and monitor.

MRP-200A expands the capabilities of the MEW-01 monitor.

Technical Specifications

• Model: MRP-200A
• Intended Use: For MEW-01 MRP, MEW-01, or MEW-01 Lite energy consumption monitors
• Transformer Type: SC-24
• Maximum Measured Current: 200 A
• Connection Wire Cross-section: 0.2 mm2 to 2.5 mm2
• Mounting: TH35 DIN rail
• Enclosure Protection Rating: IP20
• Operating Temperature: -25°C to 50°C
• Conductor Hole Diameter in Transformers: 24 mm
• Transformer Cable Length: 3 m
• Dimensions: 90 x 35 x 66 mm
• Weight: 68 g

Kit Contents

• Current Transformer Expansion Module for MEW-01 - Zamel MRP-200A
• SC-24 200 A Transformer - 3 pieces
• User Manual

Useful Links

• User Manual

Note!!!

Shipping takes place up to two business days/48 hours. from the moment of placing the order. It is made depending on the time of purchase and the type of delivery, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If it is given for a longer time than the given (2 days), i.e. that the product has sold out and we expect delivery, usually up to 3-7 days.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and executing orders.

Returns!!!

Returned products should be without signs of use or assembly, and with unprogrammed functions, i.e. in the condition it was sent (new). In any case, your refund will be reduced!

Electrical device, connection should be dealt with by a qualified person with electrical privileges. As a result of poor operation and installation, it can threaten electric shock or damage.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	other
Parametry	Series	SUPLA
Parametry	Brand	Zamel
Parametry	Power supply	mains
Parametry	Communication	WiFi
Parametry	Manufacturer code	MRP-200A
Parametry	EAN (GTIN)	5903669495123
Parametry	Product weight with unit packaging	1 kg
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE,WEEE
