Trifazis automatinis įtampos stabilizatorius 30000 VA KEMOT PROavr-30k, 3%

Trumpai apie prekę

Prekė: Trifazis automatinis įtampos stabilizatorius 30000 VA KEMOT PROavr-30k, 3%. Kategorija: Elektros generatoriai.

• Gamintojas: Kemot
• Modelis: URZ3437-30

Automatic voltage stabilizer KEMOT PROavr-30k

Although in Poland the voltage is 230 V, there are often situations that it is unstable. The result may be a sudden shutdown of devices or their unstable operation, which reduce the life of electronic devices. Therefore, to avoid such situations, it is worth buying an automatic voltage stabilizer KEMOT PROavr-30k.

Protect your devices from voltage spikes

In single-phase mode, each phase can operate independently of each other. Regardless of the network load and output voltage fluctuations, the KEMOT PROavr-30 stabilizer keeps them at 230 V ±3%, allowing for efficient operation of all devices, including those sensitive to the quality of the network voltage. The adjustment is carried out automatically, which ensures high accuracy of the output voltage. An error in the operation of one of the phases does not affect the work of the others.

Three-phase mode

In three-phase mode, it is important to maintain a balance between phases. The stabilizer monitors and controls the voltage at each phase to ensure compatibility between them - equalizes too high or too low input voltage and gives the voltage to the output after stabilization. If in this mode one of the phases does not work or is not connected, then the device will activate the protection and will not supply voltage to the output, informing about it through the "PHASE ERROR" control.

How does the KEMOT PROavr-30 voltage stabilizer work?

The KEMOT voltage stabilizer is a device whose task is to maintain the set voltage of 230 V at the output. Its task is to raise too low or lower too high input voltage in such a way that the output voltage is within the allowed range and does not have any energy spikes dangerous for connected devices. The stabilizer design is based on a toroidal transformer, which ensures stable operation of the device.

Voltage stabilizer with servo motor

The KEMOT PROavr-30 voltage stabilizer maintains voltage with high accuracy of up to 3%. Such high precision of operation is the result of the use of technology based on servo.

BYPASS switch

The device is also equipped with a "bypass" function, i.e. a stabilizer bypass switch that allows you to isolate it, allowing you to seamlessly power your home network from an external source.

Delay function DELAY

If you need a voltage stabilizer for devices with a large instantaneous starting current, choose a model equipped with the DELAY switching delay function. KEMOT PROavr-30, has been equipped with a DELAY switching delay button in the range from 6 to 180 seconds, which will reduce the risk of damage when the devices connected to it have a large instantaneous inrush current. In addition, the KEMOT PROavr-30 stabilizer has protection against too high and low voltage, overload, overheating and short circuit.

Easy transport

In order to facilitate the movement and positioning of the KEMOT stabilizer in the right place, four strong wheels are used in it. Thanks to them, you can freely transport the device to different locations, which will definitely facilitate operation and maintenance.

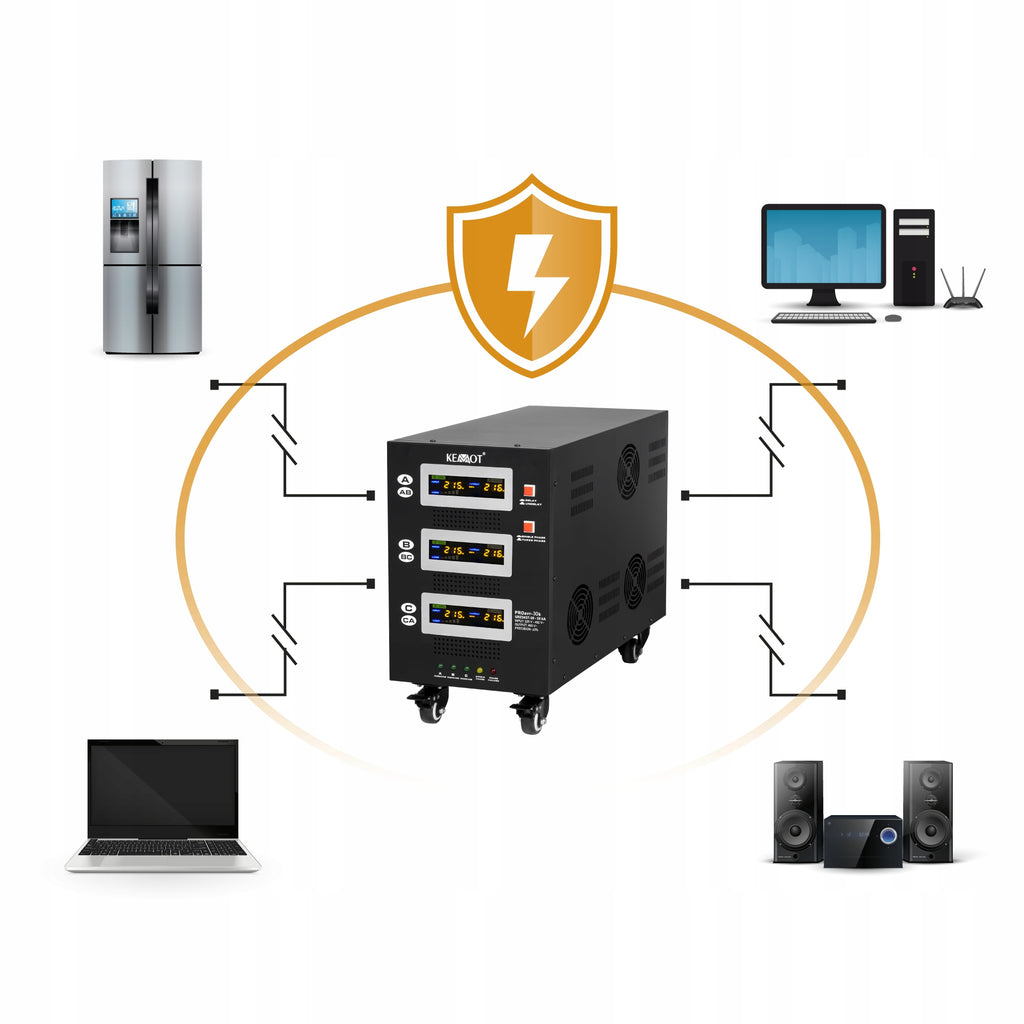

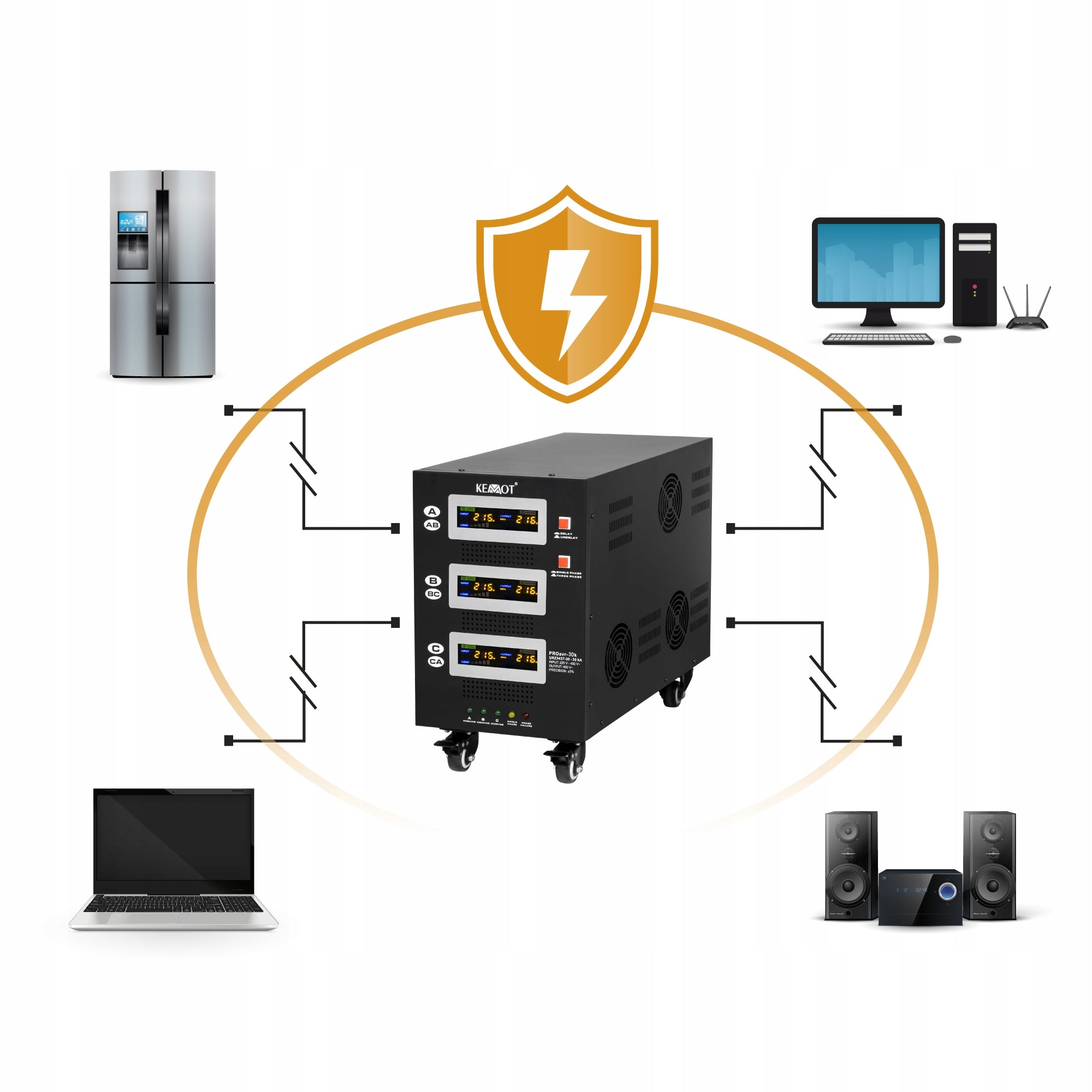

Application

KEMOT PROavr-30 will be used in both home and office settings. Ideally suited for:

• TV sets and RTV equipment;
• loudspeakers, mini towers and other audio/video equipment;
• household appliances such as induction hobs, microwaves, refrigerators and freezers, etc.;
• computers, monitors, printers and cash registers and other office equipment;
• furnaces and CO pumps;
• generator sets.

Product code: URZ3437-30

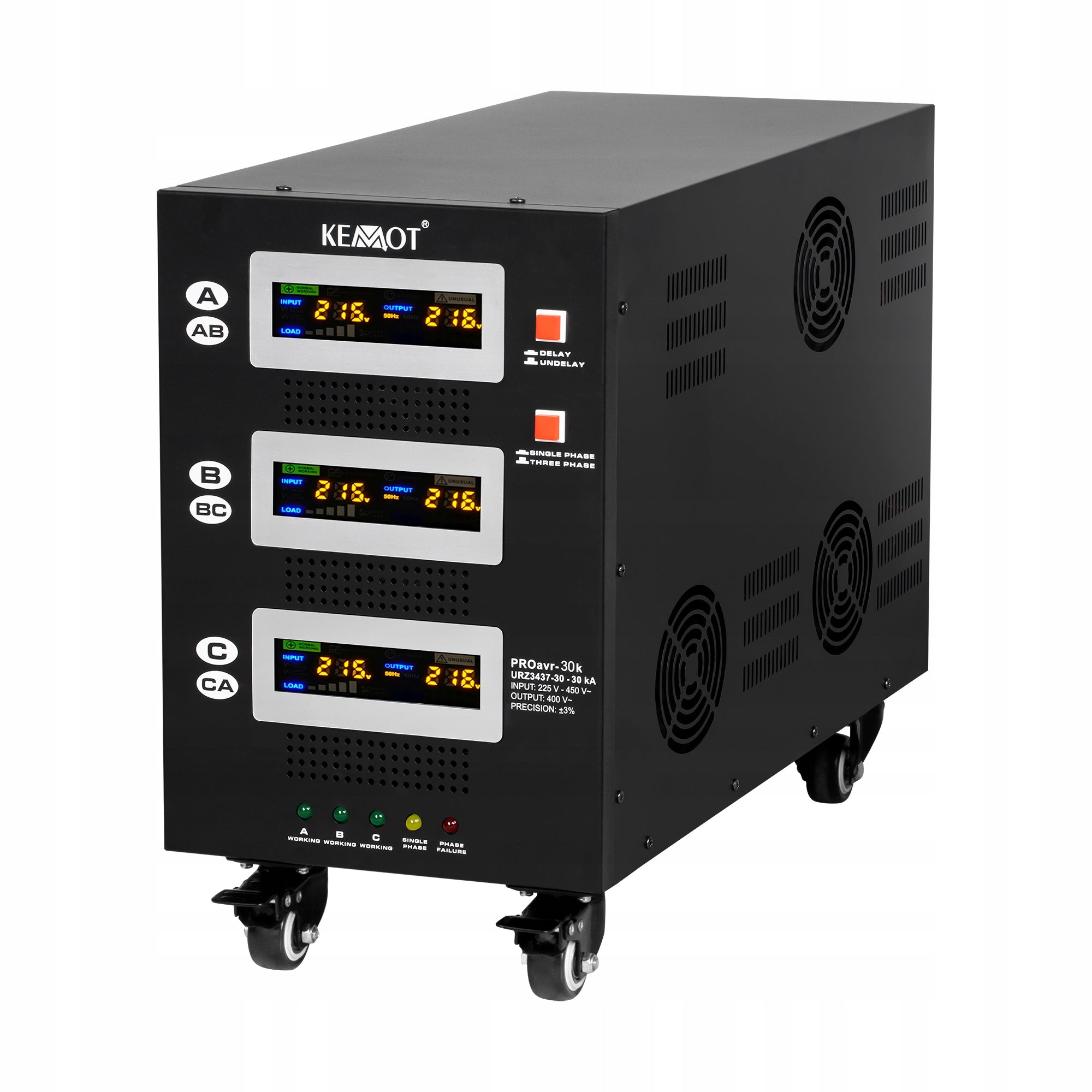

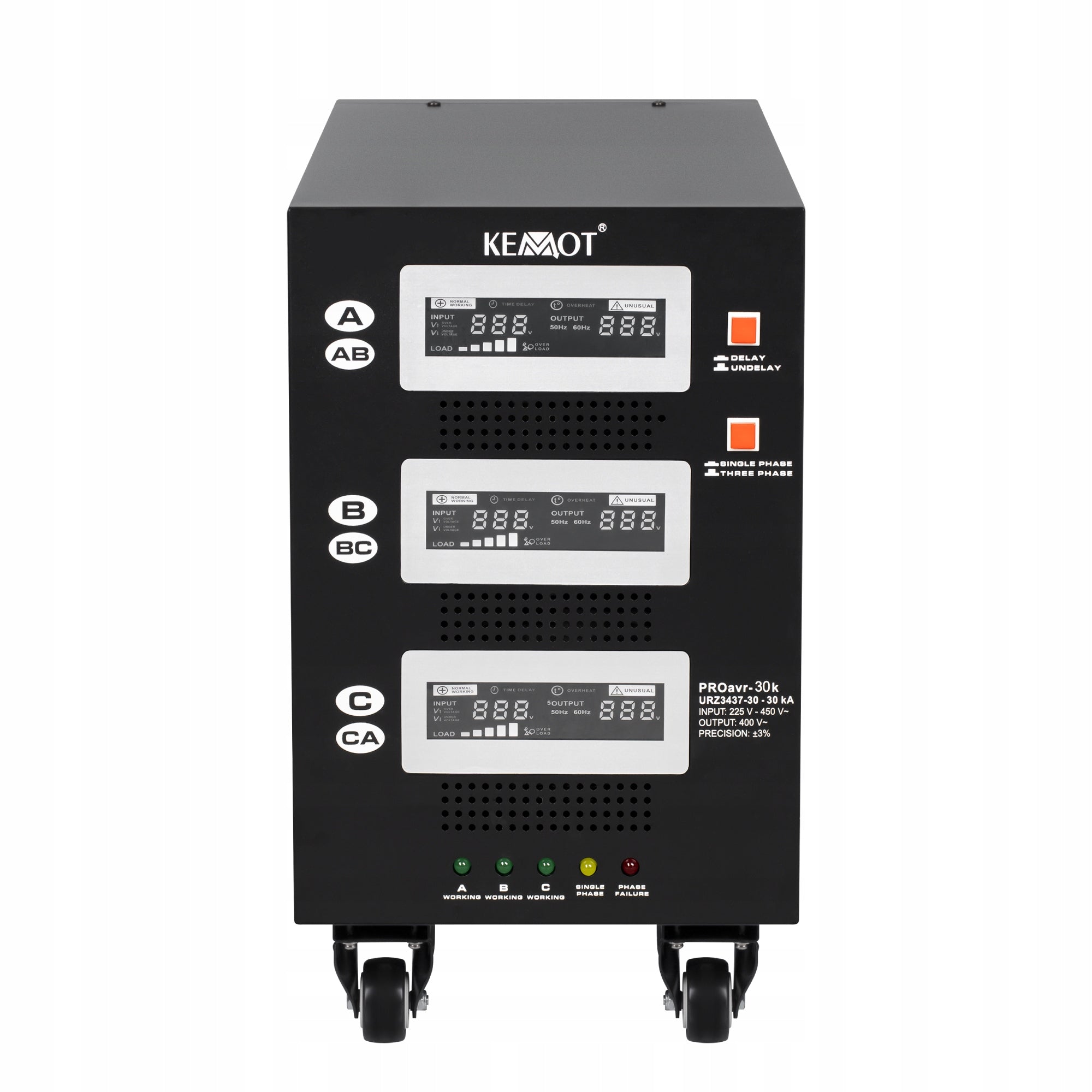

Automatic three-phase voltage stabilizer 30000 VA 3% KEMOT PROavr-30k

➡ ➡ ➡ ➡ ➡

TECHNICAL DATA:

Rated Power: 30000 VA

Input voltage range: 225 - 450 V

Minimum starting voltage: 225 V

Minimum output voltage: 310 V

Output voltage range: 400 V

Phases: 1 / 3 phases

Stability precision: ± 3%

Efficiency: 98%

Stabilization control: servo motor

Transformer: C.R.G.O. toroidal

Indicator: LCD display

Operating Frequency: 50 / 60 Hz

Start delay switch: 6/180s

Housing Material: Steel

Operating temperature: 0 – 40°C

Relative humidity: 10 – 102%

Storage temperature: -15oC – 45oC

Protections: against overload, short circuit, too high/low voltage, overheating

Cooling start: at 30% rated power

Cooling off: at 20% rated power

Dimensions: 302 x 541 x 427 mm

Weight: 71 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kemot
Parametry	Model	URZ3437-30
Parametry	Kind	portable
Parametry	Generator type	three-phase
Parametry	Startup	electric
Parametry	Maximum power	30000 W
Parametry	Fuel type	other
Parametry	Additional information	voltage regulation (AVR)
Parametry	Manufacturer code	URZ3437-30
Parametry	Packaging status	original
