Trifazis dvipusis elektros skaitiklis 100A SUPLA MEW-2 ETH/SC-16 ZAMEL

Trumpai apie prekę

Prekė: Trifazis dvipusis elektros skaitiklis 100A SUPLA MEW-2 ETH/SC-16 ZAMEL. Kategorija: Automatizavimo moduliai.

• Gamintojas: Zamel
• Modelis: MEW-02 ETH/SC-16

ATTENTION!

3F+N MEW-02 ETH/SC-16 WI-FI ELECTRICITY MONITOR

Product Description:

• The MEW-02 ETH Electricity Monitor with three SC-16 transformers (100 A) is a ready-made set for two-way monitoring of electricity wherever communication requires stability and a wired connection.
• The MEW-02 ETH also supports other types of current transformers: SC-24 (200A), SC-36 (400A), SC-2000 (more information coming soon) – available separately.

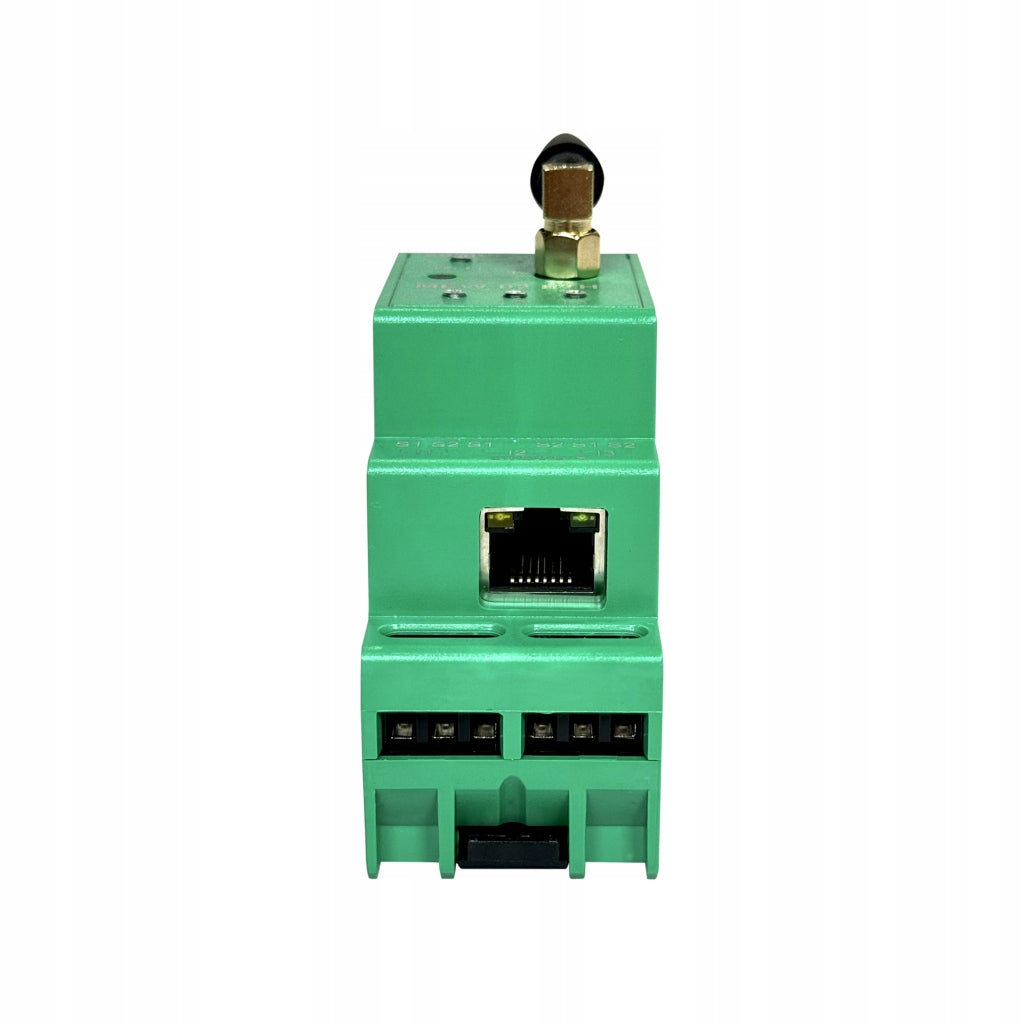

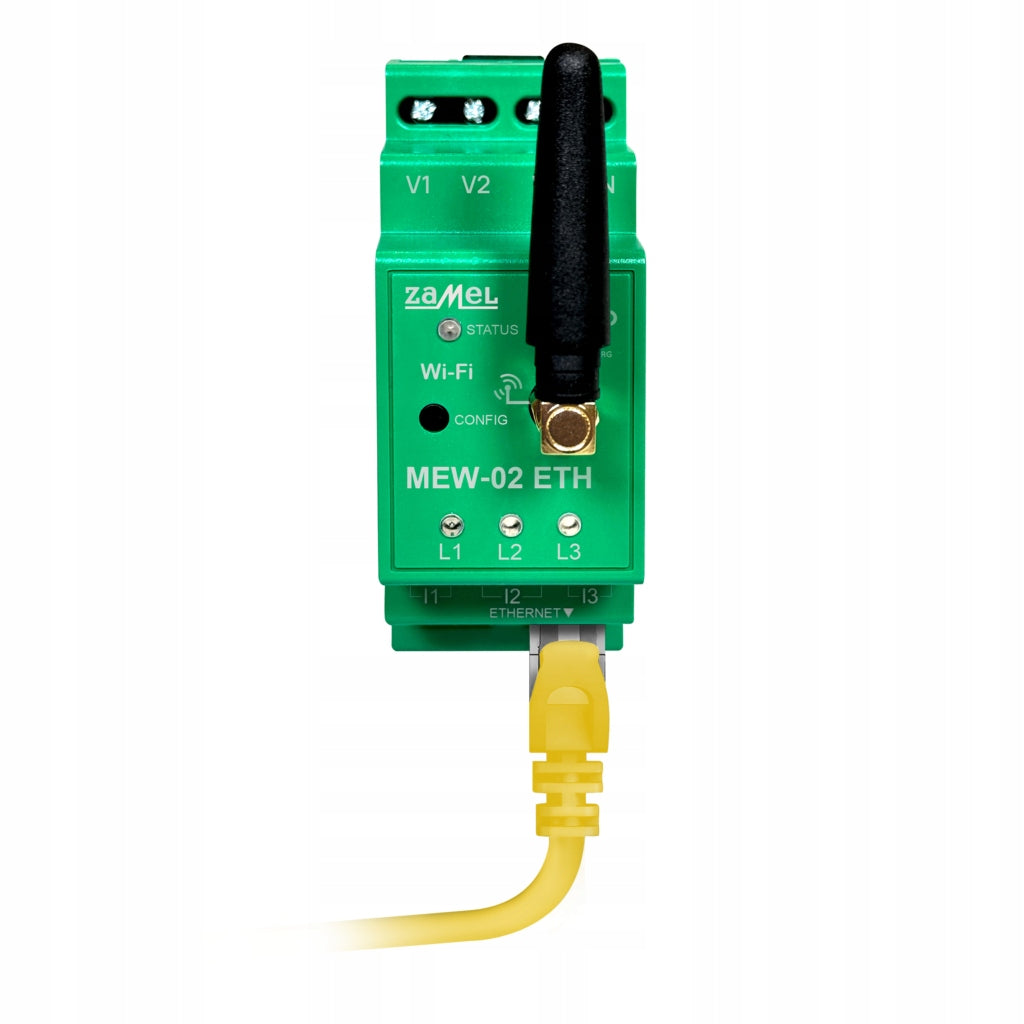

• The monitor is equipped with a Wi-Fi module and an RJ-45 socket, thanks to which we have the possibility of wireless and wired connection. Settings in configuration mode can be made through both connections, i.e. Wi-Fi or Ethernet.
• With the Supla app available for iOS and Android devices, you can monitor installation parameters in real time, analyze data related to energy consumption and production, and receive anomaly notifications.
• MEW-02 ETH is particularly useful in enterprises, offering a broad spectrum of integrations through APIs, MQTT protocol support and the ability to export measurements to a file.
• The measurement data collected by the device can also be analyzed in the extensive Supla Cloud measurement history panel offering various data sets and charts.

Product Features:

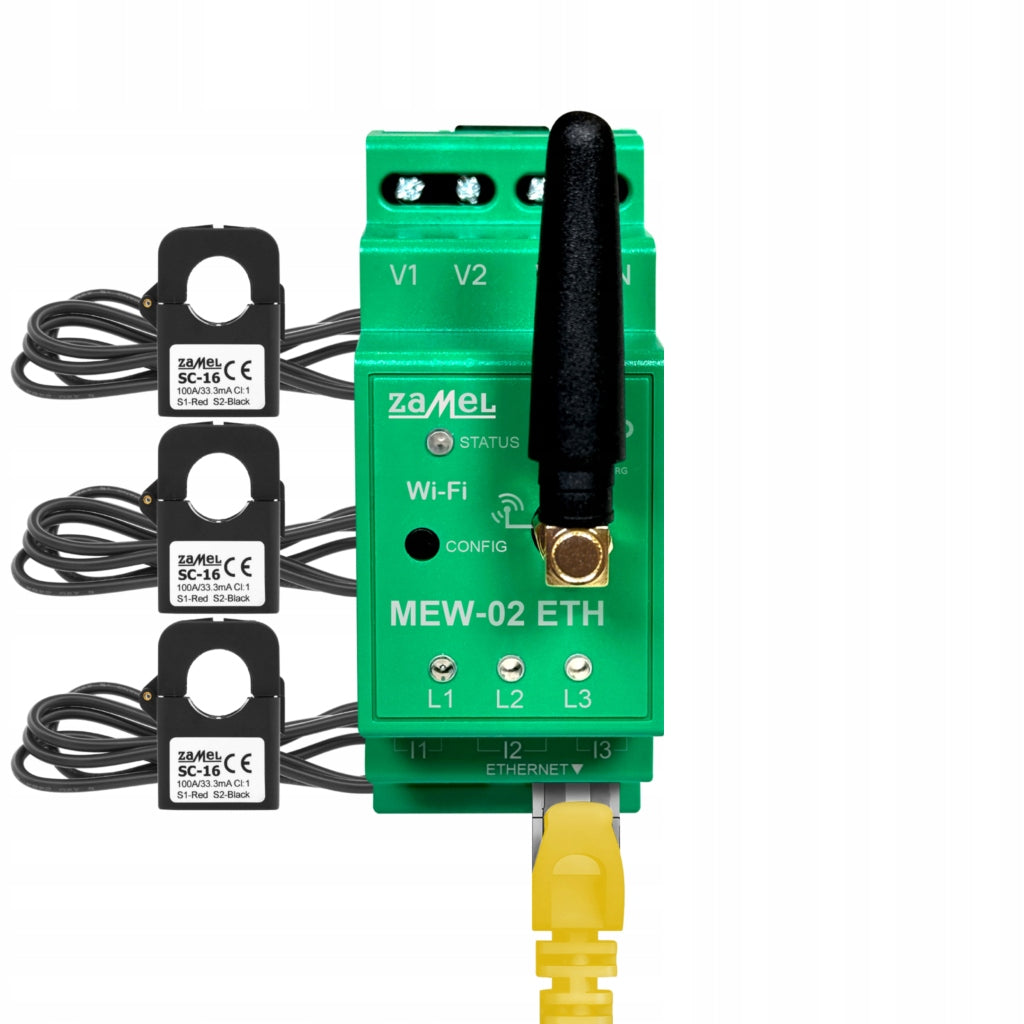

• set MEW-02 ETH + 3x SC-16 current transformers (100A)
• measurement of electricity consumption and production and current, voltage, power intensity on 3 phases
• graphs of the history of current, active power and voltage readings
• support for transformers with values of 100 A, 200 A and 400 A (200A and 400A available separately),
• simple configuration,
• access to measurement data in the cloud,
• broad integration opportunities.

Product characteristics:

• Rated voltage: 3 x 230 / 400 V ~ (50/60 Hz)
• Voltage tolerance: – 20 % to 15 %
• Rated Power Consumption: 1,6 W
• Measurement accuracy: Class 2 (±2%)
• Transmission: Wi-Fi 2.4GHz 802.11 b/g/n, ETHERNET IEEE 802.3 10/100 Mb/s
• Transmission power: ERP < 20 mW
• Operating temperature range: -10°C to 55°C
• Optical power signaling: LED for each of the power supply phases
• Environmental resistance: IP20
• Maximum wire cross-section: 10 (wires up to 2,5 mm2)
• Mounting method TH-35 rail, 2-modules
• Voltage supply terminals: V1; V2; V3; N
• Current transformer terminals: S1 S2 – I1; S1 S2 – I2; S1 S2 – I3
• Height 90 mm
• Width 35 mm
• Depth 66 mm
• Weight with transformers 0,435 kg

Note!!!

Shipping takes place up to two business days/48 hours from the moment of placing the order. It is made depending on the time of purchase and the type of delivery, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If it is given for a longer time than the stated (2 days), i.e. that the product has sold out and we expect delivery, usually up to 3-7 days.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and executing orders.

Returns!!!

Returned products should be without signs of use or assembly, and with unprogrammed functions, i.e. in the condition it was sent (new). In any case, your refund will be reduced!

Electrical device, connection should be dealt with by a qualified person with electrical privileges. As a result of poor operation and installation, it can threaten electric shock or damage.
