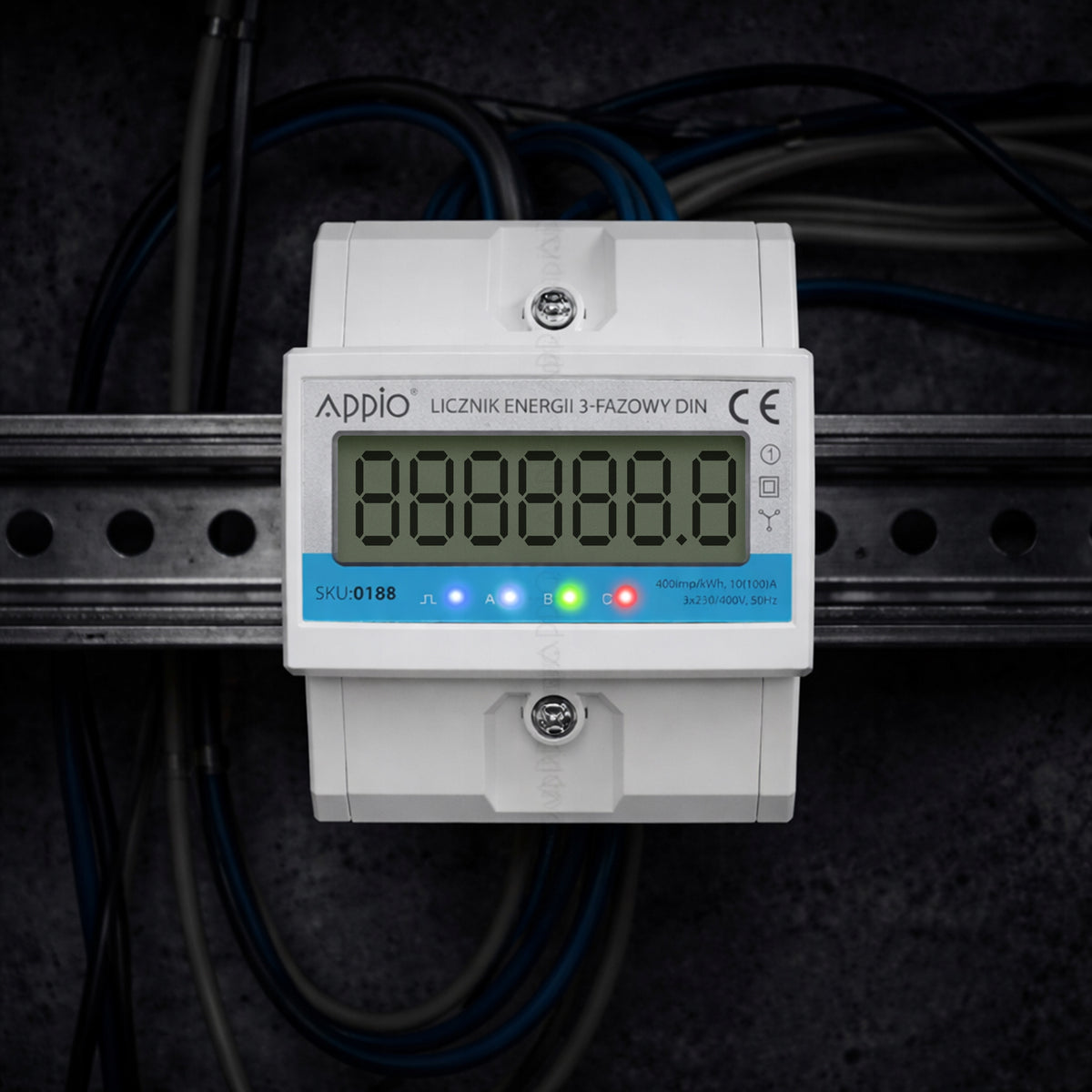

Trifazis elektros skaitiklis, montuojamas ant DIN bėgelio, 100A

Trumpai apie prekę

Prekė: Trifazis elektros skaitiklis, montuojamas ant DIN bėgelio, 100A. Kategorija: Automatizavimo moduliai.

• Gamintojas: Appio
• Modelis: 0188

3-PHASE WATT METER Electricity Meter DIN Meter

Electronic energy meter adapted for three-phase (4‑wire) installations, monitors the consumption of active energy in real time. High accuracy class provides reliable data – a product for home, company or industrial use.

⭐⭐⭐⭐⭐

Invest in savings! Monitor your energy consumption, analyze data and optimize your electricity bills.

Main features of the product:

✔ 3-phase eclectic energy meter

✔ DIN rail holder

✔ built-in memory - saves your settings even in the event of a power outage

✔ wide range of measurement

✔ real-time view of energy consumption so that energy theft can be prevented

✔ compact dimensions and easy installation

✔ high resistance to overload

✔ high accuracy and reliability

✔ ideal for: single-family houses and larger farms, companies and workshops, production halls and warehouses, power switchgears

✅ How does the meter work?

Voltage and current are sampled from the respective circuits and converted into a signal that is fed to the integrated circuit.

To protect the meter from external weather conditions, it should be mounted in the box.

By equipping the meter with an additional impulse output, it is possible to connect the counting device.

When the voltage disappears, the counter remembers the reading.

The energy consumption is very low, three diodes show the presence of each phase.

Energy measurement possible over a long period of time, without the need for calibration.

It has an internal connection for current and voltage measurement.

✅Compact and easy installation

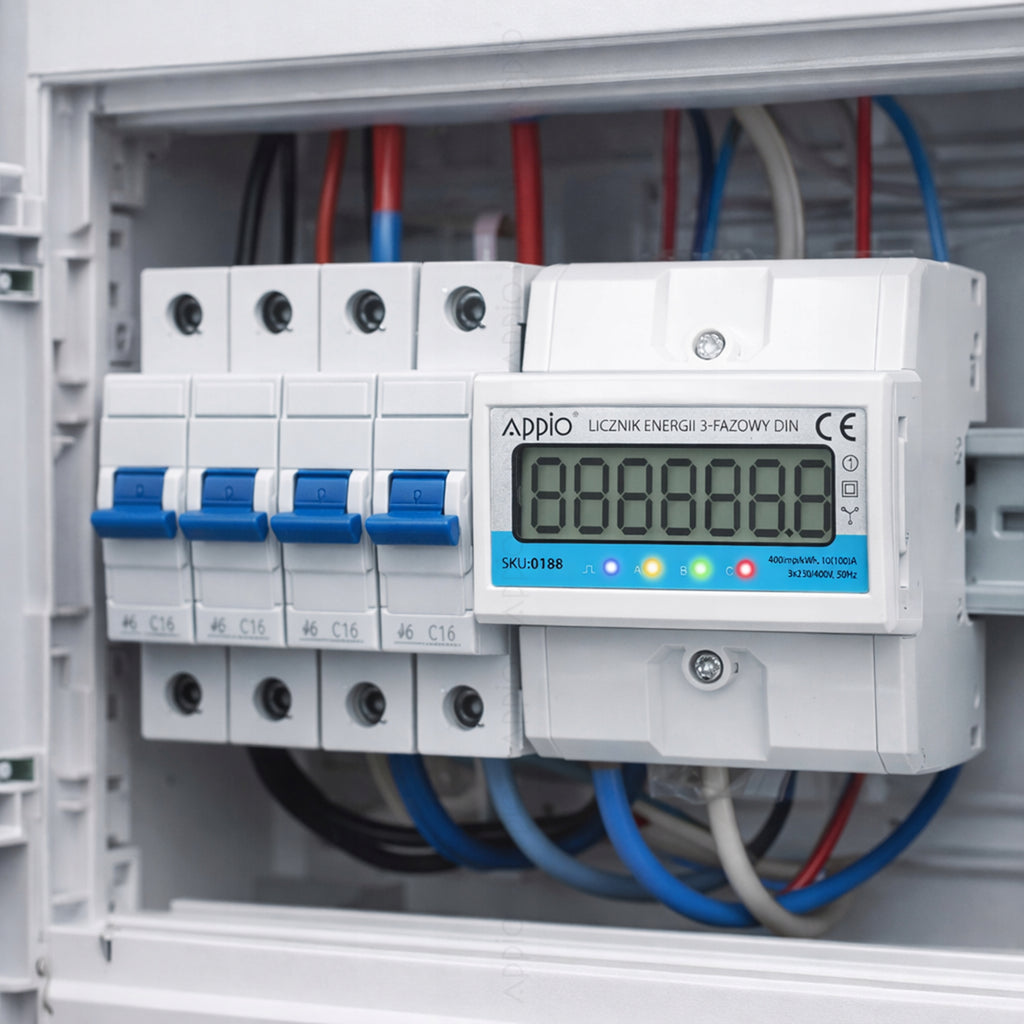

The 35 mm DIN rail design allows for quick installation in the switchgear without unnecessary wires. The device takes up minimal space, which spares space in electrical panels.

✅Readable display

The large LCD display presents values in kWh in 6+1 digits format, and the LED flashes according to the current consumption – allows immediate identification of energy consumption.

Specification

• Three-phase electricity meter
• Product code: 0188
• Max current: 10(100)A
• Voltage: 3x120/208V, 3x220/380V, 3x230/400V
• Normal voltage range: 90%Un~110%Un
• Limit voltage range: 70%Un~120%Un
• Frequency: 50/60Hz
• Power consumption of the device: < 2W/10V A
• Measurement type: one-way (energy consumption)
• Degree of protection: IP20
• Operating temperature: –20 °C to +55 °C
• Pulse frequency: 400imp/kwh
• Display: LCD 6+1 (999999,9 kWh)
• Dimensions: 100x76x65mm
• DIN rail: 35mm

Contents of the pack:

• Wattmeter
• Instruction in Polish
• Original packaging

❓ Is the meter three-phase?

Yes. It is a three-phase (3-phase) counter designed for four-wire (3F + N) installations.

❓ Does the meter measure energy in both directions?

No. It is a one-way meter, designed exclusively for measuring energy consumption.

❓ What installations is this meter suitable for?

The counter is ideal for:

• single-family houses and larger farms
• companies and workshops
• production halls and warehouses
• power switchgears

Suitable for both home, corporate and industrial use.

❓ What is the maximum operating current of the meter? What voltages does it handle?

The maximum current is 100A (10(100)A), which provides high overload resistance and wide application.

The meter supports standard three-phase installations:

• 3×120/208V
• 3×220/380V
• 3×230/400V

  Working frequency: 50/60 Hz.

❓ Does the meter measure energy consumption in real time?

Yes. The meter monitors active energy consumption on an ongoing basis, which enables quick control of consumption and detection of irregularities or energy losses.

❓ Does the meter remember data after voltage failure?

Yes. The device has built-in memory, thanks to which it retains the last reading after a power outage – without losing data.

❓ Does the meter need calibration?

No. Energy measurement is possible in the long term without the need for calibration, which increases the convenience and reliability of use.

❓ How does the meter assembly look like?

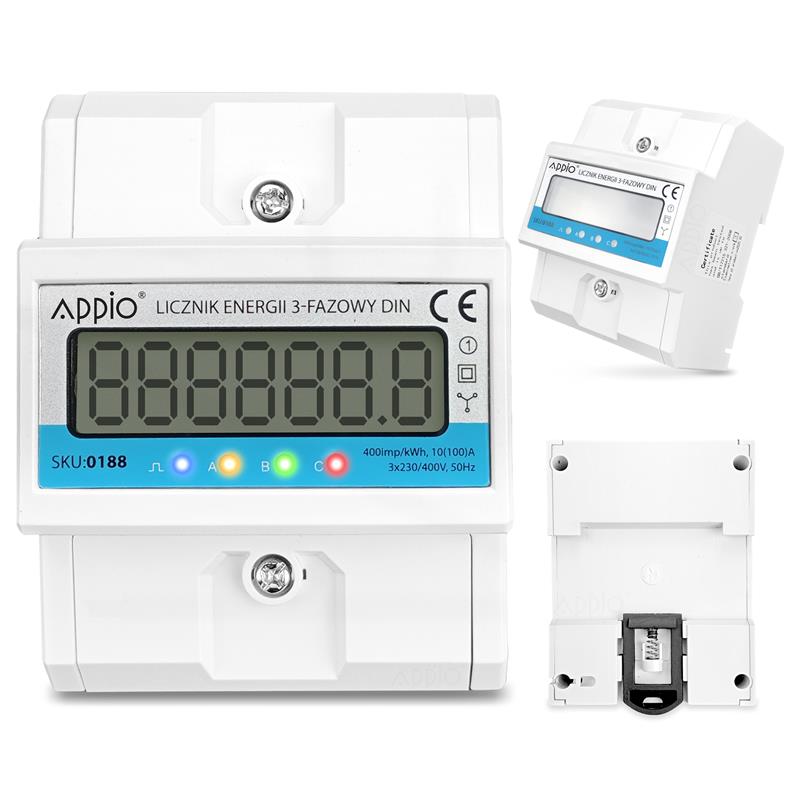

The counter is designed to be mounted on a standard DIN 35 mm rail. Thanks to its compact dimensions (100×76×65 mm) it takes up little space in the switchgear and is quick to install.

ATTENTION! Assembly should be done by a person with appropriate permissions.

❓ Is the meter resistant to overload?

Yes. The device is characterized by high resistance to overload, which makes it a safe and durable solution even in intensive use.

❓ Is the meter suitable for outdoor installation?

No. The meter has a degree of protection IP20 and should be mounted inside the box or switchgear, protecting it from weather conditions.

❓ Is the display readable?

Yes. The large LCD 6+1 (up to 999999,9 kWh) display allows easy and fast reading of data. In addition, LED signals the presence of each phase and flashes in proportion to the current energy consumption.

❓ What is the energy consumption of the meter itself?

The power consumption of the device is very low and is < 2W / 10VA, which does not significantly affect the energy balance of the installation, it is energy-efficient.
