Trifazis energijos matuoklis SUPLA MEW-2, 200A, ETH/SC-24

Trumpai apie prekę

Prekė: Trifazis energijos matuoklis SUPLA MEW-2, 200A, ETH/SC-24. Kategorija: Rinkiniai.

• Gamintojas: Supla
• Modelis: MEW-02 ETH

ATTENTION!

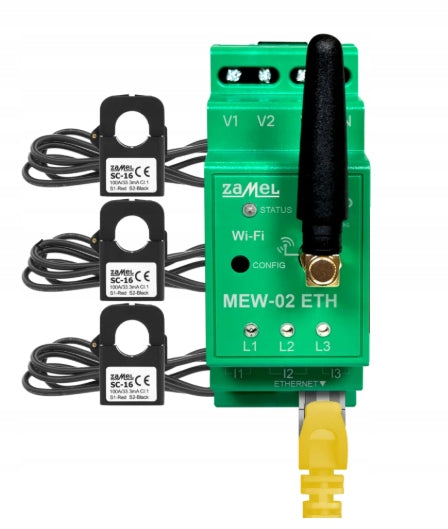

The set includes:

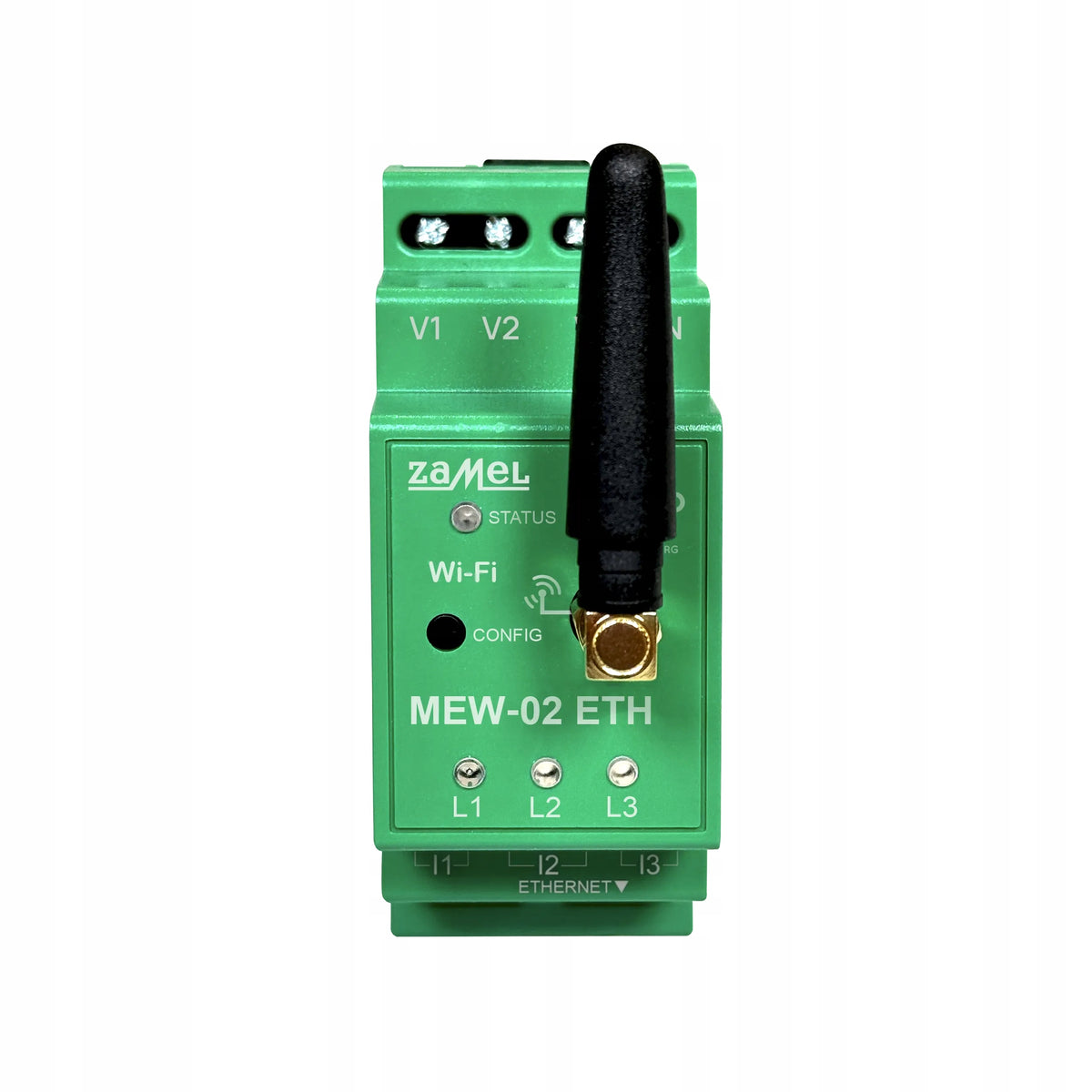

Monitor MEW-02 ETH 1pcs

Current transformers SC-24 200A 3pcs

3F+N MEW-02 ETH 200A WI-FI ELECTRICITY MONITOR

Product Description:

• The MEW-02 ETH Electricity Monitor with three SC-24 transformers (200 A) is a ready-made set for two-way monitoring of electricity wherever communication requires stability and a wired connection.

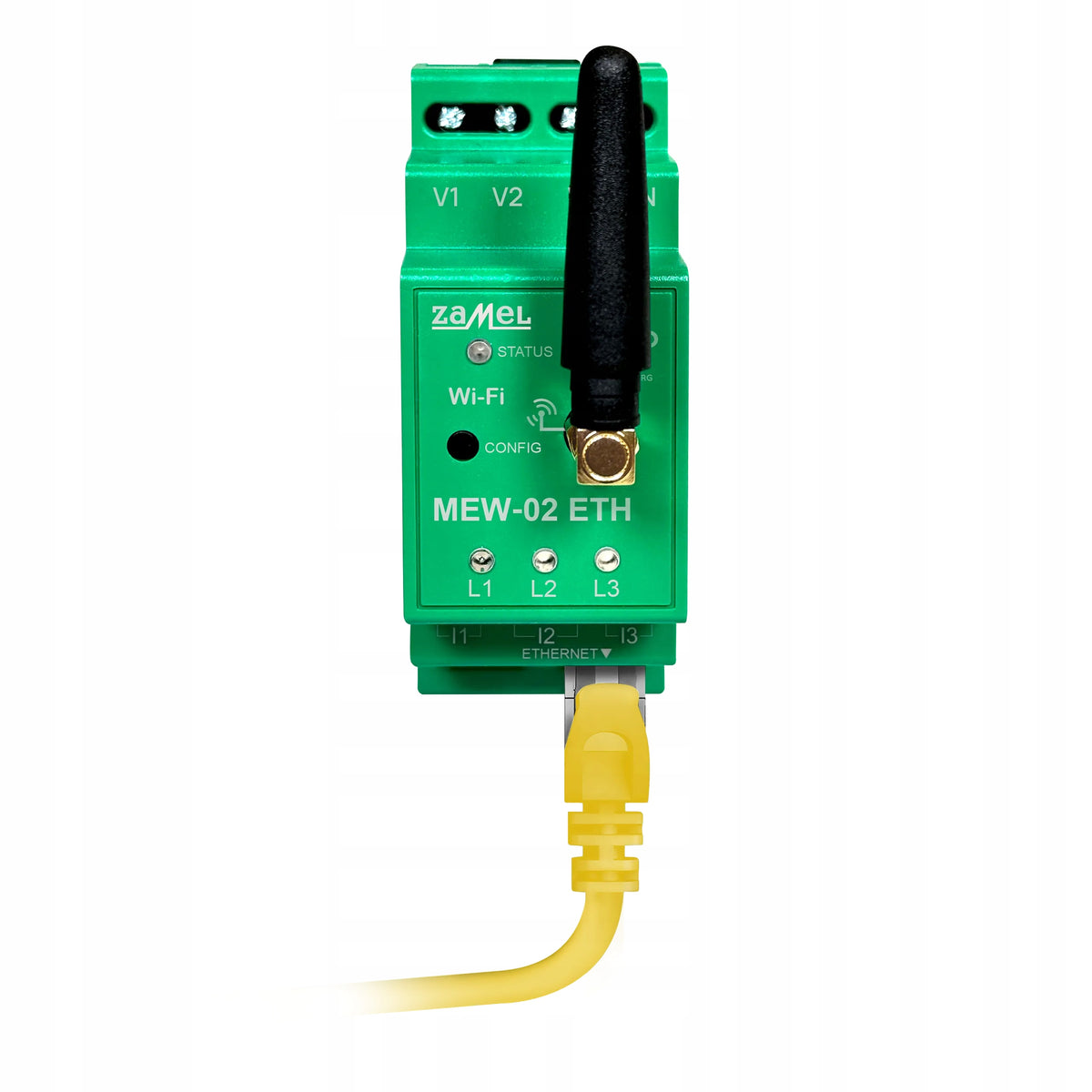

• The monitor is equipped with a Wi-Fi module and an RJ-45 socket, thanks to which we have the possibility of wireless and wired connection. Settings in configuration mode can be made through both connections, i.e. Wi-Fi or Ethernet.
• Thanks to the Supla application available for iOS and Android devices, you can monitor installation parameters in real time, analyze data related to energy consumption and production, and receive notifications about anomalies.
• MEW-02 ETH is particularly useful in enterprises, offering a broad spectrum of integrations through APIs, MQTT protocol support and the ability to export measurements to a file.
• The measurement data collected by the device can also be analyzed in an extensive Supla Cloud measurement history panel offering various data sets and charts.

Product Features:

• measurement of electricity consumption and production and current, voltage, power on 3 phases,
• charts of the history of current, active power and voltage readings,
• support for transformers with values of 100 A, 200 A and 400 A (sold separately),
• simple configuration,
• access to measurement data in the cloud,
• broad integration opportunities.

Product characteristics:

• Rated voltage: 3 x 230 / 400 V ~ (50/60 Hz)
• Voltage tolerance: – 20 % to 15 %
• Rated Power Consumption: 1,6 W
• Measurement accuracy: Class 2 (±2%)
• Transmission: Wi-Fi 2.4GHz 802.11 b/g/n, ETHERNET IEEE 802.3 10/100 Mb/s
• Transmission power: ERP < 20 mW
• Operating temperature range: -10°C to 55°C
• Optical power signaling: LED for each of the power supply phases
• Environmental resistance: IP20
• Maximum wire cross-section: 10 (wires up to 2,5 mm2)
• Mounting method TH-35 rail, 2-modules
• Voltage supply terminals: V1; V2; V3; N
• Current transformer terminals: S1 S2 – I1; S1 S2 – I2; S1 S2 – I3
• Height 90 mm
• Width 35 mm
• Depth 66 mm
• Weight 0,135 kg

Note!!!

Shipping takes place within two business days/48 hours . from the moment of placing the order. It is made depending on the time of purchase and the type of delivery, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If a longer time than the one specified (2 days) is given, i.e. that the product is sold out and we are expecting delivery, usually within 3-7 days.

In urgent matters, please let us know.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and executing orders.

Returns!!!

Returned products should be without signs of use or assembly, and with unprogrammed functions, i.e. in the condition it was sent (new). In any other case, the refund will be reduced!

Electrical device, connection should be dealt with by a qualified person with electrical privileges. As a result of poor operation and installation, it can threaten electric shock or damage.
