Trifazis generatorius 6500W 230V/400V su AVR paleidimu ir alyva

Trumpai apie prekę

Prekė: Trifazis generatorius 6500W 230V/400V su AVR paleidimu ir alyva. Kategorija: Elektros generatoriai.

• Gamintojas: Tagred
• Modelis: TA6500GWX
• Įtampa: 400 V

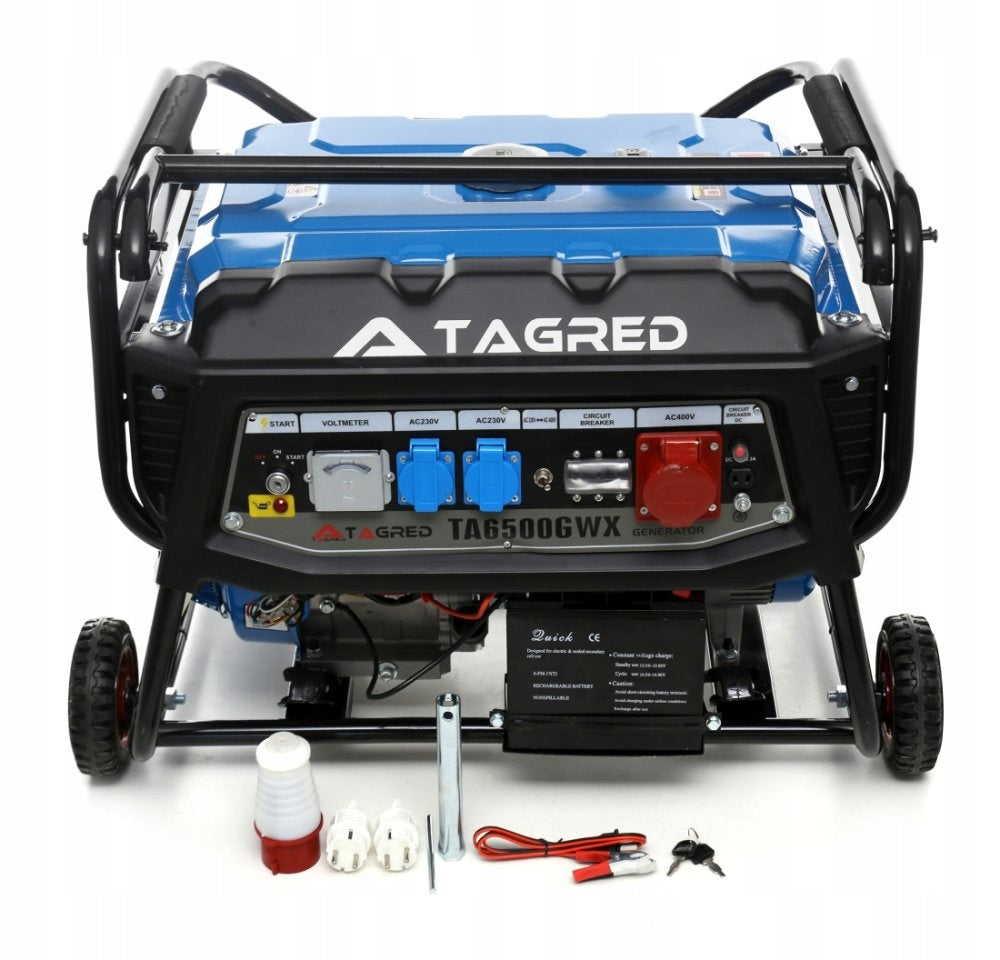

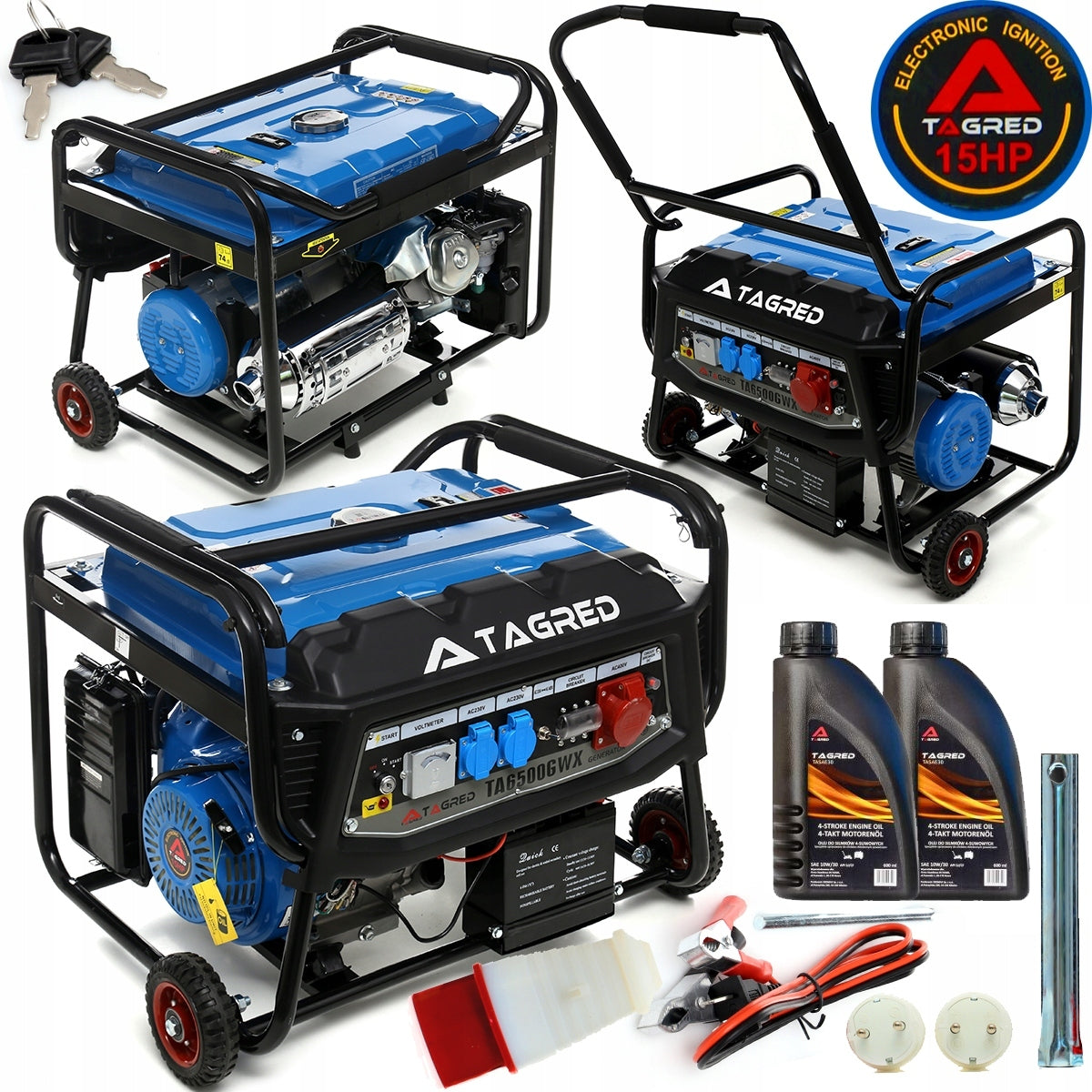

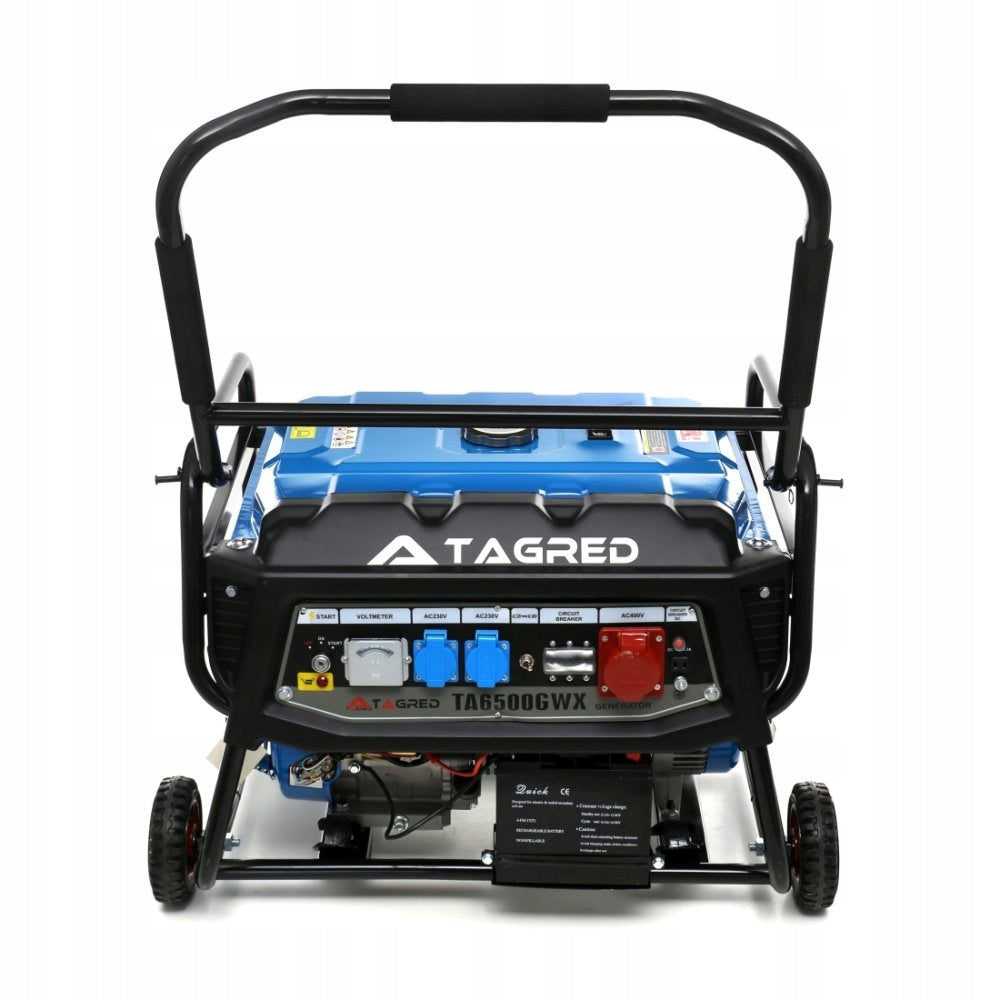

Three-phase generator set 6500W 230V 400V with AVR starter + oil

+ wheels and handles for transport

The presented model is three-phase and has a maximum power of 6.5KW on the 400V socket, and at the same time single-phase - on 2 sockets it has 230V - 4.8 KW. Now on the 230v socket the power is 30% higher - up to 4,8KW!!

Set Composition:

• Generator set
• Rechargeable battery
• The Key to Candles
• Screwdriver
• Number of 1-phase sockets: 2
• Number of 3-phase sockets: 1
• User manual in Polish
• 2 x oil 0,6L

NOTE: THE ACCESSORIES ARE LOCATED BETWEEN THE ENGINE AND THE FUEL TANK IN A STRING BAG! BEFORE STARTING, THE OIL SHOULD BE REPLENISHED - 1000 ML.

Technical data

• Model: TA6500GWX
• Engine: 4-stroke, air-cooled
• Three-phase
• Aggregate: has a voltmeter
• Features AVR: Voltage Stabilizer
• Frequency (Hz) 50
• Voltage: 230V/400V
• Engine power :(15,0hp)11000 watt
• Nominal generator power: 400V: 6KW/6000W; 7,5KVA/7500VA , 230V:4,3kw/4300W; 4,78KVA/4780KVA
• Maximum generator power: 400V: 6,5KW/6500W; 8,12KVA/8125VA, 230V: 4,8kw/4800W; 5,99KVA/5999KVA
• Starting: Electric and Manual
• Fuel: petrol PB95
• Oil: SAE30
• Fuel tank capacity: 25 L
• Oil tank capacity: 1 L
• Copper generator: YES
• Fuel consumption: 1 L/h
• Dimensions (L x W x H): 680x520x540 mm
• Noise level: approx. 74dB
• Weight: 86 kg
• Rectifier 8,3A

High-quality generator sets with manual start and starter polish brand TAGRED are ideal for emergency power supply:

home, office, vehicle,in motorhomes, trucks, tractors, cars,

• in campsites,
• on boats, yachts,
• in industrial equipment.

Copper generator!

Copper generator - is characterized by better efficiency, better heat dissipation, so the generator can work much longer than in the case of an aluminum generator. Another advantage of the copper generator is the power, which is consistent with the parameters of the device. In most competitive devices we are dealing with aluminum winding, the power is overstated and obtaining the parameters given in the offer is impossible, in addition, aluminum winding is more exposed to damage and overheating. The extended generator core allowed to increase the power of the generator up to 6,5kW of starting power.

New design

The new panel is equipped with a clear voltmeter, additionally protected against damage by a metal cover. Two solid 230v sockets and a 400v socket, plus a 12v input for charging batteries. Fuse that protects generators from overload, additionally covered with a rubber cap that protects it from various types of dirt (water, sand, etc. ) The battery charging input is also equipped with a fuse. We will also find an oil indicator and a solid ignition.

Engine of Japanese construction

It is characterized by a solid construction, high power and relatively low fuel consumption, which oscillates within 1L / h. The engine has been mounted on rubber cushions that absorb engine work and eliminate vibrations. The silencer used in this series has been additionally soundproofed, which made the unit much quieter than competing aggregates. The unit is equipped with CDI ignition in combination with a Japanese carburetor guarantees easy start-up and stable operation. The engine is also equipped with an oil sensor so there is no possibility of starting without oil, this protects the engine from blurring

Intelligent Throttle Technology (Speed Change Control)

Unlike traditional generators that operate at a constant speed/number of revolutions per minute, the portable generator from Tagred is equipped with a microprocessor controlled by Intelligent Throttle Technology, which adjusts the speed of the motor to accurately meet the load. If the generator does not power many devices, it operates at slower speeds. In this way, the generator reduces fuel consumption, extending the life of the engine and increasing the intervals between filling the fuel tank. When the load increases, the generator will automatically increase speed and revolutions, adapting to the energy demand.

The speed change function used in the generator provides many advantages:

• increases the life of the device by reducing engine wear,
• efficiently manages fuel and is economical in operation,
• is environmentally friendly

Generator with AVR system (voltage stabilizer), and traditional generator

If you had the opportunity to work with a traditional/conventional generator, you certainly noticed fluctuations in current – the lights dimmed, and then again they glowed at full power. These energy fluctuations are dangerous for many modern and delicate devices. For example, if a computer (refrigerator) was powered by an ordinary generator (without AVR), it could shut down due to voltage fluctuations or burn. Sudden power fluctuations can very often be fatal for many devices. You will not experience voltage fluctuations when using the generator with AVR.

Why is it worth it?

• The strongest in our offer!!!
• They are ideal for emergency power supply: home, office, vehicle, in motorhomes, trucks, tractors, cars, in campsites, on boats, yachts, in industrial equipment
• 3-phase reinforced unit, i.e. on 230V sockets has 80% power – not like other manufacturers 1/3 power
• Copper generator
• Reliable and easy to use
• Product for professionals and amateurs
• Three-phase/single-phase
• Mobile - has sturdy wheels and handles for transport
• Ergonomic and economical
• Starting: electric and manual
• Quiet operation
• 2 x engine oil 0,6L
