Trifazis generatorius DEDRA, 6,5 kW, 230/400 V

Trumpai apie prekę

Prekė: Trifazis generatorius DEDRA, 6,5 kW, 230/400 V. Kategorija: Elektros generatoriai.

• Gamintojas: Dedra
• Modelis: DEGB7503K
• Įtampa: 380 V

DEGB7503K

Features and technical parameters of the DEDRA DEGB7503K generator set:

• engine: combustion, single cylinder, 4-stroke, OHV
• Engine capacity: 420 cm³
• maximum rotational speed: 3000 rpm
• Internal combustion engine power: 11 kW
• rated power for 230V socket: 2 kW
• rated power for 400V socket: 6 kW
• maximum output power for 230V sockets: 2,2 kW
• maximum output power for 400V socket: 6,5 kW
• Rated power in kVA: 6,5
• copper motor winding
• AVR - automatic voltage stabilization
• voltage and frequency of generated current: 230V / 50Hz
• fuel type: lead-free petrol Pb95 (E10)
• Fuel tank capacity: 25 litres
• fuel level indicator in the tank
• recommended oil: oil type: SAE10W30
• number of sockets 230V: 1
• number of sockets 400V: 1
• rated current: 10 A
• number of sockets 12V/5A: 1
• rated power factor: 1
• class of operating requirements: G2
• power compatibility class: A
• working time on a full tank at nominal power: 7 hours
• overload protection
• protection against low oil levels
• transport wheels
• transport handles
• startup: manual
• Weight: 85 kg

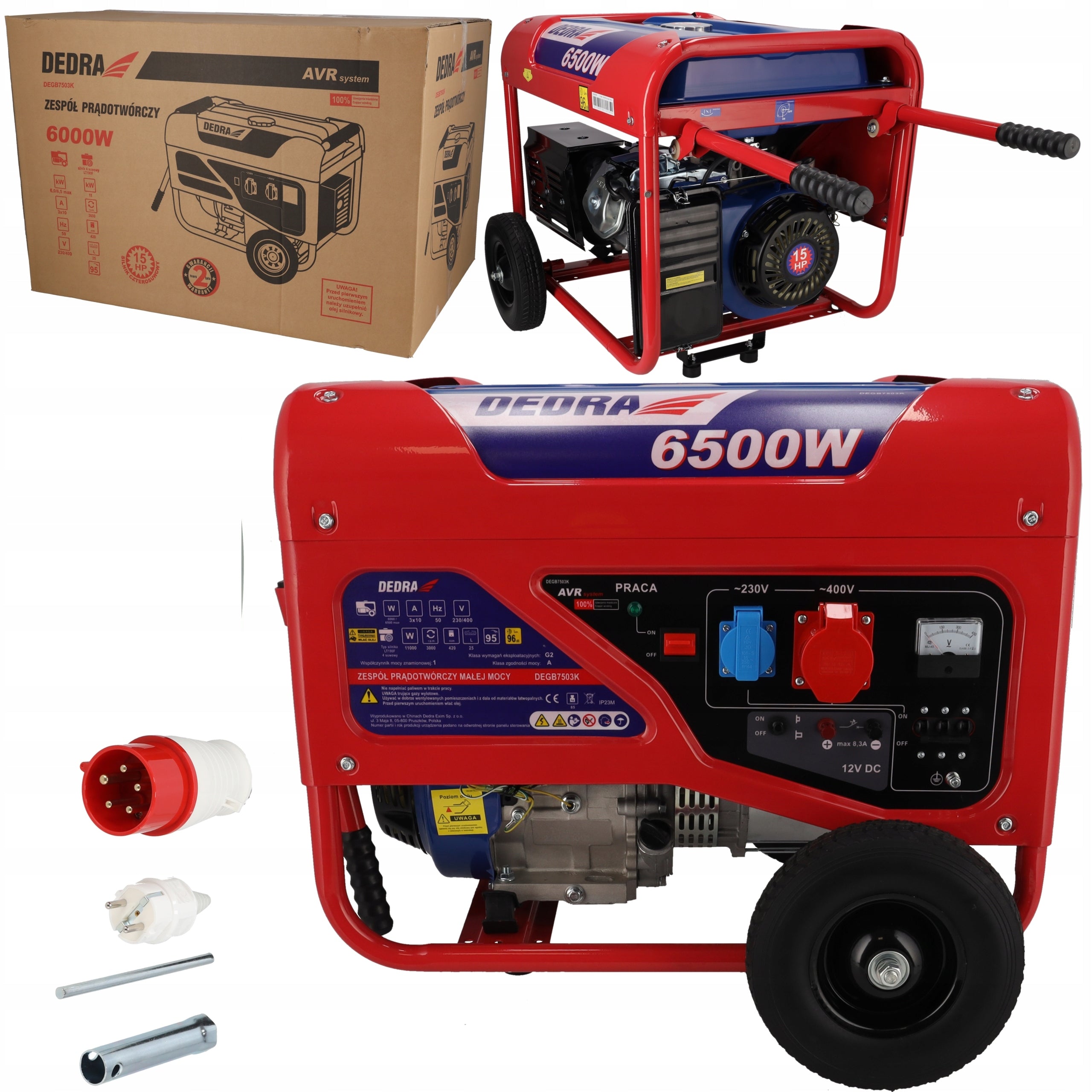

Included with the unit are:

• spark plug wrench
• European plug (1 pc. )
• handles for transport
• transport wheels
• rubber feet
• instruction manual in Polish
• warranty card – 2 years of service protection

Package dimensions:

• height: 82 cm
• width: 59 cm
• depth: 57 cm

The DEDRA power generators are also designed to work with new fuels such as E10 petrol, which are confirmed by appropriate certificates.

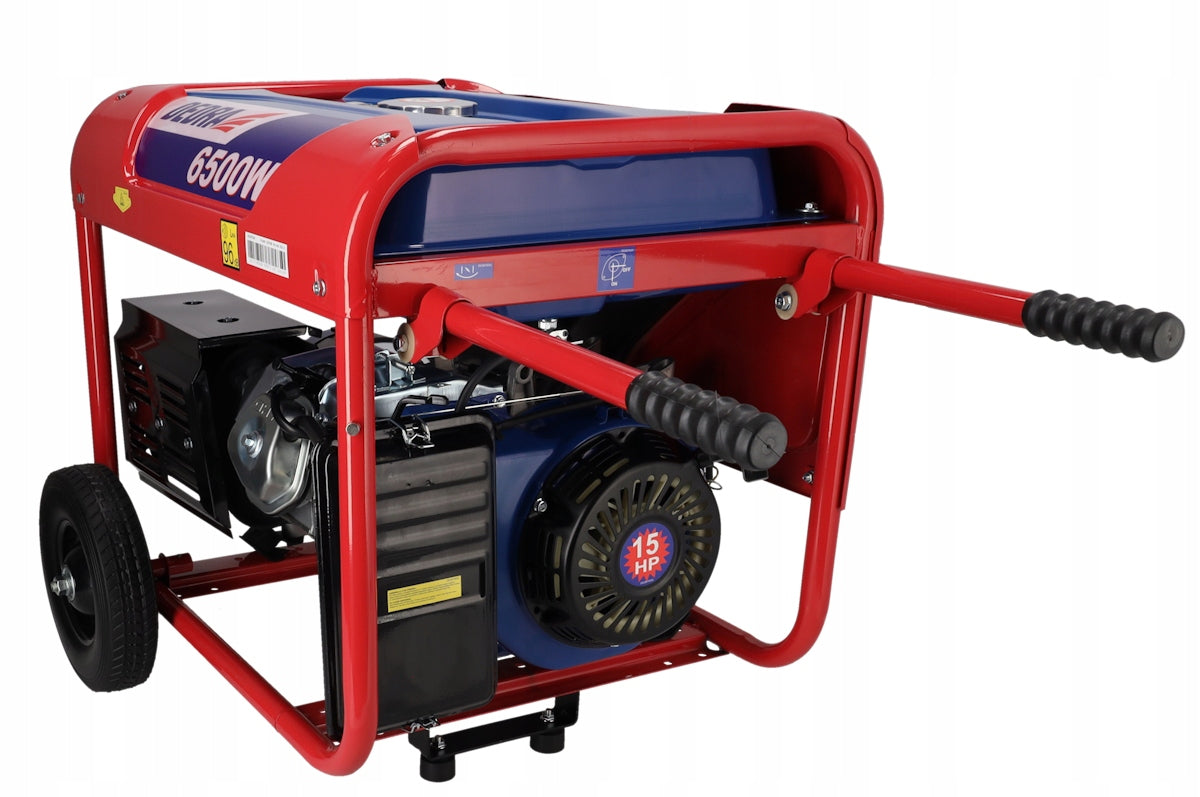

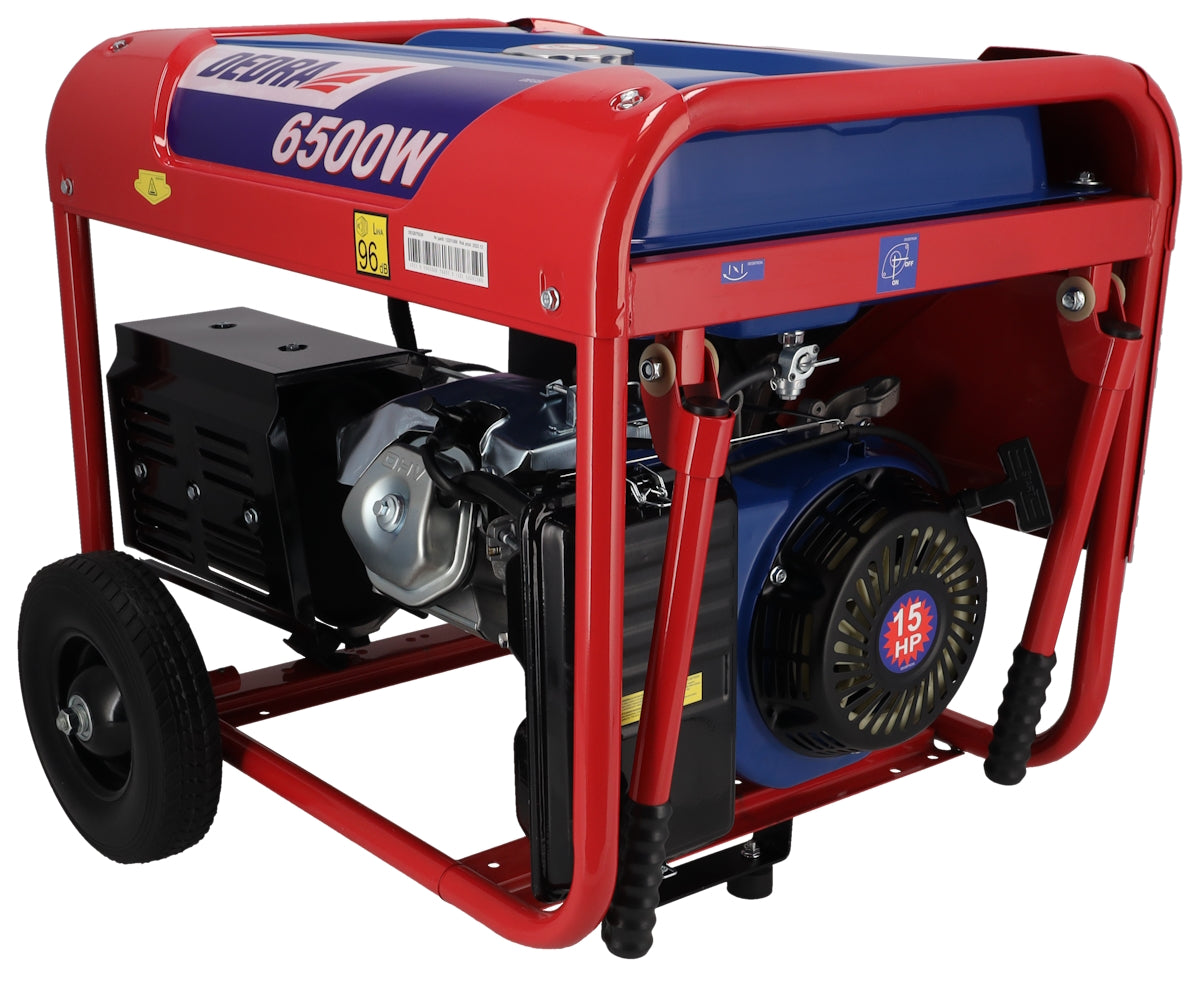

The DEDRA DEGB7503K generator set is an electrical power device that is an independent power source. Portable single-phase and three-phase current generator with a maximum output power of 6500W can be used to generate alternating current, power electrical receivers with a voltage of 230V and 400V. Useful device as an emergency power supply in households, on plots and on construction sites.

The DEDRA DEGB7503K current generator has 1 socket with a voltage of 230V, 1 socket with a voltage of 400V and 1 socket 12V (DC12V). Access to the sockets and the control panel is very easy.

The DEDRA DEGB7503K generator set has an AVR system - a system that allows you to maintain the correct output voltage of the generator set. The AVR system enables power supply to receivers sensitive to the quality of power supply, e.g. LCD TVs, laptops, amplifiers.

The DEDRA power generator is very easy and convenient to transport. It has transport handles and wheels ensure easy movement of the unit.Additionally, rubber feet stabilize the device during operation.

The fuel tank has a capacity of 25 liters. Easy access to the fuel filler and fuel level indicator make it easy to refill and control the condition of the gasoline.

The maximum working time on a full tank at nominal power is 7 hours.

The generator and its engine are mounted on a solid frame, which has shock absorbers installed to minimize the vibration of the device.

The DEDRA DEGB7503K generator set has the following protections:

• Overload protection - protection against exceeding the maximum power turns off the voltage, and the internal combustion engine works without stopping
• Protection against low oil levels - when the oil level falls below the required level, the engine will turn off automatically or not start. Need to replenish oil or when we do not have the same, change oil.
• Output status indicator – the indicator light illuminates when the engine is running – this is an optical signaling of operation.

Features and technical parameters of the DEDRA DEGA6500K generator set:

• engine: combustion engine, single cylinder, 4-stroke, OHV
• Engine capacity: 420 cm³
• maximum rotational speed: 3000 rpm
• Internal combustion engine power: 11 kW
• rated power for 230V socket: 2 kW
• rated power for 400V socket: 6 kW
• maximum output power for sockets 230V 2,2 kW
• maximum output power for 400V 6,5 kW socket
• Rated power in kVA: 6,5
• copper motor winding
• AVR - automatic voltage stabilization
• Voltage and frequency of generated current: 230V/50Hz
• fuel type: unleaded petrol Pb95 (E10)
• Fuel tank capacity: 25 liters
• fuel level indicator in the tank
• recommended oil: oil type: SAE10W30
• number of sockets 230V: 1
• number of sockets 400V: 1
• rated current: 10 A
• Number of sockets 12V/5A: 1
• rated power factor: 1
• class of operating requirements: G2
• Power Compatibility Class: A
• working time on a full tank at nominal power: 7 hours
• overload protection
• protection against low oil levels
• transport wheels
• start-up: manual
• Weight: 85 kg
• package dimensions: height: 82 cm, width: 59 cm, depth: 57 cm

Included with the unit are:

• spark plug wrench
• European plug (1 pc. )
• transport handle
• transport wheels
• rubber feet
• instruction manual in Polish
• warranty card – 2 years of service protection

We are a tool company operating in the industry since 1991. Our catalog includes a wide range of power tools, cordless devices, accessories for power tools, garden tools, welding equipment, hand tools, health and safety articles.

We sell our products in Poland and 14 European countries. For several decades we have been constantly taking care of the high quality of our products and services and the needs of our customers are our priority. The slogan “Strong Durable Reliable” invariably characterizes the Dedra brand.
