Aprašymas
Trumpai apie prekę

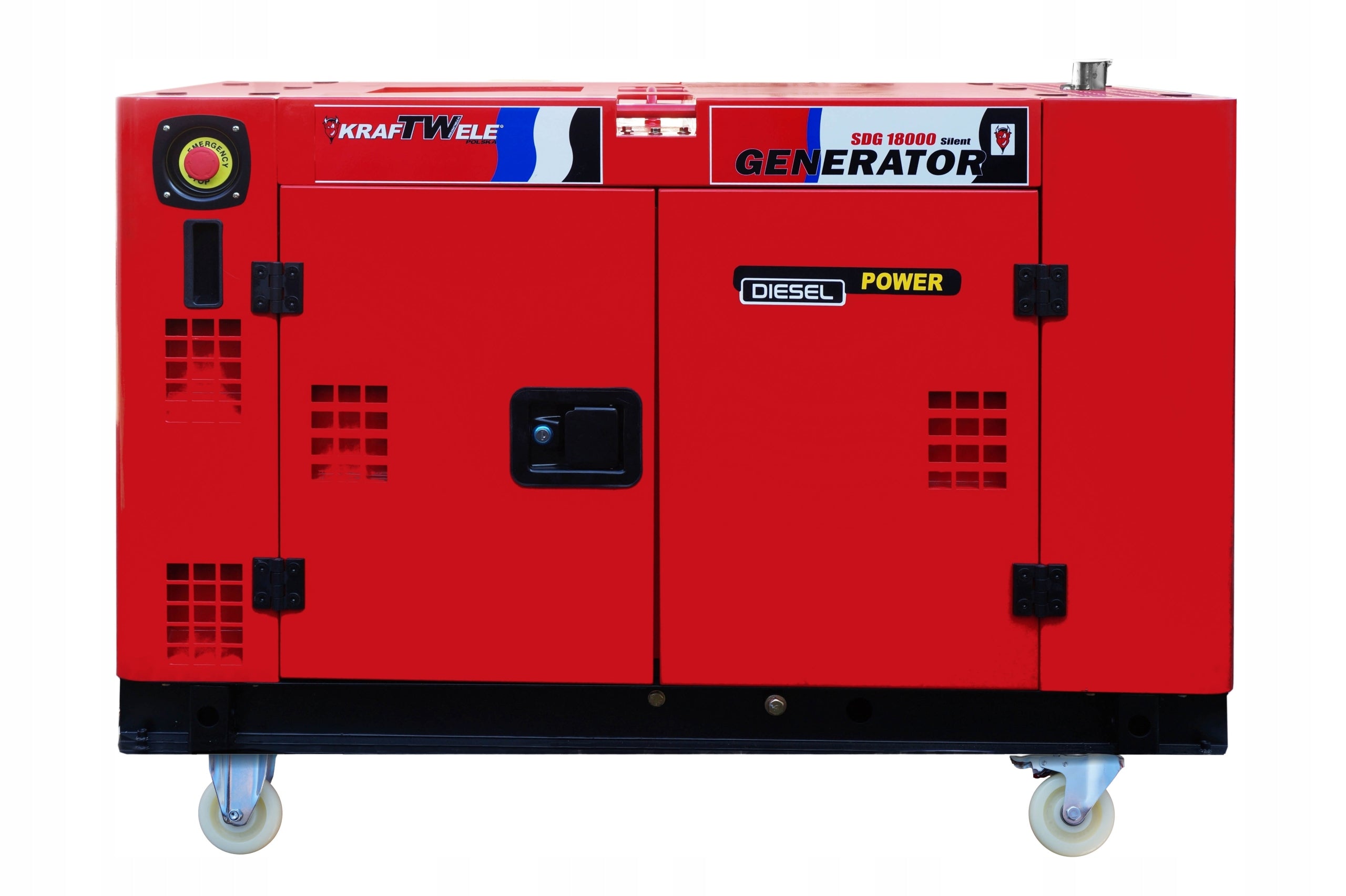

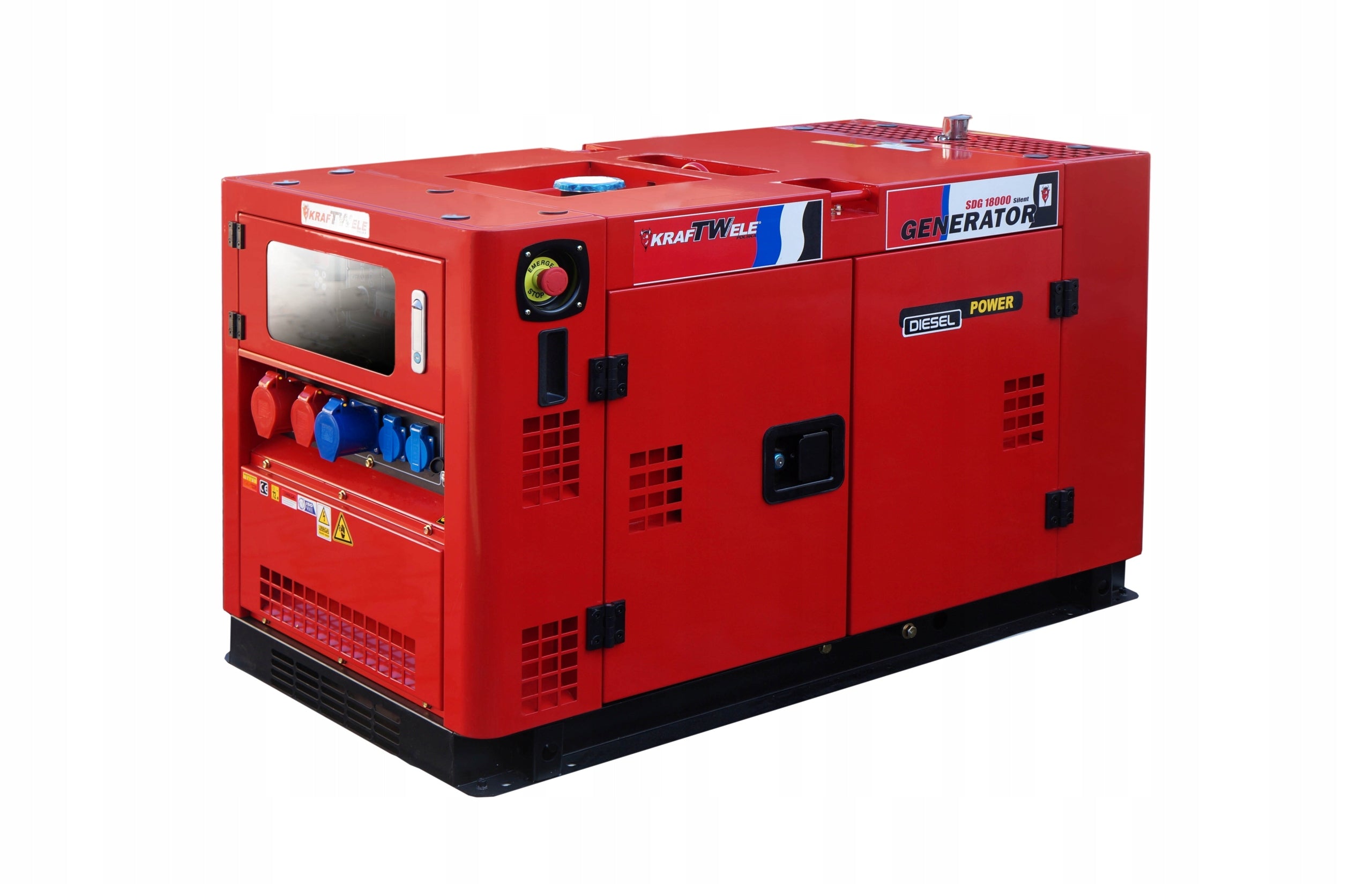

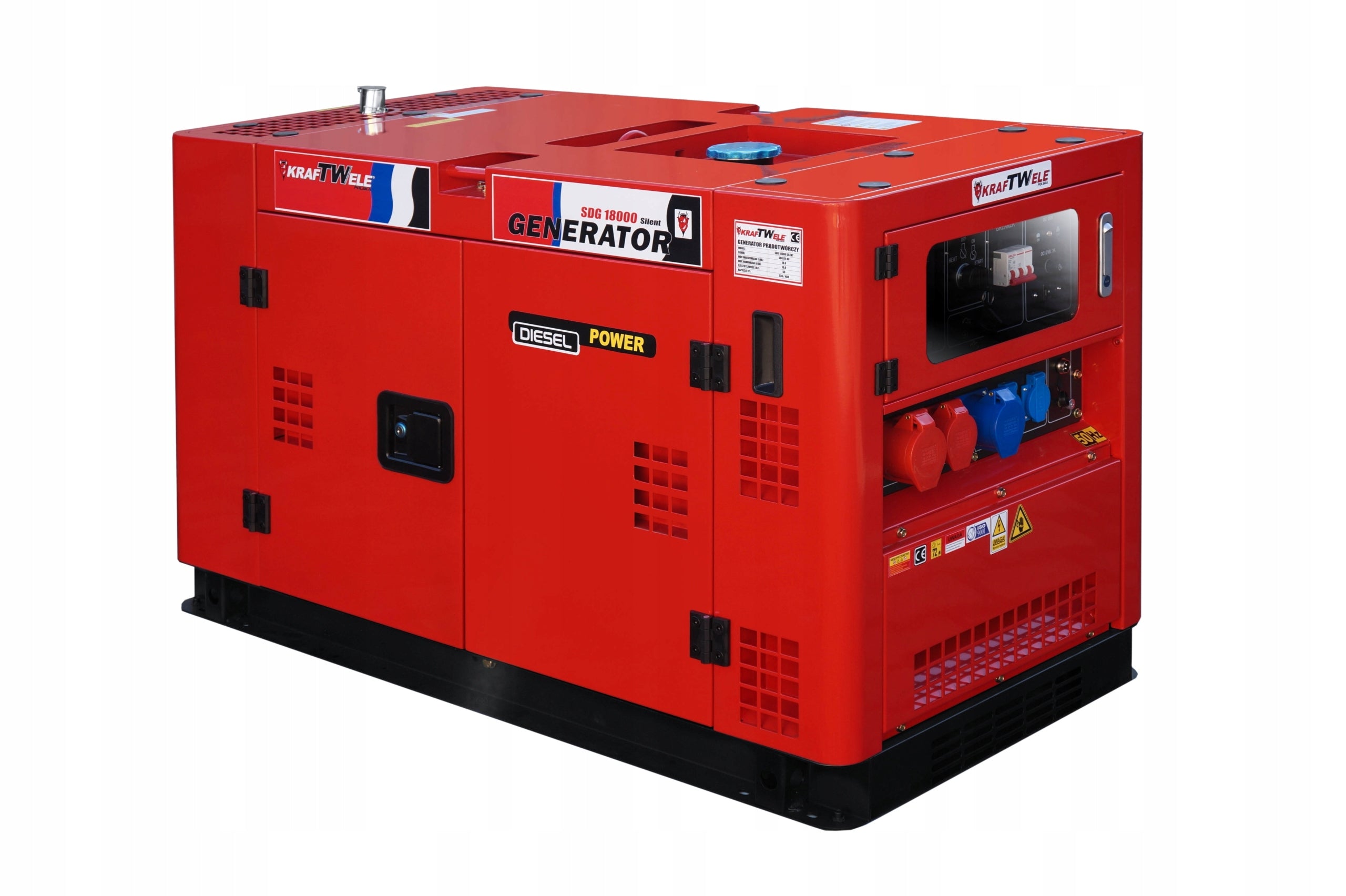

Prekė: Trifazis nešiojamas dyzelinis generatorius KrafTWele 14400 W. Kategorija: Elektros generatoriai.
- Gamintojas: KrafTWele
- Modelis: SDG 18000S
- Įtampa: 400 V
Model Kraftwele SDG 18 000 Silent
Maximum power (kVA) 18
Nominal Power (kVA) 16
Weight (kg) 300
Dimensions L x W x H (cm) 146 x 69 x 104
- Maximum power 400V 18 KVA
- Nominal power 400V 16 KVA
- Voltage 230 / 400 V
- Frequency 50 Hz
- Voltage stabilizer AVR
- Starting Electric
- Fuel tank capacity 30 L
- Continuous operation 16 mth
2 cylinder engine Liquid cooled diesel 25 km 3000 (r.p.m)
Power supply Injection
Oil 10W40
Starting Electric
Oil Pressure Fuse YES
External body type "Super Silent", ensuring low noise during operation of the device
Generator set placed on a solid frame adapted for stationary or mobile installation of the unit
Generator set attached to the frame on suspension with vibration-absorbing steel-rubber cushions
Aggregate frame equipped with a set of transport wheels
Frame equipped with top handle for transporting / moving the device using a crane or forklift
Externally placed emergency switch
Two-leaf side door on both sides of the body, providing convenient access to the unit components
Built-in doors equipped with a lock
Smartgen HGM 501 Digital Control Panel
Ignition device with glow plug heating function
Main electrical protection
Emergency switch of the device
Receiver socket 400V/32A/5-P
Receiver socket 400V/16A/5-P
Receiver socket 230V/32A/3-P
2 x Receiver socket 230V/16A/2-P
Communication / ATS automation control socket
Auxiliary protection of power take-off sockets
Reception socket 12V/8,3A
4 x Transport Pins
Plug 400V/32A/5-P
Plug 400V/16A/5-P
Plug 230V/32A/3-P
2 x 230V/16A/2-P plug
Device ignition keys
Keys for doors and fuel filler
Oil-flooded device prepared for operation after zero inspection
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | KrafTWele |
| Parametry | Model | SDG 18000S |
| Parametry | Kind | portable |
| Parametry | Generator type | three-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Startup | manual |
| Parametry | Maximum power | 14400 W |
| Parametry | Nominal power of the alternator | 12800 W |
| Parametry | Engine power | 25 KM |
| Parametry | Gasoline tank capacity | 33 l |
| Parametry | Device weight | 300 kg |
| Parametry | Fuel type | diesel fuel |
| Parametry | Frequency | 50 Hz |
| Parametry | Operating time on the tank | 16 h |
| Parametry | Lc IEC noise level | 72 dB |
| Parametry | Product height | 104 cm |
| Parametry | Product width | 69 cm |
| Parametry | Product depth | 146 cm |
| Parametry | Average combustion | 2 l/h |
| Parametry | Number of 1-phase outlets | 3 |
| Parametry | Number of 3-phase outlets | 2 |
| Parametry | European emissions standard | EURO 5 |
| Parametry | Supply voltage | 400 V |
| Parametry | Manufacturer code | SDG18000S |
| Parametry | Product weight with unit packaging | 340 kg |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
