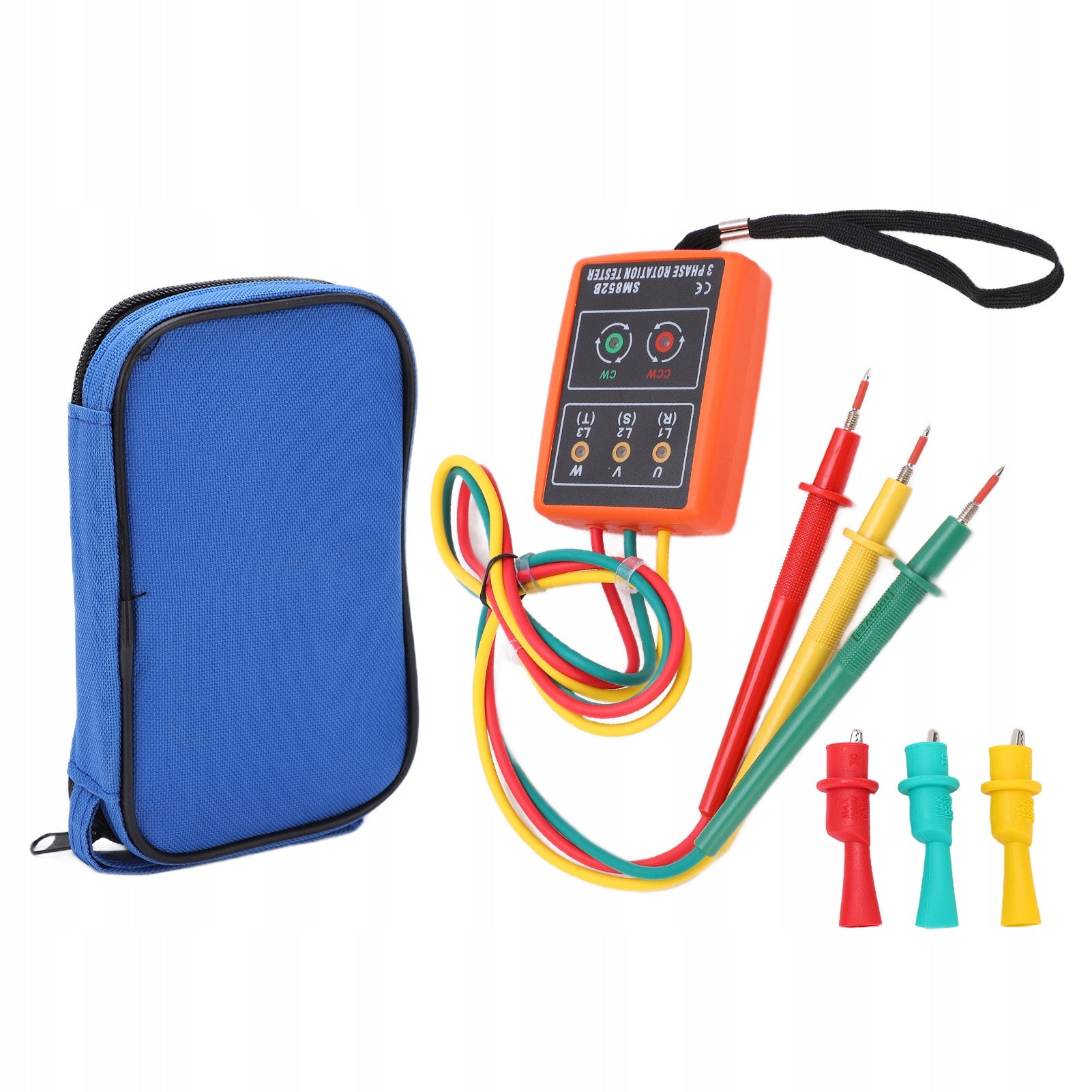

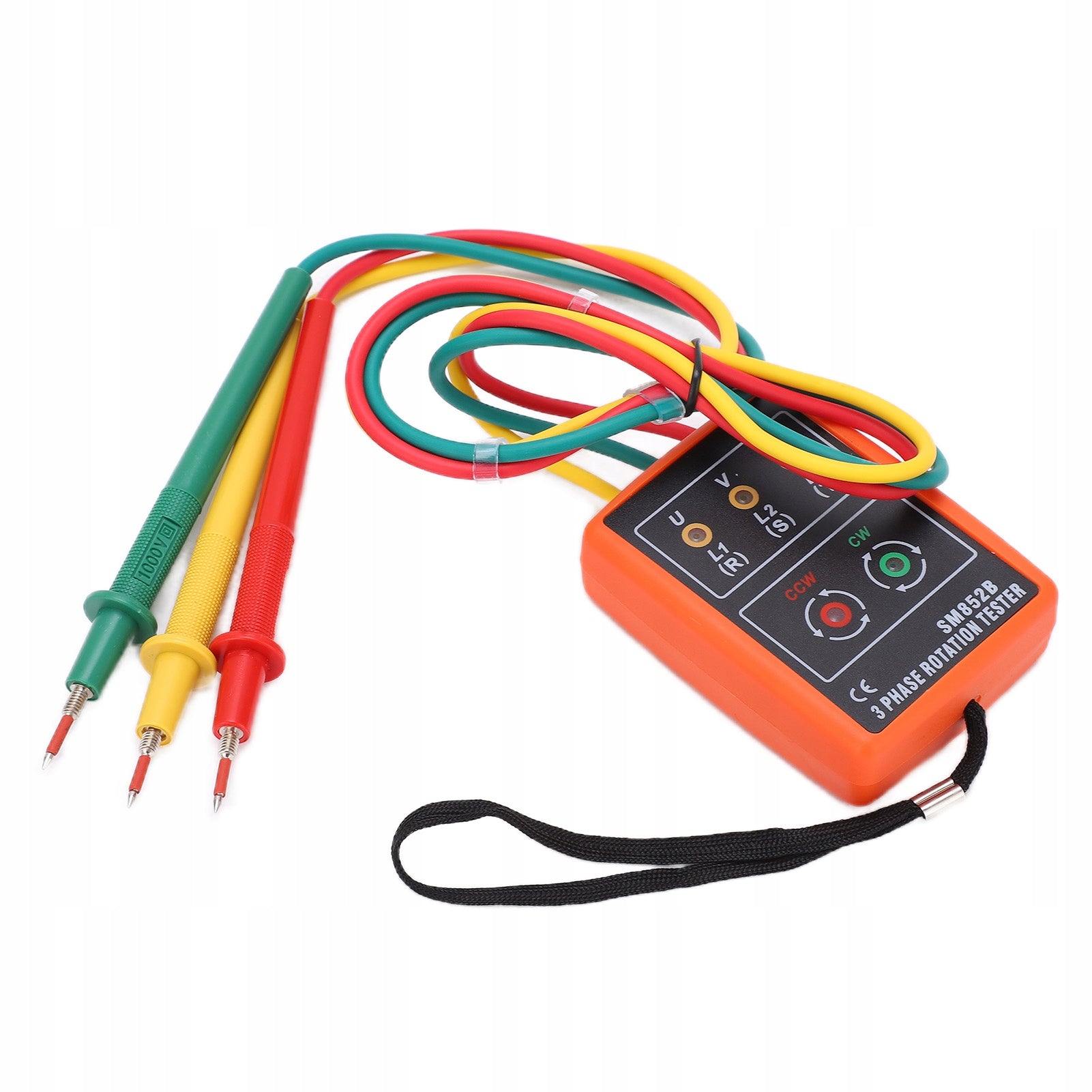

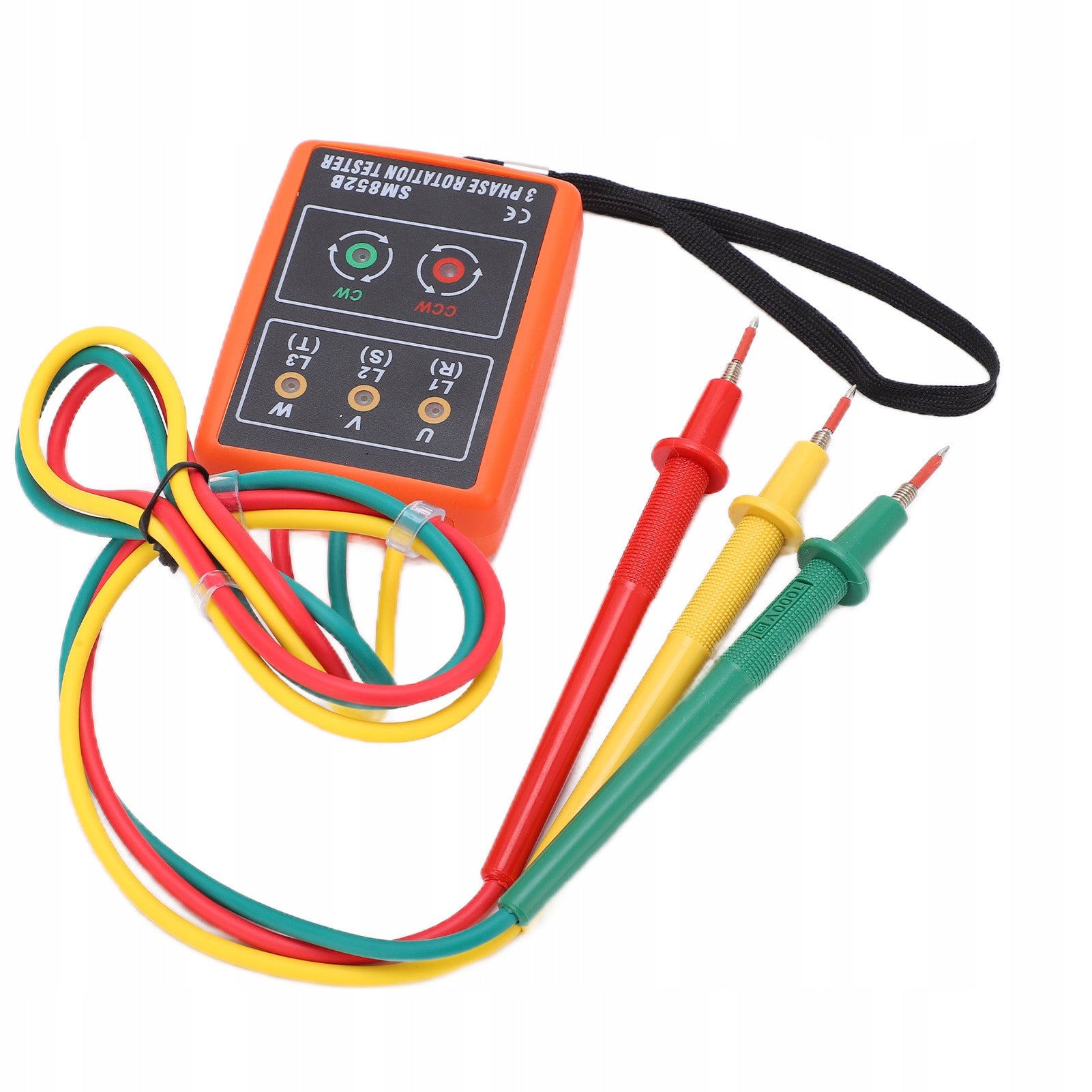

Trijų fazių eiliškumo matuoklis SM852B

Trumpai apie prekę

Prekė: Trijų fazių eiliškumo matuoklis SM852B. Kategorija: Antenos.

• Gamintojas: no brand
• Modelis: 1110210061711

Function:

1. Highly reliable, can check large range from 60V to 600V AC three phase. The instrument guarantees high reliability and efficiency.

2. The appearance is exquisite and beautiful, small size, lightweight, with carrying bag, portable, easy to carry and use,

3. 5pcs LEDs light up to indicate, the test result is clear at a glance. Fast and accurate measurement, efficient, effective.

4. Environmentally friendly design, no need for batteries. The continuous use time limit is 60 minutes at 60 V AC and 4 minutes at 600 V AC.

5. The measuring cable is double insulated and safe to use. As a general measurement tool, it is widely used in schools, laboratories, families and other fields.

Specification:

• Item Type: Phase Sequence Meter
• Material: ABS
• Color: as shown in the picture
• Product Model: SM852B
• Operating voltage: 60V~600V AC, three-phase
• Auxiliary voltage limitation: 2000 V/min
• Operating Frequency Range: 20Hz~400Hz
• Continuous use limitation time: Maximum 60 minutes at 60 V AC, Maximum 4 minutes at 600 V AC
• Measuring cable: Double insulation
• Measuring cable length: about 70 cm/27,5 inch

List of packages:

• 1 x Phase Sequence Meter
• 3 x Crocodile Clamp
• 1 x User Manual
• 1 x Storage Bag
