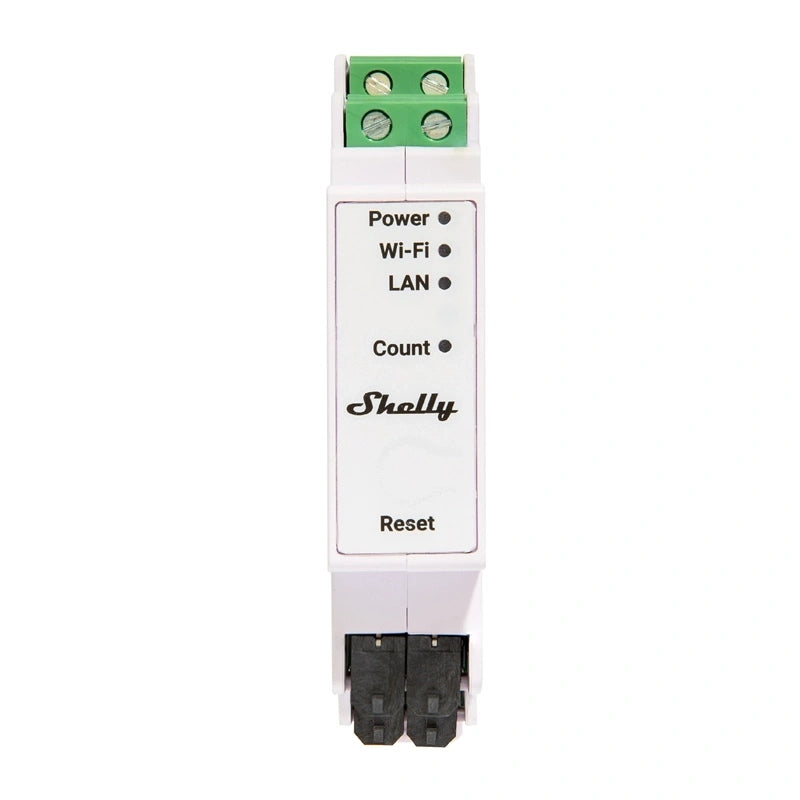

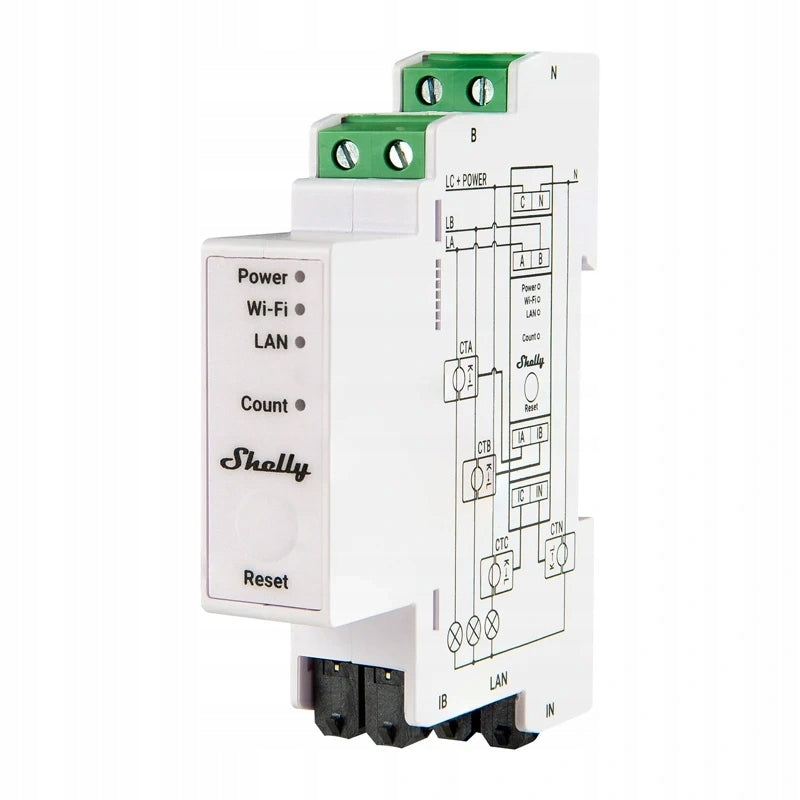

Trijų fazių energijos matuoklis Shelly Pro 3EM 120A, WiFi, Bluetooth, DIN

Trumpai apie prekę

Prekė: Trijų fazių energijos matuoklis Shelly Pro 3EM 120A, WiFi, Bluetooth, DIN. Kategorija: Automatizavimo moduliai.

• Gamintojas: Shelly
• Modelis: Pro 3EM

Shelly Pro 3EM 120A is a professional three-phase electricity consumption meter that can be mounted on a DIN rail. The device reports the accumulated energy with an accuracy of 1% and instantaneous voltage, current and power for each phase in real time. It stores data from the last 60 days with a resolution every minute for each phase, allowing for accurate analysis. It can operate independently on a local LAN and/or Wi-Fi network, or be operated via the cloud of home automation services via MQTT, HTTP and WebSocket protocols. What’s more, thanks to the scripting function, it provides the ability to create advanced scenarios and offers extended monitoring options. The device is also compatible with the Matter standard, making it even easier to add to selected smart home systems.

Manufacturer: Shelly

Product Code: PRO 3EM Matter

⚙ Specification:

• Manufacturer: Shelly
• Model: PRO 3EM Matter
• AC power supply voltage: 100 - 260 V, 50/60 Hz
• Power consumption: < 3 W
• Internal temperature sensor: Yes
• Voltmeters (RMS for each phase): 100 - 260 V
• Voltmeter accuracy: ±1%
• Amperometers (RMS using current transducers for each phase and Neutrum): 0 - 120 A
• Compatible Current Transducer (CT): CT 120A
• Accuracy of ammeter: ±1% (2 - 120 A), ±2% (1 - 2 A), ±5% (0 - 1 A)
• Energy and active and apparent power meters: Active and apparent power, active and apparent energy, power factor, active energy and reactive primary energy
• Calibration of channel to channel with minimum load: 500 W per channel
• No-load threshold: 30 VA per channel
• Storage of measurement data: At least 60 days with data resolution 1 min
• Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi range: Up to 30 m inside and 50 m outside
• Bluetooth protocol: 4.2
• Bluetooth range: Up to 10m inside and 30m outside
• CPU: ESP32-D0WDQ6
• Flash memory: 16 MB
• Dimensions: 94 x 19 x 69 ±0.5 mm
• Weight: 62 ±1 g
• Assembly: DIN rail
• Housing material: Plastic
• Ambient temperature: -20°C to +40°C
• Moisture: 30% to 70% RH
• Maximum height: 2000 m
• Compatibility with Matter: Yes
