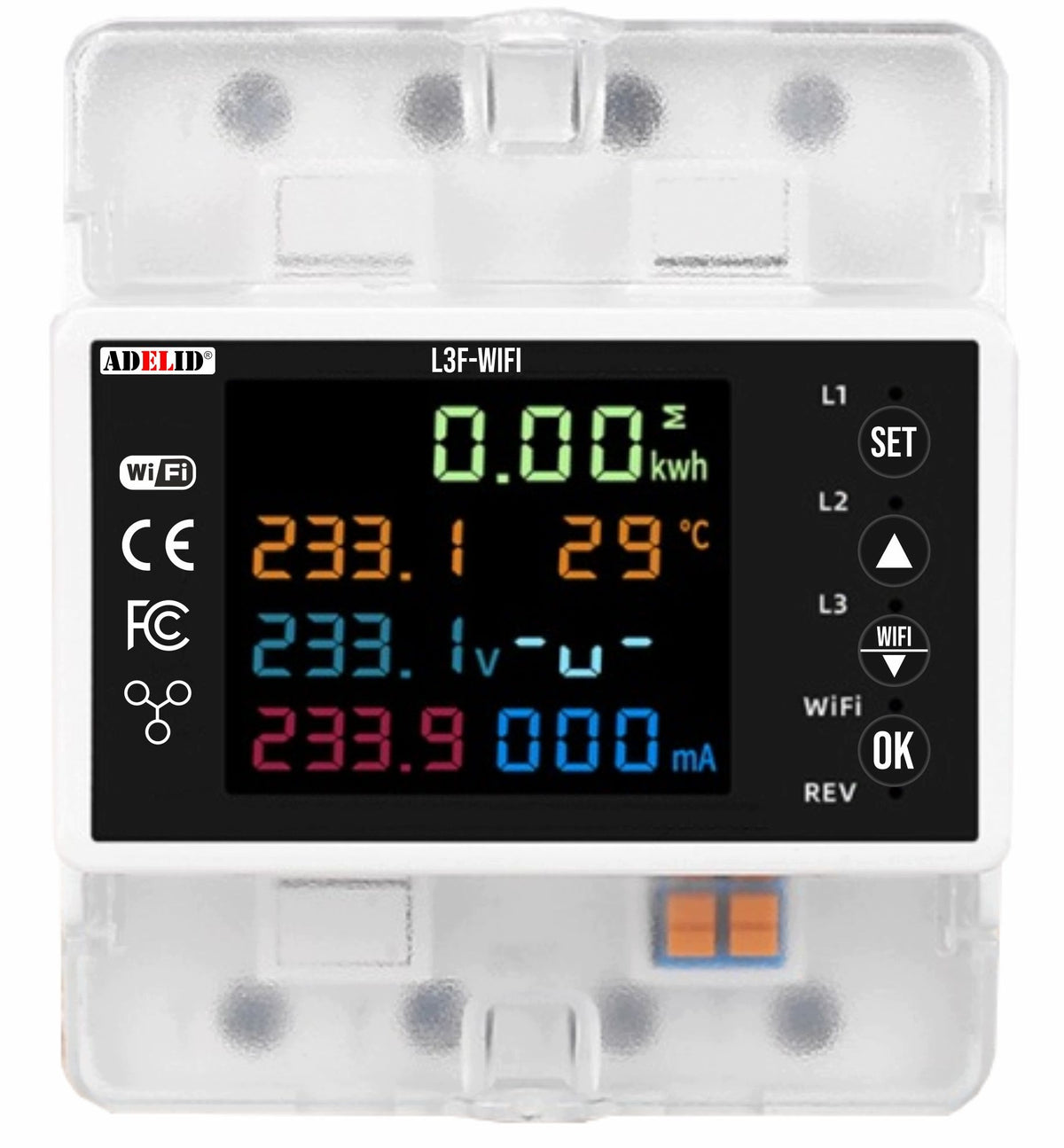

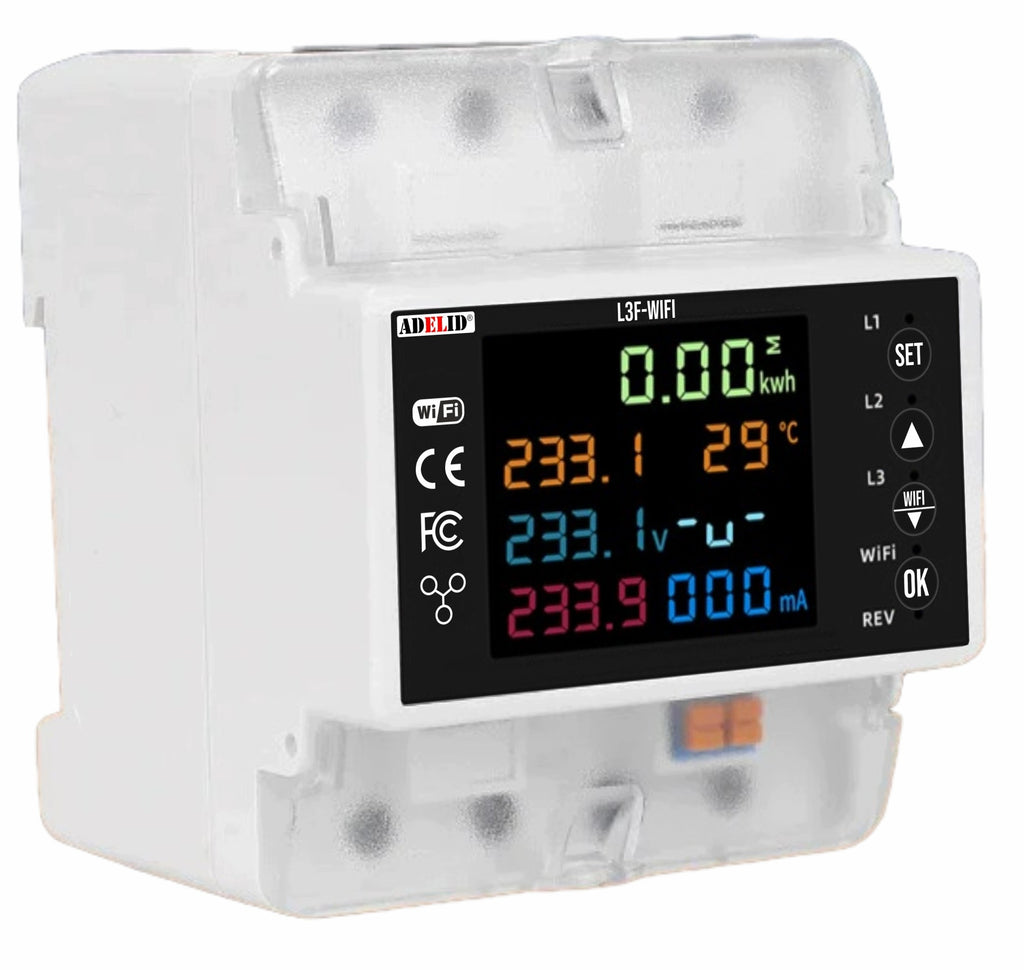

Trijų fazių WiFi DIN bėgelio energijos matuoklis TUYA, 100A

Trumpai apie prekę

Prekė: Trijų fazių WiFi DIN bėgelio energijos matuoklis TUYA, 100A. Kategorija: Automatizavimo moduliai.

• Gamintojas: Adelid
• Modelis: L3F-WIFI MIERNIK ZUŻYCIA 400V

• Index: L3F-WIFI
• Brand: Adelid

⚡3-PHASE ENERGY METER + INTELLIGENT RELAY + PROTECTION. Designed for mounting on a 35 mm DIN rail.

• ADELID L3F-WIFI 100A is an intelligent, three-phase electricity meter with a remote control function and an extensive system for controlling installation parameters.
• The device enables monitoring of voltage, current, power, power factor, frequency, temperature and electricity consumption.

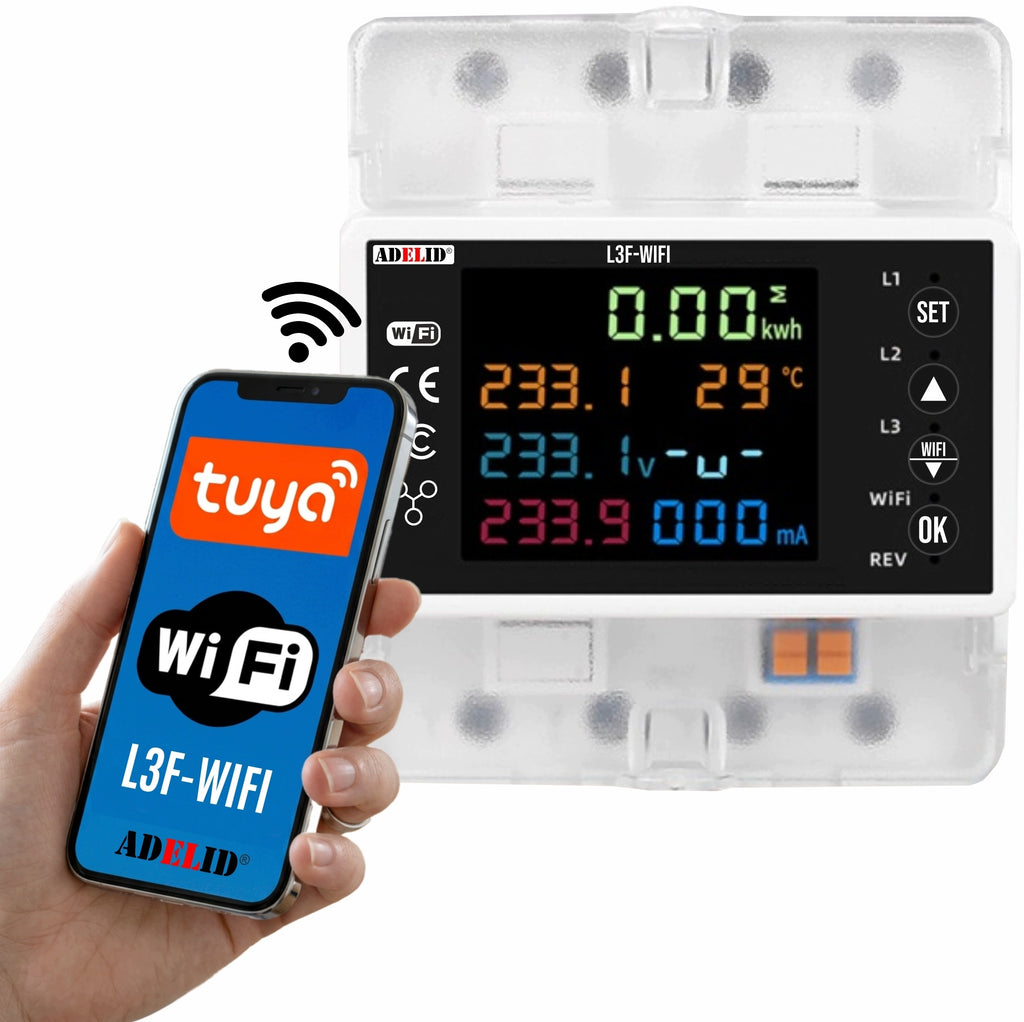

• With WiFi 2,4 GHz communication, you can control your device from your phone using the Tuya Smart / Smart Life app.
• The device supports three-phase installations and can work with loads up to 100 A. It also has the function of two-way energy measurement, thanks to which it can also be used in installations with photovoltaics.

⚡CONTROL VIA WiFi:

You do not need to be at the switchgear to control the device. When connected to a WiFi network, you can from your smartphone:

• turn the power on and off,
• monitor the installation parameters,
• control energy consumption,
• set schedules,
• use of automation,
• receive information about incorrect parameters,
• make the device available to other users.

The device works with Tuya Smart and Smart Life applications. 2,4 GHz WiFi network required.

⚡MEASUREMENT OF ENERGY CONSUMPTION – ALSO TWO-WAY:

One of the most important advantages of ADELID L3F-WIFI is the possibility of two-way energy measurement. The device can record the flow of energy both:

• Energy drawn from the grid by the devices in the installation.
• ENERGY GIVEN AWAY
• Energy flowing in the opposite direction, e.g. in an installation equipped with photovoltaics.
• Thanks to this, the device can be used to monitor the flow of energy in prosumer installations.

⚡MONITOR THE MOST IMPORTANT INSTALLATION PARAMETERS

ADELID L3F-WIFI allows you to control the parameters of the electrical system on an ongoing basis. On the display you can monitor m.in.:

• VOLTAGE (V) - Voltage control of individual phases.
• CURRENT (A) - Current current consumption.
• ACTIVE POWER (W) - Current power consumed or output by the installation.
• ENERGY (kWh) - Cumulative energy consumption / flow.
• POWER FACTOR (PF) - Power factor control.
• FREQUENCY (Hz) - Monitoring the frequency of the network.
• TEMPERATURE - Control the temperature of the device.

The accuracy of energy measurement is defined as class 1.0. The energy measurement range is up to 9 999 999,99 kWh.

⚡EXPANDED PROTECTION SYSTEM

ADELID L3F-WIFI is not just an energy meter. The device has a number of functions for monitoring installation parameters and responding to irregularities if necessary.

The device has fully configurable functions of protection against:

• too high voltage,
• too low voltage,
• overload - exceeding the set current value
• too low current - The ability to turn off the power supply if the current falls below the set value,
• flow current,
• overheating,
• current asymmetry,
• voltage asymmetry,
• phase decay,
• incorrect order of phases

These functions are available as part of the device protection and monitoring system.

⚡CONTROL OF EACH OF THE 3 PHASES

The device is designed for three-phase installations.

You can control the parameters of individual phases and detect m.in.:

• voltage differences between phases,
• uneven load,
• current asymmetry,
• disappearance of one of the phases,
• incorrect order of phases.

This makes the device particularly useful in installations where proper operation of all three phases is important.

⚡AUTOMATIC RE-ENGAGEMENT

After the specified protection has been activated, the device can, after the irregularities have subsided, automatically restore the power after the set time.

• You can set m.in. the delay time of operation and the return time of the power supply.
• The time ranges of individual functions are configurable and depend on the type of security.

⚡SCHEDULES, TIMER AND AUTOMATION

ADELID L3F-WIFI can work according to a fixed schedule. m.in is available. functions:

• SCHEDULE - Turn the device on and off at specific times.
• DEDUCTION - Automatic shutdown after a specified time.
• CYCLE - Repeat a specific workflow.

These functions can be configured from within the application.

⚡IDEAL FOR INSTALLATION WITH PHOTOVOLTAICS

Thanks to two-way energy measurement, the device can be used in installations equipped with photovoltaic panels. You can monitor:

• energy released to the grid
• energy taken from the network.

This allows you to better control the energy balance of the installation.

⚡SMART HOME

ADELID L3F-WIFI can be part of the Smart Home system. EXAMPLE APPLICATIONS:

• SINGLE-FAMILY HOUSE - Control of the entire installation or selected circuit.
• PHOTOVOLTAICS - Monitoring the flow of energy in both directions.
• COMPANY / OFFICE - Control of energy consumption.
• WORKSHOP / HALL - Monitoring of three-phase devices.
• MACHINES AND DEVICES - Control of power supply parameters.
• Summer HOUSE - Remote control of the installation.
• ELECTRIC HEATING - Monitoring of energy consumption by heating devices.

⚡TUYA SMART / SMART LIFE / VOICE CONTROL

The device works with the popular smart home ecosystem. After connecting the device to WiFi, you can remotely control its operation and monitor the installation parameters. WiFi: 2,4 GHz. The device can also work with popular voice control systems.

Application:

• Android
• iOS
• Amazon Alexa
• Google Assistant

⚡TECHNICALLY DATA:

• Model: L3F-WIFI
• Type: Smart Energy Meter / WiFi Relay
• Number of phases: 3
• System: 3-phase, 4-wire
• Rated supply voltage: AC 380V,
• Working voltage range: AC80V-400V (interfacial),
• Rated frequency: 50/60Hz,
• Scope of overload protection settings (>A): 1-100A,
• Scope of protection settings against too high voltage (>U): 120-300V,
• Scope of protection settings against too low voltage(< U): 80-210V,
• Leakage current protection (differential current): 10-99mA,
• Delayed shutdown for >U and < U: 0.5s,
• Protection duration: 0.5-30s,
• Energy consumption display range: 0-99999.9kWh,
• Power Restoration Delay: 1s-500s,
• 2.4GHz WIFI module,
• Working temperature: -30°C to 70°C,
• Assembly: electrical installation / switchgear.

⚡MEASUREMENT / PROTECTION / CONTROL:

• Two-way measurement: Yes
• Voltage measurement: Yes
• Measurement of current: Yes
• Power measurement: Yes
• Power factor measurement: Yes
• Frequency measurement: Yes
• Temperature measurement: Yes
• Leakage current control: Yes
• Overvoltage protection: Yes
• Undervoltage protection: Yes
• Overcurrent protection: Yes
• Undercurrent protection: Yes
• Temperature protection: Yes
• Voltage asymmetry control: Yes
• Current asymmetry control: Yes
• Phase decay control: Yes
• Phase order control: Yes
• Automatic re-engagement: Yes
• Remote control: Yes
• Connectivity: WiFi 2,4 GHz
• Application: Tuya Smart / Smart Life
• Voice control: Amazon Alexa / Google Assistant

⚡CAN BE USED IN:

• switchgears,
• electric cabinets,
• automation installations,
• domestic installations,
• industrial installations.

Assembly and connection should be done by a qualified electrician.

⚡WHY CHOOSE ADELID L3F-WIFI?

• 3 PHASES - Designed for three-phase installations.
• UP TO 100 A - Support load up to 100 A.
• ENERGY MEASUREMENT - Control electricity consumption.
• TWO-WAY MEASUREMENT - Monitor the energy consumed and given away.
• WiFi - Control your device from your phone.
• MANY PROTECTIVE FUNCTIONS - Overvoltage, undervoltage, overcurrent, undercurrent, temperature, phase asymmetry, phase decay, phase order and leakage current.
• PHOTOVOLTAICS - Two-way measurement means that the device can also be used in PV installations.
• AUTOMATIZATION - Schedules, countdown and cyclical work.
• SMART HOME - Tuya Smart / Smart Life + ability to work with Amazon Alexa and Google Assistant.

⚡IMPORTANT

• The device is designed to work in three-phase installations.
• Installation, connection and configuration of the device should be entrusted to a qualified electrician.
• Before starting any work on the device, completely disconnect the supply voltage.
• The device should not be installed in places exposed to water or excessive moisture.
