TV antena Dipol 15 Combo UHF/VHF, DVB-T2, 39 dBi, MUX-8

Trumpai apie prekę

Prekė: TV antena Dipol 15 Combo UHF/VHF, DVB-T2, 39 dBi, MUX-8. Kategorija: Antenos.

• Gamintojas: Dipol
• Modelis: Dipol 15W
• Spalva: silver

+APL-109e amplifier

+12V power supply

39 dB gain

Product Polish

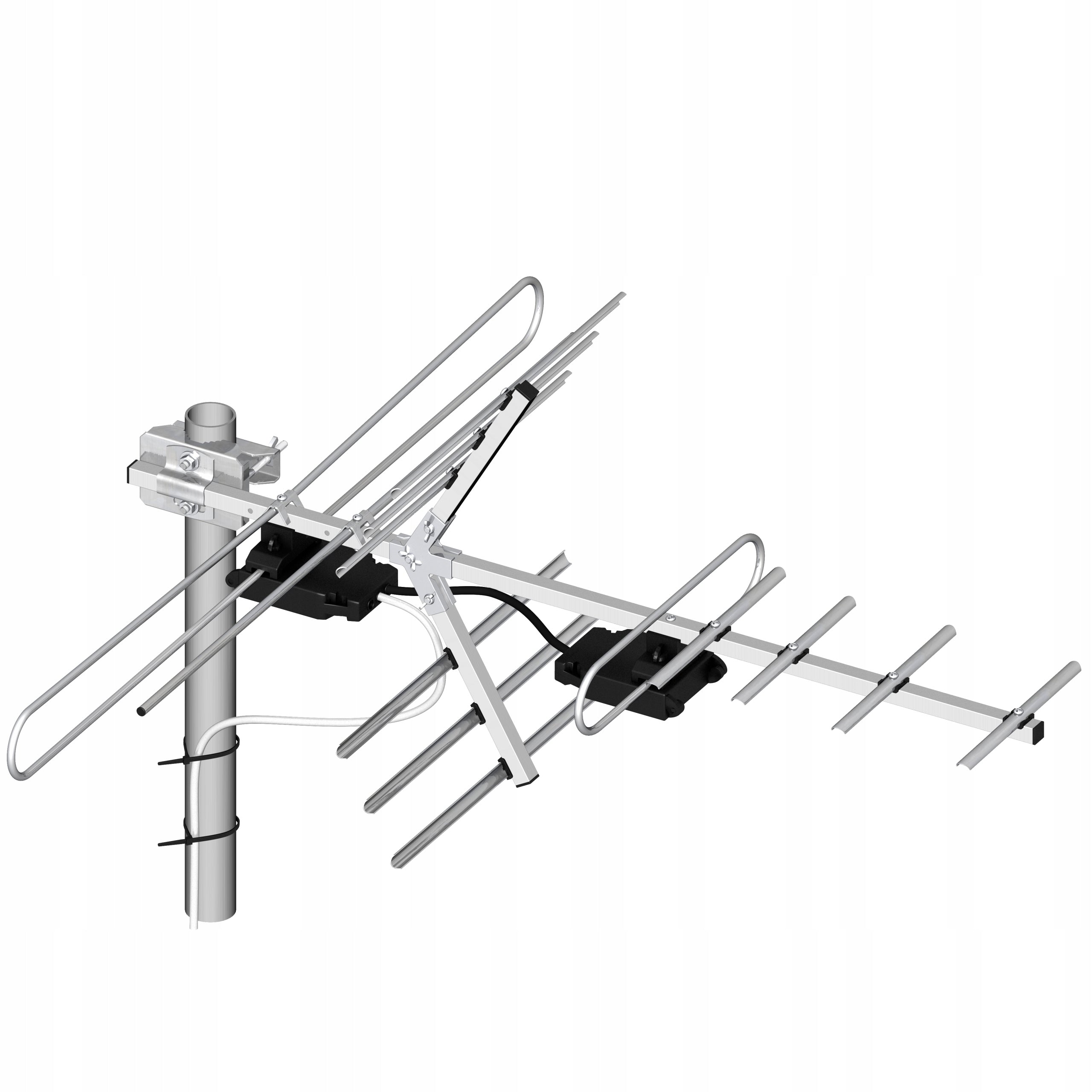

Antenna assembled for VHF reception in horizontal polarization.

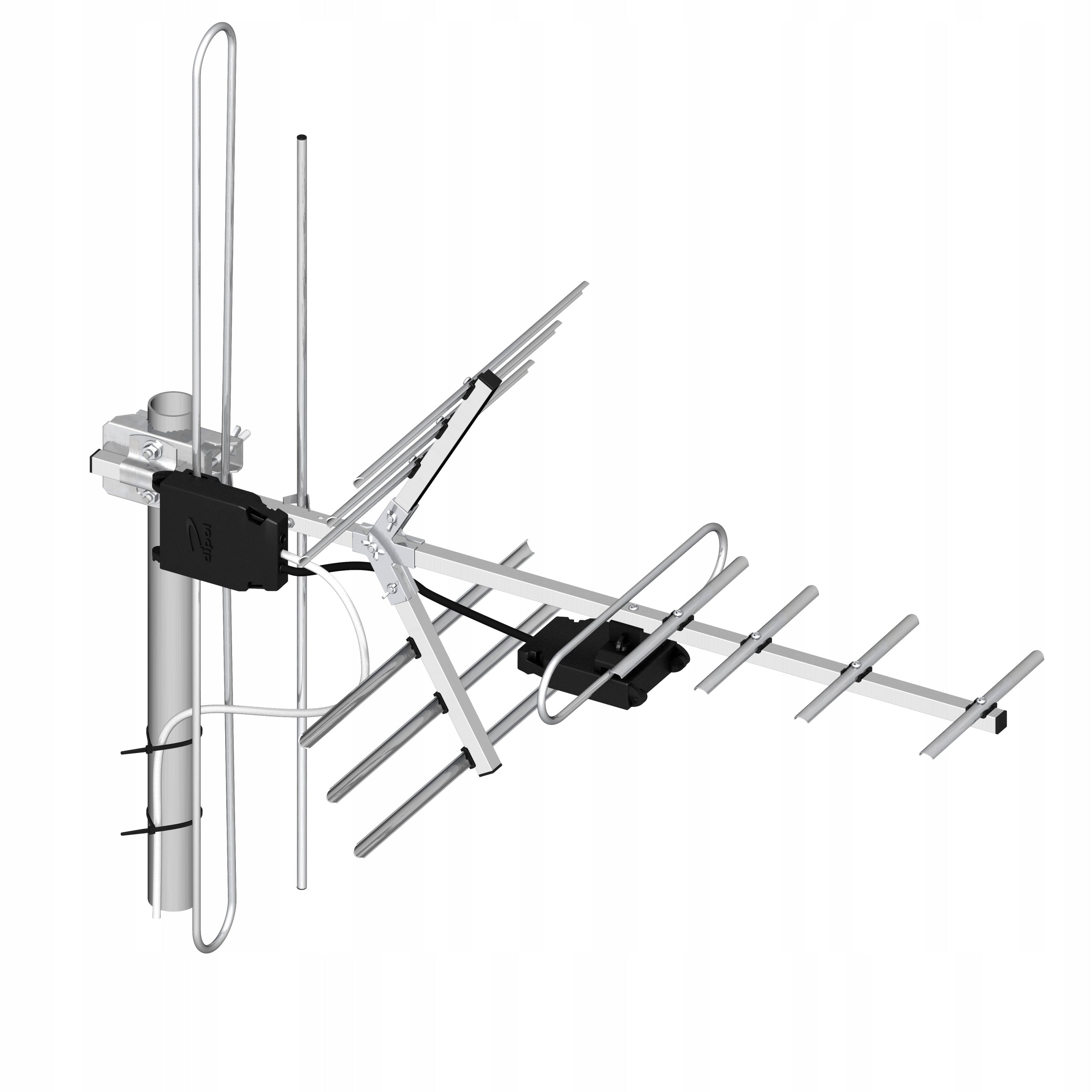

Antenna assembled for VHF reception in vertical polarization.

Specially designed to receive new DVB-T2 frequencies

Dipol 15 was designed for reception in the UHF band 470-694 MHz (channels 21-48), in which it reaches gain up to 39 dBi (version with amplifier).

The Dipol 15 antenna is a weaker version of the Tri Digit Combo antenna.

Distinguishing features:

• Antenna made of aluminium
• antenna receives DVB-T signals in the VHF band in vertical or horizontal polarization
• antenna receives DVB-T signals in the UHF band in new frequencies 470 - 694 MHz
• built-in VHF/UHF crossover
• Antenna box to protect against water
• 100% product Polish
• Antenna by Dipol

Dipol 15 is adapted to receive DVB-T and DVB-T2 digital terrestrial television in the VHF (174-230 MHz) and UHF (470-694 MHz) bands. This means that it receives all multiplexes: MUX-1, MUX-2, MUX-3, MUX-4 and MUX-6 and MUX-8. The universal design of the antenna allows you to freely change the polarity of horizontal and vertical (V/H) reception for both the VHF and UHF bands. The antenna kit has a built-in crossover in the VHF antenna box and a symmetrizer in the UHF antenna box.

The main elements of the antenna are made of aluminium. Steel structural elements are galvanized. This guarantees high resistance of the antenna to weather conditions and damage. You can be sure that the antenna will serve you for many years!

The specially designed antenna can allows easy access to the devices mounted inside (symmetrizer, crossover, amplifier), while perfectly protecting them from water.

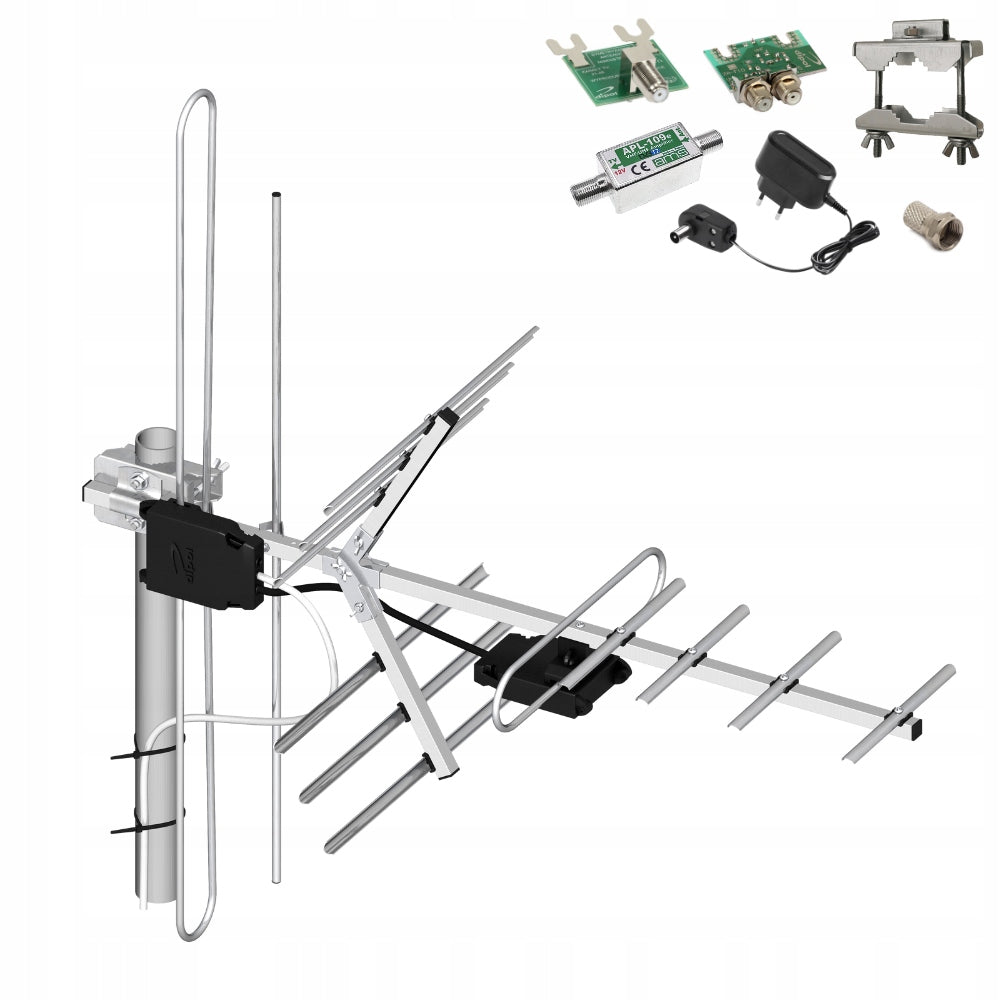

The set includes the latest symmetrizer brand Dipol, turner, amplifier APL-109e, power supply, connectors type F and cover used to mount the antenna to a vertical or horizontal tube. In our store you can buy a mast and antenna cable.

You buy PROVEN Polish PRODUCT

The antenna was designed and manufactured in Poland and tested for the declared parameters in the Department of Electronics of the AGH University of Science and Technology in Krakow.

The antenna uses a symmetrizer for the F connector, which ensures a good matching of the antenna and small signal loss. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection.

The antenna uses a crossover for F connectors, which ensures a good matching of the antenna and small signal loss. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection (compression connectors were used on the cable connecting the symmetrizer with the crossover).

Easy installation

The antenna is pre-assembled at 90%. Installation involves tightening several screws and takes a few minutes.

All standard amplifier plates fit into the antenna.

The symmetrizer is factory connected by a cable to the crossover on the compression connectors.

Technical data:

VHF

• Profit [dBi]: to 27
• Channels: 5-12
• Band [MHz]: 174-230
• Front/rear radiation ratio [dB]: >12
• Polarization: H (V when rotated 90°)

UHF

• Profit [dBi]: to 39
• Channels: 21- 48
• Band [MHz]: 470 - 694
• Front/rear radiation ratio [dB]: 11,1 - 14,2
• Standing Wave Ratio (VSWR): ≤ 1,45
• Polarization: H (V when rotated 90°)

General

• Impedance [Ω]: 75
• Packaging: foil
• Dimensions [mm]: 695x332x770
