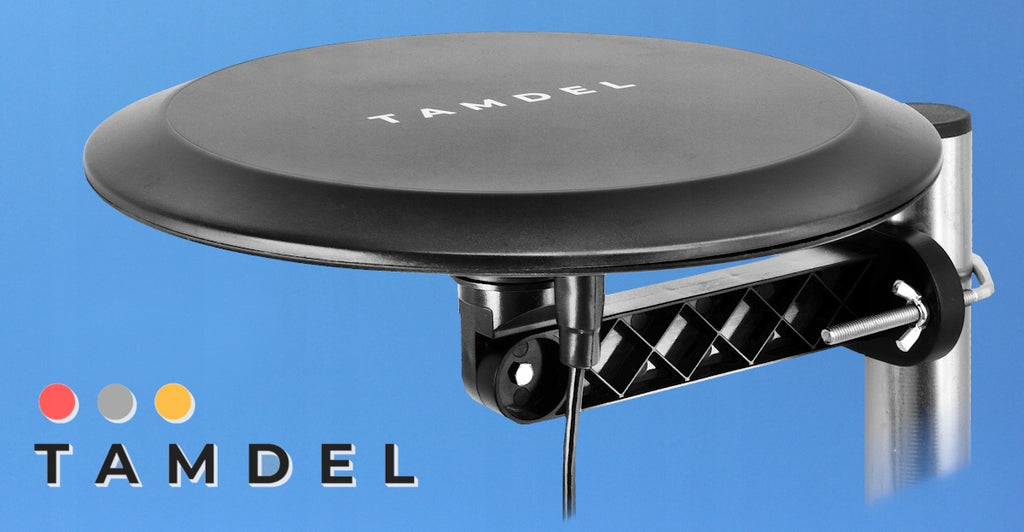

TV antena DVB-T2, 360°, 10 m kabelis, USB, 4K, LTE, aktyvi

Trumpai apie prekę

Prekė: TV antena DVB-T2, 360°, 10 m kabelis, USB, 4K, LTE, aktyvi. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-W119
• Spalva: black

▶ Active 360° omnidirectional antenna for receiving free DVB-T / DVB-T2 terrestrial television.

▶ The 360° omnidirectional design facilitates signal reception from different directions – without the need for precise antenna positioning.

▶ Supports MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8 thanks to VHF + UHF band operation.

▶ Built-in signal amplifier powered by USB 5 V helps with weaker signal.

▶ 10 m coaxial cable gives you more freedom to choose where to mount.

▶ LTE filter reduces interference from mobile networks.

▶ Design adapted for external mounting.

✅ DVB-T2 / 4K – compliant with the new standard

▶ Supports DVB-T2 with H.265 compression (HEVC)

▶ Allows you to receive channels in Full HD and 4K quality if they are broadcast in a given location.

▶ For DVB-T2/HEVC reception, a TV or decoder supporting this standard is required.

✅ LTE filter – less signal interference

▶ Built-in LTE filter reduces interference from mobile networks, including LTE 800 MHz.

▶ Helps improve the stability of DVB-T / DVB-T2 reception in places exposed to interference.

▶ Works well in places exposed to disruptions from mobile networks.

✅ Simple installation

▶ All elements fit together — assembly is simple and intuitive.

▶ No wire cutting or complicated assembly required.

▶ It takes less than 3 minutes to assemble the antenna, even for beginners.

✅ Technical specification

▶ Antenna type: external, omnidirectional 360°

▶ Frequency range: VHF 174 – 230 MHz / UHF 470 – 790 MHz

▶ Working channels: 6 to 57

▶ Signal gain: VHF up to 18 dB / UHF up to 25 dB

▶ Impedance: 75 Ohm

▶ Power supply: 5 V DC via USB

▶ Connector: F-type + IEC adapter

▶ Cable length: 10 m

▶ LTE filter: yes — reduces interference from mobile networks

▶ Receive standard: DVB-T / DVB-T2, Full HD, 4K

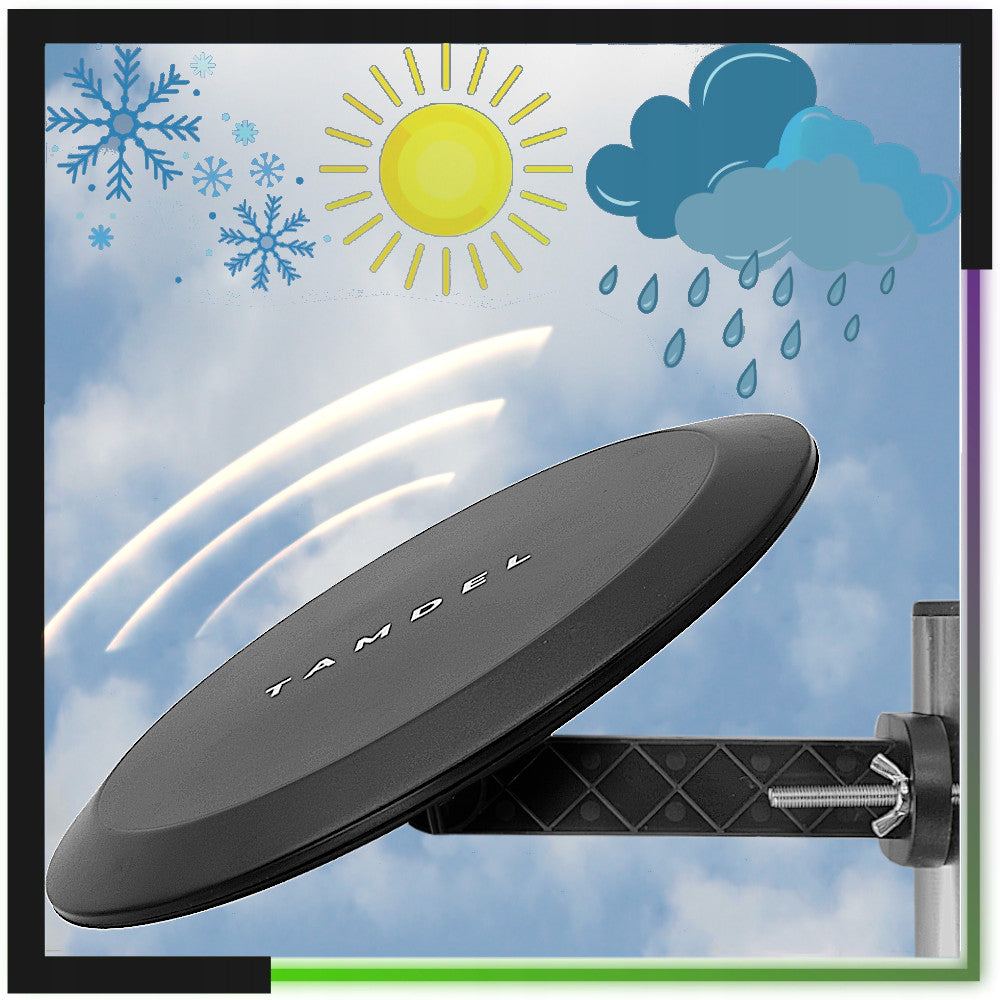

▶ Resistance: design adapted to outdoor installation — for working in rain, sun and changing weather conditions.

✅ Dimensions and installation

▶ Antenna width: 28 cm

▶ Antenna body width: 25,5 cm

▶ Antenna height with handle: approx. 10 cm

▶ Length of mounting arm: 16 cm

▶ Tilt angle adjustment: to 180°

▶ Mounting bracket: fits pipes and masts with a diameter of 2 to 5 cm

✅ How to connect the antenna – step by step

1 Connect the antenna cable to the amplifier.

2 Connect the USB to a 5 V power source — TV, set-top box or USB charger.

3 Connect the antenna plug to your TV or DVB-T2 decoder.

4 Enable automatic DVB-T / DVB-T2 channel search.

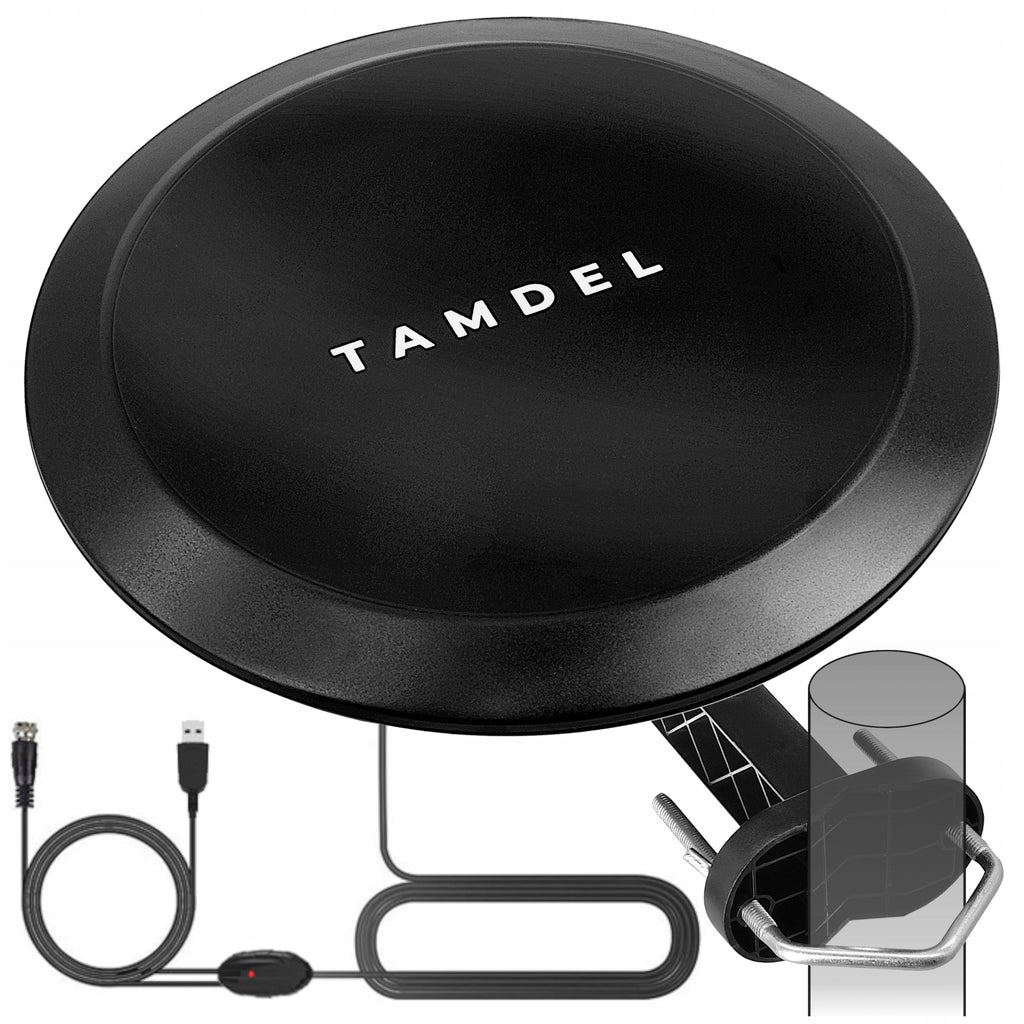

✅ Set includes:

▶ Outdoor antenna TAMDEL TAZ-W119

▶ Signal Amplifier with LTE filter — USB powered

▶ Coaxial cable 10 m

▶ Mounting bracket for wall or mast

▶ Mounting stand and accessories

▶ User manual in Polish

▶ Original manufacturer packaging

ℹ USB power adapter is not included – any USB port is enough, e.g. in a TV, set-top box or 5 V charger.
