TV antena Opticum OMS PRO-TRQ 5x8 5/8 DVB-T (MUL0106)

Trumpai apie prekę

Prekė: TV antena Opticum OMS PRO-TRQ 5x8 5/8 DVB-T (MUL0106). Kategorija: Multijungikliai.

• Gamintojas: Opticum
• Modelis: OMS 5/8 PRO TRQ

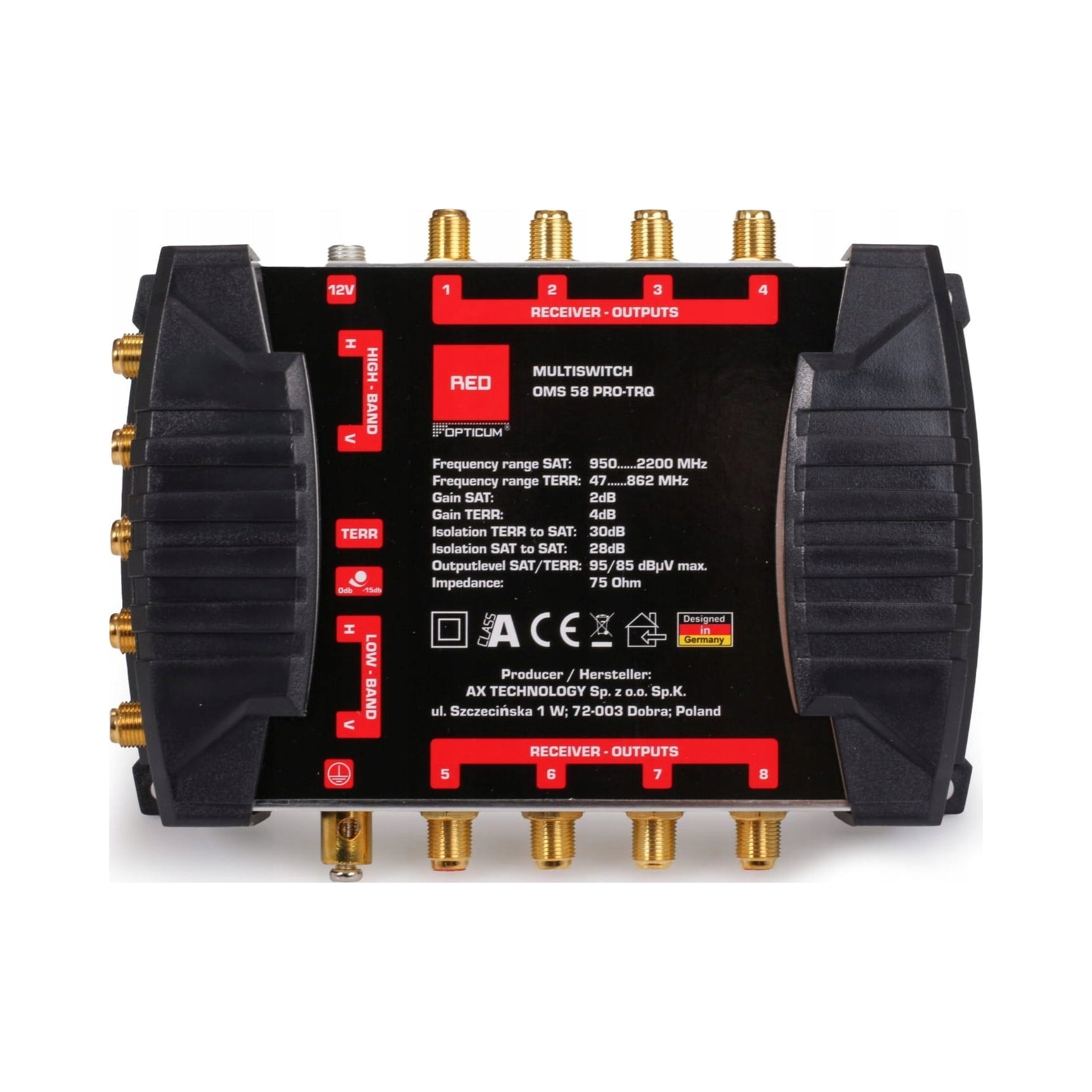

Multiswitch Opticum OMS 5/8 PRO-TRQ Platinium Line

Multiswitch is designed to expand the internal antenna installation of the satellite TV system

DVB-S2 and terrestrial DVB-T2.

The device allows you to receive programs from one satellite and connect up to 8 satellite tuners.

Regulation of terrestrial TV signal attenuation

Gold-plated sockets significantly reduce signal loss at the antenna cable connection,

and the absence of oxidation. Multiswitch automatically recognizes the type of signal it will be

transmitted to tuners.

The installation should include the connection of a multiswitch to a satellite dish with a diameter of not less

less than 0,8 m and a Quattro or Quad converter and a terrestrial television antenna.

Separation of satellite and terrestrial signal coming out of the multiswitch is carried out using sockets

subscriber final.

Quattro, Quad and subscriber jacks are available in our store.

The multiswitch is powered by an external power supply, which eliminates

the phenomenon of increased operating temperature, which is a frequent cause of damage to the device.

When installing the device, account shall be taken of the existing installation conditions for power supply:

• location away from the influence of weather conditions
• safeguards against access by outsiders
• adequate ventilation

Connection:

• one Quattro or QUAD converter
• one DVB-T terrestrial antenna
• 8 sat tuners

Technical data:

• SAT frequency range: 950-2200 MHz
• TER frequency range: 47-862 MHz
• SAT gain (950-2150 MHz) : 2 dB
• TER gain (47-862 MHz) : 0 - 15 dB adjustable
• SAT to TER separation: 25 dB
• TER to SAT separation: 25 dB
• Separation between H/V polarities: 25 dB
• Maximum SAT Output Level: 95 dBuV
• Maximum TER Output Level: 85 dBuV
• I/O Impedance: 75 Ohms
• Polarity/band switching : 13V/18V 13V/22kHz-18V/22kHz
• For indoor use
• Power supply from mains: 230V AC 50Hz
• Operating temperature: 0...+55 oC
• Dimensions: 175 x 133 x 54 mm (real dimensions)

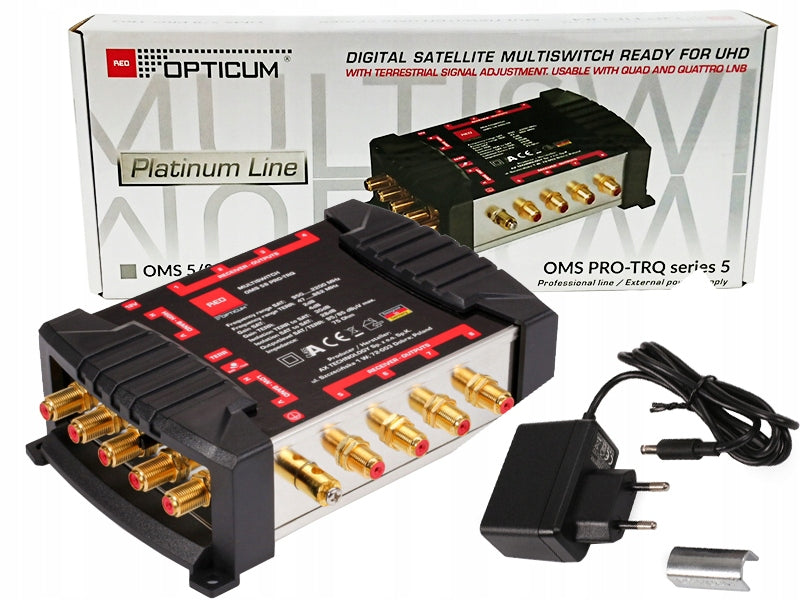

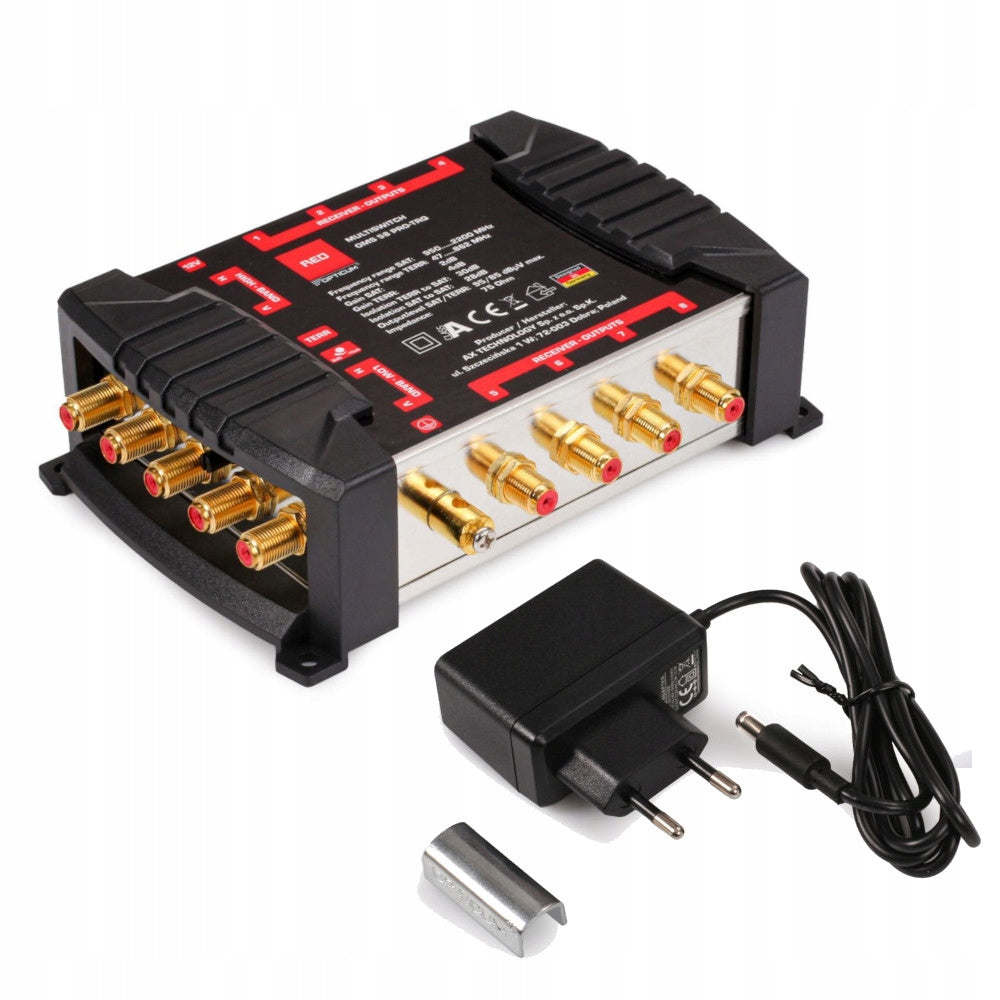

The set includes:

• Multiswitch
• Power Supply Wrench for screwing in connector F
• AC adapter
• Original packaging
