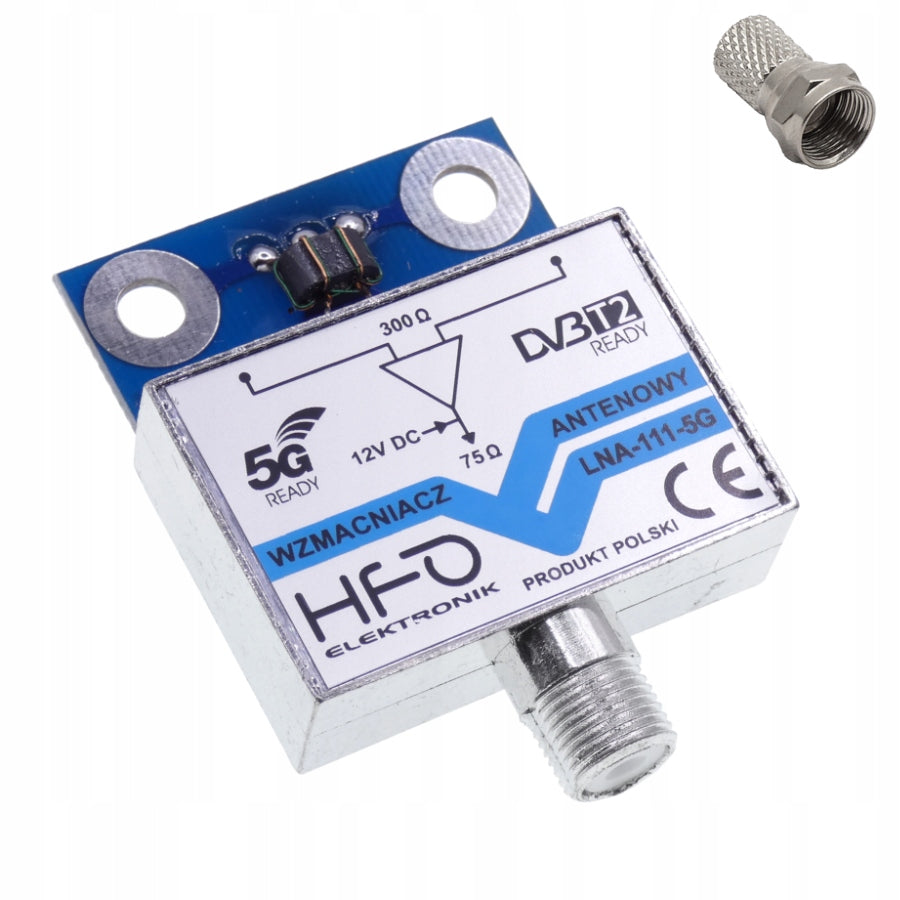

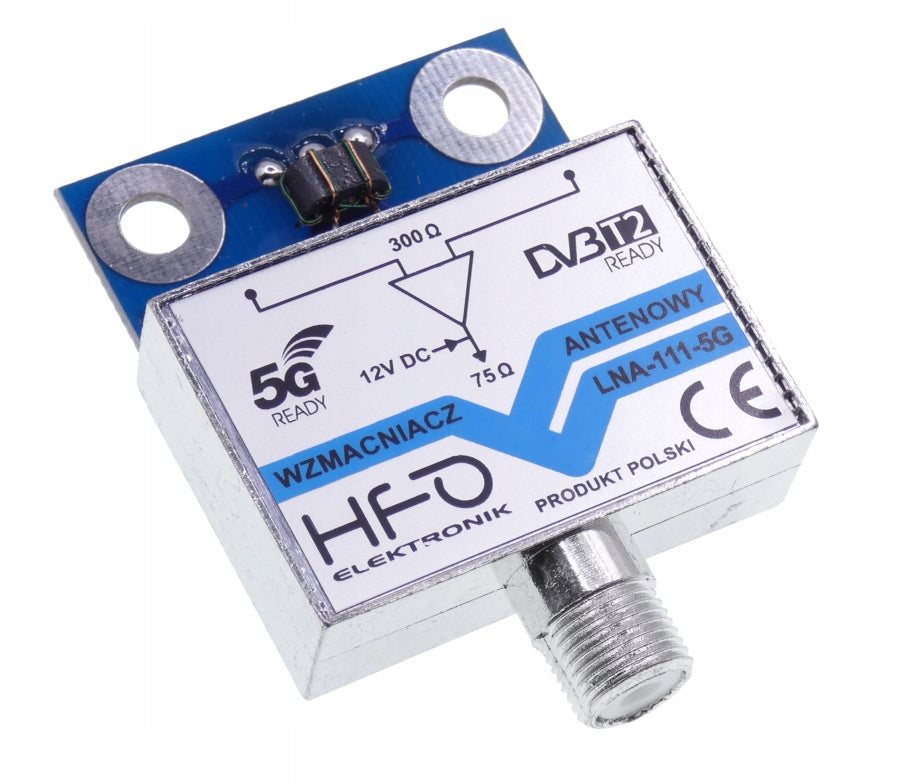

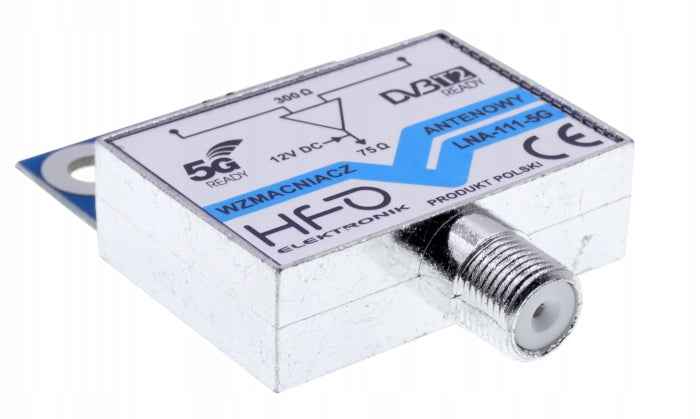

TV antenos stiprintuvas LNA-111, DVB-T2, 15 dB, 12V, su 5G apsauga

Trumpai apie prekę

Prekė: TV antenos stiprintuvas LNA-111, DVB-T2, 15 dB, 12V, su 5G apsauga. Kategorija: Stiprintuvai.

• Gamintojas: no brand
• Modelis: LNA111-5G

New version with LTE 5G filter!

Polish product

Antenna amplifiers manufactured by HFO Elektronik have been designed and manufactured in Poland using high quality components from leading manufacturers. Their quality is confirmed by compliance with European electromagnetic compatibility standards CE.

For proper operation, the amplifier requires 12V power supply supplied by a coaxial cable.

Distinguishing features:

• Light metal alloy housing, which provides high resistance to interference and atmospheric factors
• High-quality F socket – giving a good connection and convenient and easy installation
• LNA series amplifiers fit mesh antennas can be mounted in place of a traditional plate amplifier
• Amplification band corresponding to the TV signal broadcast on Polish territory
• High resistance to DVB-T2 digital TV signal interference signals: CB, FM, LTE700 (5G), LTE800 (4G), GSM900, Wi-Fi, Bluetooth
• Low noise ratio
• Gain characteristics compensating for coaxial cable attenuation
• The use of the LNA111-5G model is recommended at a distance of 15 – 30 km from the transmitter, depending on the terrain and power of the transmitter
• We guarantee repeatability of parameters of our amplifiers, each amplifier is tested individually on specialized measuring instruments

Includes type F connector for cable connection

Characteristics of LNA111-5G amplifier

Scheme of application of the amplifier in the Dipol Tri Digit antenna.

Scheme of application of the amplifier in the Dipol Tri Digit antenna in installation on 4 TVs using AWS-144.

Technical data:

• Gain level: 15 dB
• Gein band: UHF and VHF (channels 5 – 48)
• includes broadcast bandwidth MUX 1, MUX 2, MUX 3, MUX 8 and local multiplexes
• Power supply: 12V DC, 55mA, power supply via coaxial cable
• Dimensions (H x width x debt): 14mm x 40mm x 44mm (without F connector) / 54mm (with F connector)
• Connections: connectors for fixing the amplifier in antenna terminals, solid threaded type F connector for fixing the cable
