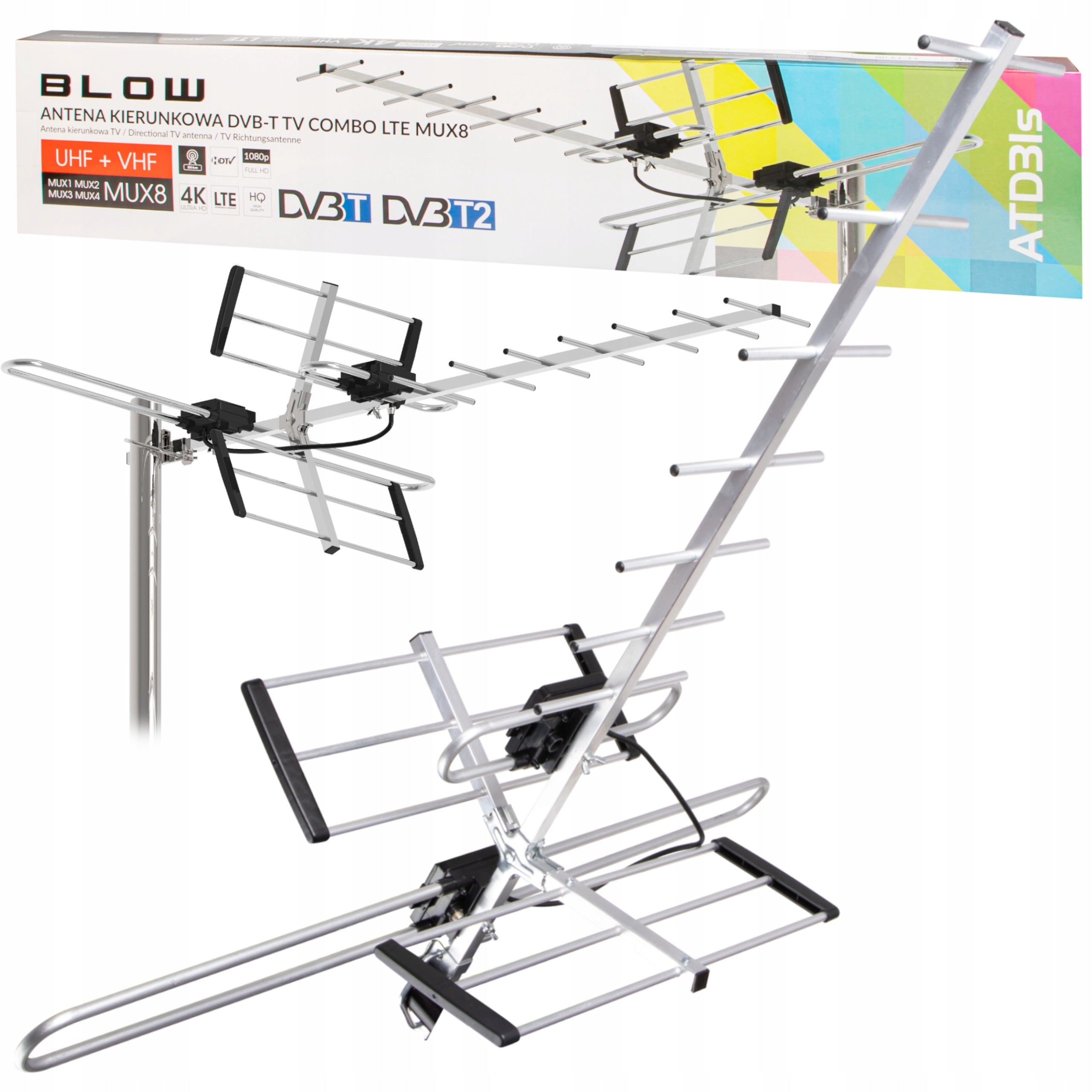

TV kryptinė antena DVB-T2 MUX8, LTE, Full HD, 4K

Trumpai apie prekę

Prekė: TV kryptinė antena DVB-T2 MUX8, LTE, Full HD, 4K. Kategorija: Antenos.

• Gamintojas: Blow
• Modelis: ATD31S
• Spalva: silver

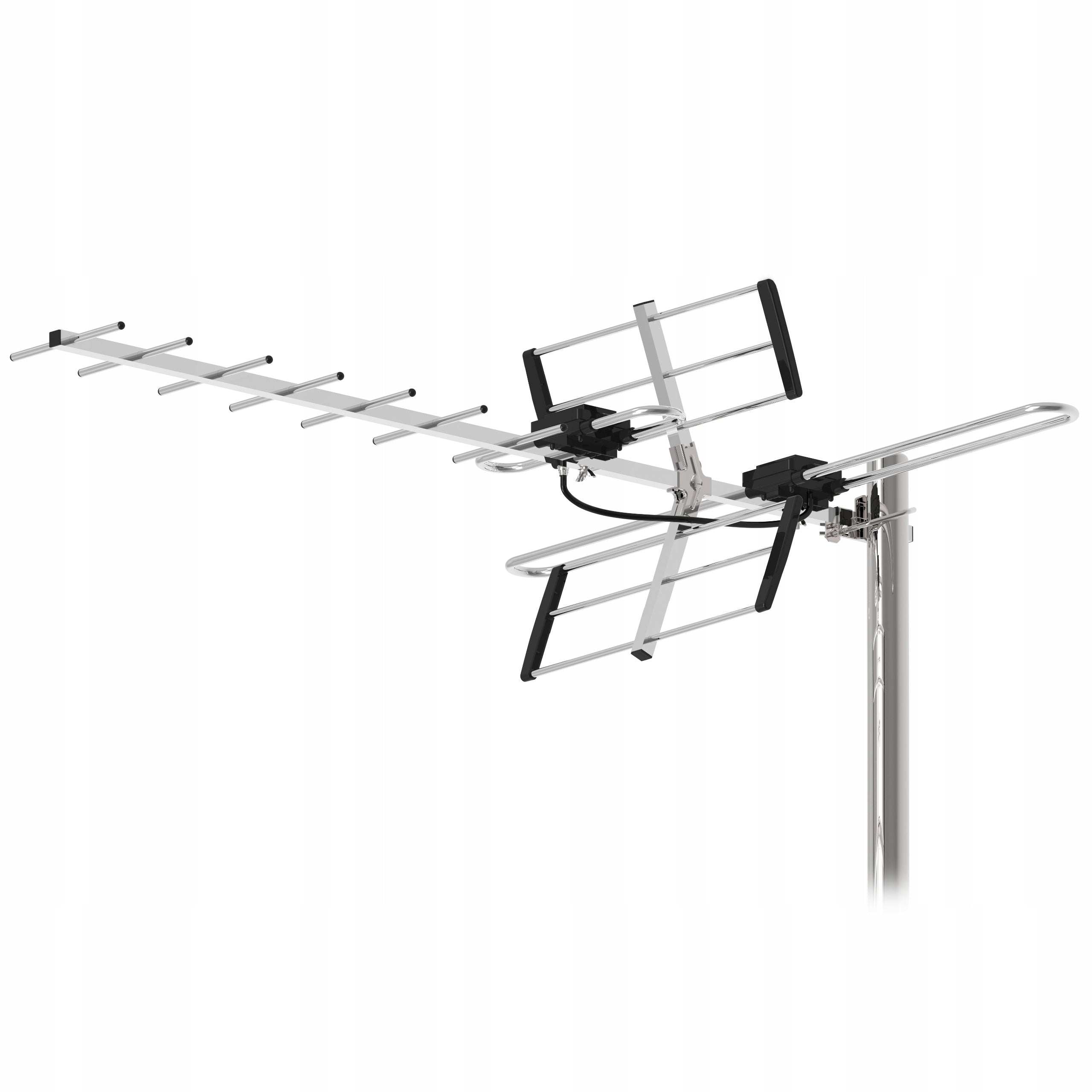

DIRECTIONAL PASSIVE ANTENNA DVB-T BLOW ATD31S

✅ Receive MUX1, MUX2, MUX3, MUX4 and MUX8 channels

✅ Directional DVB-T antenna with 11-14 dB gain

✅ Supports FullHD and 4K UltraHD

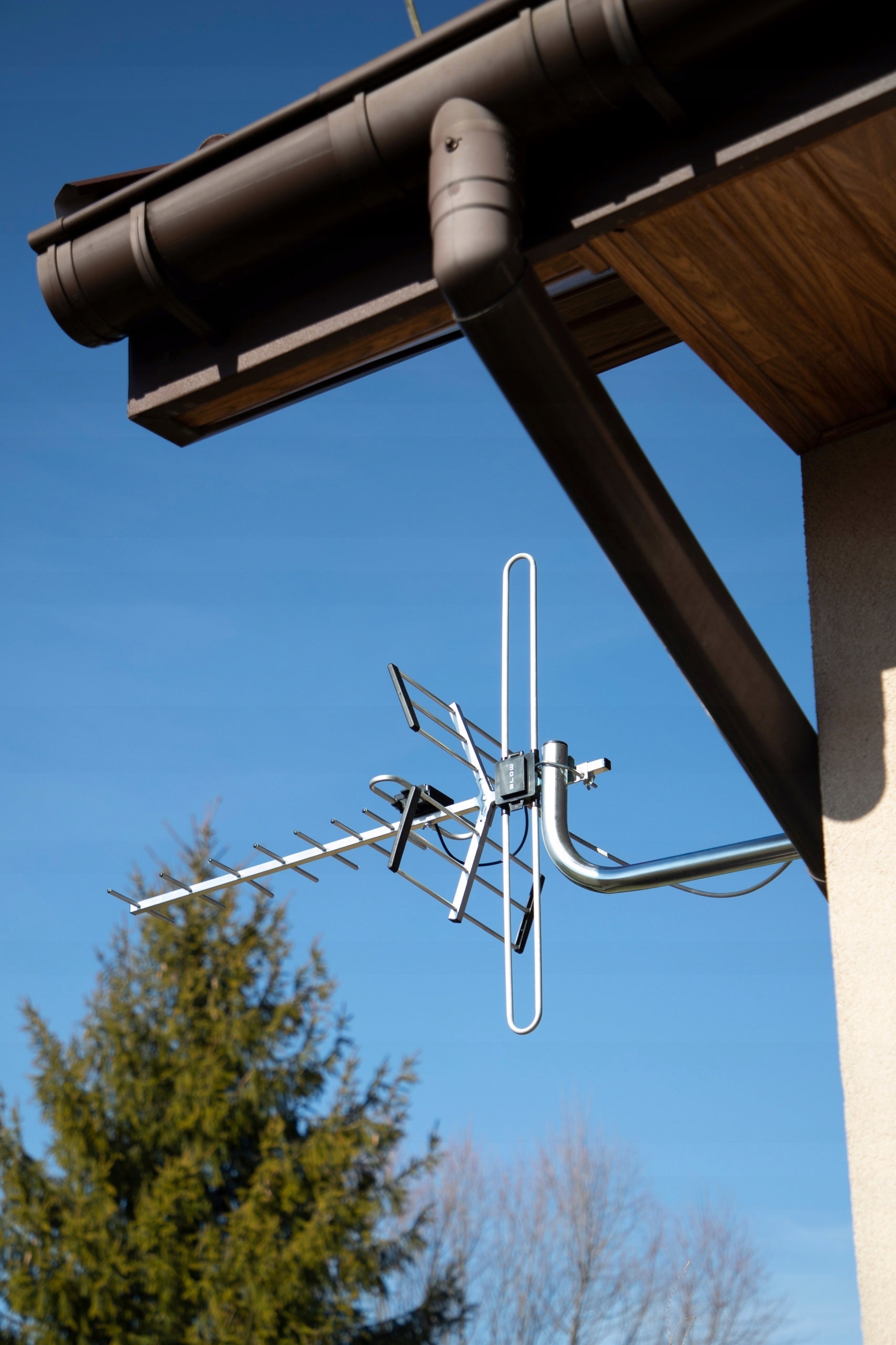

✅ Designed for outdoor installation

✅ Solid, stable construction

Highly efficient digital-to-analog antenna. Suitable for outdoor installation, resistant to water and UV radiation. Foldable, durable construction. Compatible with FullHD and 4K UltraHD standards. The use of the best production materials.

⏺ Reception of all DVB-T channels

The antenna enables the reception of DVB-T digital terrestrial television signals in the UHF 174-230 MHz band and the VHF 470-790 band, i.e. it works with all multiplexes available in Poland MUX-1, MUX-2, MUX-3, MUX-8. The antenna is used to receive all terrestrial television standards, i.e. digital DVB-T, DVB-T2, H.264 MPEG-4 / AYC. The used reflectors allow VHF-UHF reception.

⏺ High-quality workmanship

Each element of the antenna is made of the highest quality materials, thanks to which the whole is exceptionally solid and stable . High-quality aluminum is a guarantee of a long service life, ensuring resistance to all weather conditions. The entire structure is easily and intuitively disassembled, and does not require the use of special tools for assembly.

⏺ LTE noise filter

The LTE filter eliminates interference from mobile networks providing high-speed Internet services in the 800 MHz band, the end of the TV band is in the immediate vicinity of the LTE 800 MHz band. This may result in interference with the reception of digital terrestrial television. The antenna offered at this auction, thanks to the use of the LTE filter, cuts out unwanted signals above 790 MHz, and thus is resistant to interference from the LTE network.

IMPORTANT !

The item marked with an asterisk (*) in the picture can be mounted horizontally or vertically (horizontal or vertical polarization). During installation, this element should be properly mounted to obtain the best reception parameters. The element should be mounted in accordance with the settings of the transmitter in the direction of which the antenna will be directed.

⏺ Specification:

• Frequency range: 168 - 790 MHz
• Gain: 11 - 14 dB
• Gain Ratio: >24 dB
• Channels: 2-83
• Impedance: 75 ohms
• Antenna length: 90cm
• The height of the folded antenna (horizontal polarization): 35cm
• Length of the largest element - dipole: 77cm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Blow
Parametry	Color	silver
Parametry	Model	ATD31S
Parametry	Kind	external
Parametry	EAN (GTIN)	5900804116516
Parametry	Manufacturer code	21-042#
