Aprašymas
Trumpai apie prekę

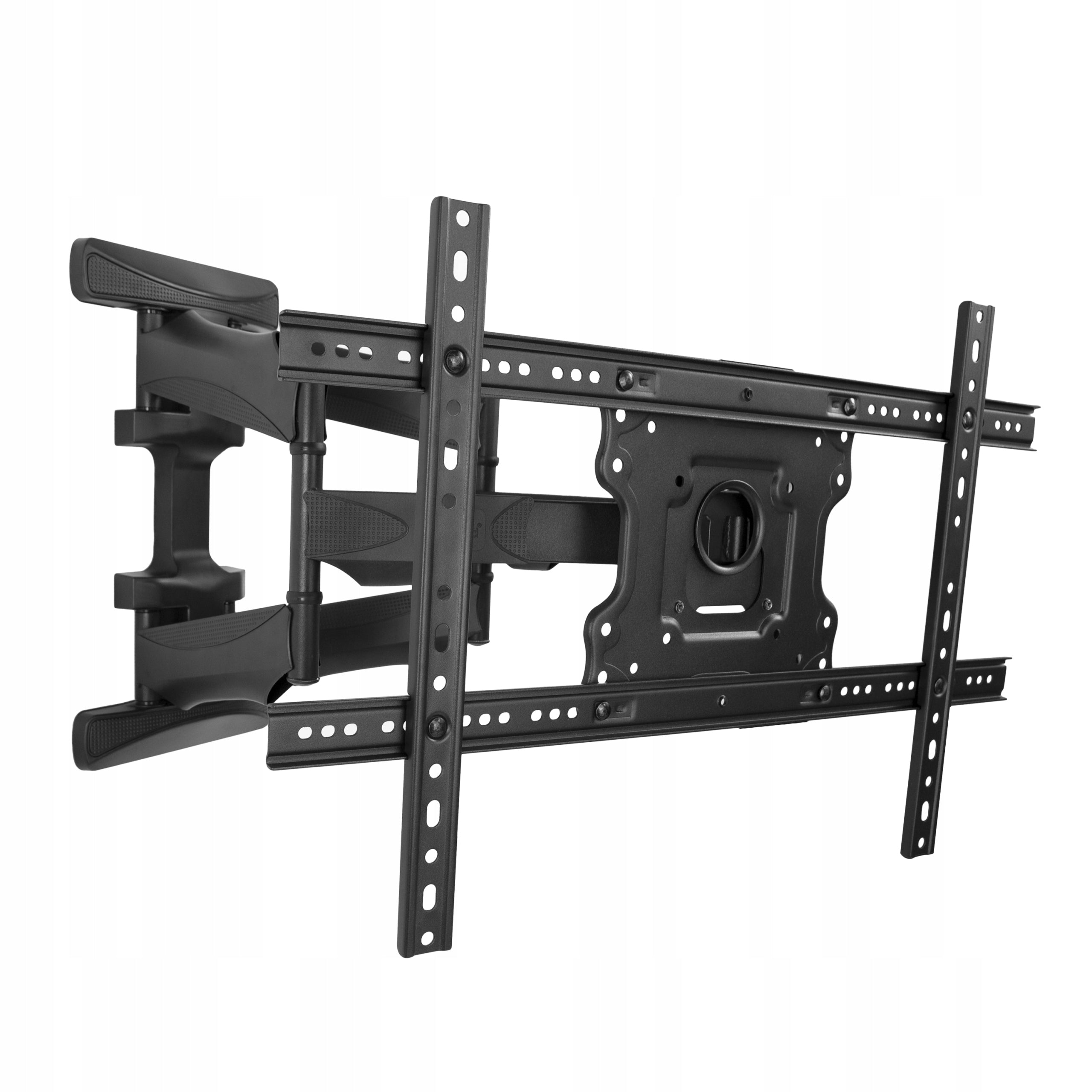

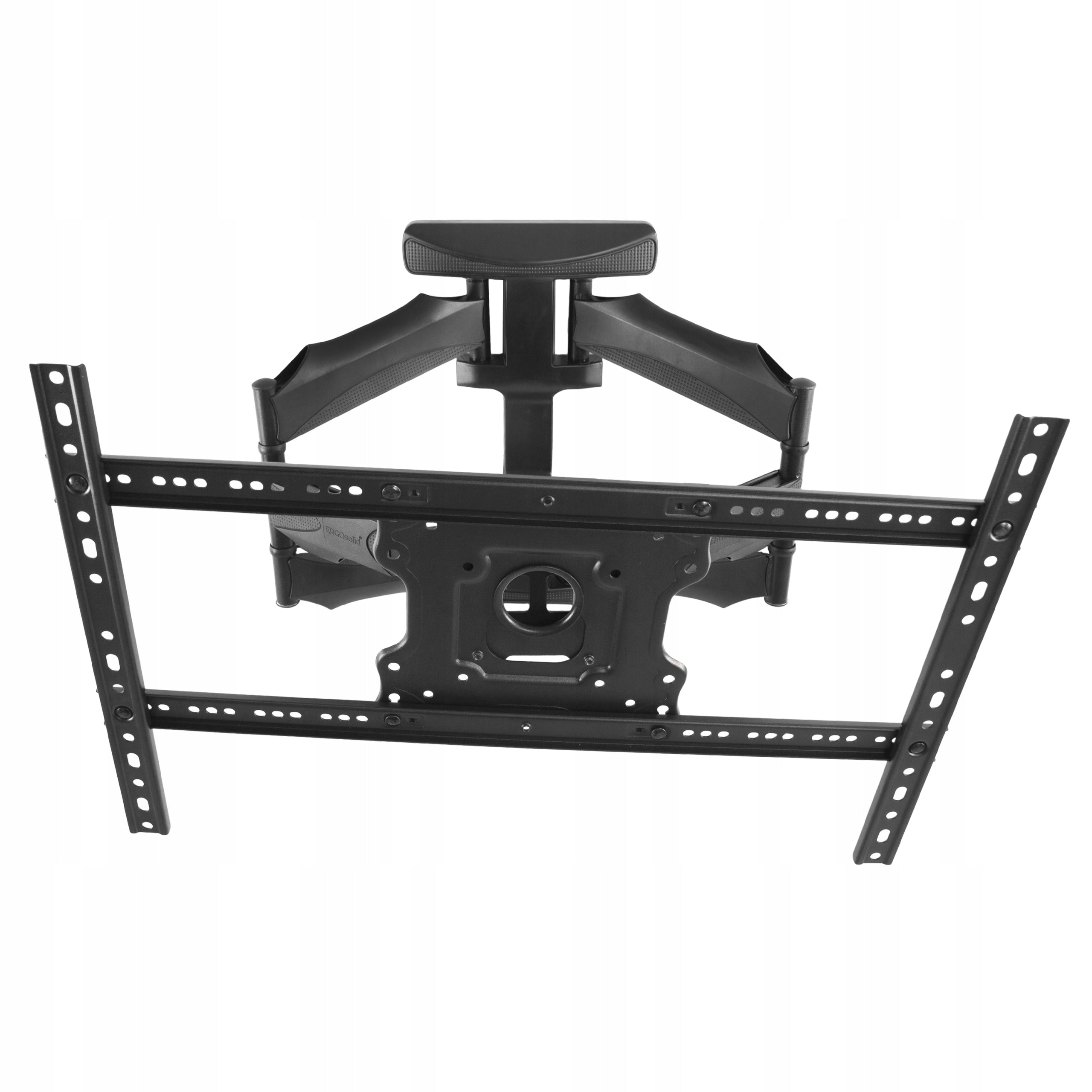

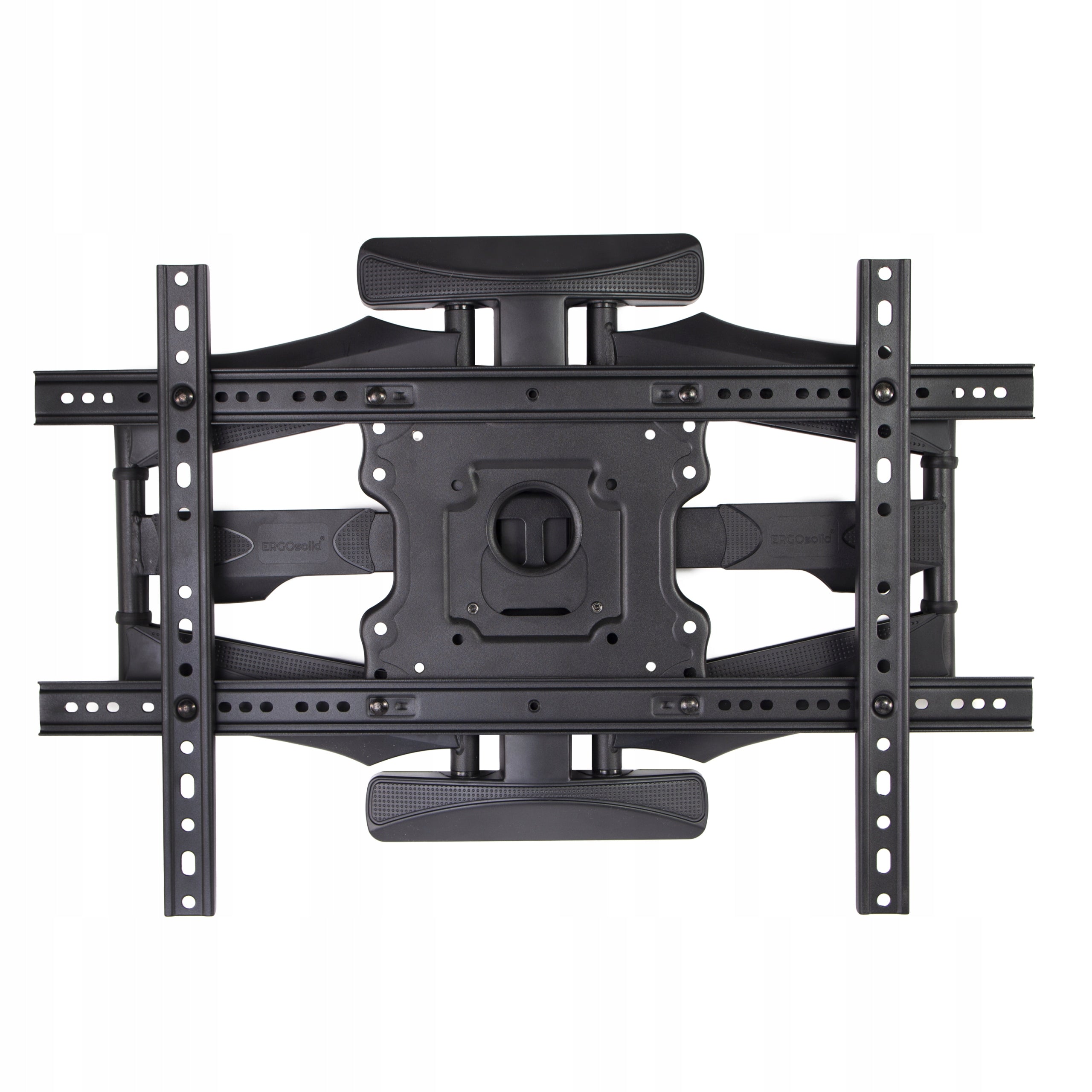

Prekė: TV laikiklis, reguliuojamas, sukamas, 40–70. Kategorija: Rankenos.
- Gamintojas: Ergosolid
- Modelis: K600
- Screen Size: 40"-70"
- Maximum lifting capacity: 45 kg
- Tilt adjustment: +8° / -5°
- VESA: 100x100 ~ 600x400 mm
- Installation error elimination system
- Wire masking machines
- Right-left rotation adjustment up to 120°
- Distance adjustment from the wall: 55~510mm
- Brand: Ergosolid®
A product of a reputable brand for 12 years on the market.
CHARACTERISTICS
- universal adjustable flat TV mount weighing up to 45 kg
- high quality workmanship with attention to detail
- unique design
- tilt adjustment
- Rotating arm
- short distance from the wall (flat design)
- tilt correction (reduction of assembly errors)
- VESA compliant
- cable management system
- grille covering mounting screws and cables
- very solid execution
- available in black
TECHNICAL PARAMETERS
- max. lifting capacity 45 kg
- rotation adjustment up to 120°
- tilt adjustment in the range of +8° / -5°
- ±3° screen tilt correction
- adjustable distance from the wall in the range of 55 ~ 510 mm
- compatible with VESA (mounting hole spacing) standard:
- VESA 100x100 (200 x 100 mm hole spacing)
- VESA 200x100 (200 x 100 mm hole spacing)
- VESA 200 (200 x 200 mm hole spacing)
- VESA 300x200 (300 x 200 mm hole spacing)
- VESA 300 (300 x 300 mm hole spacing)
- VESA 400x200 (400 x 200 mm hole spacing)
- VESA 400 (400 x 400 mm hole spacing)
- VESA 600x400 (600 x 400 mm hole spacing)
- and all others in the range from 100x100 to 600x400 mm.
MOUNTING KIT
- M5×25mm screw - 4 pcs.
- M6×25mm screw - 4 pcs.
- M8×25mm screw - 4 pcs.
- M8×45mm screw - 4 pcs.
- Distance - 4 pcs.
- Backing - 4 pcs.
- Key 10mm - 1 pc.
- Screw 7×70mm - 6 pcs.
- Pin Ø10×Ø7×60mm - 6 pcs.
SET COMPOSITION
- set of screws*
- installation instructions
INCLINATION ADJUSTMENT
the ability to change the tilt of the screen up by 5° and down by 8°
RETRACTABLE / FOLDABLE ARM
allows you to adjust the distance of the screen from the wall in the range from 55 mm to 510 mm
ROTATING ARM
allows you to point the screen in the desired direction up to 120° (depending on the size of the screen)
CABLE MANAGEMENT SYSTEM
plastic grilles help guide the wiring accordingly and thus improve the aesthetics and safety of the installation
SCREW MASKING MACHINE AND CABLE GUIDES
improve the aesthetics and safety of the installation.
TILT CORRECTION
elimination of assembly errors in the range of ±4°
Dimensions of the wall-mounted plate (placement of mounting holes)
Well secured for transport.
You can also check and measure the hole spacing yourself.
The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
In this example, the distance between horizontal holes is 400 mm and the distance between vertical holes is 200 mm.
Product code: NBK600BLK PS 9089 / PS 6750
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | K600 |
| Parametry | Model | K600 |
| Parametry | Maximum TV size | 70" |
| Parametry | Brand | Ergosolid |
| Parametry | Maximum load | 45 kg |
| Parametry | Product weight with unit packaging | 8 kg |
| Parametry | EAN (GTIN) | 3760280391928 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Kind | rotating,retractable |
| Parametry | VESA Standard | 100 x 100,200 x 100,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,600 x 300,600 x 400,400 x 300 |
