TV priedėlis FERGUSON ARIVA ATV TT, Android TV, Linux

Trumpai apie prekę

Prekė: TV priedėlis FERGUSON ARIVA ATV TT, Android TV, Linux. Kategorija: Tiuneriai.

• Gamintojas: Ferguson
• Modelis: ATV TT
• Spalva: black

TUNER TWIN UHD 4K TRIPLE - WORKS IN 3 SYSTEMS - ANDROID FOR TV, LINUX DEBIAN, ENIGMA 2 WITH THE ABILITY TO RECORD TO AN EXTERNAL DRIVE WITH ETHERNET AND WIFI AND BLUETOOTH.

The satellite receiver is equipped with Twin 2 x DVB-S / S2 heads for simultaneous viewing and recording of two different programs (from different heads). Then you can very flexibly store recordings on USB data carriers or on the network (NAS).

It also plays UHD video files from the network or from USB storage media.

Receiving UHD/4K HDR high-definition channels

Support for MPEG-2, MPEG-4, AVC/H.264, HEVC/H.265

Support SD, HD, FullHD, 4K UHD HDR video content

Android for TV (pre-installed)/ ENIGMA / LINUX DEBIAN

Decoding DTS, AC3, DTS-MA, DTS-HR, PCM/2.0, passthrough mode support for all cinema audio formats

Support demanding video files with very high bitrates, sufficient for future UHD formats

Card reader for paid TV CA

Compatible with DVB-S/S2 systems

Hybrid satellite decoder. The integrated IP module enables both high-definition TV reception and internet use. The decoder is equipped with a new 4K satellite head standard, Full HD DVB-S/S2.

The perfect complement to this receiver is an extremely clear display. The unique design and housing make the Ariva ATV TT ideal for modern interiors. The decoder allows you to receive paid programs and TV to the Card.

H.265 HEVC video decoding gives you new perspectives, enjoy the full spectrum of new 4K picture experiences!

The heart of the receiver is the Hisilicon Hi3798C200 chipset, which is equipped with peripherals such as an Ethernet communication interface, 3 x USB ports (2 x 2.0 and 1 x 3.0), HDMI 2.0a TX video output with HDCP2.2 support, S/PDIF port for transmitting audio signals, LAN 10/100/1000Mbit, DVB-S2 digital television system standard, Smart Card Slot port and DC 12V/3A power socket.

The system is adapted to work with Android TV and Linux

16GB of eMMC flash memory and 2GB of DDR3 RAM are mounted on the board itself. The unique ARM Mali T720 graphics card and the powerful ARM Cortex A53 processor powered by 64-bit ARMv8 cores will deliver console-like performance and reduced power consumption.

HiSilicon HI3798C V200 to 1,6 GHz, quad-core

CPU architecture: ARM Cortex A53

GPU: ARM Mali T720 (OpenGL ES 3.1, 3.0, 2.0, 1.1 and OpenCL 1.1)

SDRAM: 2 GB DDR3 SDRAM

Memory: 16 GB eMMC

2 X input connector: female type F.

Frequency range: 950 MHz to 2150 MHz

Signal level: -25 to -70dBm

Power supply and polarity LNB: vertical: +13,5 V ± 0,5 V max. 250 mA; Horizontal: + 18,5 V ± 0,5 V, max. 250 mA

Ton 22 KHz: Frequency: 22 KHz ± 4KHz, 0,6 Vp-p ± 0,2 Vp-p

Diseqc control: Version 1.0, 1.2, compatible with USALS

Demodulation: QPSK and 8PSK

Input throughput: DVB-S: 1 ~ 55 Mbps / DVB-S2: 1 ~ 45 Mbps

Frequency range: 52 MHz to 866 MHz• Signal level: -25 dBm to -80 dBm

IF frequency: Low IF 3~60MHz• Mode: DVB-T2/T, QPSK, 16QAM ~ 256QAM

Bandwidth: 6 MHz, 7 MHz, 8 MHz, 1,7 MHz (possible to use with low IF

Stream: ITU-T H.265 / HEVC and H.264, ISO / IEC 13818-2 MPEG-2, AVS and AVS+, VC1, VP6, VP8, VP9• Profile level: ITU-T H.265 Main 10 Profiles @ L5.1 high-tier, MPEG-2 MP @ HL

Input speed: max. 160 Mb/s (H.265)• Video format: 4:3, 16:9, Letter Box, Pan & Scan

Video resolution: 10 bits, up to 4096 x 2160 pixels at 60 frames per second, HDR 10 support

Audio decoding: MPEG I&II, MP3, Dolby True HD and Digital Plus, AAC-LC, HE-AAC V1/V2

Audio Mode: Stereo / Mono / Left / Right / Replacement• Bluetooth: 4.0 + EDR

HDMI: HDMI 2.0a TX with HDCP 2.2, 4K 10bit UHD @ 60Hz to 4096x2160px, 1080p/i, 720p/i, 576p/i, 480p/i

Ethernet: RJ45 10/100 / 1000Mb Ethernet Interface• Wi-Fi: DualBand 2,4 / 5 GHz 802.11a / b / g / n / ac

USB: 1x USB 3.0 port, 2x USB 2.0 port

Ports: AV, HDMI 2.0a HDCP 2.2, HDCP1.4, USB 2.0, USB 3.0, S/PDIF, LAN 10/100 / 1000Mbit, DC 12V/3A, DVB-T/T2, DVB-S2, smart card slot

Software: Dual OS Android TV 8 and Linux Debian or Enigma 2

Video support: HDTV, SDTV MPEG-2, MPEG-4, H.264, HEVC/H.265, AVS, DivX 2K/4K decoding

Support video formats: MKV, MP4, WMV, MPG, MPEG, DAT, AVI, MOV, ISO, others via the app

Video support: MKV (h.264, HEVC/h.265), WMV, MP4, RM, RMVB, TS, AVI, VOB, MOV (h.264, HEVC/h.265), ASF, 3GP, others via app

Support audio by transit: AC3/Dolby Digital 5.1, E-AC/Dolby Digital +5,1, Dolby Digital +7,1, TrueHD 5.1, TrueHD 7.1, Dolby Atmos 7.1, DTS HD Master, DTS High Resolution, DTS X

Audio support: MP3, WMA, WMA, AAC, OGG, OGA, FLAC, ALAC, others via app• Input voltage: AC 90~250V, 50/60HZ, DC 12V/3A

Energy consumption: Depends on component usage (HDD, others)

Power consumption in standby mode: = < 0,5 W.

Storage temperature: -10~70°C

Working temperature: 0 ~ 45 ° C

Moisture: < 95%

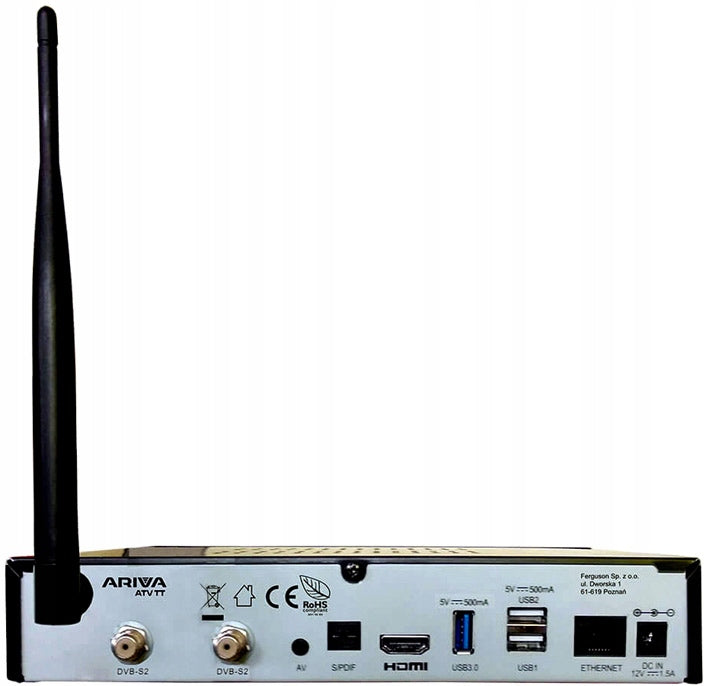

- 2 x DVB-S2 input

- 1 x HDMI

- 3 x USB ( 1 x 3.0, 2 x 2.0 )

- 1 x AV jack

- S/PDIF - digital audio output

- ETHERNET - LAN (RJ45)

- Wi-Fi antenna

- DC INPUT network input

ENIGMA 2

To run Enigma2, you must:

1) format the pendrajwa to FAT32

2) download on USB the appropriate image for the model from the website:

http://images.mynonpublic.com/openatv/current/index.php?open=arivacombo

3) three files from the archive must be on the USB drive in the e2/update folder

4) in the livetv application, enable the ability to use Enigma2 (Setup -> Misc -> Preference -> Use E2: [Enable])

5) insert the pendrajwa into the Ariva and click the GREEN button on the remote control when starting it.

6) after the board with the choice of system appears, press the BLUE button on the remote control.
