Aprašymas
Trumpai apie prekę

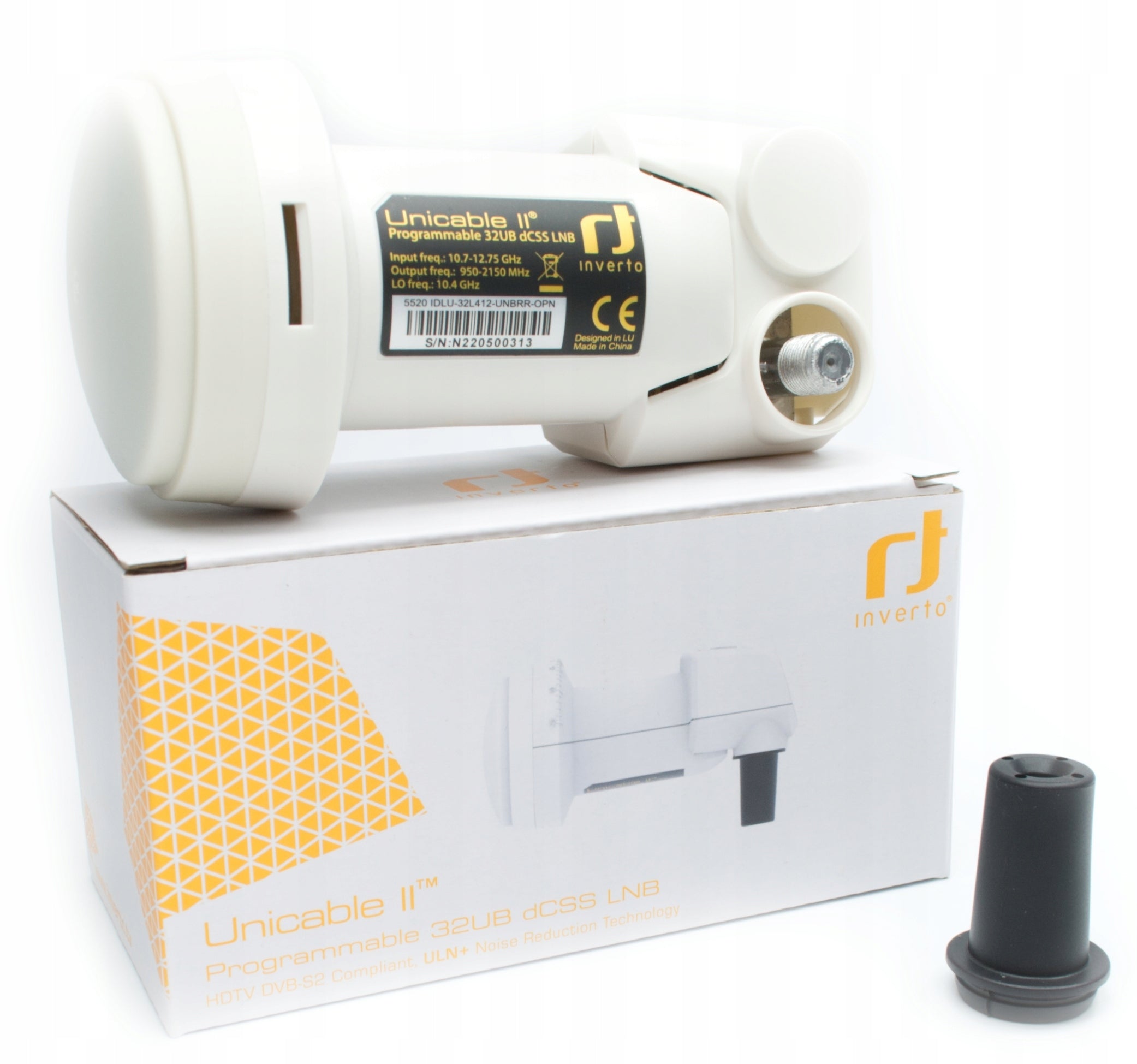

Prekė: TV signalo keitiklis Inverto Unicable II NC UltraBox 4K, 4 iki 32 imtuvų. Kategorija: Keitikliai.
- Gamintojas: Inverto
- Modelis: Unicable II 32 UB
The LNB Unicable II INVERTO converter allows for single-wire (serial) signal transmission up to 32 receivers. The converter works in two standards:
- Unicable I - EN50494 , 8 channels
- Unicable II - EN50607, 32 channels
The new UniCable II system is also known as DCSS - Digital Channel System Stacking. Suitable splitters enabling division of satellite signal can be found in our offer - "all items of the seller".
The converter works perfectly with UniCable digital tuners of platforms encoded e.g.: NC+ (recommended for Ultrabox 4K), Cyfrowy Polsat (cooperates with Evobox) and other tuners supporting the Unicable standard.
The converter, designed by the Luxembourg-based brand Inverto for the European market, provides optimized HD transmission reception capabilities. Manufactured to the highest quality standards, with excellent reception parameters.
- Model: IDLU-32L412-UNBRR-OPN
- Number of participants (Unicable II): up to 32 (EN50607)
- Noise Ratio: 0.1dB
- Input Frequency Range: 10,7 - 12,75 GHz
- Signal gain: min. 55 dB
- Additional Feature: Retractable Weather Protection

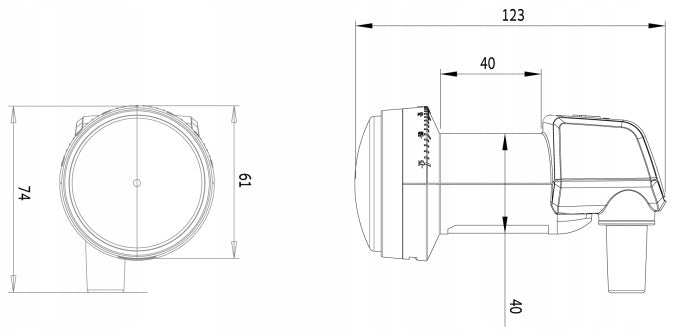

- Dimensions: 137 x 67 x 78 mm
- Head diameter: 40mm
- Independent operation of serially connected receivers thanks to UNICABLE technology
- Very low phase noise (converter recommended for 8PSK HDTV)
- CH1 1210MHZ (EN50494+EN50607)
- CH2 1420MHz (EN50494+EN50607)
- CH3 1680MHz (EN50494+EN50607)
- CH4 2040MHz (EN50494+EN50607)
- CH5 984MHz (EN50494+EN50607)
- CH6 1020MHz (EN50494+EN50607)
- CH7 1056MHz (EN50494+EN50607)
- CH8 1092MHz (EN50494+EN50607)
- CH9 1128MHz (EN50607)
- CH10 1164MHz (EN50607)
- CH11 1256MHz (EN50607)
- CH12 1292MHz (EN50607)
- CH13 1328MHz (EN50607)
- CH14 1364MHz (EN50607)
- CH15 1458MHz (EN50607)
- CH16 1494MHz (EN50607)
- CH17 1530MHz (EN50607)
- CH18 1566MHz (EN50607)
- CH19 1602MHz (EN50607)
- CH20 1638MHz (EN50607)
- CH21 1716MHz (EN50607)
- CH22 1752MHz (EN50607)
- CH23 1788MHz (EN50607)
- CH24 1824MHz (EN50607)
- CH25 1860MHz (EN50607)
- CH26 1896MHz (EN50607)
- CH27 1932MHz (EN50607)
- CH28 1968MHz (EN50607)
- CH29 2004MHz (EN50607)
- CH30 2076MHz (EN50607)
- CH31 2112MHz (EN50607)
- CH32 2148MHz (EN50607)
Factory converter is programmed according to the above list, i.e. according to the settings of Canal+ / NC+ satellite tuners (Ultrabox 4K). The first four frequencies are universal, i.e. compatible with other Canal+ / NC+ decoders and Cyfrowy Polsat decoders (Evobox, HD 7000 and others). For more complex installations, it is possible to individually program and change the frequency of the converter to another.
KONUN0005
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | IDLU-32L412-UNBRR-OPN |
| Parametry | Product weight with unit packaging | 0.3 kg |
| Parametry | Type | unicable |
| Parametry | Brand | Inverto |
| Parametry | Model | Unicable II 32 UB |
| Parametry | Handle diameter | 40 mm |
| Parametry | EAN (GTIN) | 5453002616178 |
| Parametry | Packaging status | original |
