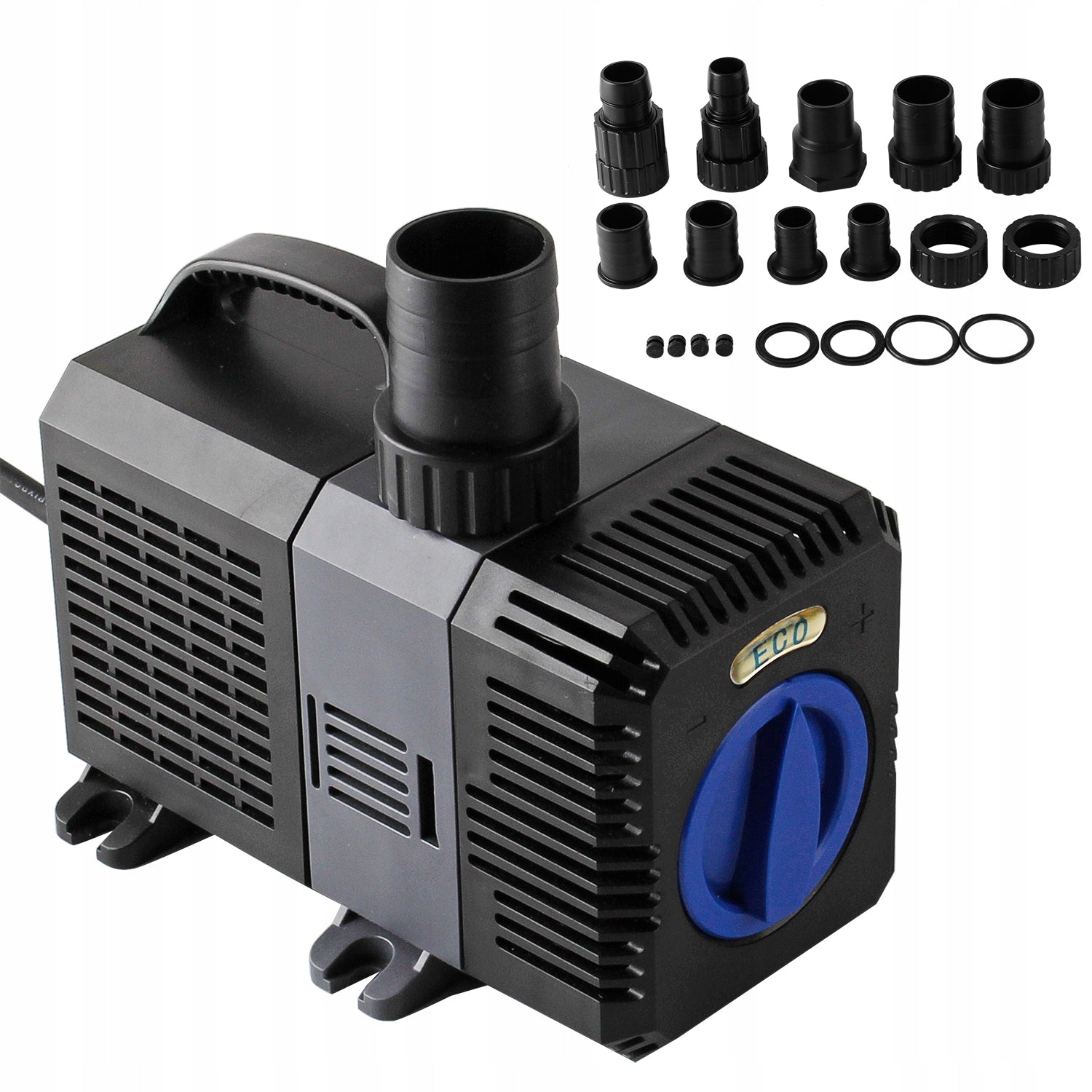

Tvenkinio siurblys CTP-2800, 3000 l/val., 10W, ECO

Trumpai apie prekę

Prekė: Tvenkinio siurblys CTP-2800, 3000 l/val., 10W, ECO. Kategorija: Siurbliai.

• Gamintojas: no brand
• Modelis: Wielofunkcyjn pompa do oczka
• Galia: 10 W

for pond multifunctional ECO CTP-2800 with a capacity of 3000l/h and a power of 10W – ideal as a circulation pump, for fountains, streams, ponds, aquariums and rock gardens! Thanks to ECO frequency conversion technology, wear-free ceramic axis and permanent magnet rotor, it is characterized by low power consumption and low starting current.

Energy savings

Using ECO frequency conversion technology, only calculation, ceramic shaft damping, permanent magnet rotor, low inrush current.

Muting

Quiet pump design for a more comfortable working environment.

Protection

Blocking protection, brak water and power, the rotor jams and regrets, automatically switches power for protection.

Amphibian insole

Breaking the situation, which can only be used in water to achieve the effect of an amphibious insert.

Long service life and high corrosion resistance due to the use of ABS material for housing and high strength ceramics for spindle and axle bushing. Motor coil made of 100% copper wire coils is good quality and high performance.

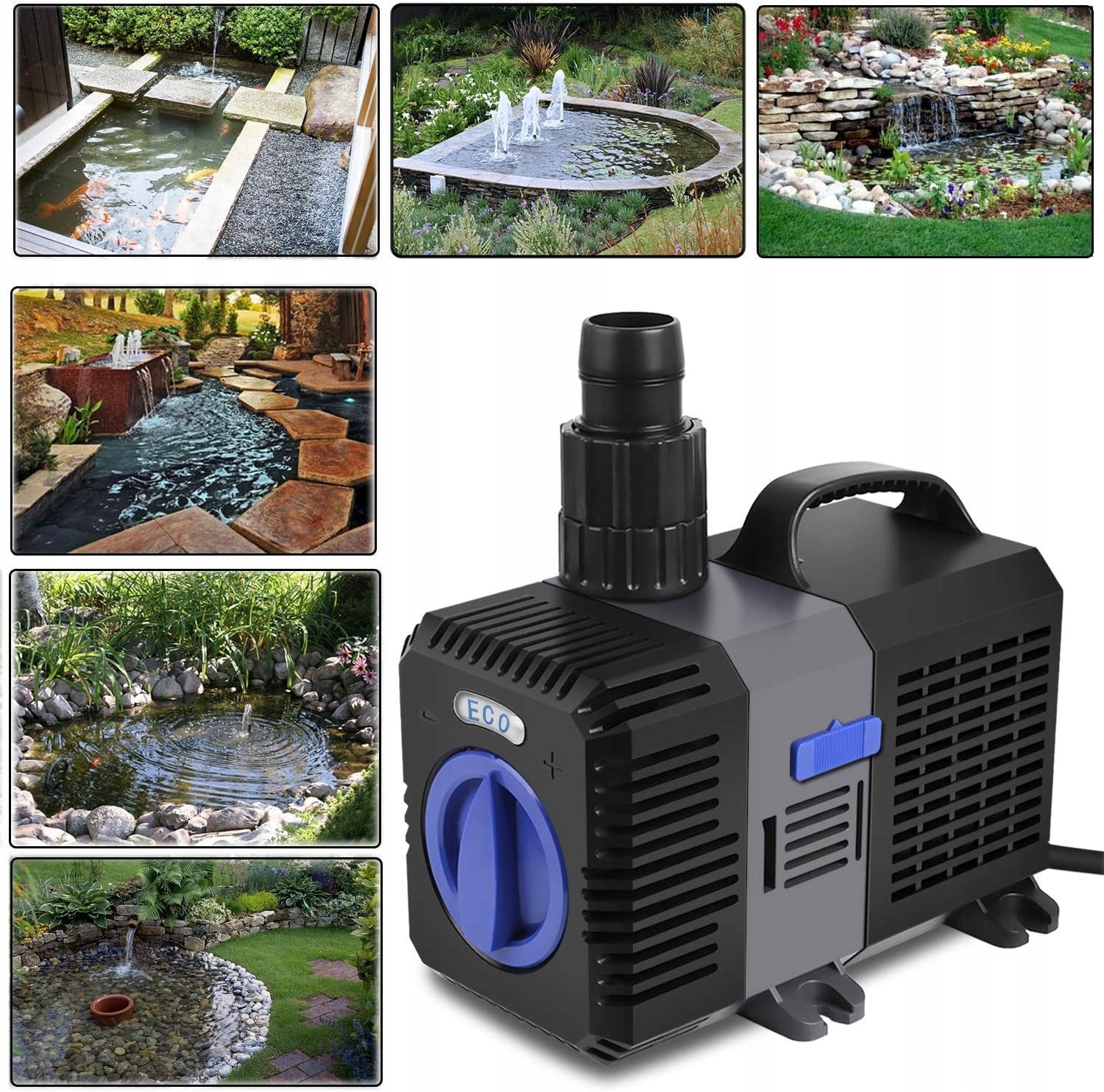

Use for full immersion at the same time for fresh and sea water, suitable for all marine and freshwater aquariums, ponds, rock garden, garden irrigation, fountains, aquariums.

IMPORTANT: Do not allow the pump to work dry - working outside the water (dry work) can lead to irreparable damage in a very short time!

There is no filter in the pump，Thanks to the filter cover, fine dust and impurities can be effectively filtered, the water is strongly clogged, so the filtration is much more accurate, the service life is strengthened, and the maintenance time is reduced.

Under no circumstances should the water pump work without water (dry operation). Otherwise, the pump axles would be damaged.Before turning on，The pump body must be filled with clean water.

The pump should not be placed directly in the mud on the ground. It should be raised. Using it in a murky aquatic environment will shorten its lifespan. If the aquatic environment is cloudy, it is recommended to clean the filter cover and internal equipment every 2 weeks. Normally, it should be cleaned every 4 weeks.

Technical Specifications:

Type: for pond, circulating, multifunctional, energy-saving (ECO)

Axle: Ceramic without wear

Easy cleaning and disassembly (no tools required)

Rated voltage: 220 V

Rated frequency: 50 Hz

Power: 10 W

Maximum head: 2,0 M

Maximum flow rate: 3000 L/h

Output Size: 20-25-32 mm

Dimensions (width x depth x height): approx. 172 x 113 x 126 mm

Power cord length: approx. 5 m (1. We doubled the cable length based on factory settings. to adapt to more usage environments 2. Please make sure the length of the cord is sufficient for you before placing your order. )

No disassembly tools, more convenient and faster：

1. adjustable flow rate

2. turn the water filter cover towards the arrow

3. pull the buckle towards the arrow

4. turn the wheel chamber towards the arrow

5. pull out the rotor to clean and replace it

6. sealing ring mounting position

Working environment:

Make sure that the pump is immersed in water and 20 cm below the water level during use, and the water temperature should be 4-35℃. Avoid operating the product in an environment without water, as this can cause the engine to burn out.

After dismantling and cleaning the water pump, the inside of the engine rotor must be wiped clean or air-dried, and then installed according to the appropriate steps before turning on.

Before turning on，The pump body must be filled with clean water. When using the pump function, use the water inlet pipe to inject water into the pump body. When there is running water in the outlet port, it can be turned on.

Turn off the power, then remove the pump body directly from the pond, do not pull the pump power cord.

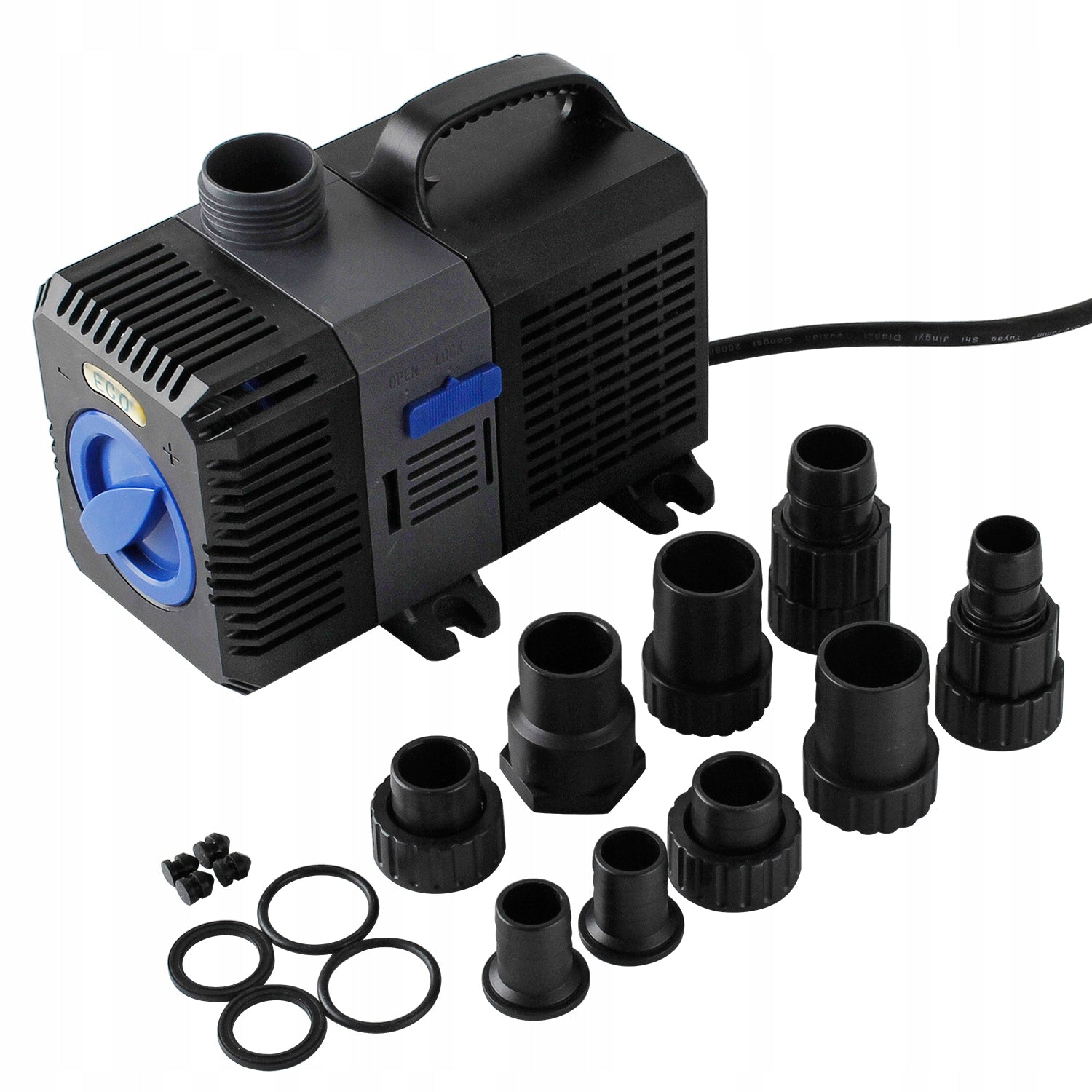

Scope of delivery:

1 x 3000 L/H 10W ECO joint pump CTP-2800
