Tvirtas pasukamas TV laikiklis, 32–70 colių, iki 50 kg, VESA

Trumpai apie prekę

Prekė: Tvirtas pasukamas TV laikiklis, 32–70 colių, iki 50 kg, VESA. Kategorija: Rankenos.

• Gamintojas: no brand
• Modelis: VESA

• ✅Screen size: 32"-70"
• ✅Maximum lifting capacity: 40kg
• ✅Tilt adjustment: +3° ~ -15°
• ✅VESA: 100x100 ~ 400x400 mm
• ✅Right-left rotation adjustment +80°~-80°
• ✅Adjustable distance from wall: 75~430mm
• ✅Tilt correction / leveling of assembly errors: ±4°
• ✅Includes a universal set of mounting screws for the TV and a set of universal screws and studs for the wall.

Product description:

Wall mount designed for TVs from 32" to 65". Thanks to its robust construction and high load capacity (up to 50 kg), it guarantees secure attachment of equipment. Adjusting the angle of inclination and rotation allows you to adjust the position of the screen to your individual preferences, ensuring optimal viewing comfort. Install the holder in your living room, bedroom or office and enjoy a convenient, aesthetic solution that will provide a great experience when watching your favorite movies, series or sports broadcasts.

Why is it worth it?

• High-quality workmanship – durable materials provide stable and secure support for your TV.
• Easy adjustment – adjust the position of the screen to enjoy the best viewing angle.
• Saving space – handle allows you to mount the TV close to the wall, while giving a wide range of adjustments.
• Universality – the wide range of VESA standard and high load capacity make the mount suitable for most modern TVs.

TECHNICAL SPECIFICATIONS

• max. load capacity 50kg
• for TVs* 32"-70"
• tilt adjustment range from -15° to +3°
• adjustable distance from wall range 75~430mm
• universal VESA standard (mounting hole pattern on the back of the TV): 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 300x400, 400x300, 400x400 mm and all intermediate sizes
• material: powder-coated steel

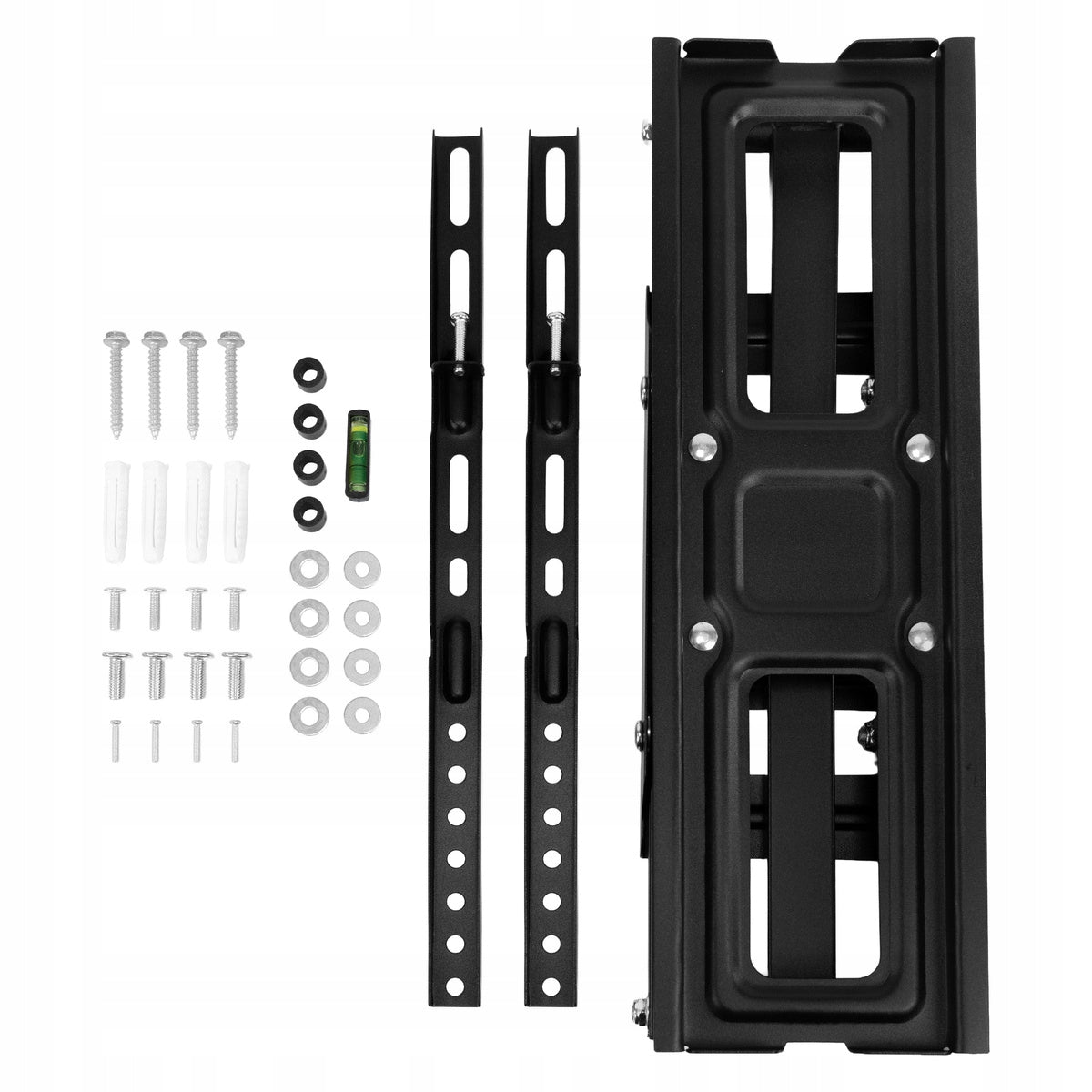

Contents of the mounting kit

• M4 screws × 20 mm - 4 pcs.
• M6 screws × 20 mm - 4 pcs.
• M8 screws × 20 mm - 4 pcs.
• Distance 10 mm - 4 pcs.
• M6 screws × 48 mm - 4 pcs.
• Pegs Ø10 × Ø6 × 50 mm - 4 pcs.
• Factory new handle
• Instructions for assembly

Note: The included screws are universal and fit most walls and TVs. If necessary (unusual threads/holes/substrate material), please purchase the appropriate screws.

How to check if the mount will fit the TV?

When choosing a TV mount, two parameters are crucial:

TV weight and VESA mounting hole spacing. The diagonal of the screen (in inches) is only indicative and should not be the only criterion for selection.

Information about VESA standard can be found in:

• instructions for use of the TV,
• specifications on the manufacturer's website,
• or check for yourself by measuring the hole spacing on the back of the housing.

Example

For TV with VESA 400 standard × 200:

• the distance between the horizontal holes is 400 mm,
• The distance between vertical holes is 200 mm.

If the hole spacing of your TV is within the range supported by the mount and its weight does not exceed the maximum lifting capacity, the mount will be fully compatible.
