Tvirtas pasukamas TV laikiklis, 32–80 colių, universalus

Trumpai apie prekę

Prekė: Tvirtas pasukamas TV laikiklis, 32–80 colių, universalus. Kategorija: Rankenos.

• Gamintojas: Athletic
• Modelis: EXTRA MOCNY Motion L

✅ Sturdy and secure TV mount polish brand

✅ Suitable for TVs of all brands from 32 to 80 inches and weight up to 40kg

✅ The mount also fits TVs with a curved case!

✅ Tilt account adjustment up to 18°

✅ Possibility to rotate the TV horizontally by 120°

✅ 6° leveling adjustment

✅ Maximum VESA standard 400x400mm

✅ The handle protrudes from the wall from 67 to 355 millimeters, which significantly affects aesthetics and versatility

✅ Set of screws and instructions

✅ Strong joints and perfect varnishing

✅ THE LONGEST of the competition wall plate.

✅ Stablely holds a large TV, thanks to a wider mounting plate than others, which has a huge impact on the correct weight distribution of the TV.

❗ ❗ It is the most robust handle of all other handles on the market!

1 First check the weight of the TV, it should be less than 40 kg.

2 Make sure your monitor or TV has four mounting holes on the back of the screen that are listed in the following standards list: VESA: 100x100 / 200x100 / 200x200 / 300x200 / 300x300 / 400x200 / 400x400 mm.

3 Finally, check the size of your TV. If the size is between 32 inches and 80 inches, this handle will fit.

✅ Holds TVs with a maximum weight of up to 40 kg without bending.

✅ Well made of high quality steel materials.

✅ Durable and reliable.

❗ ❗ The grip has been tested for strength to maintain 4 times the recommended maximum weight.

✅ Thanks to the double arms, the product guarantees full protection, and the additional security screws included in the set ensure the stability of the TV against accidental tipping.

✅ Very simple installation of the TV on the wall in a few minutes.

✅ Follow the 3 steps below:

• 1 Mount the mount on the wall.
• 2 Screw the TV mounting rails to the back.
• 3 Hang the TV on the mount.

✅ This TV mount comes with a locking system that allows you to release the TV and download it at any time to do what you need to do, such as insert cables.

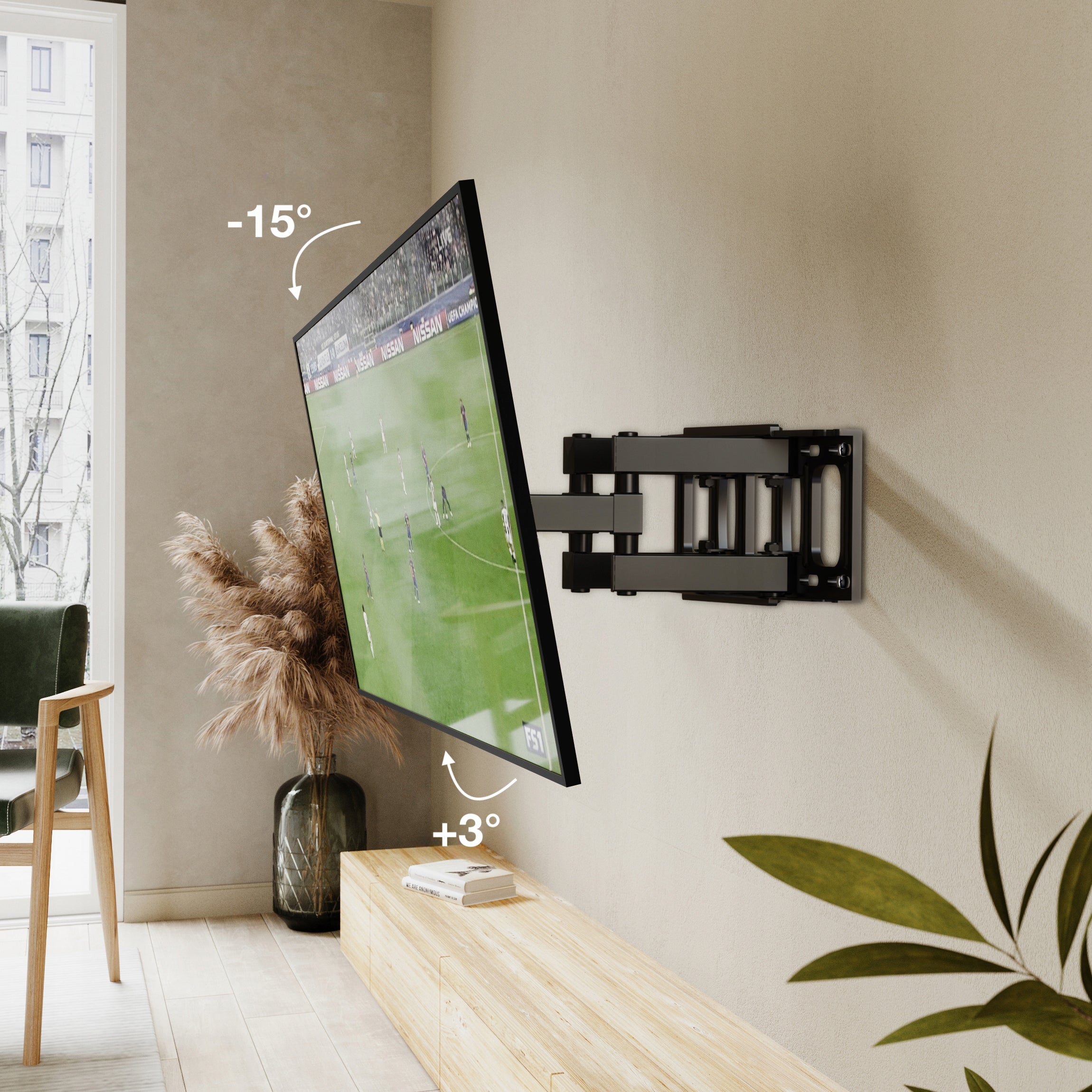

✅ Thanks to the adjustable tilt angle, allowing the suspended TV to tilt from -15 to +3 °, you can easily adjust its position to suit your needs, which helps to eliminate annoying reflections on the screen, resulting in a more pleasant viewing experience.

✅Low-profile, slim design protrudes only 67 mm from the wall, which significantly saves space in the room and provides a slim, clean look.

✅ The handle arm extends up to a maximum of 355 mm from the wall, which allows you to properly position the screen for maximum comfort.

✅ Thanks to the long arms, the handle can be installed in the corner of the room.

✅ Of course, it also allows installation in front of the wall.

✅ Easily and smoothly set the selected angle of rotation and tilt of the TV.

✅ Extremely durable with high quality and very hard steel.

✅ Reinforced handle hooks provide additional safety of use.

✅ The handle has an additional maximum tilt lock.

✅ The set also includes instructions and the most popular mounting screws for TVs.

❗ If you need other screws for the TV (not to the wall) outside the set, please let us know and we will send them for free. Be sure to include the size of the desired screws in your order.

✅ Dowels should be selected according to the material from which the wall is made.

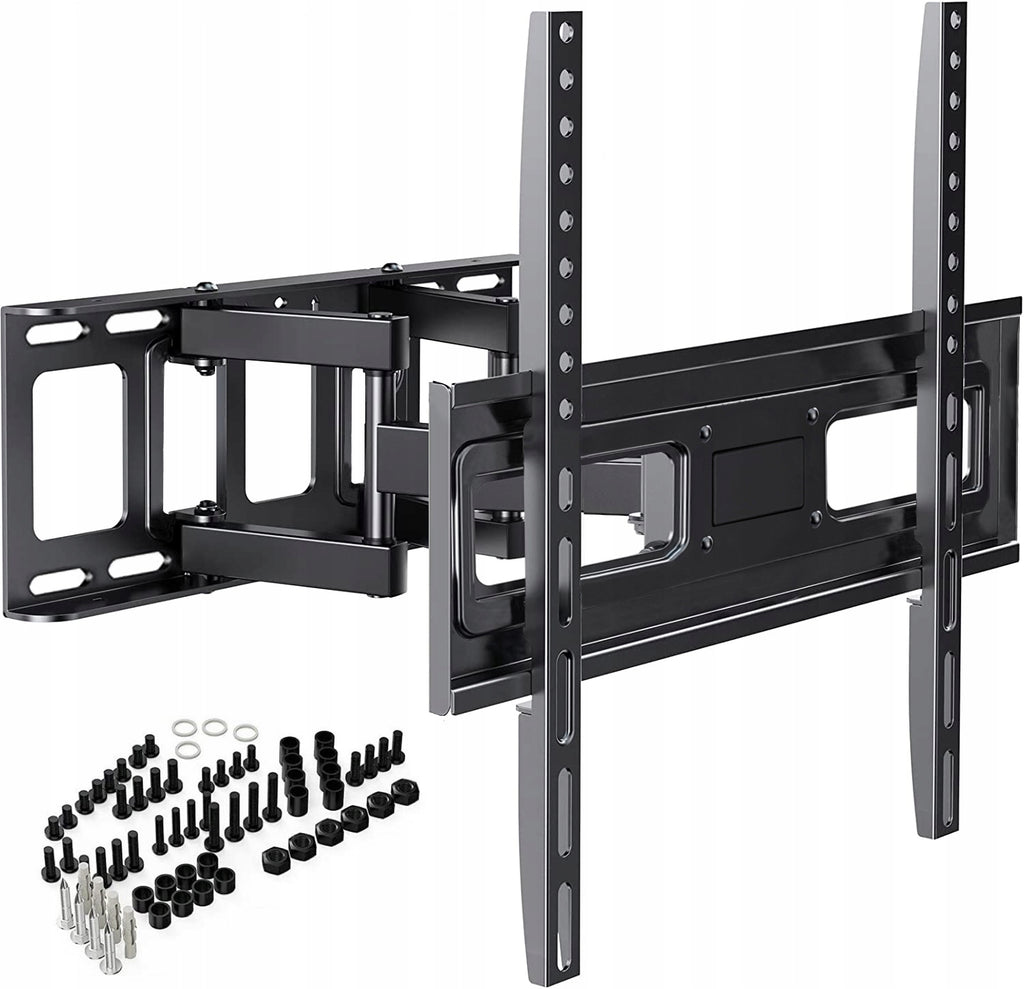

➡ wall mount x1

➡ rails x2

➡ mounting plate for TV x1

➡ Allen key x1

✅ MOUNTING HARDWARE:

➡ dowels L45mm x4

➡ screws M8x55mm x4

✅ TV MOUNTING SCREWS:

➡ screw M4x40mm x4

➡ screw M6x45mm x4

➡ screw M8x15mm x4

➡ screw M8x45mm x4

➡ spacer bushings L15mm x8

➡ washers x4

✅ This TV mount is so versatile that you can match it with any popular TV brand.

✅ Its VESA mounting hole spacing ranges from 100 x 100 mm to 400 x 400 mm.

The maximum VESA standard for this mount is 400x400 mm.

➡ VESA 100x100 (100 mm x 100 mm)

➡ VESA 200x100 (200 mm x 100 mm)

➡ VESA 200x200 (200 mm x 200 mm)

➡ VESA 200x300 (200 mm x 300 mm)

➡ VESA 200x400 (200 mm x 400 mm)

➡ VESA 300x200 (300 mm x 200 mm)

➡ VESA 300x300 (300 mm x 300 mm)

➡ VESA 400x200 (400 mm x 200 mm)

➡ VESA 400x400 (400 mm x 400 mm)

❗ ❗ And all intermediate values, e.g. 320 mm x 380 mm.

✅ Suitable for TVs weighing up to 40 kg.

➡ You can easily check for yourself what VESA standard your TV has!

➡ It is enough to measure the distance between the vertical holes and the horizontal holes located on the back of the TV (measured from the center of the holes), which are designed for mounting rails, which in turn are hung on the motherboard installed on the wall.

❗ Information about the VESA standard on your TV can also be found in the user manual, on the packaging of the TV or in its specifications.

✅ The handle has a level correction system in the range of -3° / +3°, in case of errors during assembly.

✅ It's very simple!

• 1 Loosen the mounting screws on the plate.
• 2 Adjust the appropriate level of the TV.
• 3 Tighten the screws and you're done.

✅ This system gives you the ability to set the right TV orientation for your own viewing comfort.

✅ The holder allows you to adjust the angle of rotation horizontally o 120°, adjusting the range of rotation to your preferences.

✅ Double arms make it possible to position the screen at different distances from the wall - near or far, as well as in any position, and long arms allow for installation even in the corner of the room.

✅ The flexibility of the handle ensures installation in various ways: in front of the wall and at different angles of rotation and inclination.
