Aprašymas
Trumpai apie prekę
Prekė: Tvirtas pasukamas TV laikiklis, universalus, 32"-70", VESA. Kategorija: Rankenos.
- Gamintojas: Ergosolid
- Modelis: Redox-K35
Universal Rotating TV Mount for LCD LED TVs
Model: Redox-K35
- max. lifting capacity 35 kg
- for TVs 32″- 70″

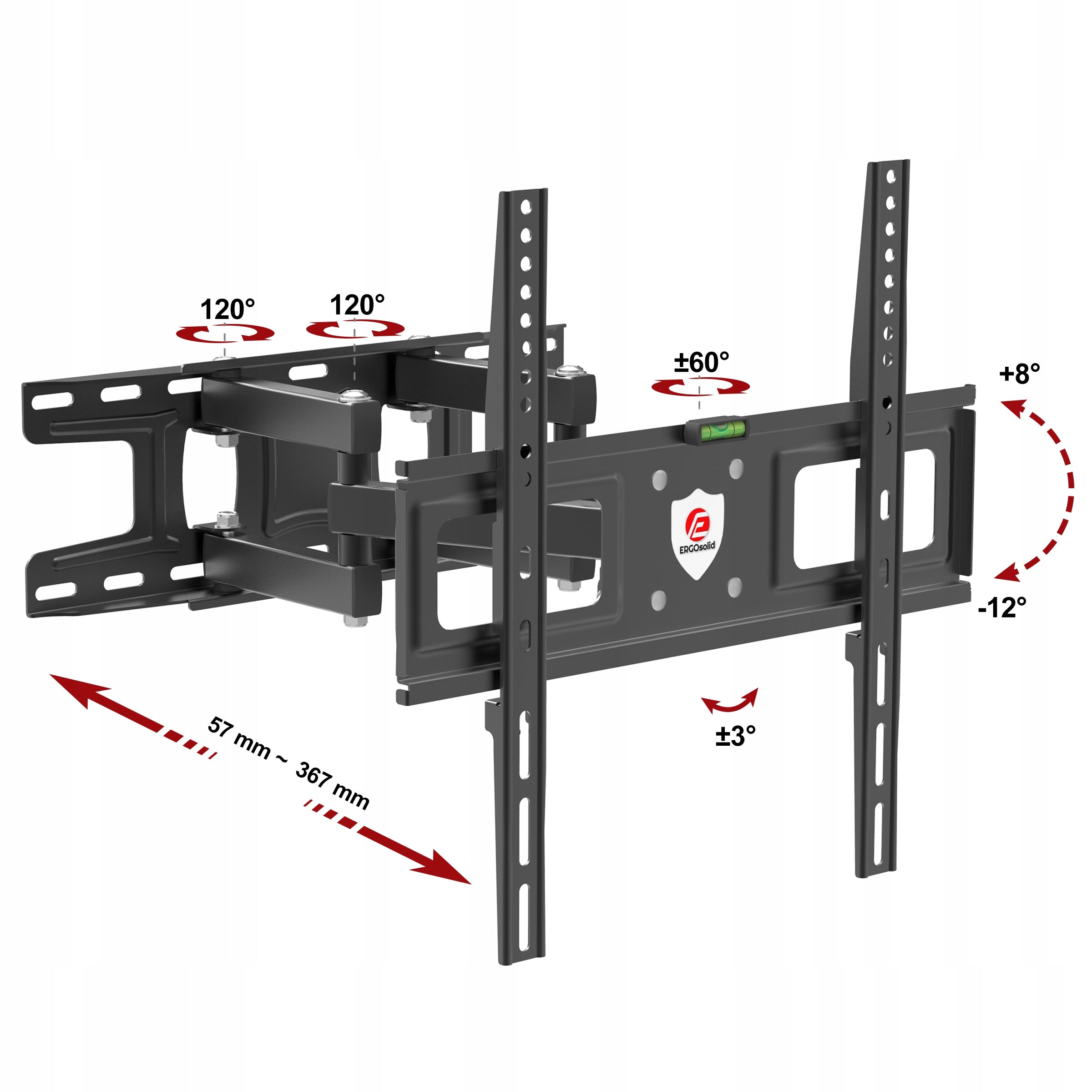

- right-left rotation adjustment up to ±60°
- tilt adjustment in the range of +8° / -12°
- ±3° screen tilt correction
- adjustable distance from the wall in the range of 57 ~ 367 mm
- available in black
- compatible with VESA 100x100 ~ 400×400 mm
- Brand: ErtuSolid® (Ergosolid Group)
CHARACTERISTIC
- designed for LCD LED TVs
- high quality workmanship with attention to detail
- unique design
- tilt adjustment
- Rotating arm
- short distance from the wall (flat design)
- tilt correction (reduction of assembly errors)
- VESA compliant
- very solid workmanship
- available in black
TECHNICAL PARAMETERS
- max. lifting capacity 35 kg
- for TVs 32"- 70"
- ±60°
- tilt adjustment in the range of +8° / -12°
- ±3° screen tilt correction
- adjustable distance from the wall in the range of 57 ~ 367 mm
- VESA compatible (mounting hole spacing) standard:
- VESA 200x100 (hole spacing 200 x 100 mm)
- VESA 200 (200 x 200 mm hole spacing)
- VESA 300x200 (hole spacing 300 x 200 mm)
- VESA 300 (300 x 300 mm hole spacing)
- VESA 400x200 (hole spacing 400 x 200 mm)
- VESA 400 (400 x 400 mm hole spacing)
- and all others in the range from 100×100 to 400×400 mm.

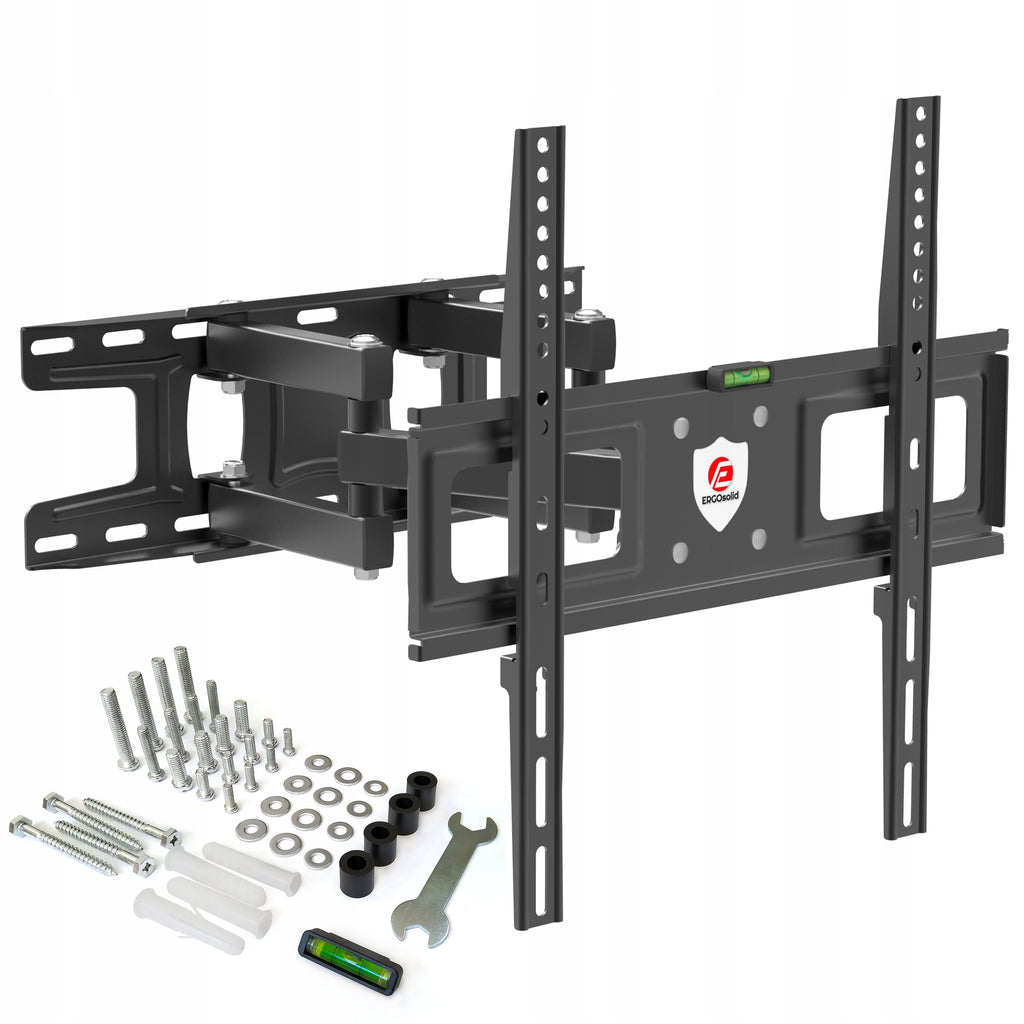

MOUNTING KIT
- Screw M5×14mm – 4 pcs.
- Screw M6×14mm – 4 pcs.
- Screw M6×30mm – 4 pcs.
- Screw M8×20mm – 4 pcs.
- Screw M8×45mm – 4 pcs.
- Distance 15mm – 4 pcs.
- Washer ⌀6×16 – 4 pcs.
- Washer ⌀6×14 – 4 pcs.
- Washer ⌀8×16 – 4 pcs.
- Screw M6x60 – 4 pcs.
- Expansion pin 10×50 – 4 pcs.
SET COMPOSITION
- handle
- set of screws*
- installation instructions
* standard/universal screws are included to fit most TVs, if they don't fit, then you should buy the right screws on your own!
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a VESA 400x200 hole spacing. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Product code: ERGOSOLIDREDOXK35BLK BRTW
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Redox-K35 |
| Parametry | Model | Redox-K35 |
| Parametry | Maximum TV size | 70" |
| Parametry | Brand | Ergosolid |
| Parametry | Maximum load | 35 kg |
| Parametry | Mounting location | wall |
| Parametry | Product weight with unit packaging | 4.11 kg |
| Parametry | EAN (GTIN) | 3760280390679 |
| Parametry | Packaging status | original |
| Parametry | Kind | rotating,retractable |
| Parametry | VESA Standard | 100 x 100,150 x 100,200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400,400 x 300 |
