Universalus 72 cm TV laikiklis, tinka 26–60 colių ekranams

Trumpai apie prekę

Prekė: Universalus 72 cm TV laikiklis, tinka 26–60 colių ekranams. Kategorija: Rankenos.

• Gamintojas: Vetouson
• Modelis: VX-197 Wieszak TV 42 cale 48 cali 50 cali 55 cali

• ➡️Extra Long 72cm Arm for 26-60 inch TVs
• ✅Achieve a Full 90° Rotation Even with TVs Up to 124cm Wide!
• ➡️This mount has been tested by our technicians with a load of 30kg!
• ✅TV mount with corner installation option. Can also be installed directly on a flat wall.
• ✅Smooth 180° Adjustment in 3 Points
• ✅Wide wall plate ensures even weight distribution of the TV on the wall, allowing you to install the mount with 6 or more anchors if needed.
• ✅This universal mount fits all TV models with VESA mounting hole patterns ranging from 200 x 200 to 400 x 400 mm and weighing up to 30 kg.
• ➡️Also suitable for TVs with curved backs
• ✅Package includes a full set of mounting accessories (including wall plugs, screws, washers needed to attach the mount to the wall, and screws and washers needed to attach the TV to the mount, as well as a spirit level)

✅SPECIFICATIONS:

• Model: VX-197
• TV Size: 26"- 60"
• Adjustable Distance from Wall: 7.5 - 72 cm
• Maximum TV Weight: Up to 30 kg
• VESA (Mounting Hole Pattern): 200x200, 200x300, 200x400, 300x200, 400x200, 300x300, 300x400, 400x300, 400x400 mm - Also compatible with all intermediate values.
• ➡️Arm Length: a Whopping 72 cm
• Swivel Adjustment (Left/Right): 180° in 3 Points
• ➡️Can be positioned perpendicular to the wall!
• Tilt Adjustment (Up/Down): +10° / -10°
• Mounting Error Correction: -3° / +3°
• Wall Mounting: Uses 4 anchors, with option for more
• ➡️Cable Management System
• Strong and Solid Construction
• ➡️Full Set of Mounting Accessories Included
• Perfectly Painted - Made with Attention to Detail
• Mount Color: Black

✅Handle with full adjustment range

• right/left rotation adjustment: 180° at 3 points
• the ability to set any position of the TV both very close - 7,5 cm and very far from the wall - 72 cm

✅Large angle of rotation to the right or left

• Thanks to the long 72 cm arms, the handle can be installed at a very large even ➡ 90° angle to the wallsy, as well as in the corner of the room. Of course, it also allows installation on direct walls.
• easily and smoothly set the selected angle of rotation of the TV

✅Close or far from the wall

• You can set the handle very close - 7,5 cm or very far from the wall - 72 cm
• ➡ full 90° that is, the handle perpendicular to the wall of rotation you will reach for a TV with a width of up to 124 cm!

✅Tilt adjustment

• In the handle, you can set the tilt level both up and down in the up/down range: +10° / -10°

✅TESTED for 30kg!

• ➡ The holder has been tested by our technicians on a load of 30 kg!

✅CABLE MANAGEMENT SYSTEM

• Easy management system will allow you to neatly guide cables

✅STRONG - SAFE - ELEGANT

• Robust, durable hardened steel
• Elegant even perfect powder coating

✅Wide wall plate that evenly distributes the weight of the TV

• If you already have your new TV, you know that it is really large, which is why a wide wall plate is so important that it will allow you to install the holder on ➡ 6 and more studs if necessary, ensuring even distribution of its weight
• The wall plate consists of a main board measuring 300 x 152 mm

✅Universal

• ➡ mount is universal and can be installed on all the most popular TV brands, in the range of 32-60 inches e.g. ✅ 32 INCHES ✅ 42 INCHES✅ 43 INCHES ✅ 48 INCHES ✅ 50 INCHES ✅ 55 INCHES ✅ 58 INCHES ✅ 60 INCHES which have VESA mounting hole spacing in the range : 200 x 200 to 400 x 400 mm and weigh up to 30 kg
• VESA 200x200 (horizontal 200mm x vertical 200 mm)
• VESA 200x300 (horizontal 200mm x vertical 300 mm)
• VESA 200x400 (horizontal 200mm x vertical 400 mm)
• VESA 300x200 (horizontal 300mm x vertical 200 mm)
• VESA 300x300 (horizontal 300mm x vertical 300 mm)
• VESA 400x200 (horizontal 400mm x vertical 200 mm)
• VESA 400x400 (horizontal 400mm x vertical 400 mm)
• and all intermediate values, e.g. 330mm x 350mm
• ➡ handle also fits TVs with curved housing

✅Assembly on two sides to choose from

• The handle can be installed both so that the arm comes out on the right or left side - to choose from. If you need to change sides, unscrew the two screws and fasten the handle to the other side.

✅Any TV position

• Allows you to move or move the TV to virtually any position

✅MOUNTING ERROR CORRECTION SYSTEM

The handle allows you to adjust the level needed, e.g. with inaccurate drilling of holes in the wall in the range of -3° / +3°

Attention!

The mount is designed for users who use a single TV setting. If we use several settings at the same time, e.g. Once the TV is at the wall itself and other times the TV perpendicular to the wall, we are not able to level the TV for both settings at the same time. The handle has a leveling adjustment through 4 screws but for each change of setting a new level adjustment is necessary. Therefore, we offer this mount for people who once set the TV and later do not change its position.

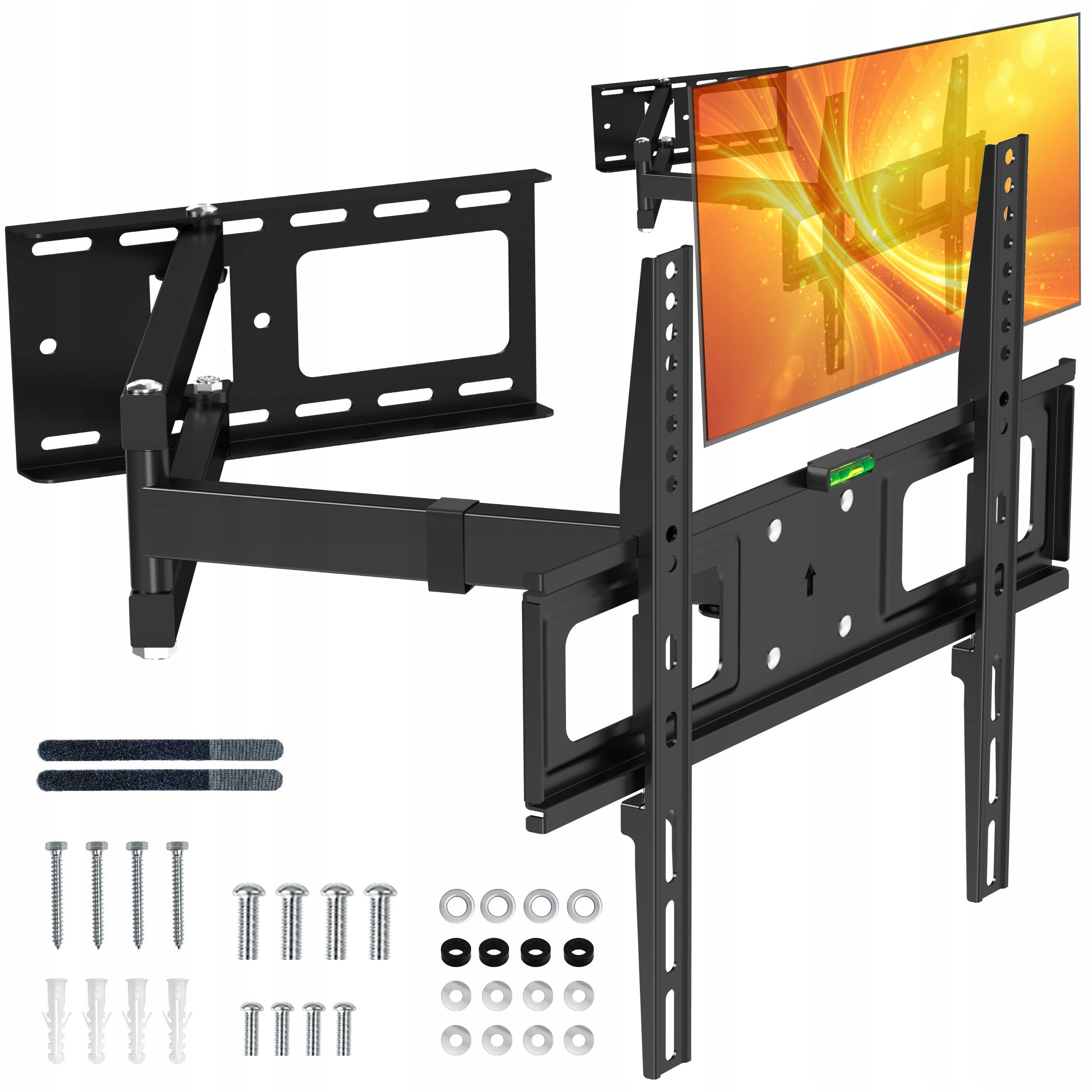

✅SET COMPOSITION

• ➡ ➡ ➡ Product presentation and assembly method is available in the instructional video at (copy the link to your browser)

• ➡ handle with necessary mounting accessories
• ➡ simple and intuitive installation
• mounting accessories for wall mount:

• Screws M8X90 8 pcs
• Dowels 12X60 6 pcs
• TV mount mounting accessories:
• Screw for TV/monitor installation M8X16 4 pcs
• (choose the right screw for the holes on your TV)
• Screw for TV/monitor installation M8X35 4 pcs
• Screw for TV/monitor installation M6X14 4pcs
• Screw for TV/monitor installation M6X30 4pcs
• Washers for the above screws 4 pcs
• Plastic bushings 5 mm 4pcs
• Plastic bushings 15 mm 4pcs
• instruction in Polish, English and German

Attention. The mount includes a universal set of TV mounting screws that fits most TVs on the market. It may happen that your TV will need other screws, then you need to purchase them on your own.
