Universalus matuoklių rinkinys MPI-507 su priedais ir PE6 kompiuterine programa

Trumpai apie prekę

Prekė: Universalus matuoklių rinkinys MPI-507 su priedais ir PE6 kompiuterine programa. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI507+WAPROSONP

Multifunctional Electrical Installation Parameter Meter + PE6 Measurement Program

SONEL MPI-507 + PE6 | WMPLMPI507+WAPROSONP

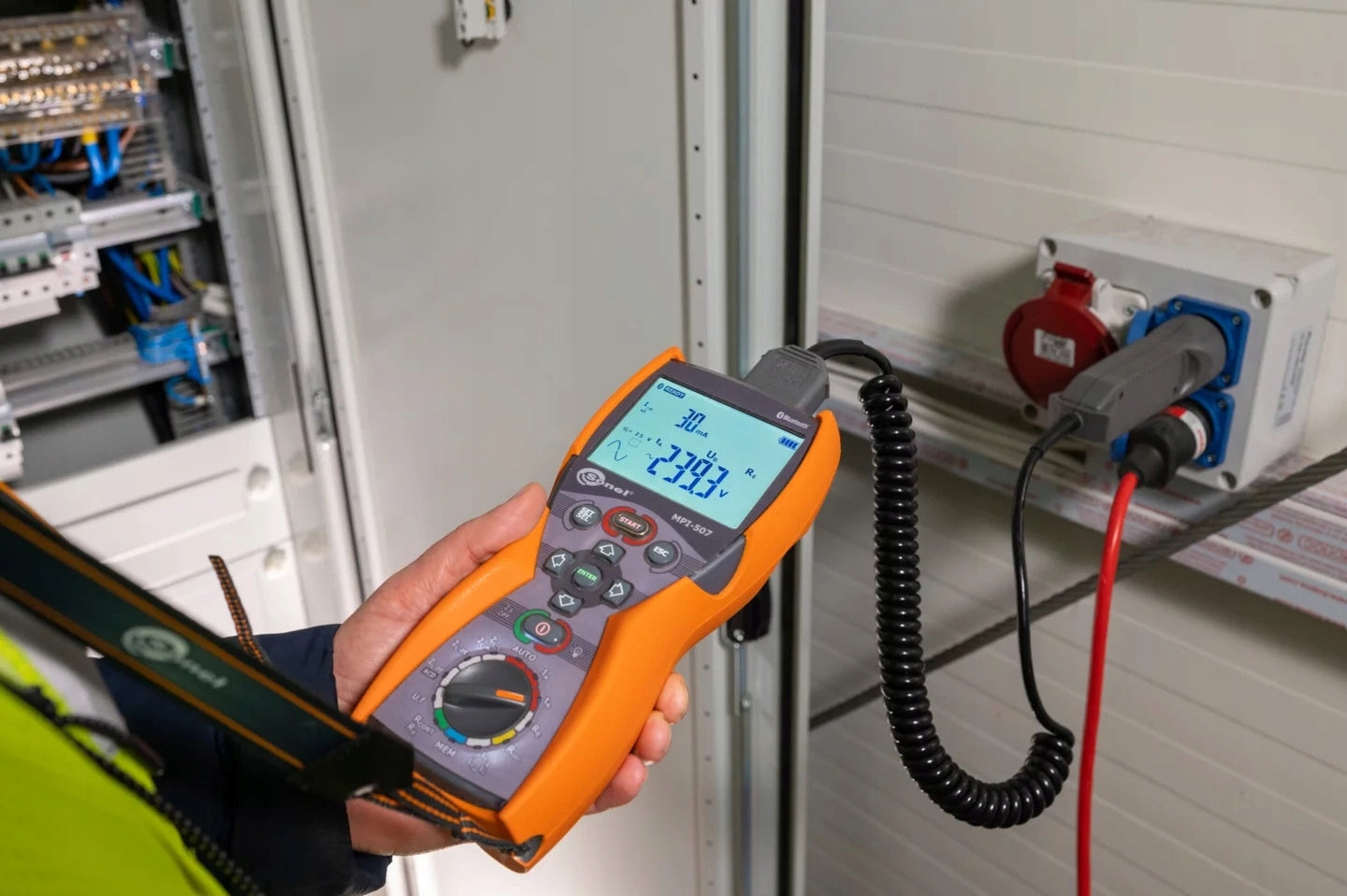

✔ Using this device, you can perform various basic measurements , including:

• Measurement of short-circuit loop parameters
• Isolation resistance
• Measurement of resistance of protective and compensatory connections

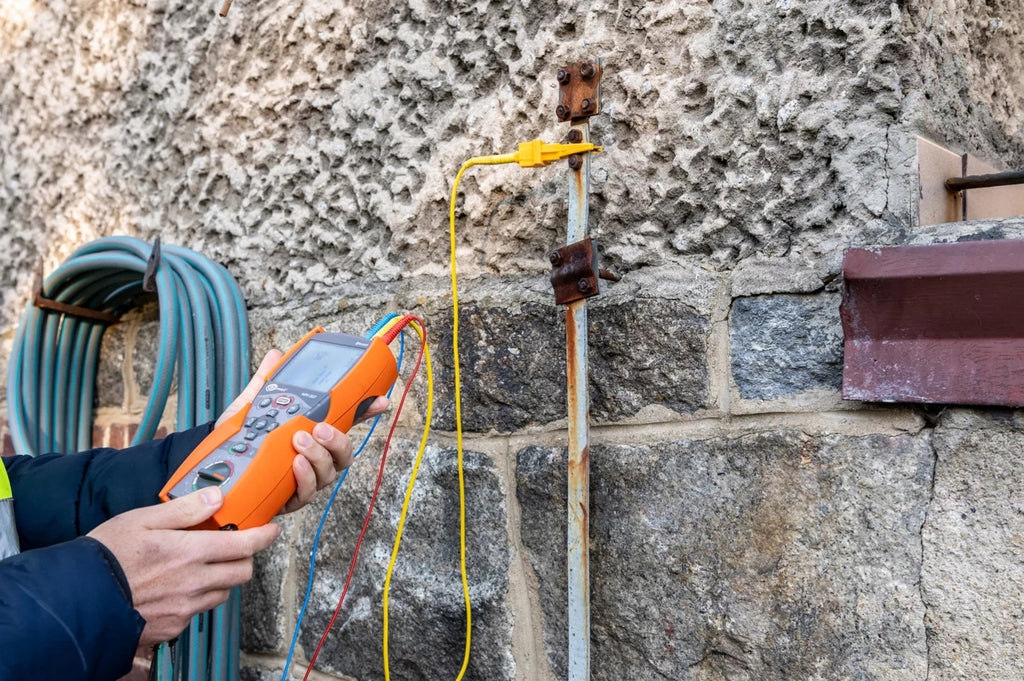

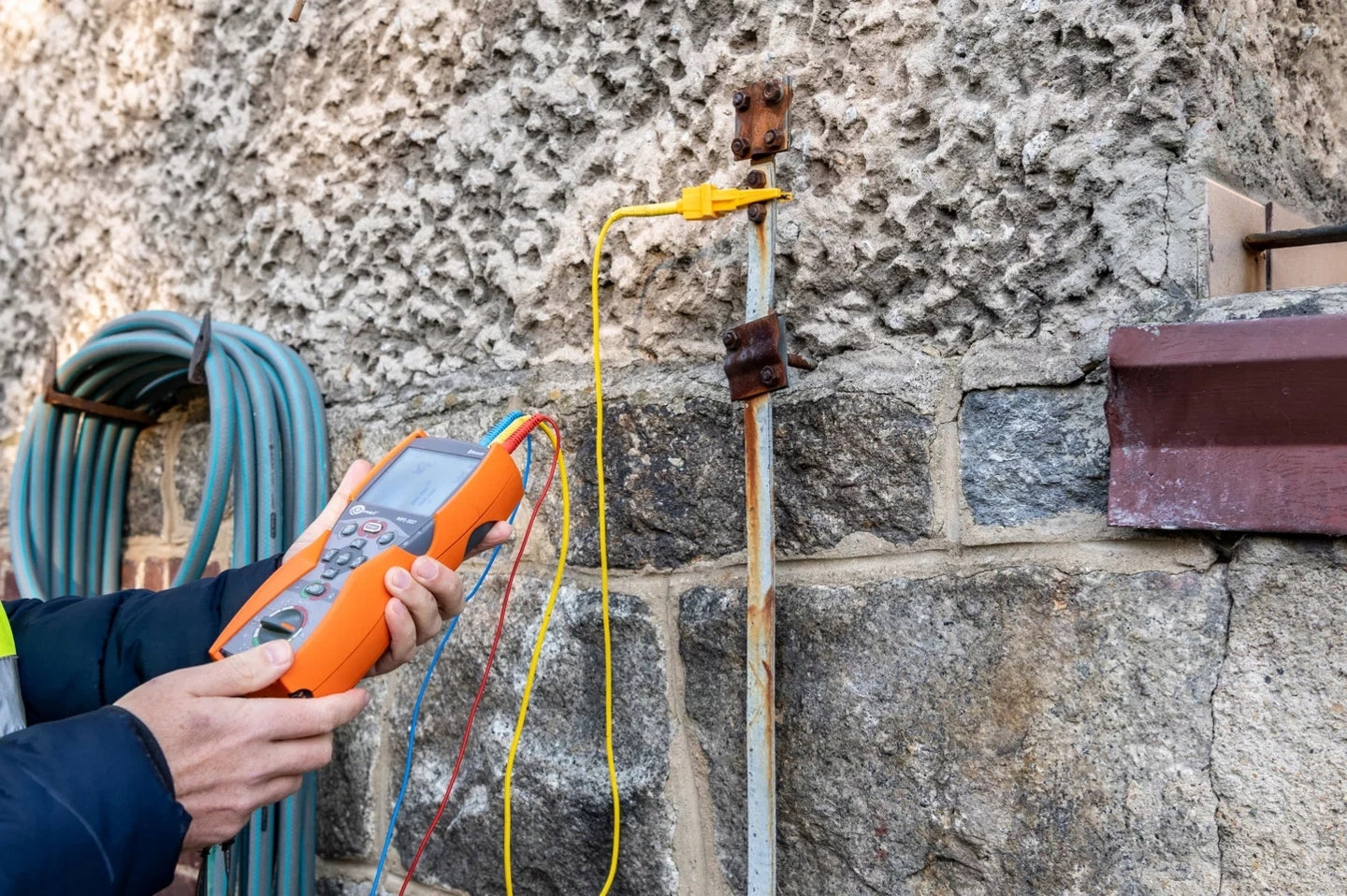

• Measurement of ground resistance
• Testing of AC and A residual current circuit breakers

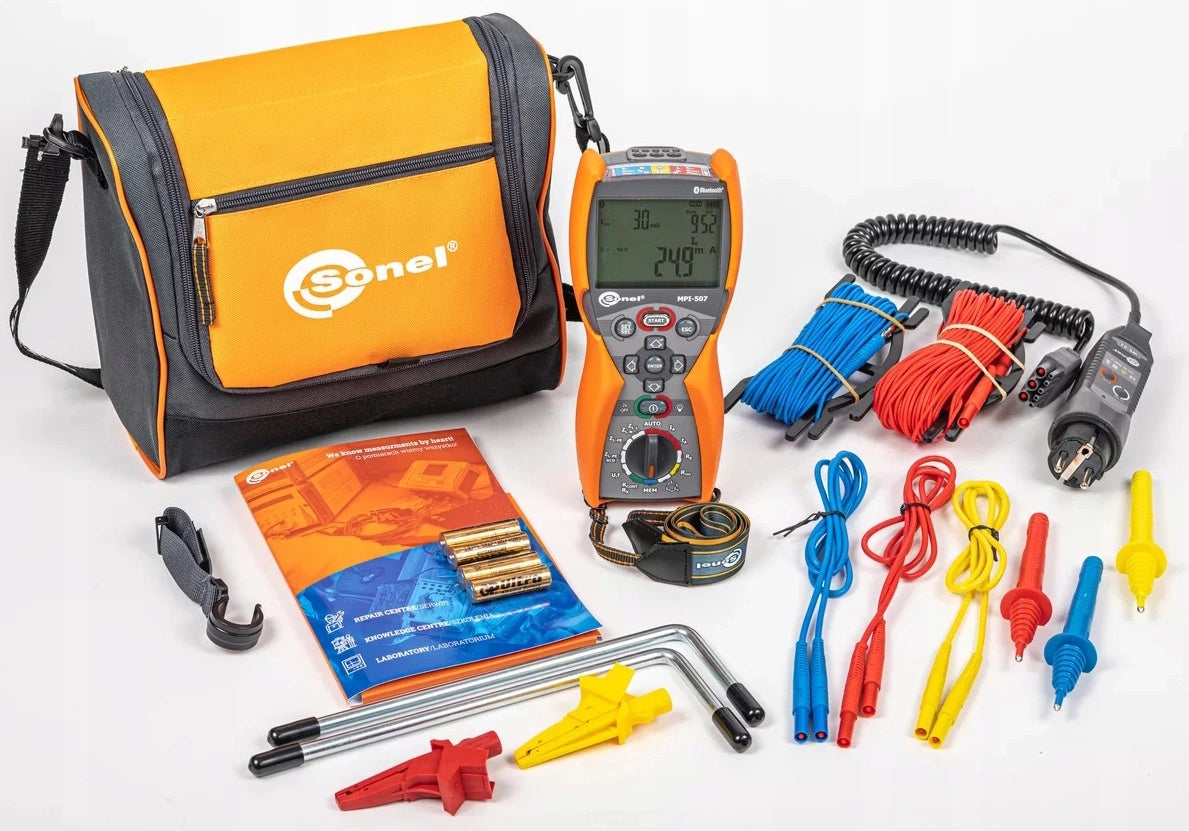

The set includes:

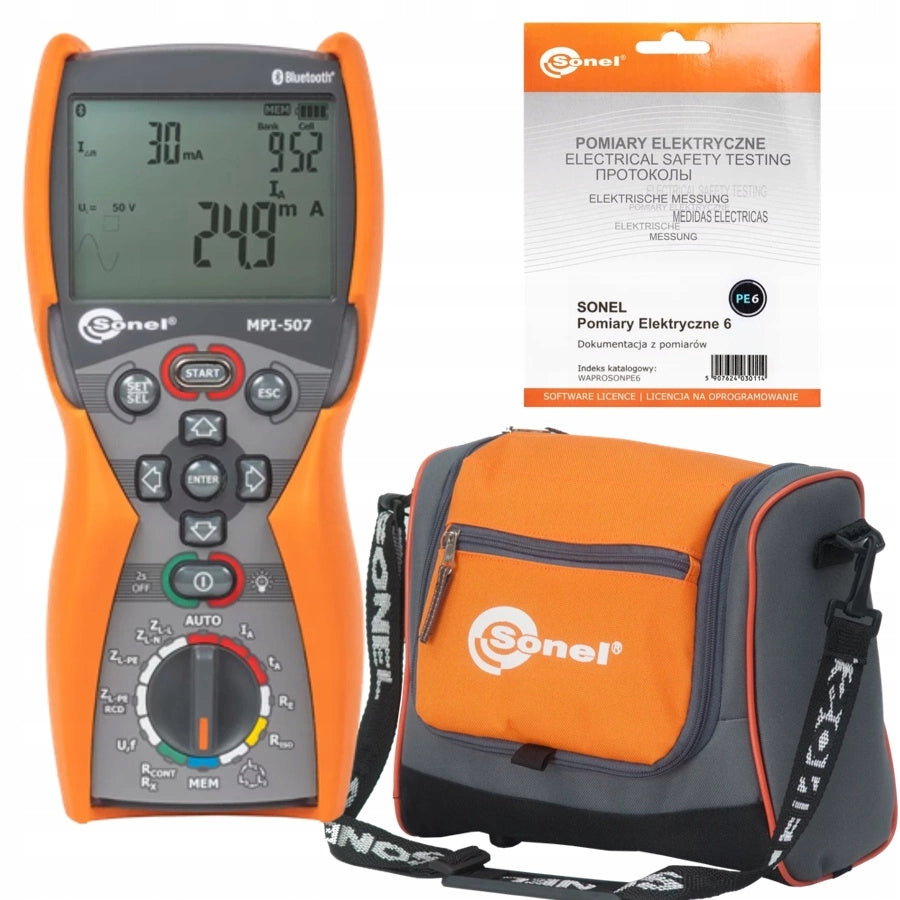

• 1 pc. Measurement SONEL MPI-507
• 1 pc. Adapter WS-03 triggering measurement (UNI-Schuko plug)
• 2 pcs. Crocodile 1 kV 20 A red / yellow
• 2 pcs. probe for driving into the ground 25 cm
• 1 pc. Case
• 1 pc. Meter braces (type M-1)
• 1 pc. Cable 15 m on winder for measuring earthing blue
• 3 pcs. Cable 1,2 m (banana plugs) red / blue / yellow
• 3 pcs. 1 kV blade probe (banana socket) red / blue / yellow
• 1 pc. 30 m cable on winder for measuring grounding red
• Handle - housing pendant M-1
• 4 x 1,5 V AA alkaline battery, LR6
• Calibration certificate
• Instruction manual
• 1 pc. PE6

Calibration certificate is a document issued free of charge in the production process of the meter.

Confirms giving metrological properties (calibration) and maintaining measurement consistency.

In the calibration certificate under the date of issue of the document there is a dotted field: “Date of commissioning”. This is the field left for the user in which the date of purchase must be entered.

The entered date of purchase can be used to determine the next calibration date based on the manufacturer’s recommendation below:

Another calibration is recommended to be carried out up to 12 months from the date of purchase, but not later than 24 months from the date of manufacture or checking.

Another metrological inspection is carried out by the Research and Calibration Laboratory of Sonel S.A. companies, and the issued document is called - Certificate of Calibration.

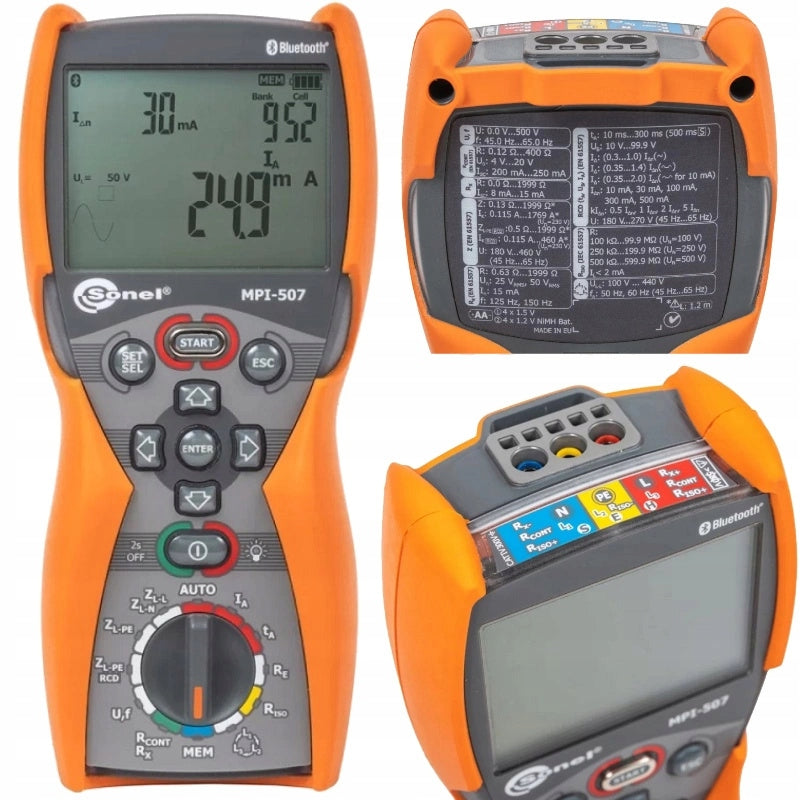

Features of MPI-507

✔ Measurement of short-circuit loop parameters

• Measurement of short-circuit loop impedance in networks with rated voltages: 220/380 V, 230/400 V, 240/415 V with frequencies 45...65 Hz, operating voltage range: 180...460 V
• Indications of resistance of short-circuit loop R and short-circuit loop reactance X
• Measurement of short-circuit loop impedance with 15 mA current without triggering residual current circuit breakers
• Maximum measuring current: 7,6 A (at 230 V), 13,3 A (at 400 V)

✔ Testing of AC type residual current circuit breakers, A

• Measurement of residual current circuit breakers without delay, short-term and selective with rated differential currents of 10, 15, 30, 100, 300, 500 mA
• Measurement of IA trigger current and tA runtime for 0,5 In, 1 In, 2 In, 5 In currents
• Measurement of RE and UB without triggering RCD
• Extended AUTO function of RCD measurement, with the possibility of measuring ZL-PE with low current
• Measurement of IA and tA with one RCD action

Additional features of MPI-507

✔ Checking the correctness of connecting a PE cable using a touch electrode.

✔ Measurement of voltage ( 0...500 V ) and network frequency .

✔ Memory 990 results.

✔ Wireless transmission of data to the computer.

✔ Backlit buttons.

Protocol Development Program

Sonel PE-6

• The latest version of the popular program for creating protocols from electrical measurements. PE6 simplifies the process of documentation execution.
• Cooperation with SONEL S.A. meters
• Tree structure of the document
• Expanded databases of securities and measuring points
• Automatic calculation of required values
• Automatic evaluation of measured results
• Schedule of measurements

In addition, the program supports the creation of documentation in the field of:

• Auto-off efficiency (TN-S, TN-C, TN-C-S, TT, IT)
• Parameters of RCD circuit breakers
• Circuit isolation status (TN-S, TN-C, TN-C-S, TT, IT)
• Electrical cable insulation
• The state of the lightning and grounding installation
• Continuity of wires
• Isolation resistance of compact and obtuse engines
• Resistance of contactors
• Resistance of circuit breakers
• Transformer devices

ADVANTAGES OF SONEL PE-6

• Insert photos and drawings into protocols
• Printing of measuring controls and descriptive labels of boards
• Calculation of measurements taken
• Printing invoices
• Automatic filling protocols with a series of data
• Automatic evaluation of measured results
• Schedule of measurements

FIRST REGISTRATION

After installation, starts in demo. To unlock all functions of the program, you must register.

1. The person conducting registrations should have administrator rights
2. We download the current version of the program from our website (www.dasl.pl)
3. Run the right mouse button as an administrator
4. We register program

Hardware requirements

• Operating system: min. Windows 10
• Minimum resolution: 1024x768
• Recommended resolution: 1920x1080
