Universalus televizoriaus ir monitoriaus stovas, 14–42", VESA

Trumpai apie prekę

Prekė: Universalus televizoriaus ir monitoriaus stovas, 14–42", VESA. Kategorija: Pagrindai.

• Gamintojas: Qumak-Sekom
• Modelis: PWHP009

HIGH QUALITY WORKMANSHIP | MODERN DESIGN | HEIGHT ADJUSTMENT | VESA 75x75 - 200x200 | TV from 14" to 42" | MAX. 29 KG

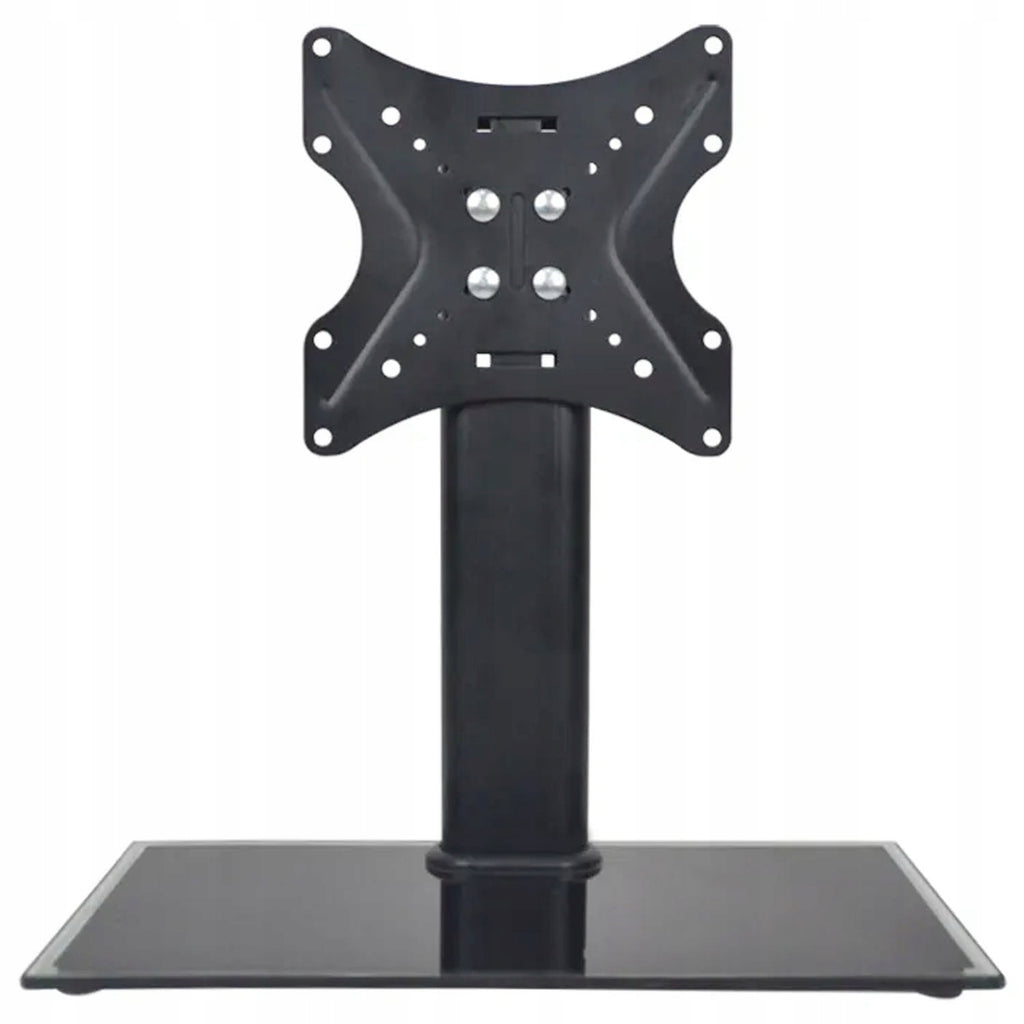

⭐ Universal standing bracket with glass base for LCD/LED TVs from 14 to 42 inches. Made of high quality materials, it is able to hold TVs weighing up to 29 kg. It has three-stage height adjustments of the mounted TV. The black powdered steel and large, sturdy glass base provide a modern design that will blend in with any TV or room.

The mount fits virtually any screen with VESA mounting on the back (4 screw slots). Compatible with TVs of brands such as SAMSUNG, LG, SONY, TCL, PANASONIC, and many others equipped with VESA mounting holes in the range from 75x75 to 200x200 mm.

⚙ Technical specification:

• Condition: new,
• Max. lifting capacity: 29kg,
• Supported screen size: 14-42",
• VESA: from 75x75 to 200x200 (mm),
• Height adjustment: 38,6/34,6/30,6 (cm),
• Leg height: 395 (mm),
• Base dimensions: 432x220x8 (mm),
• Color: black,
• Materials: powder coated steel, tempered glass,
• Package contents: steel leg, glass base, steel plate, set of screws and bolts, manual.
• Stock code: PWHP009

✅ Screen height adjustment

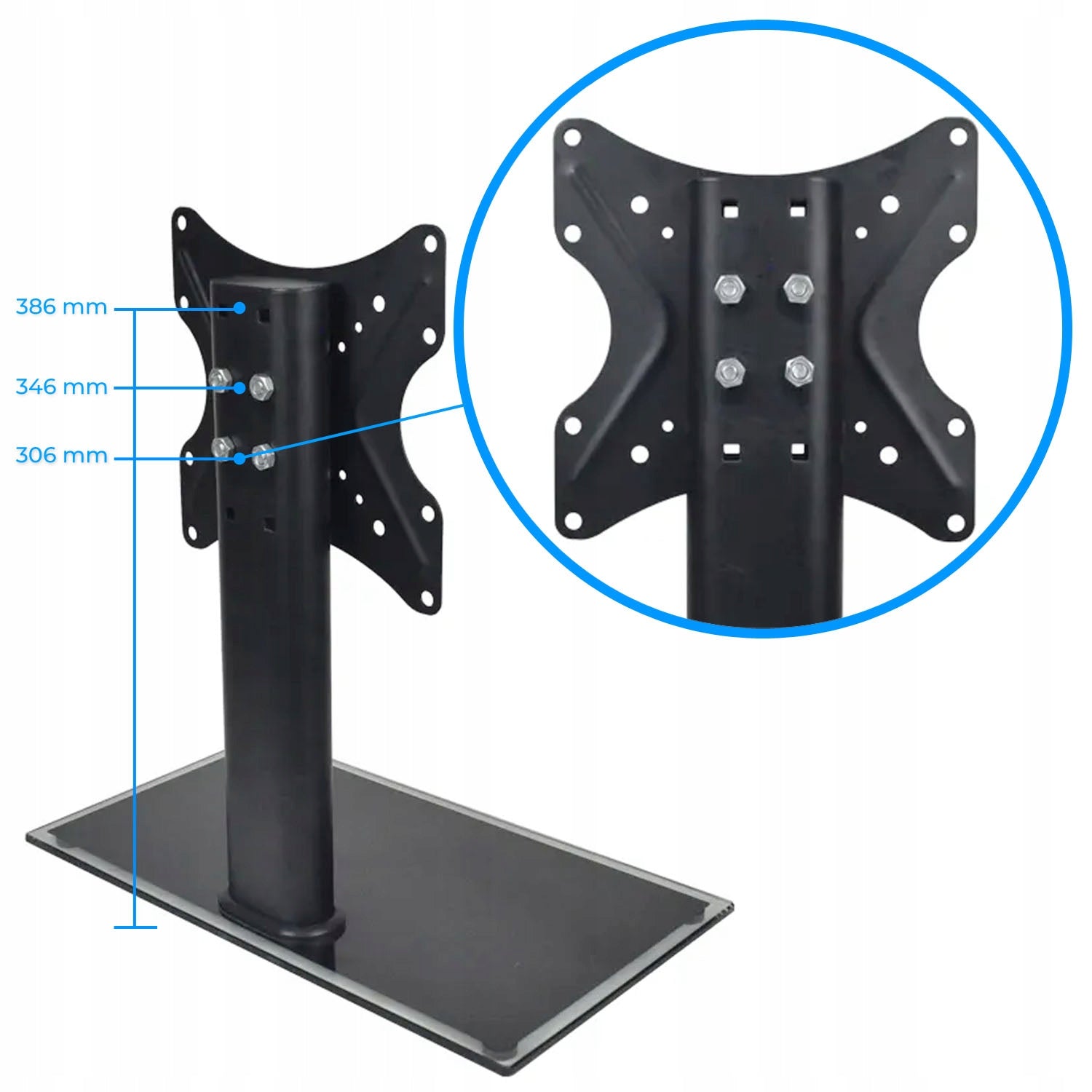

Depending on the size of the screen and your preferences, it is possible to adjust the height of the screen and the handle. The total height of the steel leg is 39,5 cm while thanks to the three-stage adjustment, the TV can be mounted at heights of 38.6, 34.6, 30.6 cm. The reinforced mounting plate evenly distributes the weight of the suspended TV.

✅ Compatible with VESA mount

The mount supports screens ranging in size from 14 to 42 inch, with the VESA mounting standard. With a wide range of compatible dimensions, most TVs can be mounted.

➡ Matching VESA dimensions:

• 75x75 (mm)
• 100x100 (mm)
• 200x100 (mm)
• 150x150 (mm)
• 200x200 (mm)

➡ How to check VESA mounting hole spacing

The VESA standard specifies the spacing of the four mounting holes located on the back of the TV. The spacing depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes in level, and the second parameter the distance between the holes in pion. Information about the compatibility of the TV with the VESA standard can be checked in the instructions, specifications on the manufacturer's website or measured yourself using a measuring cup. When choosing a mount, pay attention to the weight of the TV.

The picture next to it shows examples of available spacing of mounting holes (compatible dimensions for this handle should be checked in the technical specification above).

✅ Easy installation and simple operation

The handle is ready to install immediately after unpacking. With the included set of mounting parts and instructions, it can be mounted without having to spend money on additional components.

Screw sizes included:

• 8x45 - 4 pcs.
• 8x30 - 3 pcs.
• 6x16 - 4 pcs.
• 5x18 - 4 pcs.
• 4x16 - 4 pcs.

The included set of screws fits most screens available on the market, although in the case of mounting some models (m.in: Samsung, TCL, etc.) you may need to use longer screws or additional spacers to level the rear surface of the housing (not included in the set and should be purchased on your own).
