Aprašymas
Trumpai apie prekę

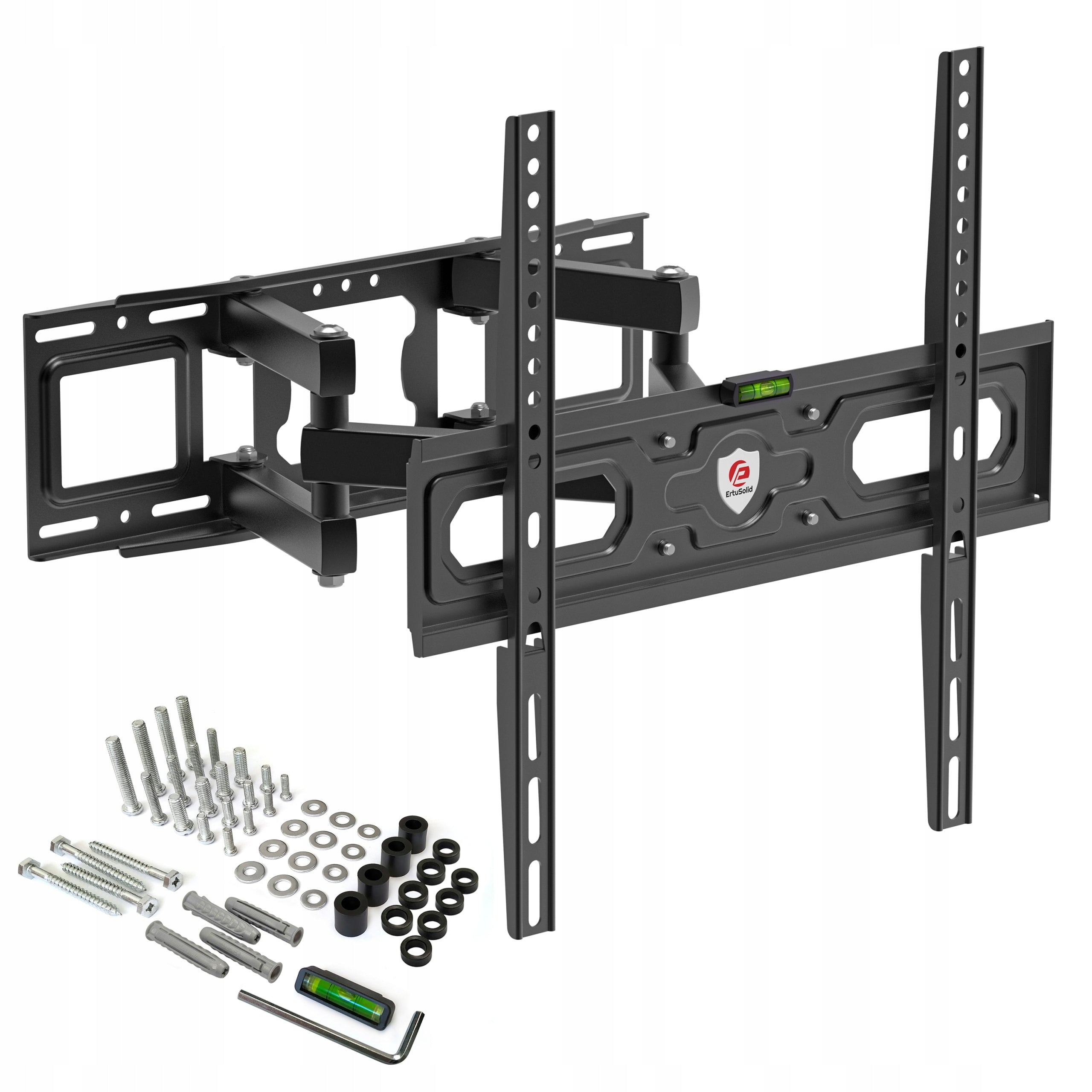

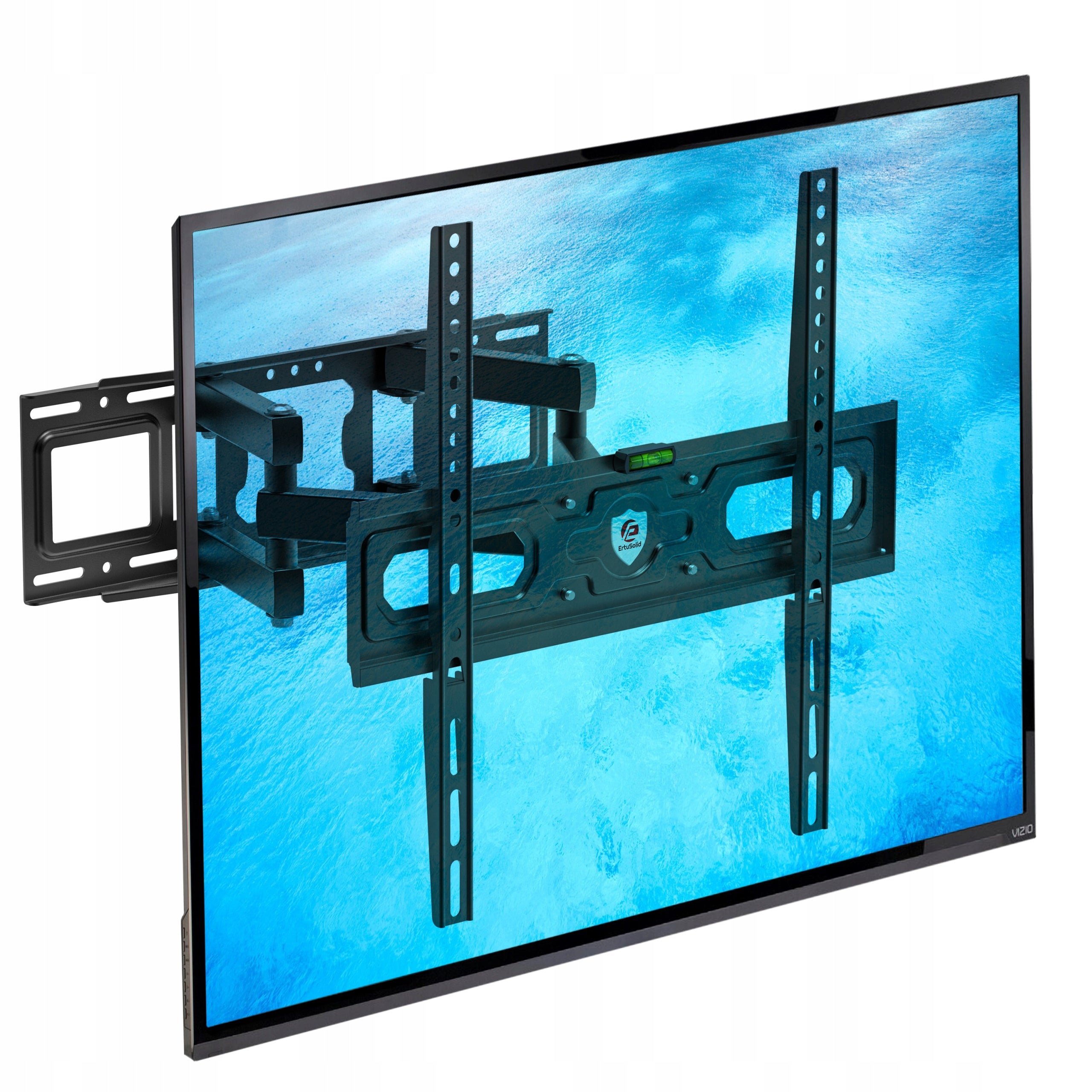

Prekė: Universalus tvirtas pasukamas TV laikiklis 35–65" VESA. Kategorija: Rankenos.
- Gamintojas: Ergosolid
- Modelis: ROX400
Model: ErtuSolid ROX400
- ✅ Maximum working capacity 45 kg
- ✅ For 35″- 65″ TVs
- ✅ Right-left rotation adjustment up to ±60°
- ✅ Tilt adjustment in the range of +5° / -12°
- ✅ ±3° screen tilt correction
- ✅ Adjustable distance from the wall in the range of 57 ~ 360 mm
- ✅ Powder coated in black
- ✅ Compatible with VESA 100x100 ~ 400×400 mm
- ✅ Brand: ErtuSolid (Ergosolid® group)
CHARACTERISTICS
- ✅ Designed for LCD LED TVs
- ✅ High quality workmanship with attention to detail
- ✅ Unique design
- ✅ Large angle of inclination
- ✅ Rotating arm
- ✅ Short distance from the wall (flat design)
- ✅ Elimination of assembly errors
- ✅ Compliant with VESA standard
- ✅ Solid
TECHNICAL PARAMETERS
- ✅ Maximum working capacity 45 kg
- ✅ For TVs 35″- 65″
- ✅ Rotation adjustment ±60°
- ✅ Tilt adjustment in the range of +5° / –12°
- ✅ Screen tilt correction ±3°
- ✅ Adjustable distance from the wall in the range of 57 ~ 360 mm
- ✅ Compatible with VESA (mounting hole spacing) standard:
- ✔ VESA 100×100
- ✔ VESA 100×200
- ✔ VESA 200×100
- ✔ VESA 200×200
- ✔ VESA 300×200
- ✔ VESA 300×300
- ✔ VESA 400×200
- ✔ VESA 400×300
- ✔ VESA 400×400
- ✅ and all others in the range from 100×100 to 400×400 mm.
MOUNTING KIT
- ✔ Screw M5×14 – 4 pcs.
- ✔ Screw M6×14 – 4 pcs.
- ✔ Screw M6×30 – 4 pcs.
- ✔ Screw M8×20 – 4 pcs.
- ✔ Screw M8×45 – 4 pcs.
- ✔ Distance 5 mm – 8 pcs.
- ✔ Distance 15 mm – 4 pcs.
- ✔ Washer M6 – 8 pcs.
- ✔ Washer M8 – 4 pcs.
- ✔ Screw M6,3×55 – 4 pcs.
- ✔ Expansion pin 10×50 – 4 pcs.
- ✔ Mini level – 1 pc.
- ✔ Allen key – 1 pc.
SET COMPOSITION
- ✅ Handle
- ✅ Set of screws*
- ✅ Assembly instructions
* standard/universal screws are included to fit most TVs, if they don't fit, then you should buy the right screws on your own!
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the VESA mounting hole spacing, the screen size itself is given by the manufacturers indicatively. Information on the VESA compatibility of the TV can be found in the user manual or on the manufacturer’s website. You can also check and measure the hole spacing yourself.
The VESA standard specifies the locations of the four mounting holes from the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter determines the distance between the holes horizontally (left - right), and the second parameter the distance between the mounting holes vertically (upper - lower).
EXAMPLE
To better understand how to measure VESA mounting holes, we have prepared an example photo of a TV with a hole spacing of VESA 400x200. In this example, the distance between the horizontal holes is 400 mm, and the distance between the vertical holes is 200 mm.
Product code: ERGOSOLIDROX400BLK BRTW
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | ROX-400 |
| Parametry | Model | ROX400 |
| Parametry | Maximum TV size | 65" |
| Parametry | Brand | Ergosolid |
| Parametry | Maximum load | 45 kg |
| Parametry | Product weight with unit packaging | 3.5 kg |
| Parametry | EAN (GTIN) | 3760280392437 |
| Parametry | Packaging status | original |
| Parametry | Kind | rotating,retractable |
| Parametry | VESA Standard | 100 x 100,150 x 100,200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 300,400 x 200,400 x 400 |
