USB 3.0 Bluetooth emuliatorius MP3 FLAC Audi Seat Skoda VW

Trumpai apie prekę

Prekė: USB 3.0 Bluetooth emuliatorius MP3 FLAC Audi Seat Skoda VW. Kategorija: CD keitiklių emuliatoriai.

• Gamintojas: WEFA
• Modelis: WF606 VAG

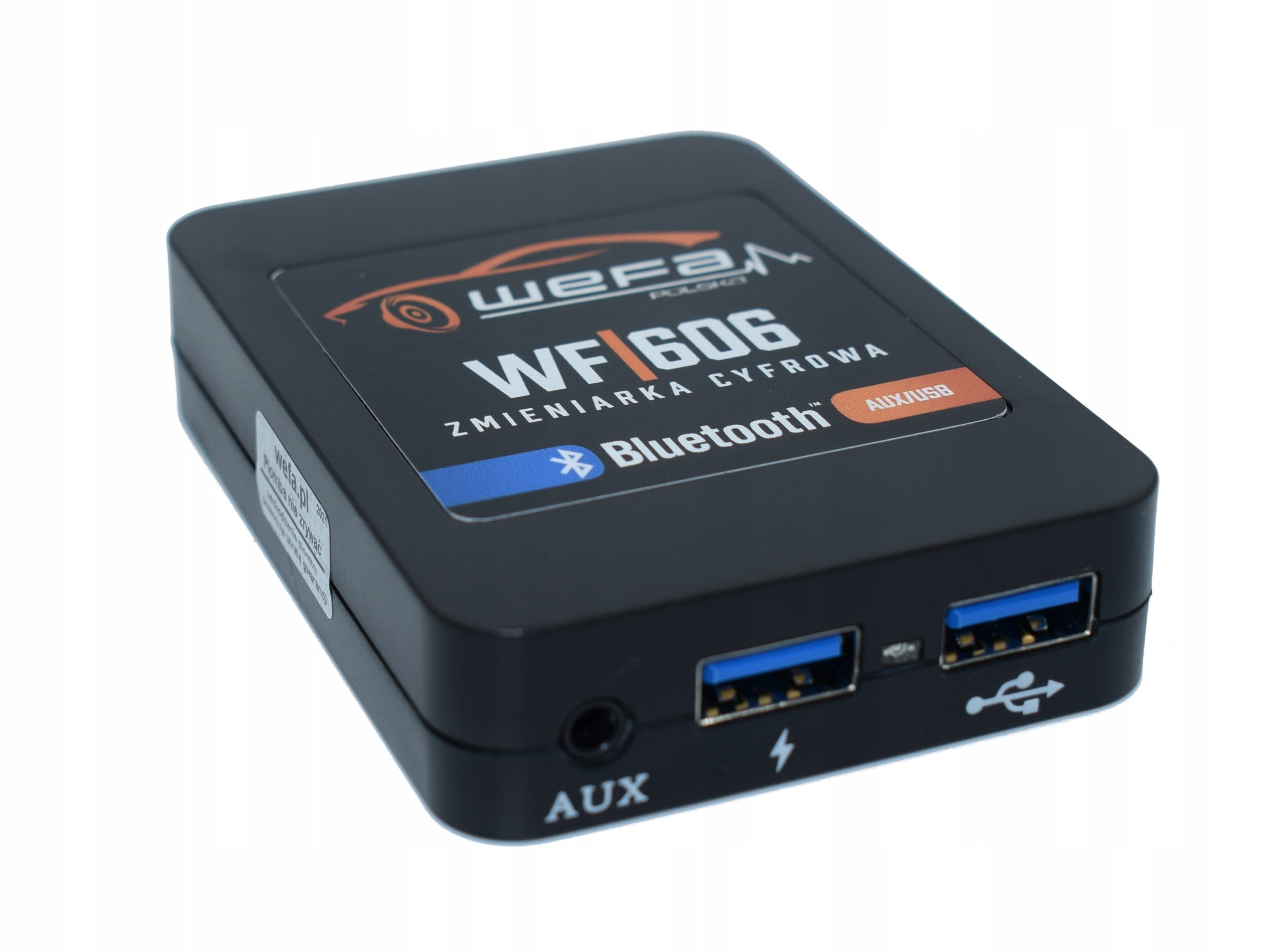

New quality among car changer emulators.

Digital changer WEFA WF 606 designed for cars:

1. Volkswagen
2. Audi
3. Seat
4. Skoda

8 or 12pin connectors to choose from!!

What sets it apart?

• Totally new faster processor-
• support for Bluetooth 5.0 and older ,
• compatibility with USB 3.0,
• playback of FLAC,
• high quality workmanship.

We give 30 days to check and possibly return the equipment!

Key benefits!

This changer eliminates imperfections of Yatour, Xcarlink,DMC changers and without any problem:

-supports all flash drives also USB 3.0 up to 32GB (competition has big problems with this),

- it is equipped with Bluetooth with support for BT 5.0 and older for transferring music Spotify,Tidal itp. and use as a speakerphone. (A2DP, AVRCP, HFP, SPP, GATT, ATT protocols)

- playback of mp3 and FLAC files - and other formats in lossless audio compression,(MP2, MP3 (tot 320Kbit/s bitrate), WMA, FLAC (8, 16, 24 bit), ACC / MP4 / M4A, WAV, AIF, AIFC

- does not require creating directories with strictly defined names (e.g. CD01/CD02 etc. ) but gives this possibility if we care about the order of playback of songs

- 2 USB ports one for charging devices(5V 2A), the other for playing music from the pendriva,

- aux in, socket

- microphone external for hands-free function.

- possibility of updating of the software in the future,

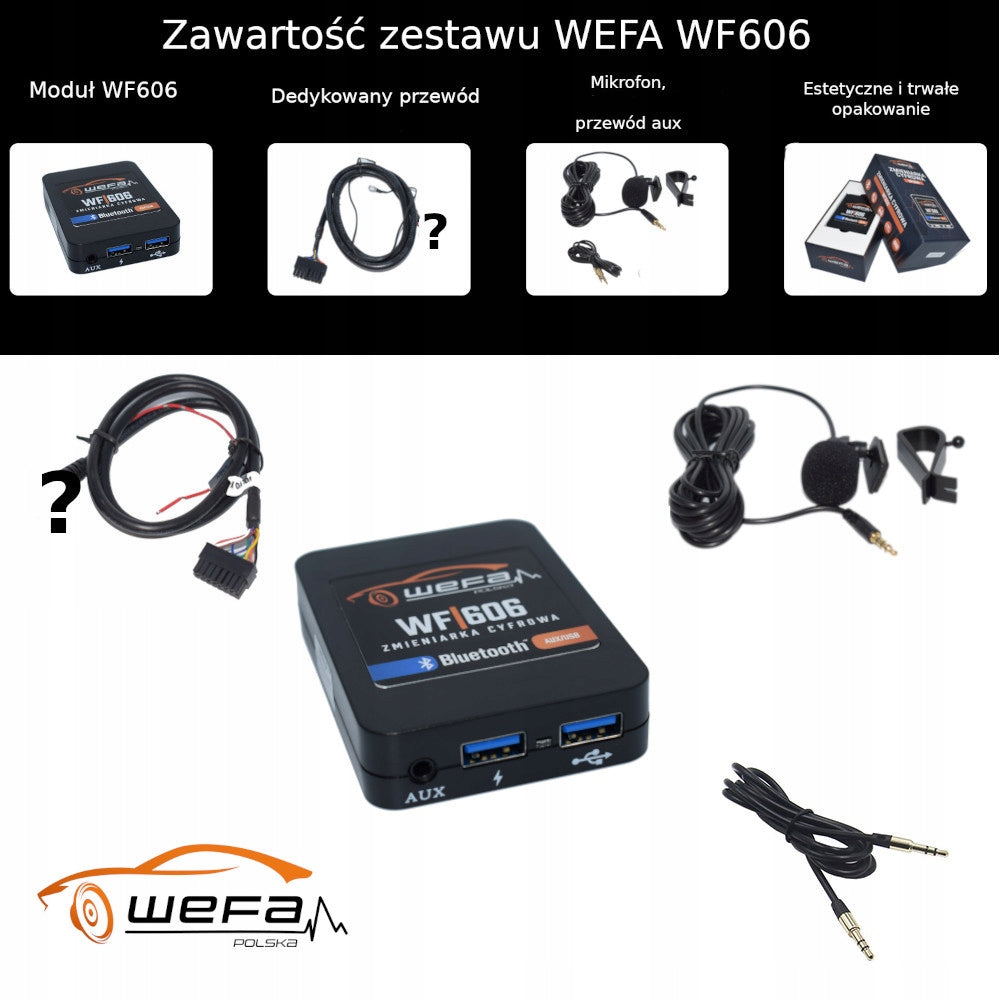

Set Contents:

• WEFA 606 module
• cable dedicated to your radio
• jack-jack cable,
• microphone,
• instruction,

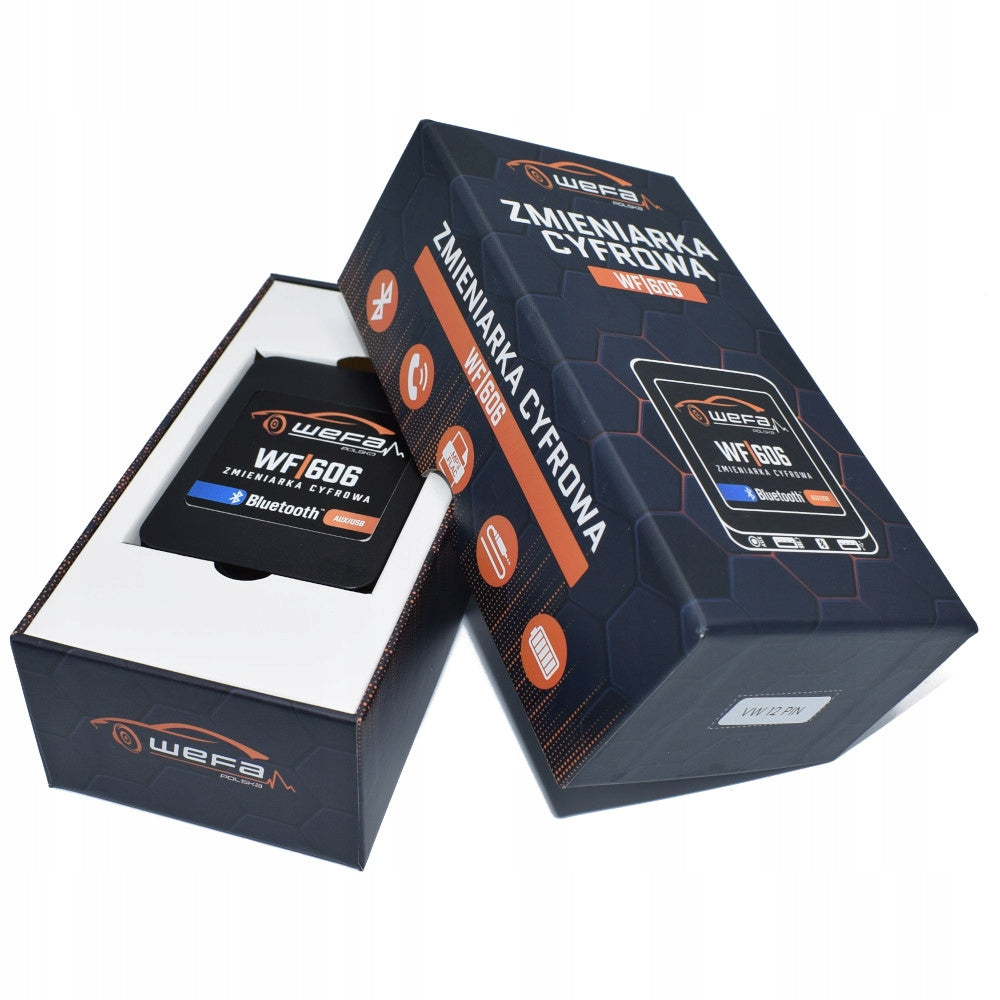

• cardboard packaging.

Technical data

• Supply Voltage: 10.8V~14.6V DC
• Dimensions: 4,5cm x7,5 cm x 2cm
• Current consumption during operation: 200mA
• Standby Consumption: 3mA
• Operating temperature -35℃~+85℃
• DAC Audio Transducer: 20bit
• Total Harmonic Distortion: 0.05%
• Signal/Noise Ratio: 90dB
• Frequency Response: 20HZ-20KHZ
• Cable length approx.1m

Installation depending on the radio model and 8pin or 12pin connector check the tables below.

Audi radio 8pin ( + splitter optionally)

• Chorus 2
• Concert 1
• Concert 2
• NaviPlus
• Symphony 1
• Symphony 2

Mounted in cars:

• Audi A2: 1999-2005
• Audi A3: 2001-2006
• Audi A4/S4: 1998-2006
• Audi A6/S6: 2001-2004
• Audi A8/S8: 1999-2003
• Audi AllRoad: 2000-2005
• Audi TT: 1999-2003

* in some Audi models with a black integrated connector, an Audi 20 pin splitter may be useful, available on our other auction for PLN 20, as shown in the photo above.

Volkswagen radio 8pin:

• Alpha 5
• Alpha 5 (Beetle)
• Beta 5
• Beta T4
• Gamma
• Gamma 5
• Gamma CD (Beetle)
• Premium 4 (Clarion)
• Premium 5 (Delco)
• Rhapsody
• RNS-MCD
• RNS-MFD
• Z6Z9 (Phaeton)
• Z9Z7 (non-uw Beetle)

Mounted in cars:

• Volkswagen Beetle: 1999-2008
• Volkswagen Convertible: 1998-2001
• Volkswagen Golf/GTI/R32(4): 1998-2002
• Volkswagen Jetta: 1999-2002
• Volkswagen Passat(B5 and B5fl): 1999-2004
• Volkswagen Polo: 1999-2004
• Volkswagen T5: 1999-2002
• Volkswagen Sharan: 1998-2001

Seat radio 8pin:

• Seat Alana
• Seat Aura / Aura CD
• Seat Arosa radio cassette
• Seat Elba
• Seat Lena
• Seat Liceo
• Seat Scala
• Seat Radio Navigation System MFD
• Seat Navigation System MCD
• Seat Dynamic Navigation System
• Seat High
• Seat 5201 RDS

Mounted in cars:

• Seat Alhambra: 1996-2004
• Seat Arosa: 1997-2004
• Seat Cordoba: 2003-2006
• Seat Ibiza: 1999-2007
• Seat Leon: 2000-2005
• Seat Toledo: 1999-2005
• Seat Vario: 1999-2005

Skoda radio 8pin:

• Gamma
• MS 303
• MS 402
• MS 411
• MS 501 / MS 502
• 5300 RDS INFOMAT
• 5600 RDS INFOMAT
• Symphony Cassette
• Symphony CD
• Symphony CD High
• Melody CC (Cassette)
• SatCompass (RNS MCD)
• RNS MFD1 (NAVI PLUS I)

Mounted in cars:

• Skoda Superb: 2003-2008
• Skoda Octavia: 2003-2007
• Skoda Fabia: 2003-2008

Audi radio 2 din:

• Chorus 2 Plus
• Chorus 3
• Concert 2 Plus
• Concert 3
• Symphony 2 Plus
• Symphony 3
• Audi Navigation Plus RNS-E,
• Audi Navigation RNS-LOW (BNS 5.0)

Mounted in cars:

• Audi A3: 2007-2010
• Audi A4 / S4: 2007-2009
• Audi TT: 2007-2010
• Audi R8: 2006-2009

Volkswagen radio 12pin:

• Delta 6
• Delta 7
• Navigation 7L6
• Premium 6
• Premium 7 (MP3)
• R100
• RCD100 (R110)
• RCD200
• RCD210
• RCD300
• RCD310, until the end of 2010
• RCD500, until the end of 2010
• RCD510, until the end of 2010
• Radio Navigation S2 (RNS2)
• RNS MFD 2
• RNS300 (not MDI), until the end of 2010
• RNS310 (not MDI), until the end of 2010
• RNS510 (MFD 3), until the end of 2010
• RNS810 (not Phaeton)

Mounted in cars:

• Volkswagen Beetle: 2009-2011
• Volkswagen EOS: 2007-2011
• Volkswagen Fox: 2004-2011
• Volkswagen Golf/GTI/R32: 2004-2011
• Volkswagen Jetta: 2003-2011
• Volkswagen Passat: 2004-2011
• Volkswagen Polo: 2005-2011
• Volkswagen Rabbit: 2007-2011
• Volkswagen Sharan: 2003-2010
• Volkswagen T5: 2003-2011
• Volkswagen Tiguan: 2007-2011
• Volkswagen Touareg: 2002-2011
• Volkswagen Touran: 2003-2011

Skoda radio 12pin:

• Skoda Amundsen (RNS 310), until the end of 2010
• Skoda Beat
• Skoda Blues
• Skoda Bolero (RCD 510), until the end of 2010
• Skoda Columbus (RNS 510), until the end of 2010
• Skoda Cruise (RNS 300), end 2010
• Skoda Dance
• Skoda Melody CD
• Skoda Nexus (RNS MFD2)
• Skoda Rhapsody
• Skoda RCD 300
• Skoda RCD 500, to the end of 2010
• Skoda Stream / Stream MP3
• Skoda Swing (RCD 310) to the end of 2010
• NOTE does not work with Audience radio- which is in the photo next to

Occurring in cars:

• Skoda Fabia:
• Skoda Octavia:
• Skoda Roomster:
• Skoda Superb:
• Skoda Superb Combi:
• Skoda Yeti:

Seat radio 12pin:

• SE350
• SE359
• SE360
• RCD200
• RCD200 MP3
• RCD210
• RCD300
• RCD310 (until the end of 2010)
• RCD500 (until the end of 2010)
• RCD510 (until the end of 2010)
• RNS300 (not MDI until the end of 2010)
• RNS310 (not MDI until the end of 2010)
• RNS MFD 2
• RNS MFD 3 = RNS510

Occurring in cars:

• SEAT Altea: 2005-2010
• SEAT Leon: 2006-2010
• SEAT Toledo: 2006-2010

Important! After purchase, please specify which 8 or 12pin connector to send!!

If you need keys to remove on the radio, please visit the other auctions.
