UVB lempa 311 nm Kernel KN-4003BL2 žvynelinei, vitiligui, atopiniam dermatitui

Trumpai apie prekę

Prekė: UVB lempa 311 nm Kernel KN-4003BL2 žvynelinei, vitiligui, atopiniam dermatitui. Kategorija: Raminančios ir terapinės lempos.

• Gamintojas: Kernel
• Modelis: KN-4003BL2
• Spalva: white

The KERNEL lamps are medical devices within the meaning of the Medical Devices Act, meet the requirements of the Medical Device Regulation (EU) 2017/745 and are entered in the Register of Medical Devices. Certificate C681005 (issued by the notified body DNV GL CE 2460 from NORWAY means full control of the design, production of testing and marketing).

DESCRIPTION OF THE SUBJECT:

Framework with comb, display, timer, mounted medical fluorescent lamp Philips PL-S 9W/01 2P G23d 230V UVB 311nm, glasses protecting against UV rays, MED tester to determine the exposure time and shield for more accurate exposure of point places.

NEW MODEL - KN-4003BL2 - more practical, better made (an aperture in front of the fluorescent lamp has been added to the new models, which facilitates dosing, thanks to the aperture from the lamp you can get more healing power and the use of an aperture in the lamp extends the life of the Philips UVB fluorescent lamp)

The lamp contains instructions in Polish. The instructions for use are in the form of two books, which proves the originality of the product!!!

ADDITIONALLY, WE ADD:

• IMPORTANT INFORMATION WITH A DESCRIPTION OF THE TREATMENT AND RECOMMENDATIONS FOR PERFORMING RADIATION FOR EACH DISEASE!!!
• Journal of UVB radiation therapy.
• MED tester for safely determining the minimum dose of UV-B stream - includes a strip with 5 different testing fields. The difference in the demonstrated dosage in the test fields is the result of different output, and therefore different UV-B radiation. (in the instructions there is a description of the use of the tester) Before starting therapy, it is easy to determine the initial exposure time with the MED tester!
• The lamp is packed in original and safe manufacturer's packaging with blue protective foam!!!
• Effective phototherapy of psoriasis, vitiligo, eczema, AD, alopecia areata confirmed by clinical trials for PHILIPS UVB Medical lamps.
• The offered UV phototherapy lamp is a certified device with the status of a medical device.

MED tester, iris, glasses, manual, additional information with treatment description

Tester - a strip with 5 different testing fields. The difference in the demonstrated dosage in the test fields is the result of different outputs and therefore differential UV-B radiation.

UV Safety Glasses

• The luminaire is equipped with PHILIPS UVB 311nm lamps, which allow you to perform a wide range of therapeutic activities.
• The lamp has a comb that can be removed and with a larger therapeutic dose irradiate with 0cm changes on body parts
• Small size, light weight, patients can take the device with them,
• Reasonable price, easy to use, patients can treat at home, without having to visit offices

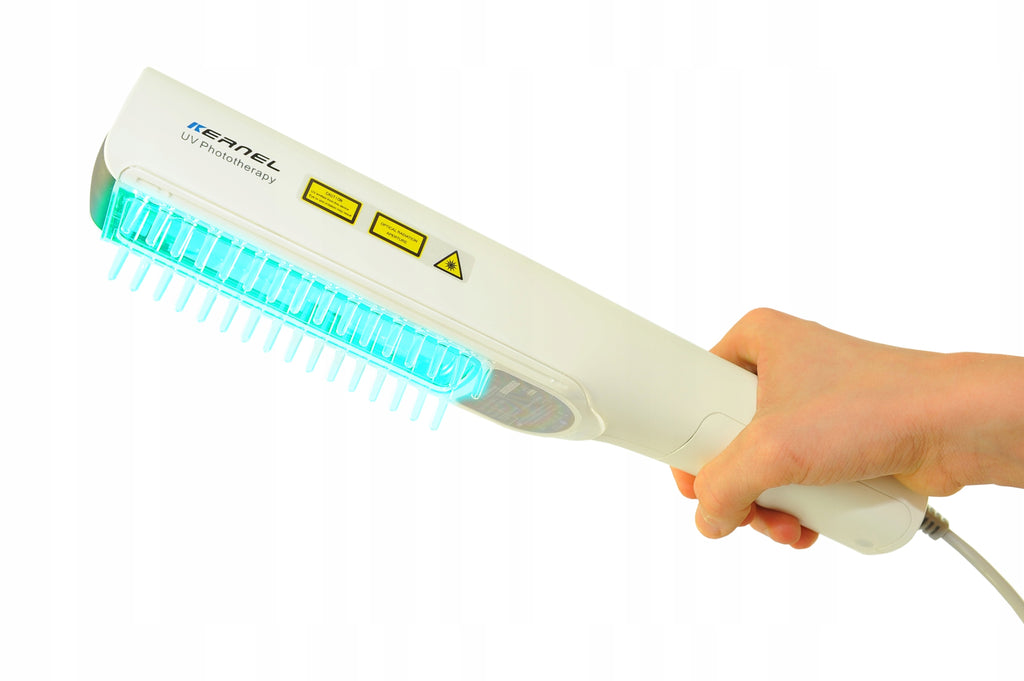

• The comb's unique design allows you to treat your scalp,
• The reflector used in the lamp is designed to improve the efficiency of radiation,
• Applied shutter in the lamp - standard Dermalight 80

• waterproof and dustproof - the lamp can be washed
• allows after sliding the comb with a higher therapeutic dose to irradiate by applying the lamp directly on the lesions (irradiation from 0 cm)
• When irradiating the scalp, the protective glass is a protection against touching the hair to the fluorescent lamp, which has a positive effect on the condition of the hair and on the longer life of the fluorescent lamp because it does not get dirty.

Optical protective cover - shutter

• waterproof and dustproof - can be washed
• allows after sliding the comb with a higher therapeutic dose to irradiate by placing the lamp directly on the lesions (irradiation from 0 cm)
• When irradiating the scalp, the shutter is a protection against touching the hair to the fluorescent lamp, which has a positive effect on the condition of the hair and on the longer life of the fluorescent lamp because it does not get dirty.

EXTERNAL APPEARANCE

1 - Panel displays set and counts down the set time

2 - Plexa aperture that allows you to place the lamp directly on the skin, thanks to which we get a higher therapeutic dose, available only in the new model

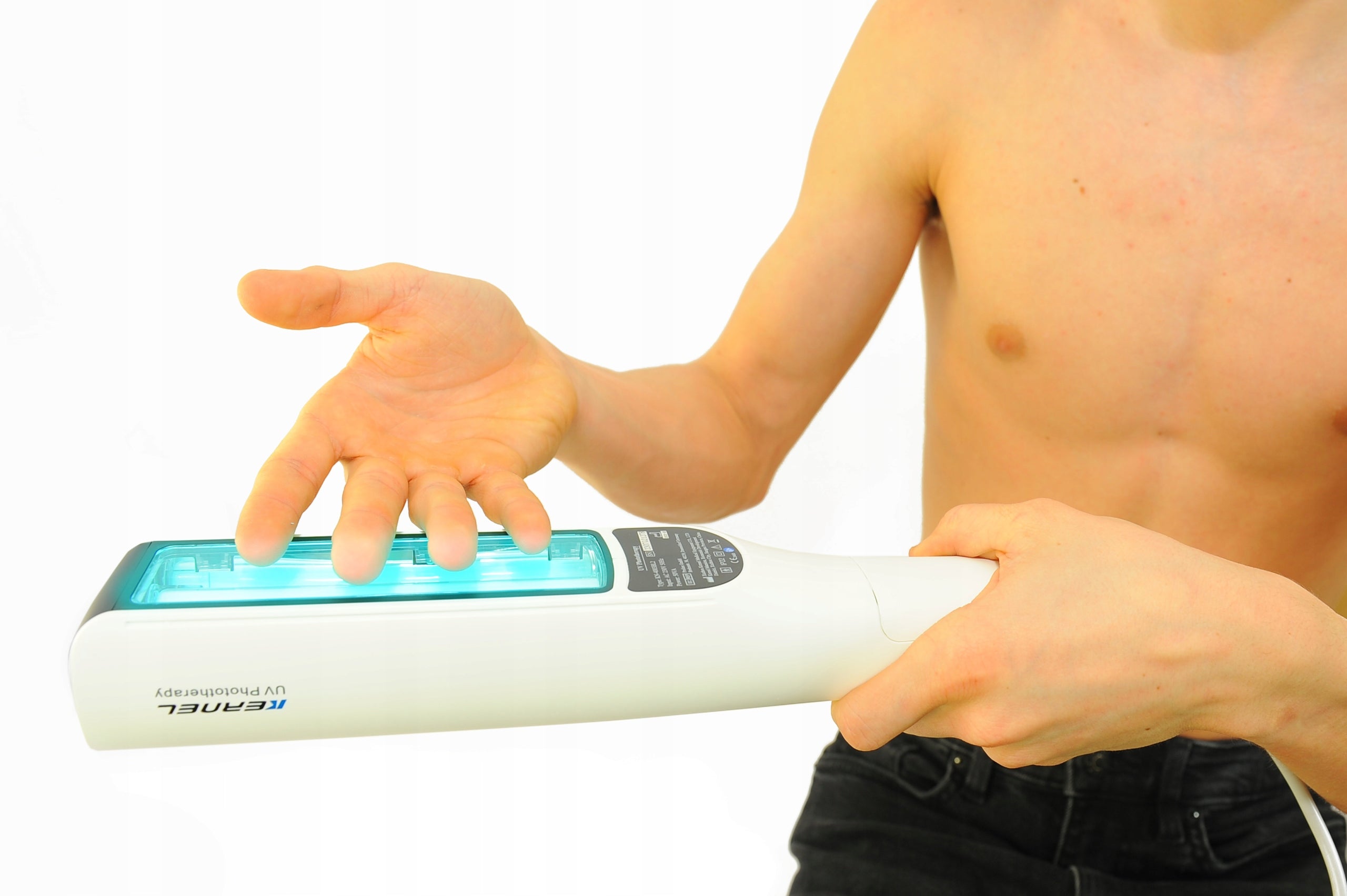

The UVB luminaire is designed for the treatment of small parts of the body, scalp and hard-to-reach places and after removing the comb is ideal for irradiating the groin, hands, feet, shins, etc.

With scalp irradiation, the comb ensures that a certain distance from the surface of the skin is maintained. After removing the comb, the lamp when directly applied to different parts of the body guarantees higher doses of therapeutic radiation.

The luminaire is equipped with a Philips UVB 311nm lamp, which allows you to perform a wide range of therapeutic activities. The fixture is easy to use and clean, making it ideal for home therapy.

Phototherapy:

UV phototherapy comes from the 20s of the twenty-first century. With the development of science and technology, artificial light source technology has developed rapidly. PUVA, UVB methods have become the most effective way to treat various types of skin diseases in European and American countries.

In recent years, patients with skin diseases are becoming more numerous, but traditional drugs are not accepted by patients due to defects such as a long period of treatment, side effects, rapid recurrence of the disease, the use of steroids. To help patients, a UV irradiation treatment system has been developed that is very effective in treating skin diseases, i.e. vitiligo, psoriasis, dandruff, eczema, AD.

Phototherapy (or phototherapy) can be used by people who, in normal contact with the sun, experience a deterioration of psoriasis, i.e. after contact with the sun, their changes heal. This is due to the fact that in the case of dermatological exposures, UV rays are selected. UVB radiation is much safer than UVA. Therefore, they can be successfully used in pregnant women, children or people with severely ill liver or cataracts. Phototherapy for psoriasis involves regular exposure of diseased surfaces to ultraviolet radiation. UVB radiation is absorbed primarily by the epidermis itself, thanks to which it is possible to eliminate psoriatic symptoms. Phototherapy can be used both on larger areas of the body and on specified areas (e.g. skin of hands, head, face). The procedure is usually well tolerated by patients and safe. 85% of patients with psoriasis respond to UVB and they constitute the largest group undergoing phototherapy. UVB therapy should be consulted with a dermatologist.

For long-term treatments of diseases such as psoriasis, atopic dermatitis or vitiligo, the quality of medical equipment is essential. You always have to choose the right size lamp for your individual changes.

It is particularly important for the patient to develop a habit of discipline in order to undergo therapy without interruptions. Under optimal conditions, great healing results can be obtained.

Light therapy has its natural origin. Full of energy sunlight has long been a healing effect on a large number of skin diseases.

With the right doses of rays and with the right duration of therapy, improvements in the appearance of the skin can be achieved until it is freed from lesions. Systems for radiation therapy conducted at home are manufactured according to the same strict criteria that are used in the production of devices for equipping professional offices and hospitals.

Home therapy significantly relieves the patient from the necessary visits to the doctor’s office.

Light across its spectrum of radiation transmits the energy needed for life to humans, animals and plants. For thousands of years, the healing effects of sunlight (Heliotherapy) have been used in medicine. Direct contact with salt water, inhalation of brine aerosols and ultraviolet radiation contained in sunlight have a long-lasting healing effect.

Indications for UVB treatment:

UVB radiation is an effective remedy for m.in. on:

• Psoriasis,
• Vitiligo,
• Atopic dermatitis
• Eczema
• Alopecia areata
• Seborrheic dermatitis,
• Sclerosis
• Seborrheic and persistent droplet psoriasis
• Other types of eczema including hand eczema,
• Lichen flat
• Oedema granuloma,
• Lupus erythematosus
• Transplantation against the host,
• Multiform light exanthematous (preventively for hardening the skin),
• Inflammation of pink Gibert's dandruff,
• Pityriasis lichenoides (Przyłuszczyca),
• T-cell skin lymphoma - Fungal granuloma (early stage),
• Acne,
• Hepatic pruritus
• Renal urea pruritus
• Other rare diseases.

Specification – benefits:

• Using a specialized Philips UV lamp while maintaining the best durability and service life,
• Small size, light weight, patients can take the device with them,
• Manual operation,
• Reasonable price, easy to use, patients can treat at home,
• The comb's unique design allows you to treat your scalp,
• Additional reflectors to improve radiation efficiency,
• Unique anti-interference technology to ensure the normal operation of the device in strong magnetic field,
• The blue LCD display combined with the clock function ensures accurate treatment time.

General characteristics of PHILIPS PL-S 9W/01 UVB fluorescent lamps:

• Cap G23d
• Information about the 2-pin shank
• Bubble 2xT12
• Service life 3000 hr
• Durability average EM 8000 hr
• Power 9W
• Technical power of the lamp 8.6 W
• Lamp voltage 60 V
• Lamp Current 0.17 A
• Colour code 01
• UV-B colour assay
• UV-B 100h (IEC) 0.95 W

General characteristics of the luminaire:

• Operating voltage: AC 230V ± 10%, 50Hz ± 2%
• Power: 50VA
• Structure: manual
• Working distance: 0-3 cm
• Effective exposure area: KN-4003BL2：min. 56cm2±10%
• Lamp housing temperature: < 60°C

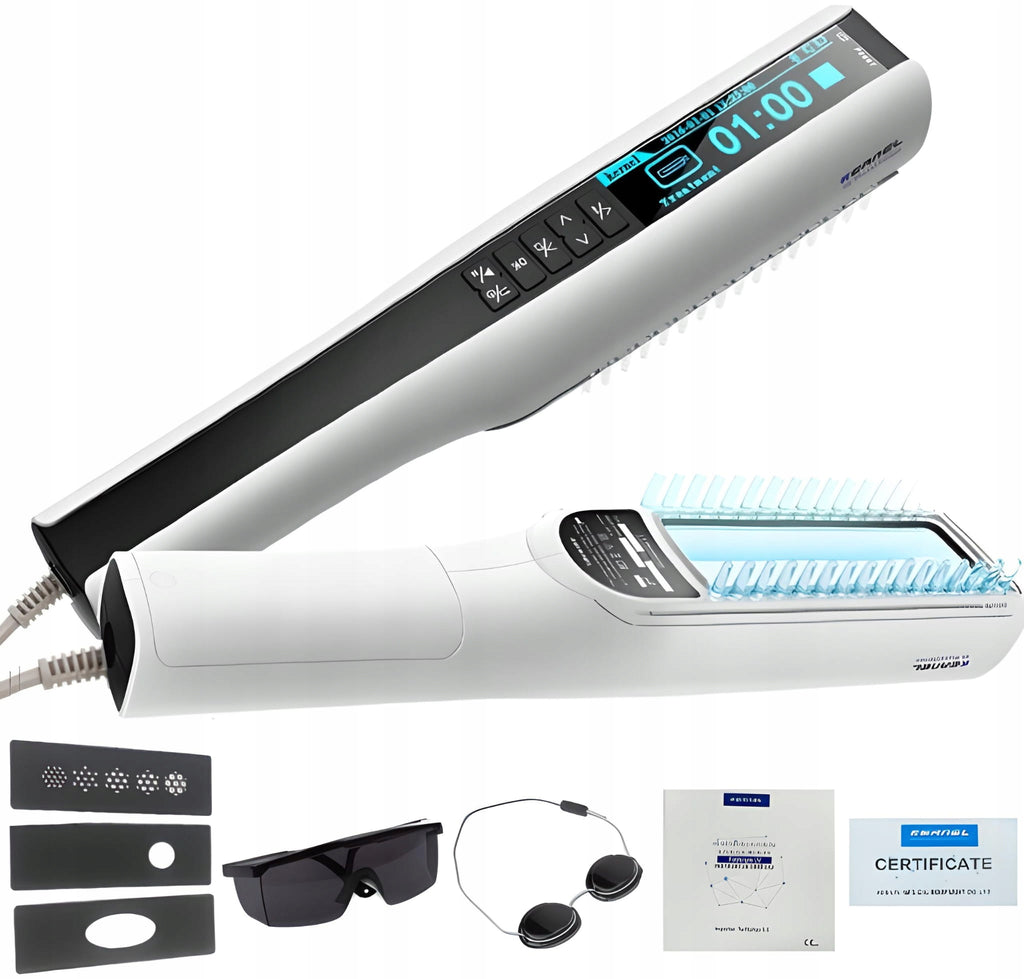

THE OFFERED SET INCLUDES:

1. 1 x mounted original UVB fluorescent lamp 311nm Philips PL-S 9W/01 2P
2. 1 x luminaire with LCD display and programmer
3. 2 x safety glasses (larger 'gogles' and smaller 'fleas')
4. 1 x MED tester to determine the initial radiation dose
5. 2 x instructions for use in Polish and English, in the form of a booklet produced and supplied by the manufacturer

medical devices: Label + CE marking according to. Medical Directive 93/42/EEC and Medical Device Regulation Directive (EU) 2017/745 Certificate C681005 issued by the notified body DNV GL CE 2460 from NORWAY - for inspection data sheet.

Advertisers: TECHLAMPS

Manufacturer: KERNELMED - Kernel Medical Equipment Co., Ltd.

Authorised representative: Caretechion GmbH

“This is a medical device. Use it according to the instructions for use or label. ”
