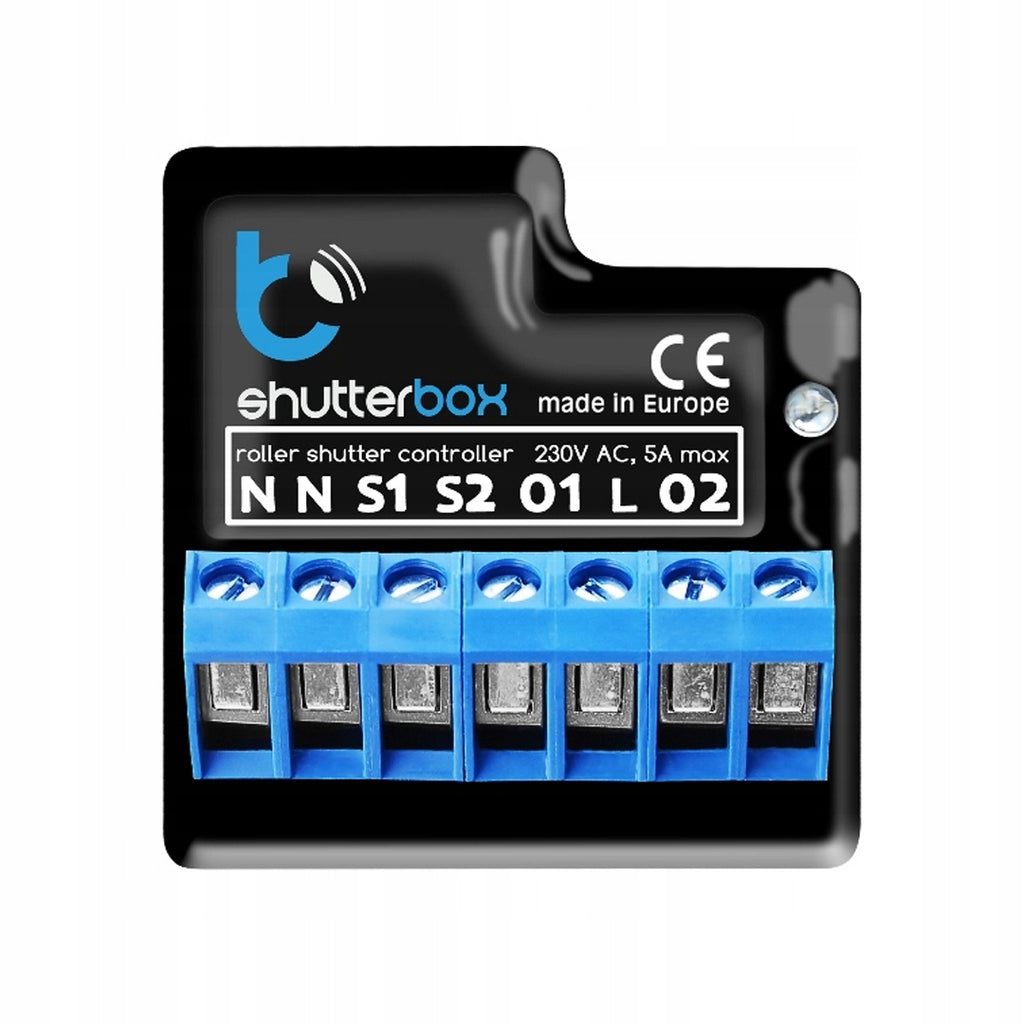

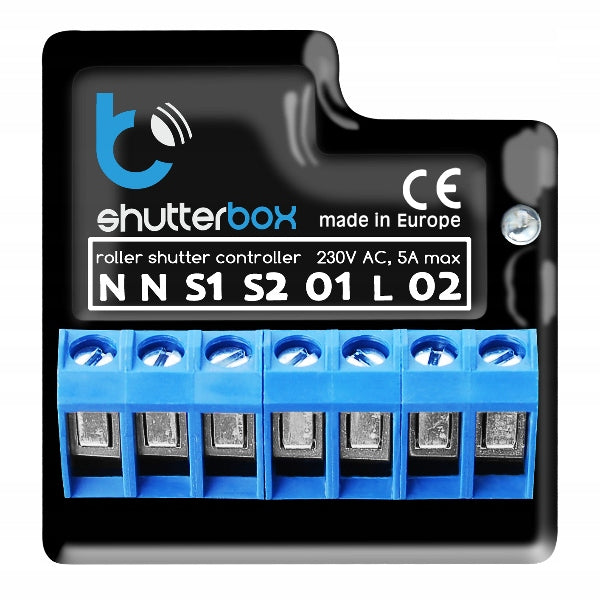

Užsklandų valdiklis BLEBOX SHUTTERBOX DRIVER 2.0, WiFi, Android/iOS, 230V

Trumpai apie prekę

Prekė: Užsklandų valdiklis BLEBOX SHUTTERBOX DRIVER 2.0, WiFi, Android/iOS, 230V. Kategorija: Išoriniai moduliai.

• Gamintojas: Blebox
• Modelis: ShutterBox

☑ General information

BLEBOX SHUTTERBOX 2.0, controller for window blinds BleBox shutterBox 2.0 - is a module that allows you to control window blinds using WiFi network. Control is possible using the smartphone app from anywhere in the world via the Internet. Intuitive configuration with a standard web browser.

ShutterBox has screw terminals for mounting wires. Due to its small size, the unit can be installed in an electric can. The module powered by 230 V. ShutterBox is a controller designed to wirelessly control drives of electric roller shutters, awnings, projection screens, etc. using smartphones and tablets, also from anywhere in the world.

Communication:

• Communication standard: μWiFi, WiFi compatible
• Type of transmission: bidirectional, encrypted
• Frequency: 2,4 GHz
• API: open
• Working mode: direct connection (as Access Point), WiFi connection via standard router, connection with access from anywhere in the world (only Internet access required)
• Compatible devices: Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices that fully support HTML5, soon Windows Phone and Apple Watch

Configuration instructions:

To connect the module to the WiFi network, we first connect the computer to the WiFi network created by the BleBox module. Start your web browser and enter your device address. The next step is to follow the instructions on the configuration page, where you need to select the local network (home/office) and then enter the password for access to this network. To control the BleBox module from your phone, download the application from the Android Play store application wBox - Control Everthing or for iOs wBox. If the phone/tablet is on the same network as the BleBox module, the module will be automatically added to the application.

⚙ Technical data

• Power supply voltage: 230 V AC
• Energy consumption: < 1W

Control outputs:

• Number of control outputs: 2
• Control output type: relay, NO
• Maximum load: 5A

Button inputs:

• Number of inputs: 2
• Input type: logical, push button, shorted to L, configurable

✅ Physical features of the device:

• Dimensions: 40 x 48 x 20 mm
• Housing: made of polyurethane composition, self-extinguishing for thermal class B (130°C)
• Degree of protection: IP20
• Installation method: In a flush-mounted box, in a receiver housing, e.g. roller blinds

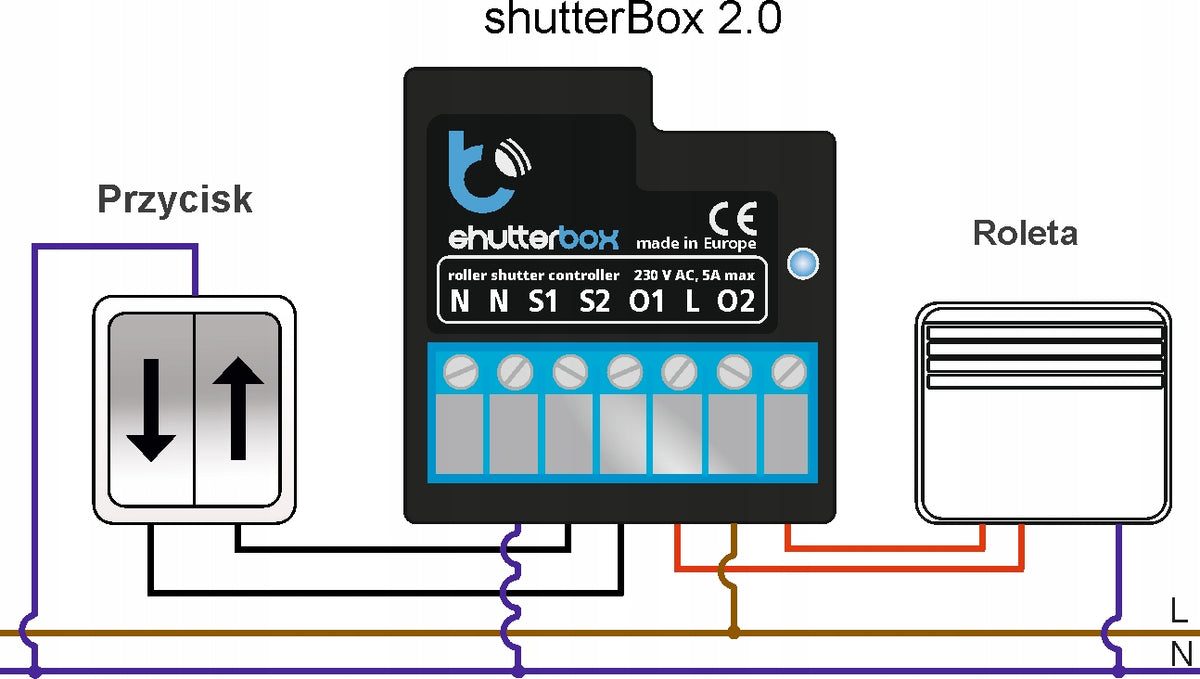

⬇ Installation diagram for Shutterbox 2.0 ⬇
